Hitchdoc Six-Way Adjustable Blade for Skid Steer Loaders

Description

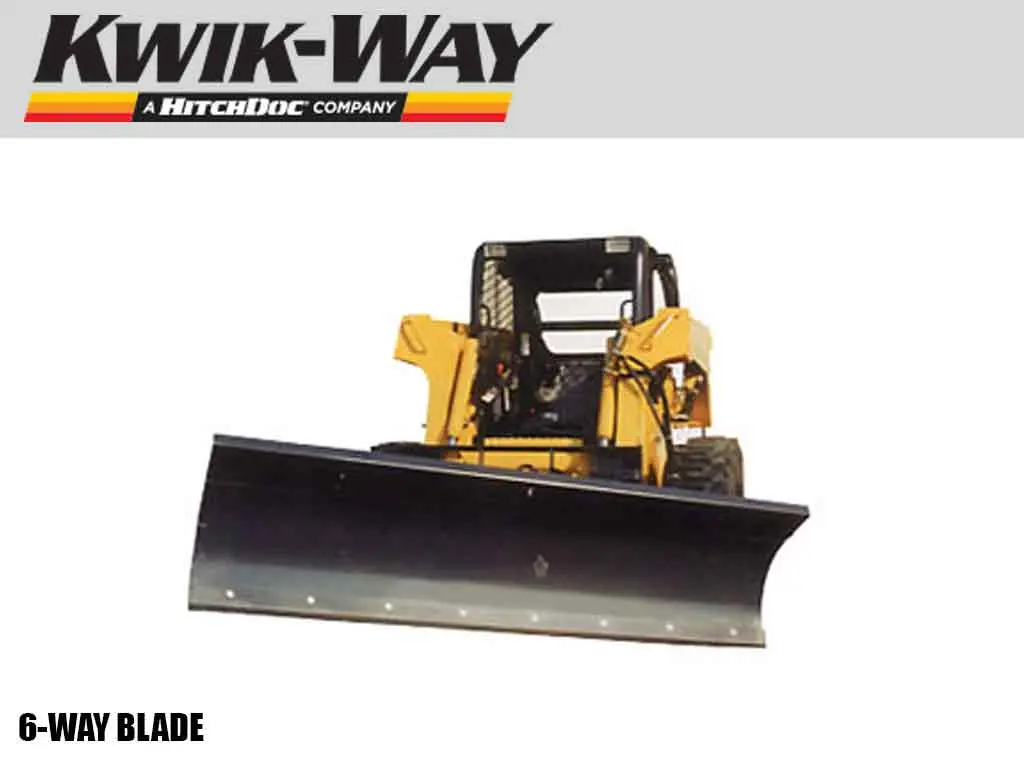

6-Way Blade

Take on heavy dirt, rock or material movement with the hydraulically controlled 6-Way Blade. Widths are 6’, 7’ and 8’ while standing 22” tall and manufactured from American steel. This professional series blade is ideal for any dirt project with the universal skid steer mount and hydraulic couplers.

Standard Features:

• Heavy Dirt or Snow – Let nothing stand in your way when moving dirt, earth or other materials as this professional, heavy duty dozer blade surpasses expectations
• Moldboard Tilt & Rotation – Tilt blade ends up or down 10 degrees on each side for variable slope and/or 30 degree rotation to the right or left for a changed cut angle
• Electro-hydraulic Controls – Electric controls over hydraulics make it easy to position the blade with a different angle or tilt
• 4 Double Hydraulic Cylinders – Quick connect couplers allow for easy attaching to any skid steer with over 50 HP and power the variety of angles your blade can reach without ever leaving the cab
• Easy Transitions – Use this blade for dirt work or snow management with a quick change of the trip springs and lock out bolts
• Adjustable Depth Guides – Manually change around the spacers on the skid shoes to modify blade height to control blade height and surface contact
• Universal Mount – Allows for one standard attachment for all skid steers, no need for special hook-ups or attachments
• Solid Cutting Edge – Removable, abrasion resistant steel cutting edge is standard on all blades and will plow through the majority of obstructions
• High Quality and Out Performing – Manufactured with US Prime Steel and inspected against high quality standards is why our employees are so proud of this Midwest made product
• Rolled Steel Blade – We take the time to roll our thick steel for increased pressure resistance and minimize potential breakdowns by offering one solid steel blade
• Continual Improvement – At HitchDoc, we take our products out year after year and push them to the breaking point, whether moving logs, earth, snow, rock, mulch, we try it all to maintain our quality levels

Optional Features:

• 8 inch Blade Extension – Attaches to the top of the blade and made from steel to increase capacity
• Rubber Cutting Edge – This 1 inch thick, 6 inch wide option minimizes wear on the plowing surface

SPECS
