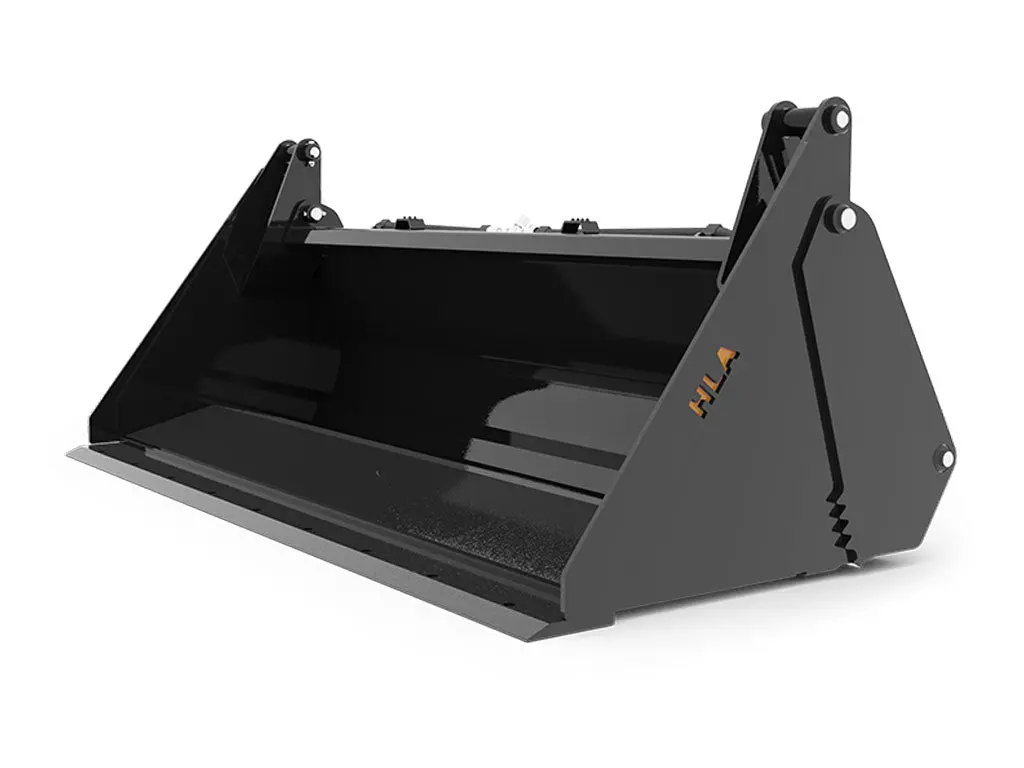

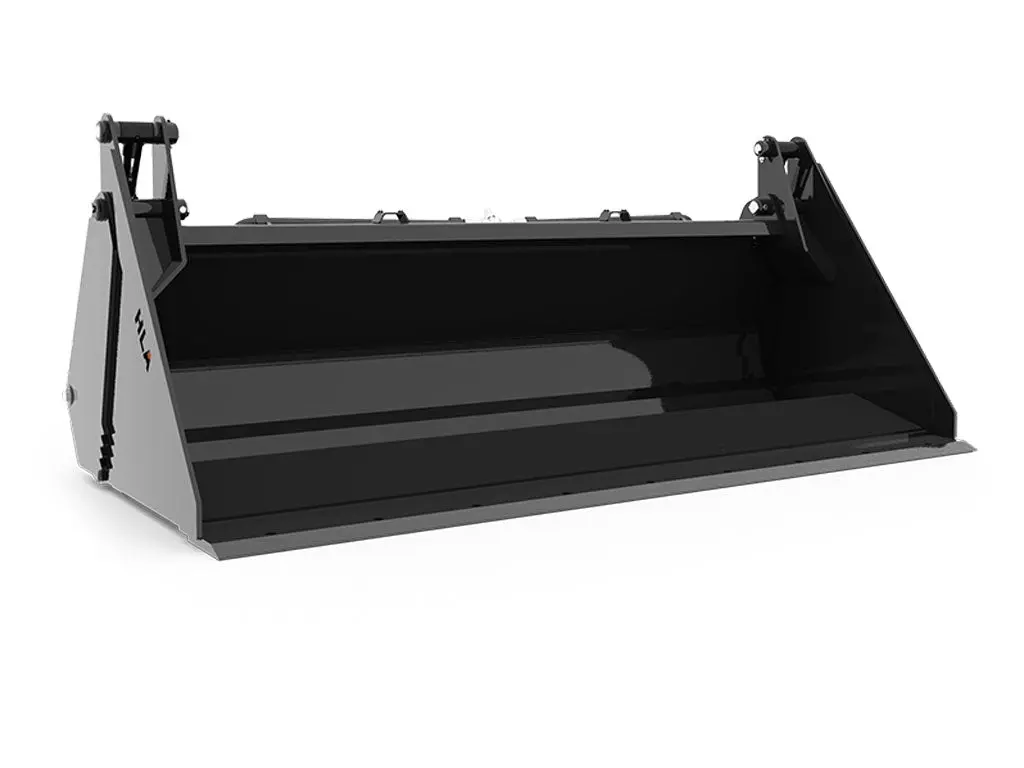

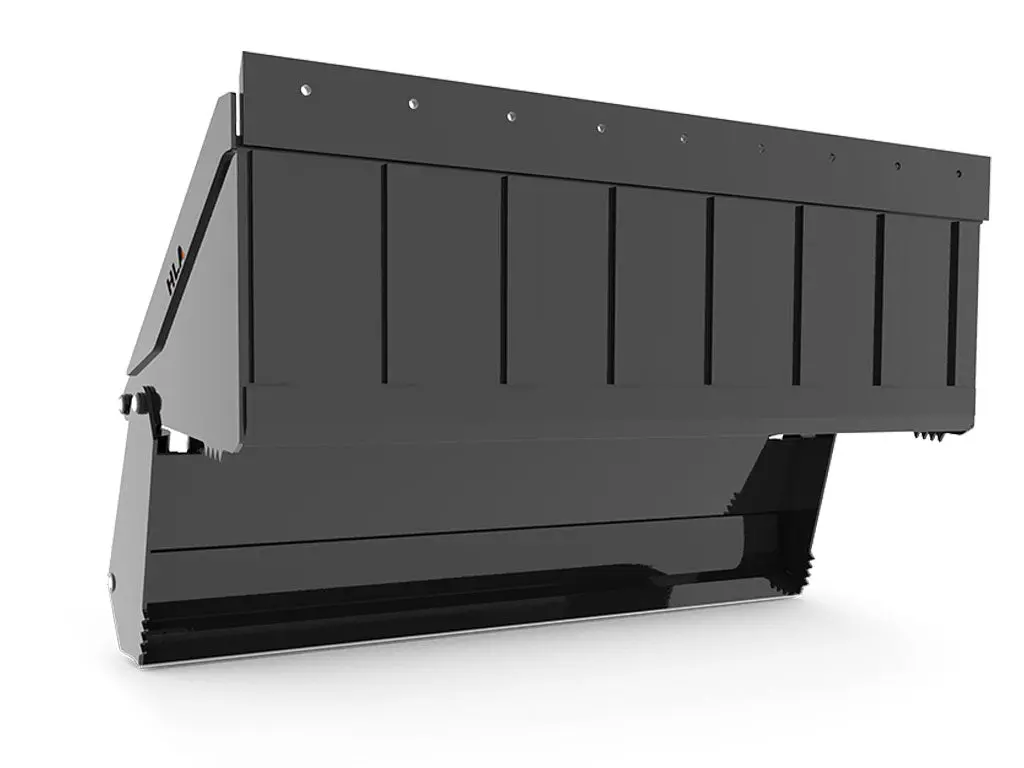

4-IN-1 Bucket
SKID STEER
Special Features

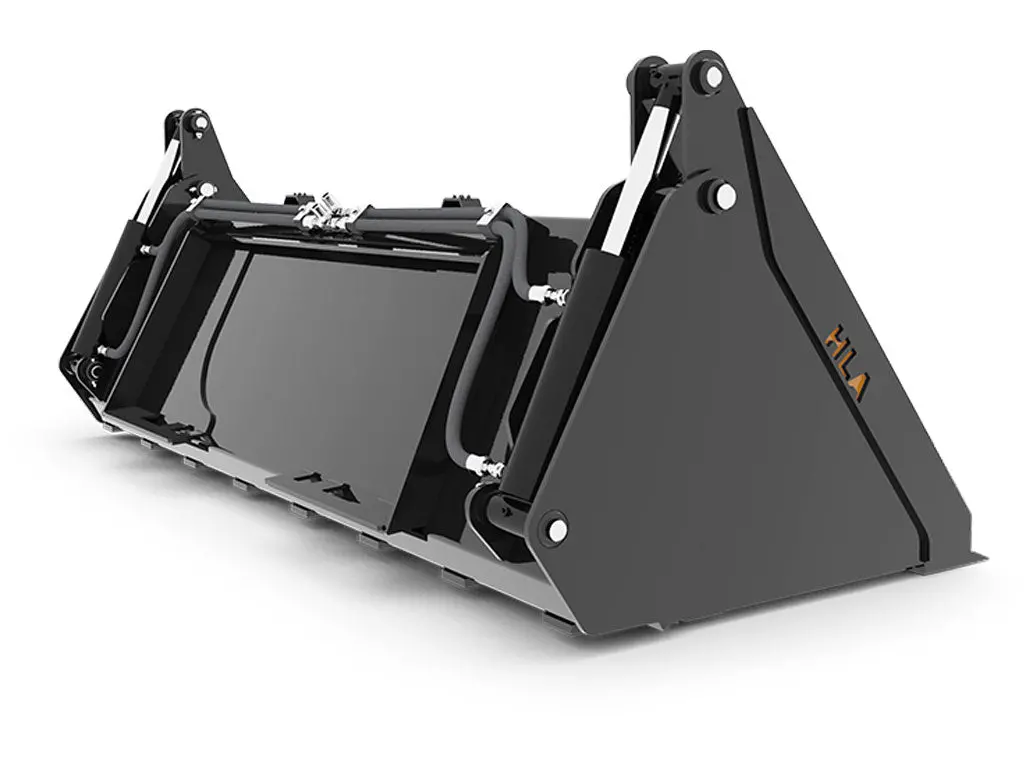

- Includes 2-1/2″x 8″ cylinders
- Main bucket material 1/4″
- 3/8″ end plates
- 3/8″ clam floor bottom
- Skidsteer – 29″ deep, 20″ high
- Loader – 33″ deep, 26″ high
- Drilled for standard bolt on cutting edge
- NOTE: Add 2″ to Inside Width column to calculate outside width of bucket
Price includes:
- 90″ hose kit with flat face couplers
- Spring hose mount kit
SPECS
| Part Number | Description | INSIDE WIDTH INCHES |
STRUCK CAP. CU. FT. |
SAE HEAPED CAP. CU. FT. |
APPROX. WEIGHT LBS. |
|---|---|---|---|---|---|
| SBFNO66 | 66″ Skidsteer 4-In-1 Bucket | 66 | 10.6 | 12.8 | 880 |
| SBFNO72 | 72″ Skidsteer 4-In-1 Bucket | 72 | 11.6 | 15.1 | 935 |
| SBFNO78 | 78″ Skidsteer 4-In-1 Bucket | 78 | 12.5 | 16.4 | 980 |
| SBFNO84 | 84″ Skidsteer 4-In-1 Bucket | 84 | 13.5 | 17.7 | 1040 |
| HK90 | Optional 90″ Hose Kit c/w Flat Faced Couplers | ||||
| SHMK | Optional Spring Hose Mount Kit |
