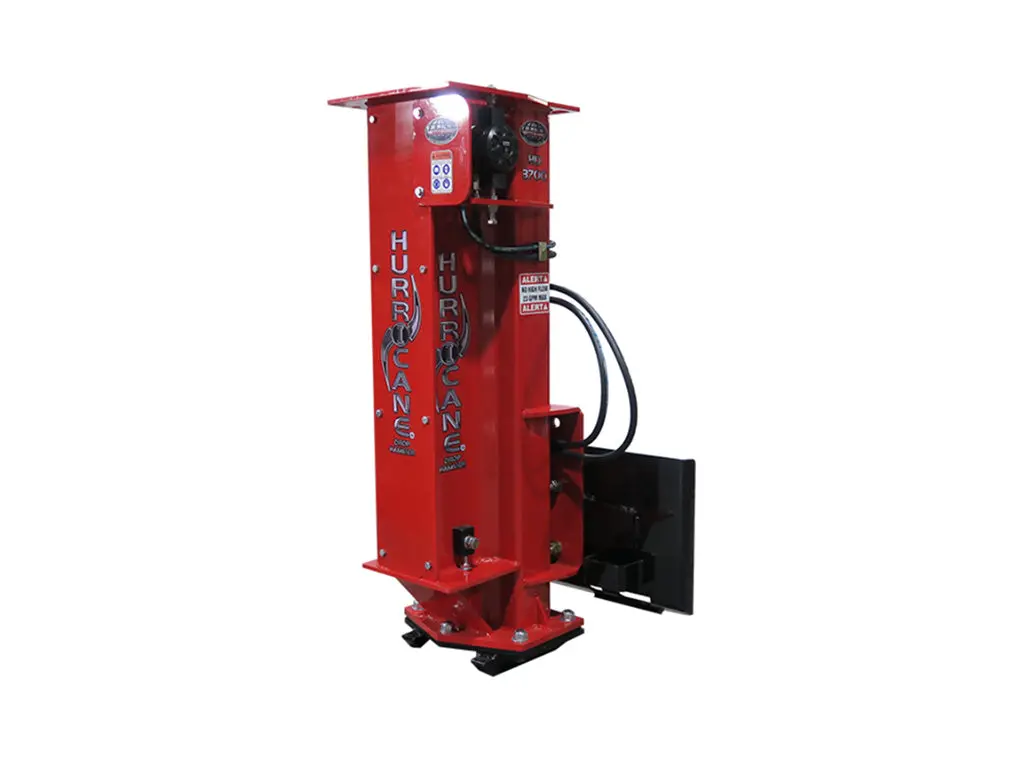

HD3700 Drop Hammer

HD3700 Breaks Up To 12 Inches of Concrete

The Hurricane Drop Hammer HD3700 is a high-production, low-maintenance drop hammer for breaking flat concrete. Drop hammers are superior to hydraulic hammers or breakers at breaking flat concrete in every important category. The HD3700 is easily connected to a skid steer or an excavator. It efficiently breaks flat concrete in industrial tear-outs, as well as parking lots, curbs, roads, runways, aprons, and sidewalks up to 12 inches thick.

HD3700 Drop Hammer Advantage

• Drop Hammer impact-to-weight ratio crushes that of a hydraulic hammer.

• The bolt-on-ground engagement end plate makes maintenance accessible and easy and eliminates vibration back to the skid steer or excavator found in hydraulic breakers.

• Low maintenance because there are no points, bushings, seals, or accumulators to replace, and there are no oil leaks or nitrogen charging found on hydraulic breakers.

• Drop hammers pulverize concrete, making clean-up and disposal easier and less expensive, with no heavy, large concrete slabs to deal with like a hydraulic hammer.

SPECS

Impact Energy Blow	3,700 Ft/Lbs/Class
Blows Per Minute	25 – 30
Total Impact Energy (per minute)	112,000
Operating Weight	2,300 lbs
Max Oil Flow Demand	23 GPM
Min Hydraulic Pressure	2,200 PSI
Operating Height (weight extended)	7′ 6″
Dimensions (HxWxD)	5′ x 1’ 4″ x 1’ 6″
Breaks concrete thickness up to	12 inches*

_{*Thickness production estimated and dependent upon reinforcement}
