Description
DESCRIPTION

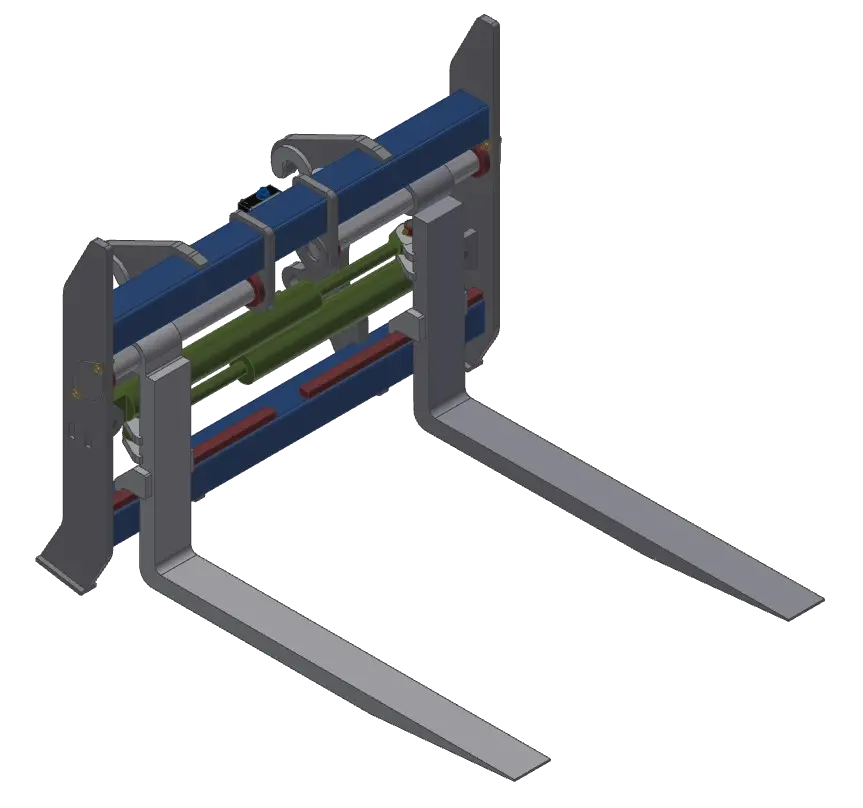

Hydraulic Adjustable Construction Forks (Class 200 Only)
TAG Hydraulic Construction Forks Offer A Heavy Duty Fork Solution For General Construction Work With The Added Feature Of Hydraulically Adjusted Tines. Tines Will Evenly Narrow And Widen From The Cab Thru Hydraulic Control.
- Heavy Duty Carriage
- Rod Mounted Tines Hydraulically Adjustable
- Split Collar Lock Collars Allow Repositing Of Tines Without Damaging Rods
- Carriage Widths: 60″ – 106″ – Tine Lengths: 48″ – 96″
- Requires 3Rd Function Hydraulics
- **These Will Not Side Shift**
- Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
- Please use the “FITS” tab to find compatible Make and model machines.
DIRECTIONS
- CHOOSE YOUR MOUNTING / COUPLER SYSTEM
- CHOOSE YOUR SIZE
- ADD ITEM(S) TO CART
- PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
- ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
SPECIFICATIONS
Pin On
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24″ Load | Weight |
| 200 | P200CF6048H | 60″ | 2.0 X 4″ X 48″ | 22″-56″ | 12600 LBS | 1600 LBS |
| 200 | P200CF6060H | 60″ | 2.0″ X 4″ X 60″ | 22″-56″ | 12600 LBS | 1675 LBS |
| 200 | P200CF6072H | 60″ | 2.0″ X 4″ X 60″ | 22″-56″ | 12600 LBS | 1750 LBS |
| 200 | P200CF6084H | 60″ | 2.0″ X 4″ X 60″ | 22″-56″ | 12600 LBS | 1825 LBS |
| 200 | P200CF6096H | 60″ | 2.0″ X 4″ X 60″ | 22″-56″ | 12600 LBS | 1900 LBS |
Quick Coupler
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24″ Load | Weight |
| 200 | QC200CF6048H | 60″ | 2.0 X 4″ X 48″ | 22″-56″ | 12600 LBS | 1600 LBS |
| 200 | QC200CF6060H | 60″ | 2.0″ X 4″ X 60″ | 22″-56″ | 12600 LBS | 1675 LBS |
| 200 | QC200CF6072H | 60″ | 2.0 X 4″ X 60″ | 22″-56″ | 12600 LBS | 1750 LBS |
| 200 | QC200CF6084H | 60″ | 2.0″ X 4″ X 60″ | 22″-56″ | 12600 LBS | 1825 LBS |
| 200 | QC200CF6096H | 60″ |
2.0″ X 4″ X 60″ |
22″-56″ | 12600 LBS | 1900 LBS |
