DESCRIPTION

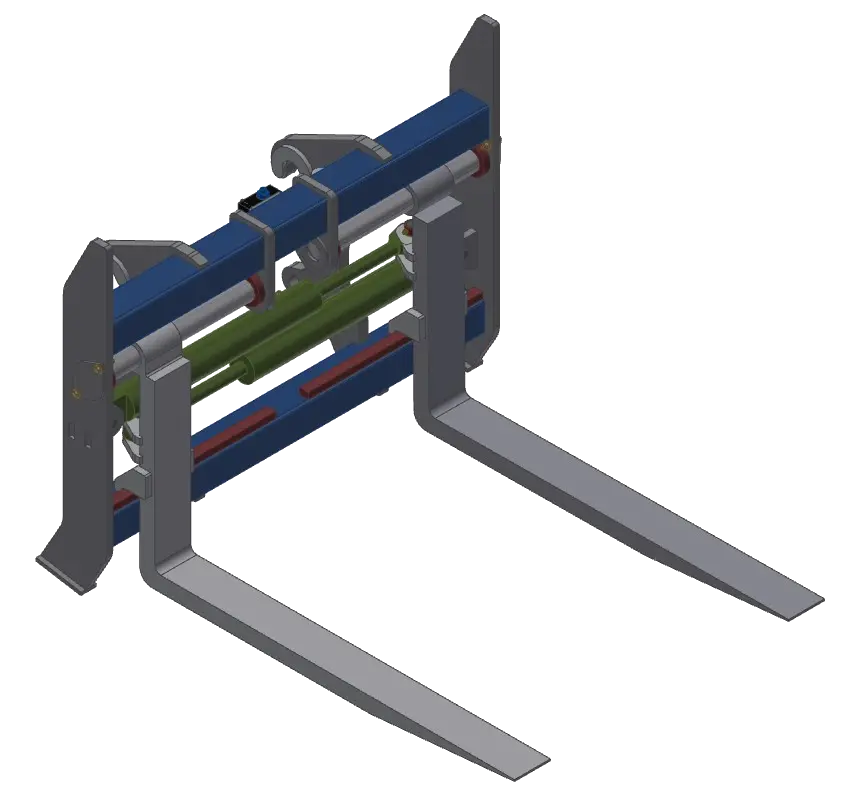

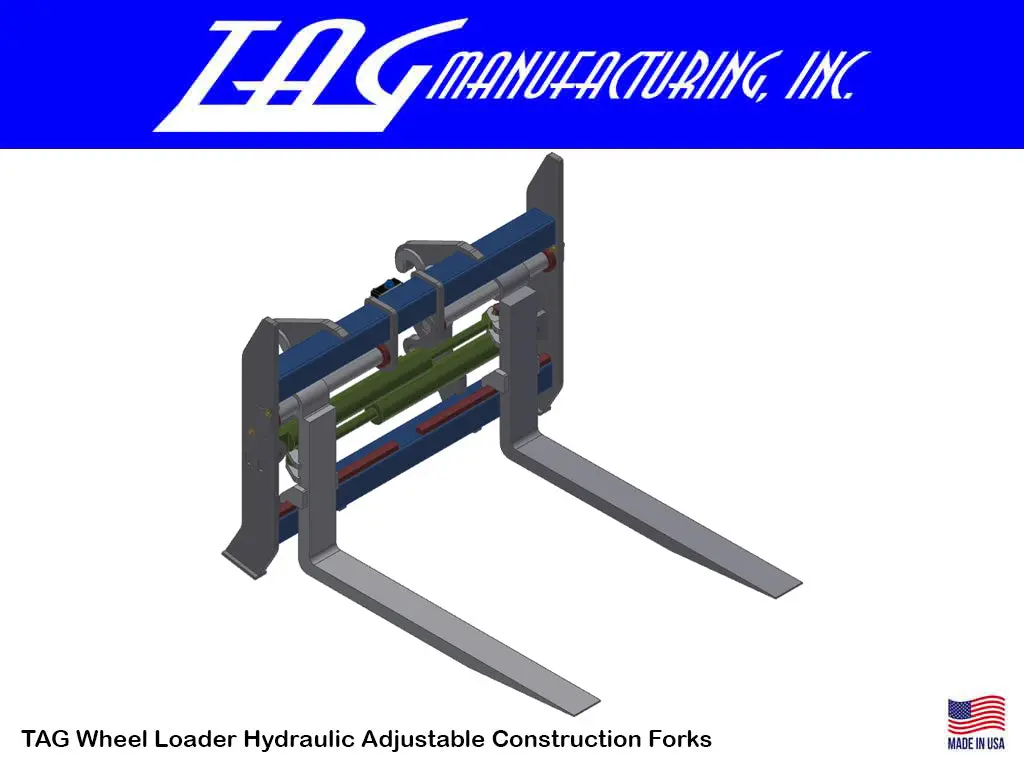

Hydraulic Adjustable Construction Forks (Class 700 Only)
TAG Hydraulic Construction Forks Offer A Heavy Duty Fork Solution For General Construction Work With The Added Feature Of Hydraulically Adjusted Tines. Tines Will Evenly Narrow And Widen From The Cab Thru Hydraulic Control.
- Heavy Duty Carriage – Rod Mounted Tines Hydraulically Adjustable
- Split Collar Lock Collars Allow Repositing Of Tines Without Damaging Rods
- Carriage Widths: 60″ – 106″
- Tine Lengths: 48″ – 96″
- Requires 3Rd Function Hydraulics
- **These Will Not Side Shift**
- Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
- Please use the “FITS” tab to find compatible Make and model machines.
DIRECTIONS
- CHOOSE YOUR MOUNTING / COUPLER SYSTEM
- CHOOSE YOUR SIZE
- ADD ITEM(S) TO CART
- PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
- ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
SPECIFICATIONS
Pin On
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24″ Load | Weight |
| 700 | P700CF10660H | 106″ | 3.5″ X 8″ X 60″ | 40″-102″ | 51700 LBS | 3100 LBS |
| 700 | P700CF10672H | 106″ | 3.5″ X 8″ X 72″ | 40″-102″ | 51700 LBS | 3300 LBS |
| 700 | P700CF10684H | 106″ | 3.5″ X 8″ X 84″ | 40″-102″ | 51700 LBS | 3500 LBS |
| 700 | P700CF10696H | 106″ | 3.5″ X 8″ X 96″ | 40″-102″ | 51700 LBS | 3700 LBS |
Quick Coupler
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24″ Load | Weight |
| 700 | QC700CF10660H | 106″ | 3.5″ X 8″ X 60″ | 40″-102″ | 51700 LBS | 3100 LBS |
| 700 | QC700CF10672H | 106″ | 3.5″ X 8″ X 72″ | 40″-102″ | 51700 LBS | 3300 LBS |
| 700 | QC700CF10684H | 106″ | 3.5″ X 8″ X 84″ | 40″-102″ | 51700 LBS | 3500 LBS |
| 700 | QC700CF10696H | 106″ | 3.5″ X 8″ X 96″ | 40″-102″ | 51700 LBS | 3700 LBS |
