Kato AS12 Compact Skid Steer Loader

Description

DESCRIPTION

12/25

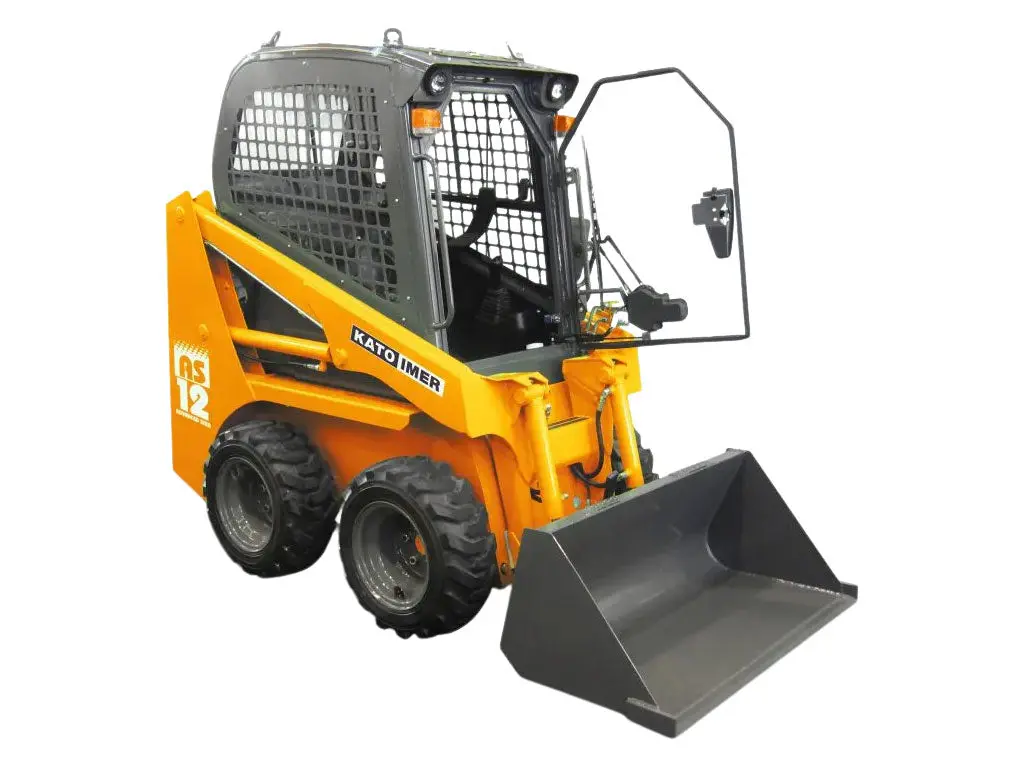

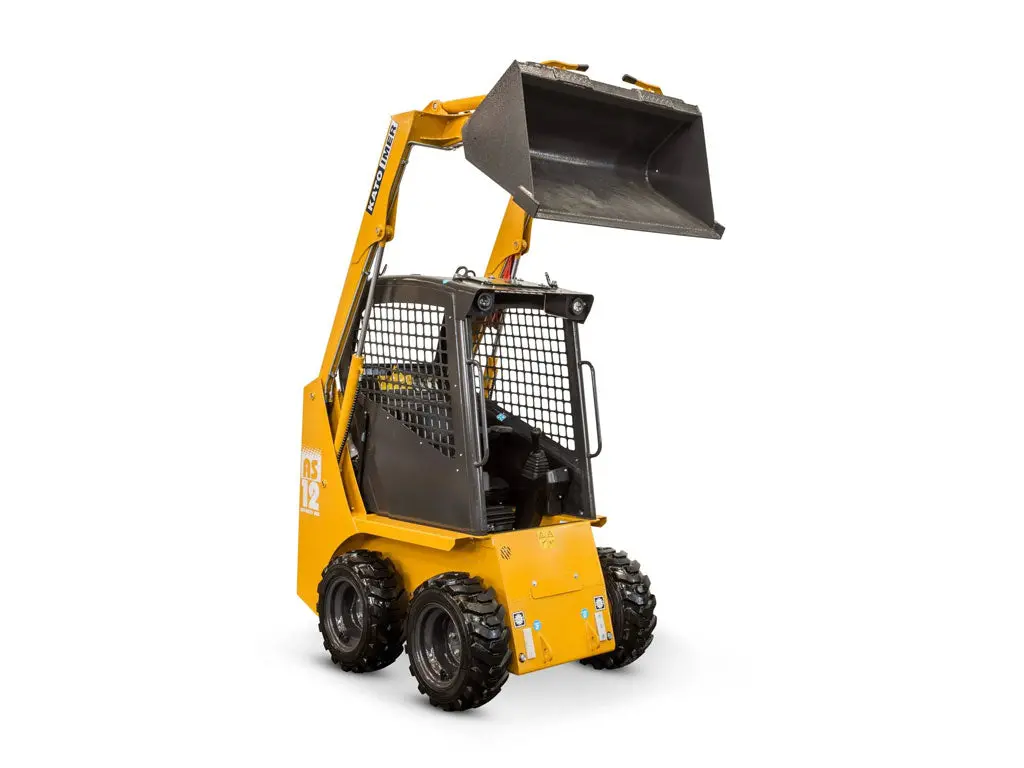

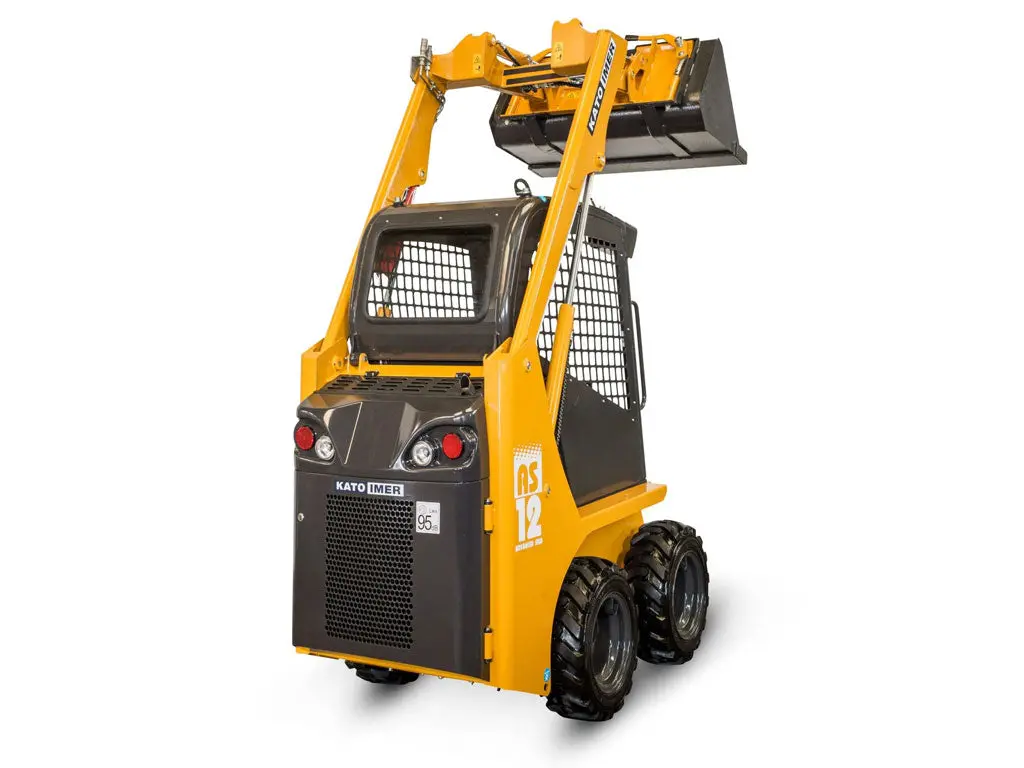

KATO AS12 SKID STEER LOADER

COMPACT POWER, SPEED & PRECISION

The AS12 Skid Steer Loader delivers reliable performance, fast cycle times, and exceptional maneuverability in a compact rubber-tire design. Built for working in confined spaces, the AS12 features pilot-operated joystick controls, two-speed travel, and a lightweight footprint that maximizes flexibility without sacrificing power.

Powered by a 21 HP Yanmar diesel engine, the AS12 offers an operating weight of 2,955 lbs, a 728 lb SAE rated operating capacity, and an impressive 1,658 lb bucket breakout force. Whether you’re handling landscaping, construction, material handling, or property maintenance, this skid steer provides smooth operation, strong hydraulic performance, and dependable durability on every jobsite.

---

STANDARD FEATURES

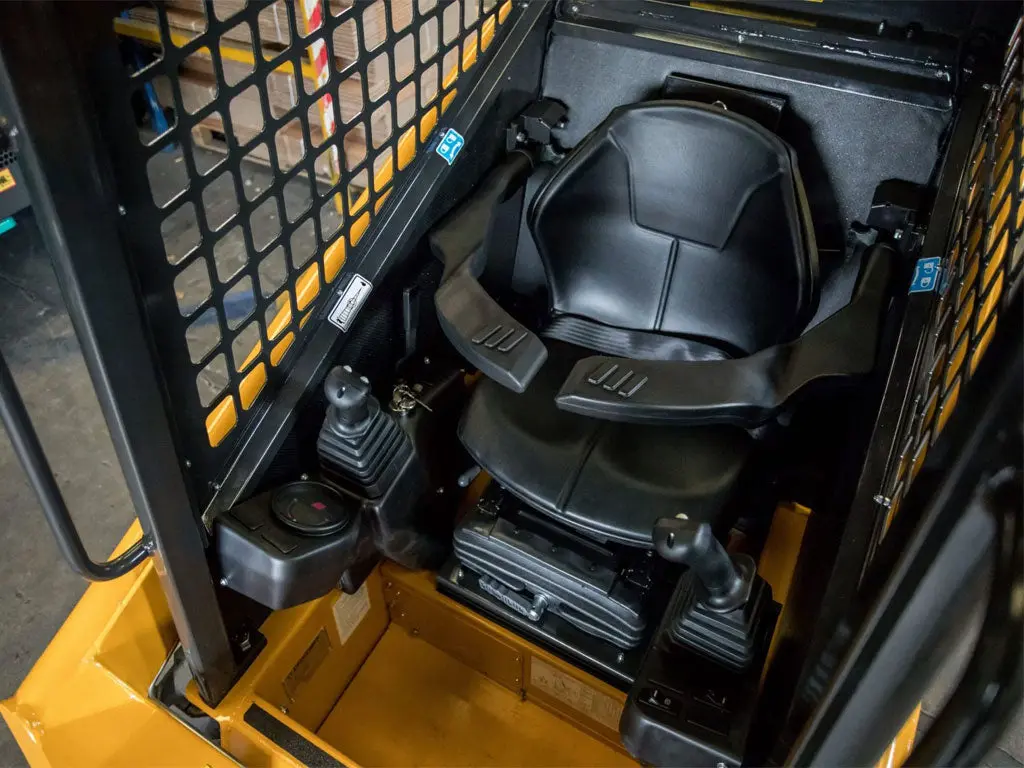

• Pilot-operated joystick controls

• Universal coupler (Toro-style)

• Two-speed travel

• Auxiliary hydraulics

• 23 x 8.5-12 wide rubber tires & rims

• Push-button boom arm float

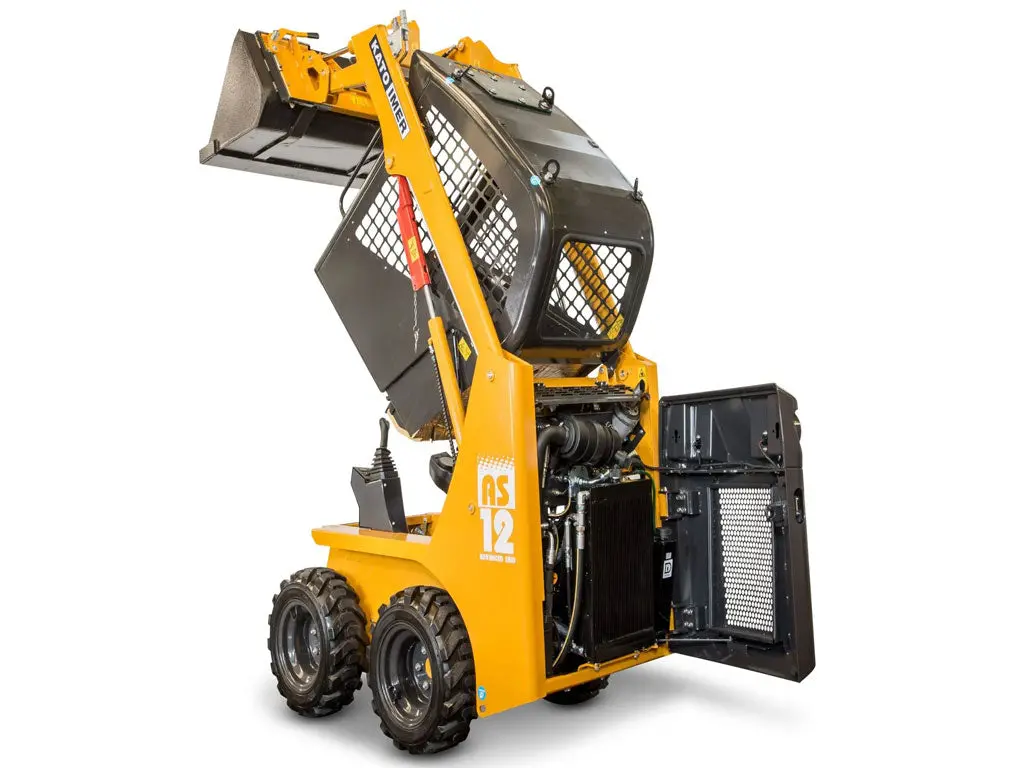

• Tilt-up cab for easy service access

• 44” universal smooth bucket

---

PERFORMANCE & SPECIFICATIONS

• Operating weight: 2,955 lbs (transport weight: 2,778 lbs)

• SAE rated operating capacity (35%): 728 lbs

• Tipping load: 1,455 lbs

• Bucket breakout force: 1,658 lbs

• Travel speed: 0–4.35 mph

• Engine: Yanmar 3TNV76, 21 HP @ 2500 RPM

• Fuel consumption: 1.26 gal/hr, fuel capacity: 2.2 gal

• Hydraulic pressure: 2,610 PSI, auxiliary flow: 7.4 GPM

• Standard bucket capacity: 13.06 cu ft

• Tire size: 23 x 8.5 x 12

• ROPS/FOPS certified: ISO 3471 & ISO 3449 Level 1

---

The AS12 Skid Steer Loader combines compact size, powerful performance, and operator-friendly controls, making it an ideal choice for tight job sites that demand reliability, speed, and versatility.

SPECS

PERFORMANCE
OPERATING WEIGHT	2955 LBS
TRANSPORT WEIGHT	2778 LBS
SAE LOAD CAPCITY 35%	728 LBS
TIPPING LOAD	1455 LBS
BUCKET BREAKOUT FORCE	1658 LBS
TRAVEL SPEED	0-4.35 MPH
ENGINE
MANUFACTURE	YANMAR
MODEL	3TNV76
OUTPUT	21 HP / 2500 RPM
BATTERY	12 VOLT
FUEL CONSUMPTION	1.26 GAL / HR
COOLING	WATER
FUEL CAPACITY	2.2 GAL
HYDRAULIC SYSTEM
PREASURE	2610 PSI
AUX FLOW	7.4 GPM
BUCKET
STD BUCKET	13.06 CU FT
TIRES
SIZE	23-8.5X12
ROPS/FOPS
CERTIFICATIONS	ISO3471:1994, ISO 3449:1998 LEVEL 1
REFILLING
COOLING	1 GAL
FUEL	5.3 GAL
HYDRAULICS	10.3 GAL
HYD TANK	5.3 GAL
NOISE
OPERATOR	85 DBA
EXTERNAL	101 DBA
