Kato CL35-4F Compact Track Loader

Description

DESCRIPTION

12/25

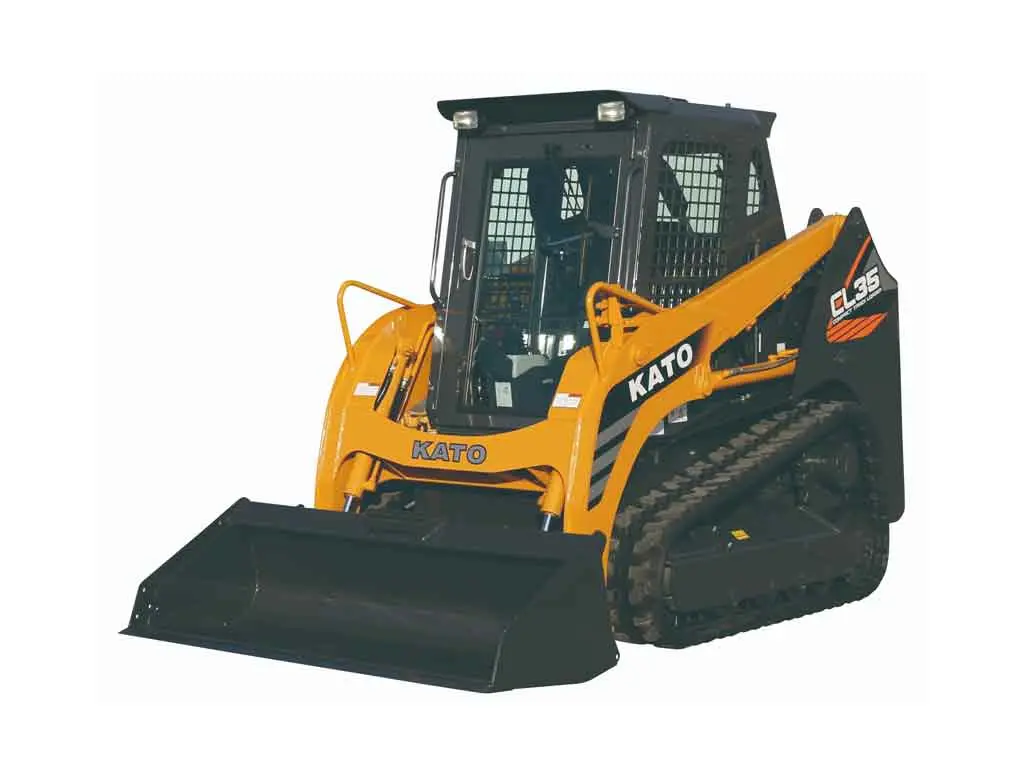

CL35-4F COMPACT TRACK LOADER

DURABLE, HIGH-PERFORMANCE COMPACT TRACK LOADER BUILT FOR TOUGH JOBS

The CL-35 Track Loader is engineered for maximum performance, operator comfort, and long-term reliability in demanding work environments. Built on a rock-solid platform with heavy-duty construction, the CL-35 delivers exceptional usability and control—even in harsh jobsite conditions. Powered by KATO’s proven hydraulic system, the machine responds smoothly and precisely to operator input, providing confident performance across a wide range of applications.

Designed with efficiency and ease of maintenance in mind, the CL-35 combines eco-friendly operation, rugged durability, and intuitive controls to help operators work smarter and more productively. Whether you’re grading, loading, material handling, or running hydraulic attachments, the CL-35 is built to perform wherever the job takes you.

---

AVAILABLE CONFIGURATIONS

OROPS Configuration

• Tilt-up operator’s compartment

• Pilot-operated joystick controls

• Two-speed travel

• Auxiliary hydraulics

• 12.6″ rubber tracks

• Universal quick attach

• Push-button boom arm float

• Auxiliary Hydraulic Quick Connect Kit

• Base machine excludes bucket

EROPS Configuration

• All OROPS features plus:

• Fully enclosed cab

• Heat and air conditioning

• Base machine excludes bucket

Description	Specification
Tipping Load	4916 lbs
Operating Weight	7804 lbs
Bucket Breakout	6474 lbs
Horse-power	62 hp
Engine	Kubota V2403-CR

* Shipping will have to be quoted separately. This item is to big for a box truck.

SPECS

Bucket Capacity

Vessel Capacity Struck	3.5 cu. yd.
Vessel Capacity Heaped	5.0 cu. yd.
Bucket Capacity SAE Heaped	14.3 cu. ft.

Dimensions

Bucket Width	5’8
Dump Clearance	2’8
Max Dumping Angle	60°
Height From Ground	3’10

Weights

Transportation Weight	7,645 lbs.
Operating Weight	7,826 lbs.

Performance

Travel Speed – High	6.2 mph
Travel Speed – Low	4.2 mph

Stability

Gradeability

30
