Lowe XR21 Skid Steer Trencher Attachment

Description

DESCRIPTION

9/25

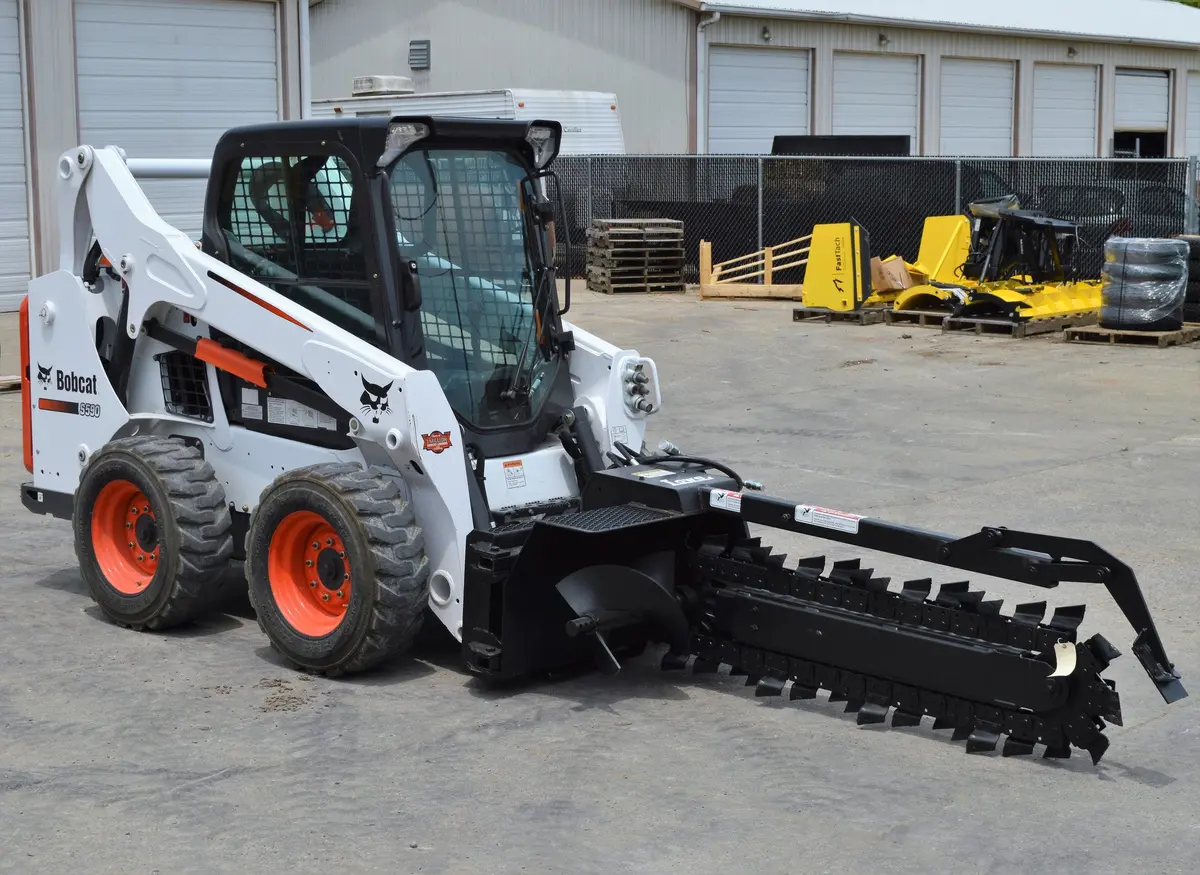

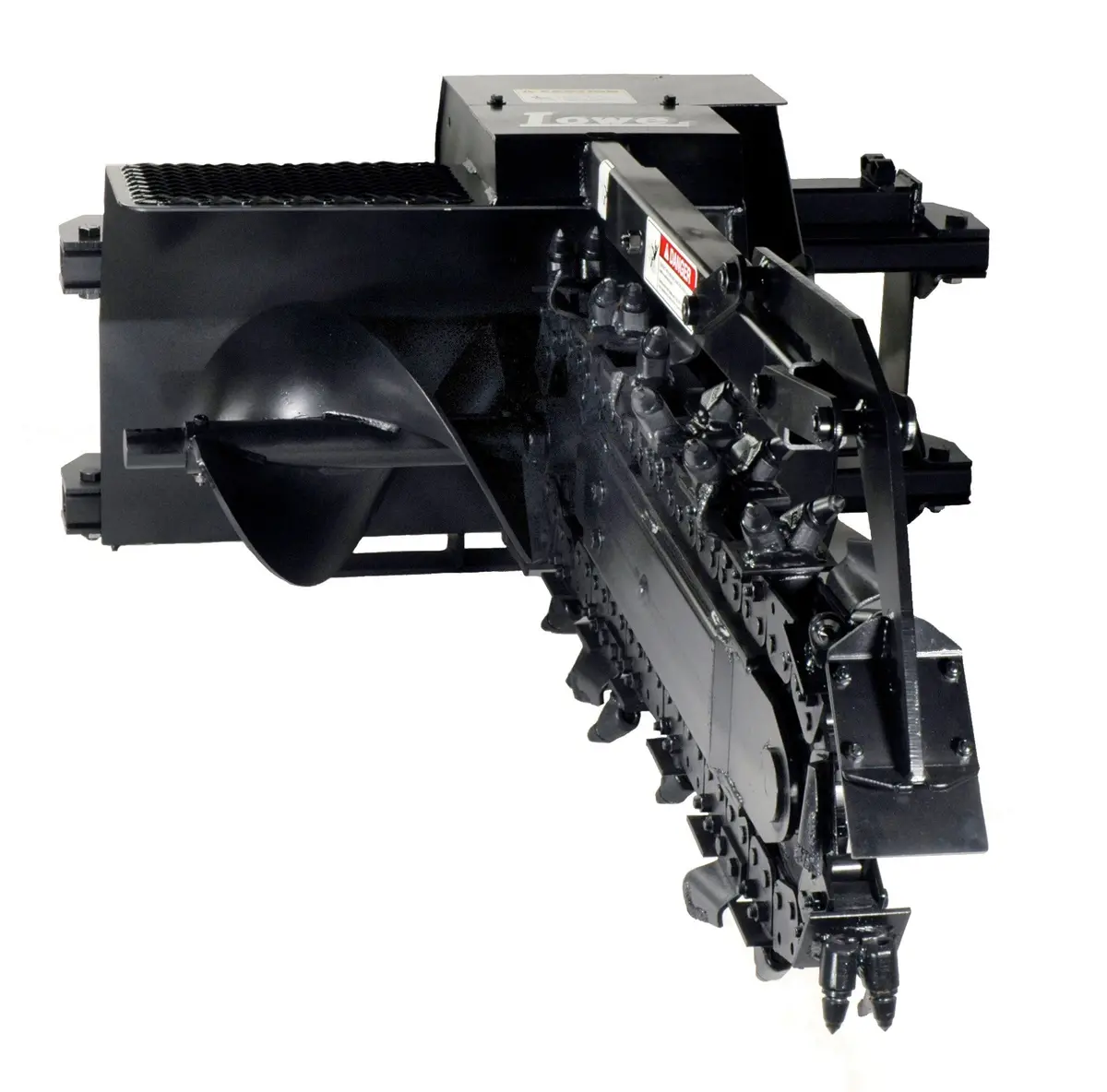

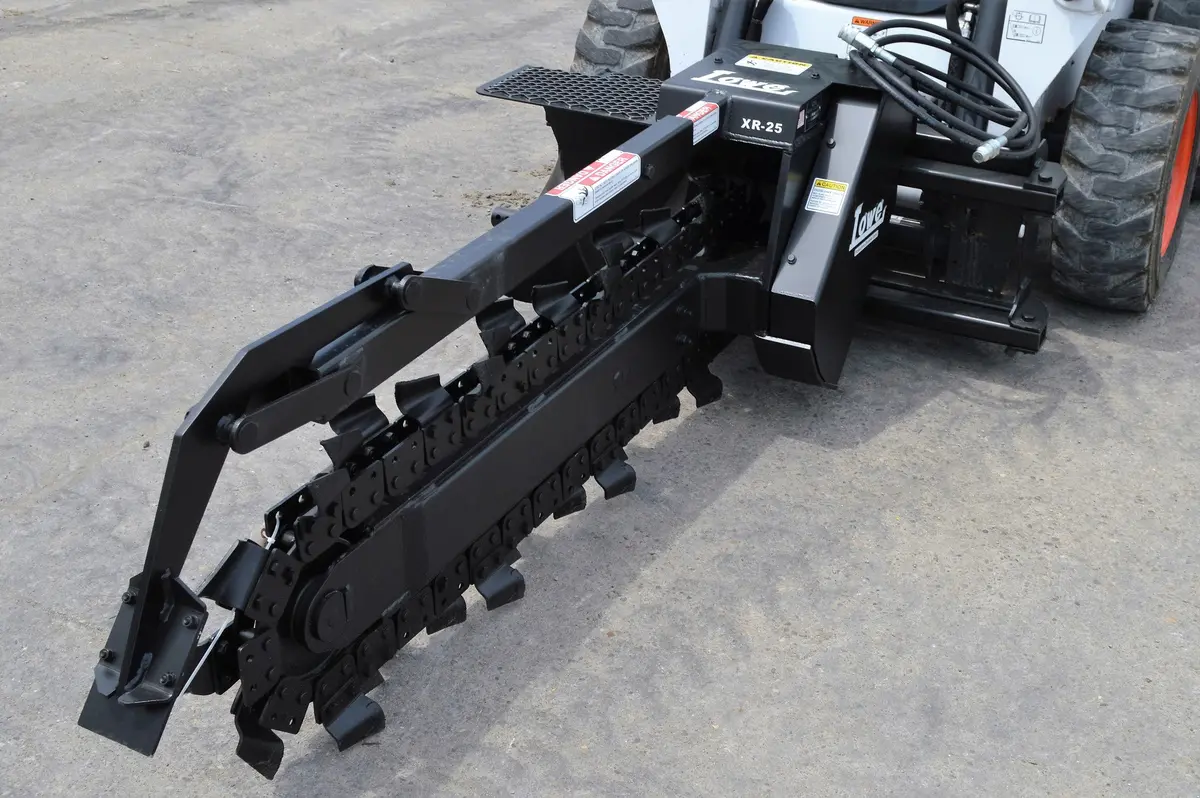

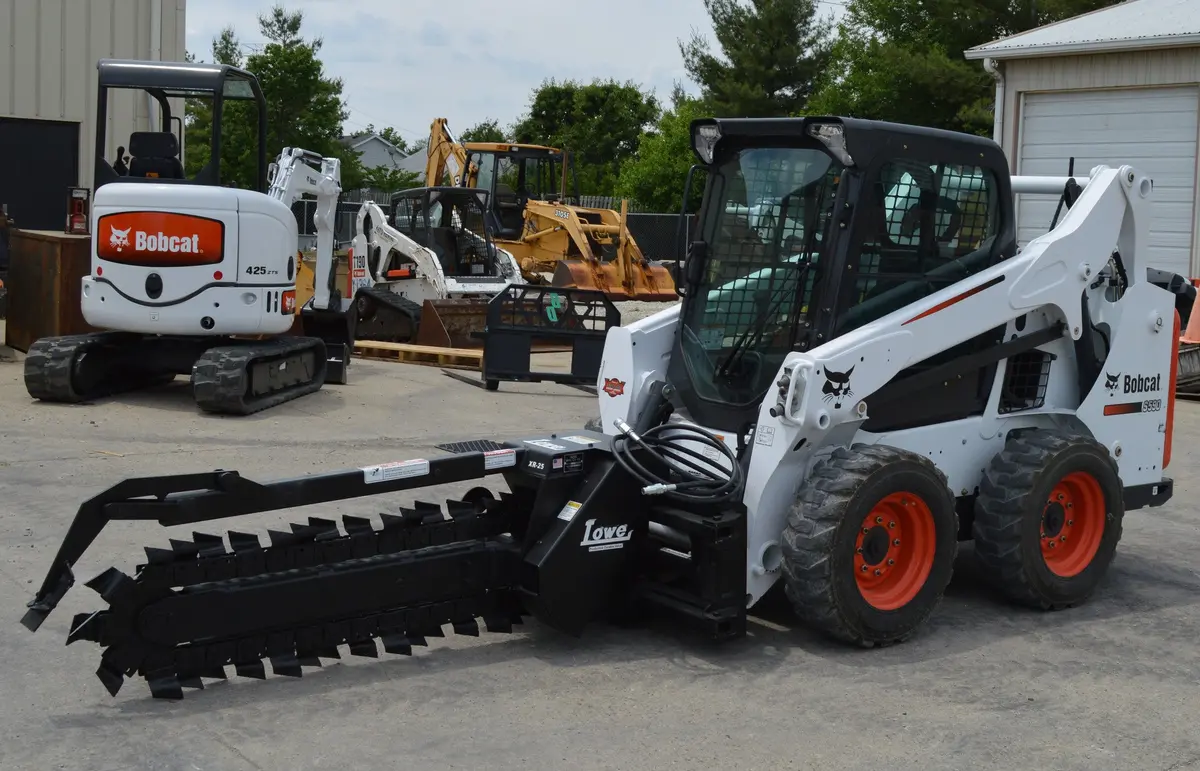

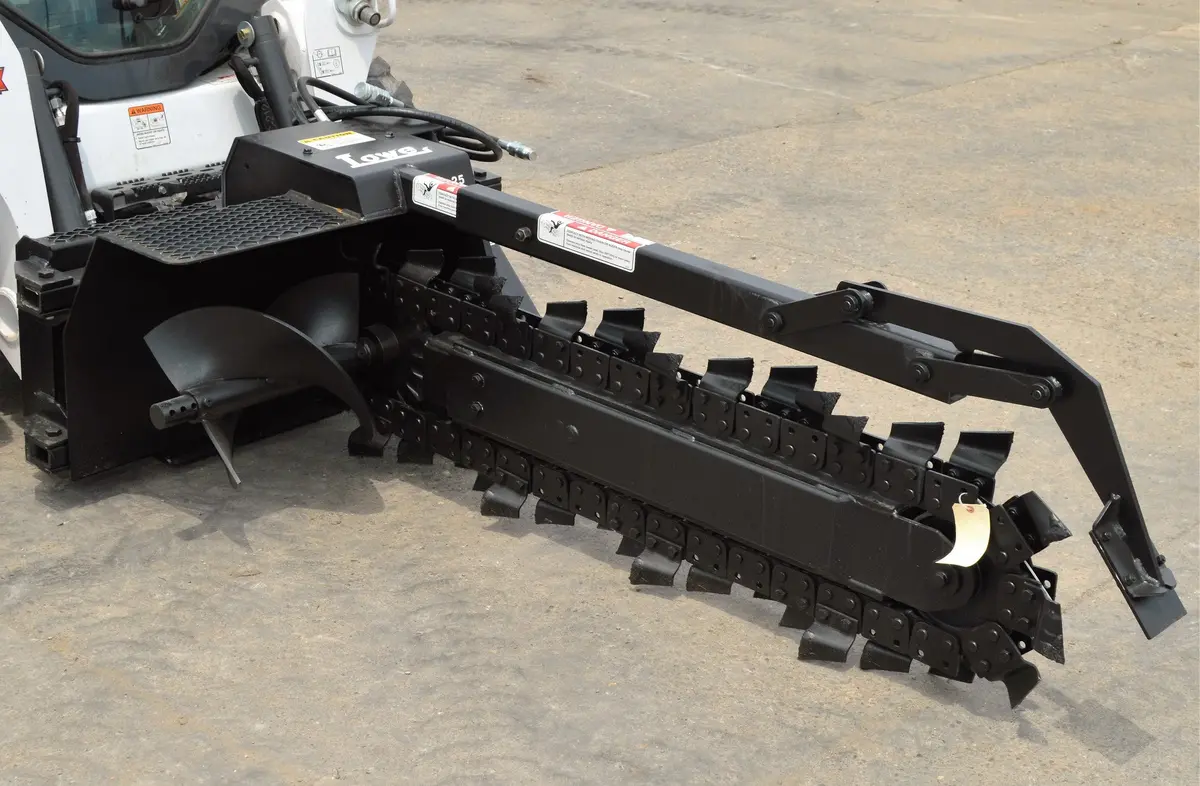

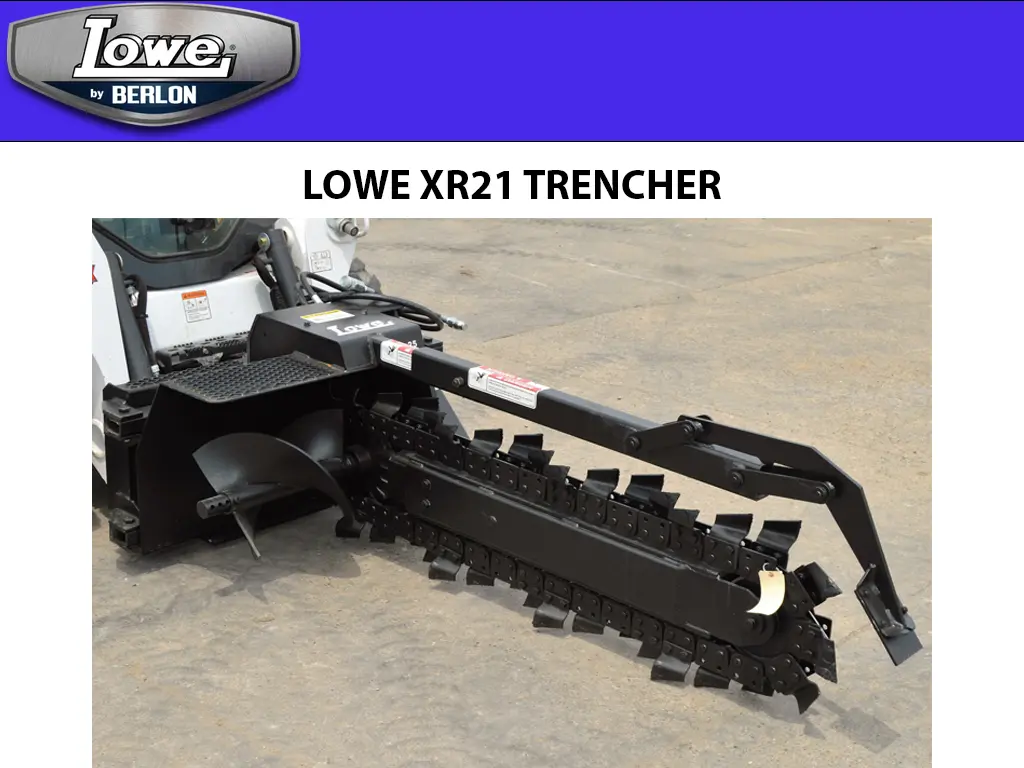

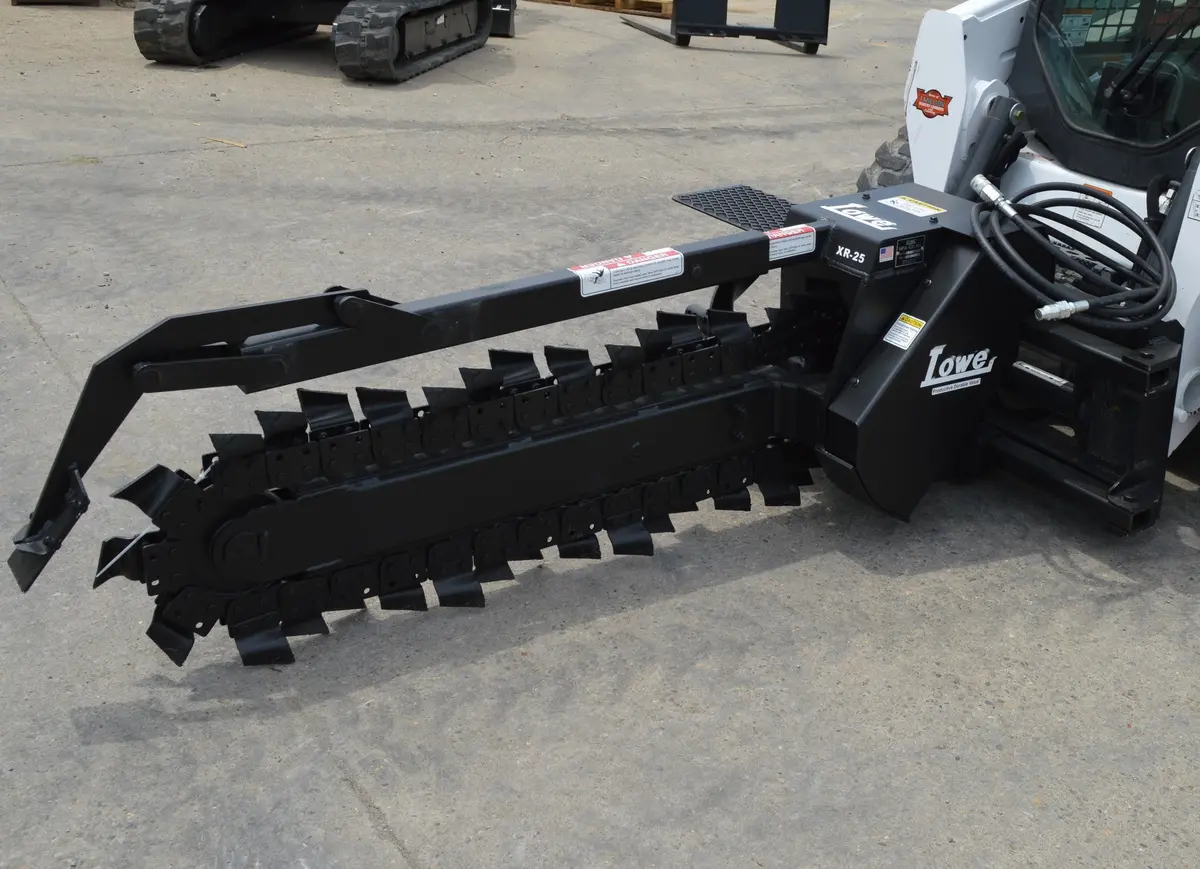

Lowe XR-21 Trencher – XR-Series

The LOWE® XR-21 Trencher from the XR-Series sets the standard for advanced trenching technology, delivering unmatched strength, durability, and efficiency. Designed for skid steers, compact track loaders, and mini-loaders, the XR-21 is the ultimate solution for construction, utility, agricultural, and landscaping projects.

Built with a heavy-duty 50,000 lb. (22,680 kg) digging chain, self-aligning boom with grease cylinder tensioning system, and maintenance-free tapered roller bearings, the XR-21 ensures maximum reliability and long service life. A removable double-flighted spoil auger provides fast trench cleanout, while redesigned housing improves visibility, trench starting, and overall digging performance.

XR-Series Enhancements:

• Stronger boom design with improved grease cylinder system

• Premium LOWE® hydraulic motors

• Wear-resistant drive shaft and end-boom roller for extended chain life

• Easier service and field maintenance

• Optional trench cleaner for improved cleanout

• Manual side-shift standard; hydraulic side-shift optional for working near obstacles

Chain Options:

• Standard: Recommended for loose, damp soil conditions

• Terminator Double Standard Anti-Back Flex: Ideal for harder, drier soils, with about twice the teeth count

• Expanded Double Standard Anti-Back Flex: Best for loose soils where extra width is required

• Rock & Frost Anti-Back Flex: Designed for rocky or frozen ground

• ½ Rock & Frost Anti-Back Flex: For hard soil and mixed rocky digging conditions

Available trench widths: 5″ (127 mm) and 6″ (152 mm).

Crumber Arm: Improves trench cleanout and efficiency, making sure every pass is consistent and ready for pipe, cable, or irrigation installation. (INCLUDED IN PRICE)

With rugged construction, advanced engineering, and multiple chain options, the Lowe XR-21 XR-Series Trencher is built to handle any digging challenge.

MODEL	XR-21	XRHP-21
Flow Range	13-25 GPM	13-25 GPM
PSI Range	2000-3000	2000-3500
Trench Width	8″ to 12″	8″ to 12″
Trench Depth	2′ to 5′	2′ to 5′
Chain Styles	Single Standard Double Standard 1/2 Rock and Frost Full Rock Terminator	Single Standard Double Standard 1/2 Rock and Frost Full Rock Terminator

SPECS

LOWE 21 SERIES
BOOM SIZE	30	36	48	60
MAX DEPTH	30	36	48	60
MAX WIDTH	12	10	8	6
HYDRAULIC RANGE	13-25	13-25	13-25	13-25
RELIEF RANGE (HP MODEL)	2000-3000	2000-3000	2000-3000	2000-3000
SPEED @ 25GPM	408	408	408	408
POWER @ 3000 PSI	1177	1177	1177	1177

BIG DAVE

• LOWE® trenching attachments have proven to be one of the most useful tools in the attachment market. Primarily used on skid steer loaders, trenching attachments also excel on compact track loaders and a wide range of mini-loaders. Use them in construction, agriculture, rental, utility, irrigation, and other applications where an open trench is required.

  The XR-Series from LOWE® is the most advanced and durable line of trenching attachments in the industry. They feature:

  • A fixed, self-aligning boom with an industrial strength grease cylinder adjustment system
  • High strength maintenance-free tapered roller bearings in the boom nose
  • Durable oversized boom nose idler
  • Anti-back flex (ABF) digging chain for longer life and maximum digging performance
  • Extra strong chassis
  • High quality hydraulic components and simple hose routing
  • Premium hydraulic motors
  • Double-flighted auger for fast spoil removal

  All standard mount XR-trenchers have a built-in feature that allows for manual side-shifting. The XR-14 though the XRH-35 have an optional hydraulic side shift for users that need to make numerous adjustments to the side shifting capability. Fixed-mount trenchers are also available for those that do not need to side shift and wish to save additional cost.

  With a large selection of boom lengths and digging chains available, find out how a LOWE® trenching attachment can make your machinery investment more useful.

  Trenchers from Lowe Manufacturing Co Inc on Vimeo.

• PACKAGE INCLUDES:

  • XR21 TRENCHER DRIVE

    SKID STEER UNIVERSAL / BOBCAT MOUNTING PLATE

  • HOSES & FLAT FACE COUPLERS
  • 48X6 DOUBLE STANDARD ANTI BACK FLEX CHAIN & BOOM
  • CRUMMER ARM / TRENCH CLEANER

  SPECIFICATIONS:

  • 13 – 25 GPM OIL FLOW REQUIREMENT
  • 6″ TO 12″ TRENCH WIDTHS AVAILABLE
  • 2′ TO 5′ TRENCH DEPTHS AVAILABLE
  • OPTIONAL CHAIN TEETH AVAILABLE

•

  LOWE® has been a trusted name in trenchers and augers since 1971, setting the standard for skid steer attachments made in the USA. The XR-21 Trencher is one of the best-performing units for its price, offering reliable performance, minimal downtime, and low operating costs. It’s compatible with most standard or high-flow medium and large-frame machines—just match your machine’s hydraulic flow to the trencher’s requirements.

  Quality: Exceptional American engineering, rugged construction, and durable components ensure long-lasting reliability.

  Performance: Powerful digging, smooth operation, and efficient spoil removal make the XR-21 ideal for construction, utility, landscaping, and agricultural projects.

  Common Chain Options:

  • (36×6) Double Standard & (48×6) Double Standard: For harder, drier soil; roughly twice the teeth of a single standard chain with cupped-style teeth

  • (36×6) ½ Rock & Frost & (48×6) ½ Rock & Frost: For harder soil and mixed rocky conditions

  • Single Standard: Best for loose, damp soil conditions

  • Rock & Frost: Designed for rock and frozen ground

  • Terminator: Recommended for hard, dry soil with rocks

  With multiple chain options, low maintenance, and rugged construction, the XR-21 is a versatile trencher that delivers excellent value and performance on any jobsite.
