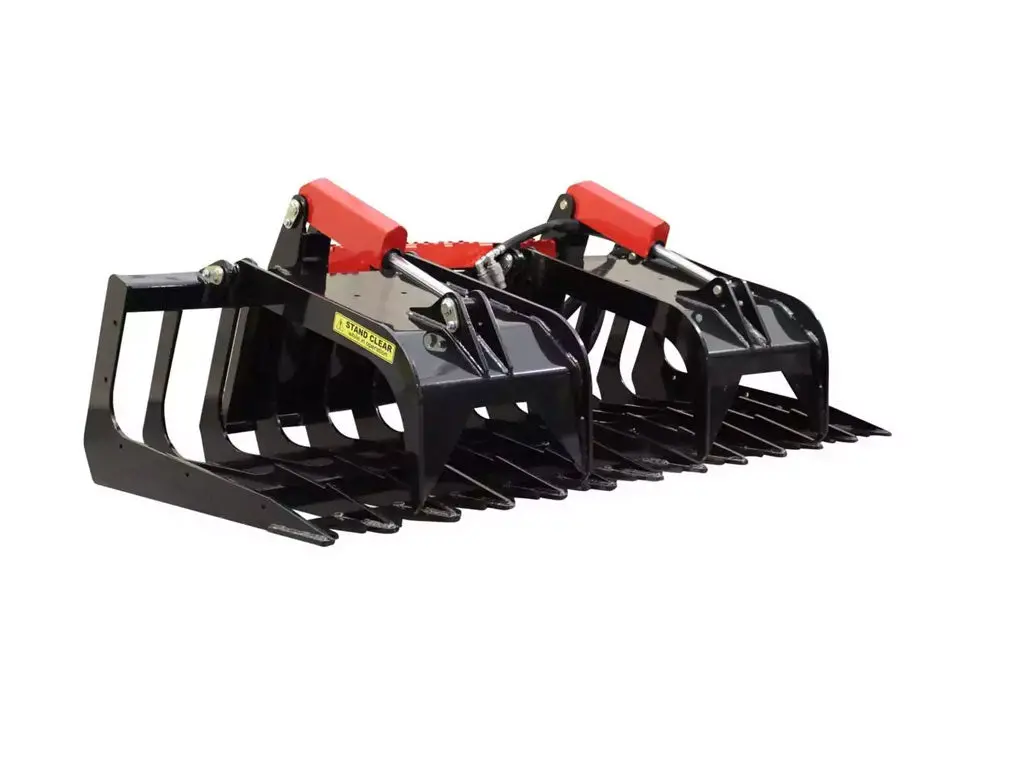

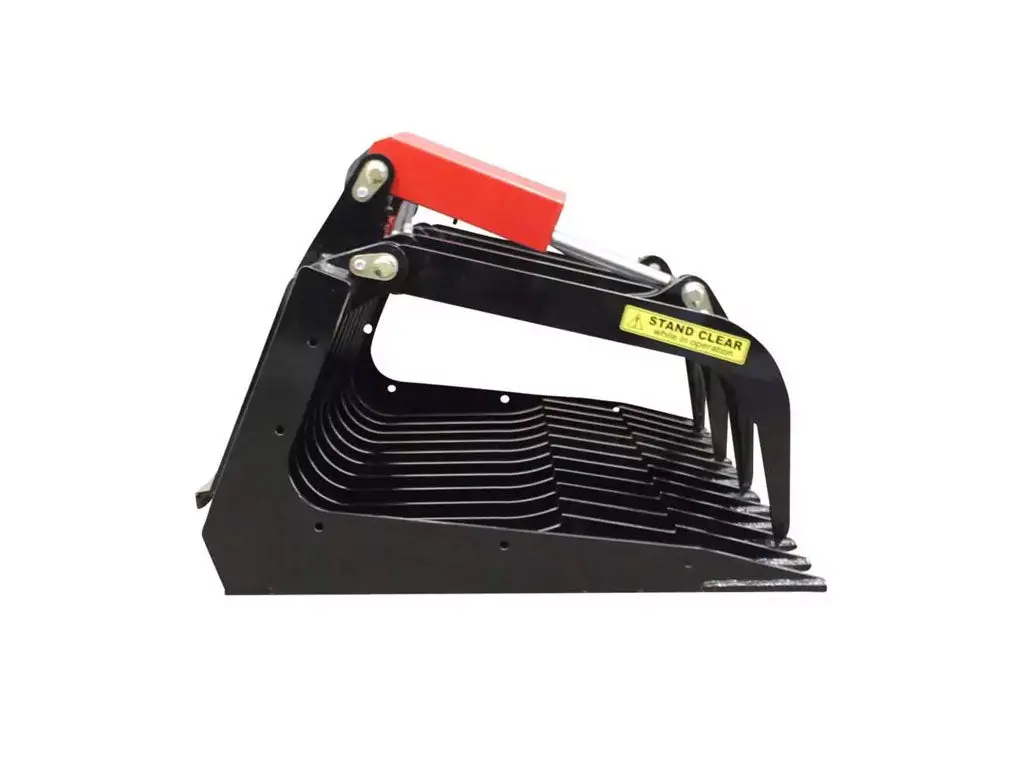

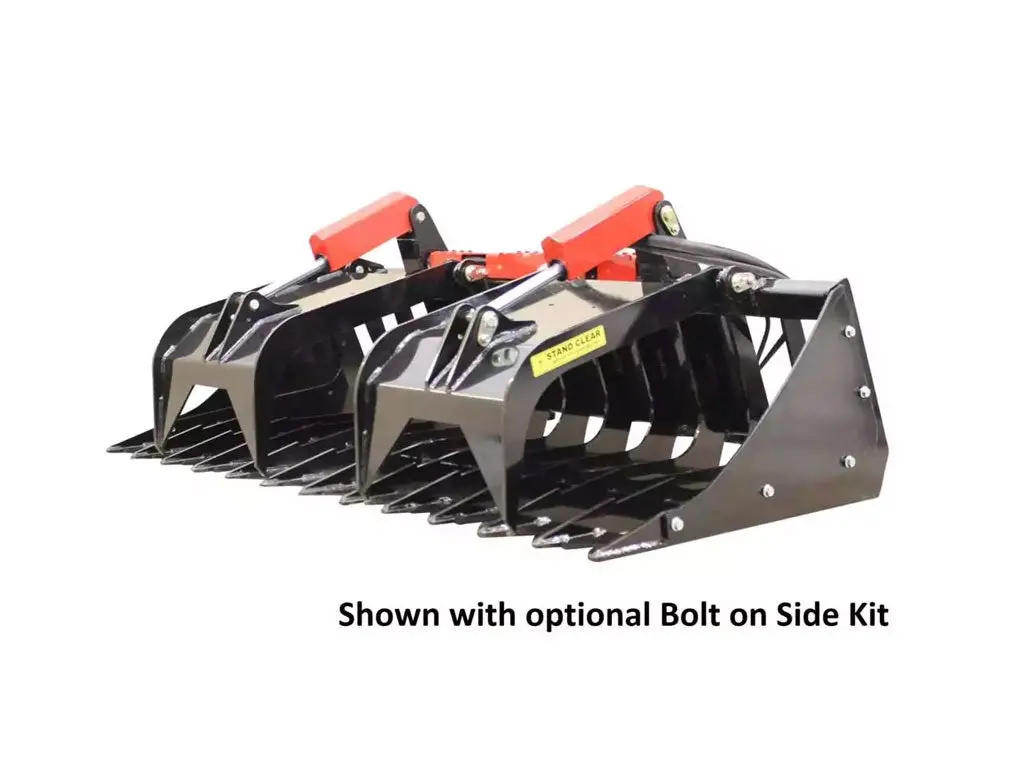

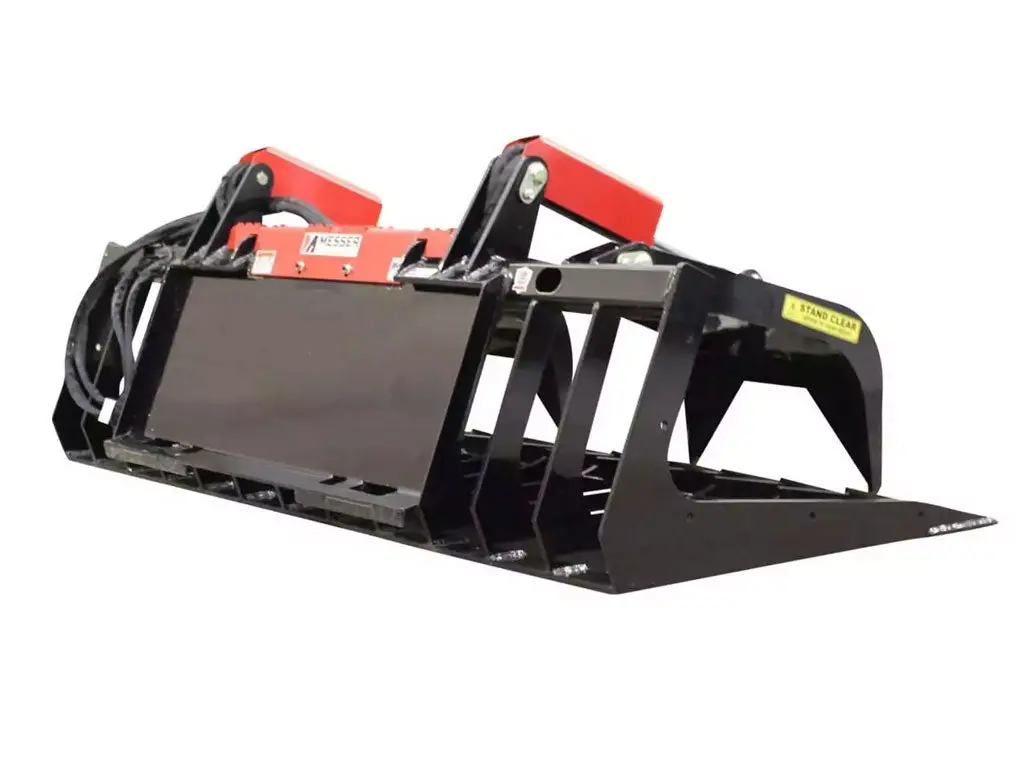

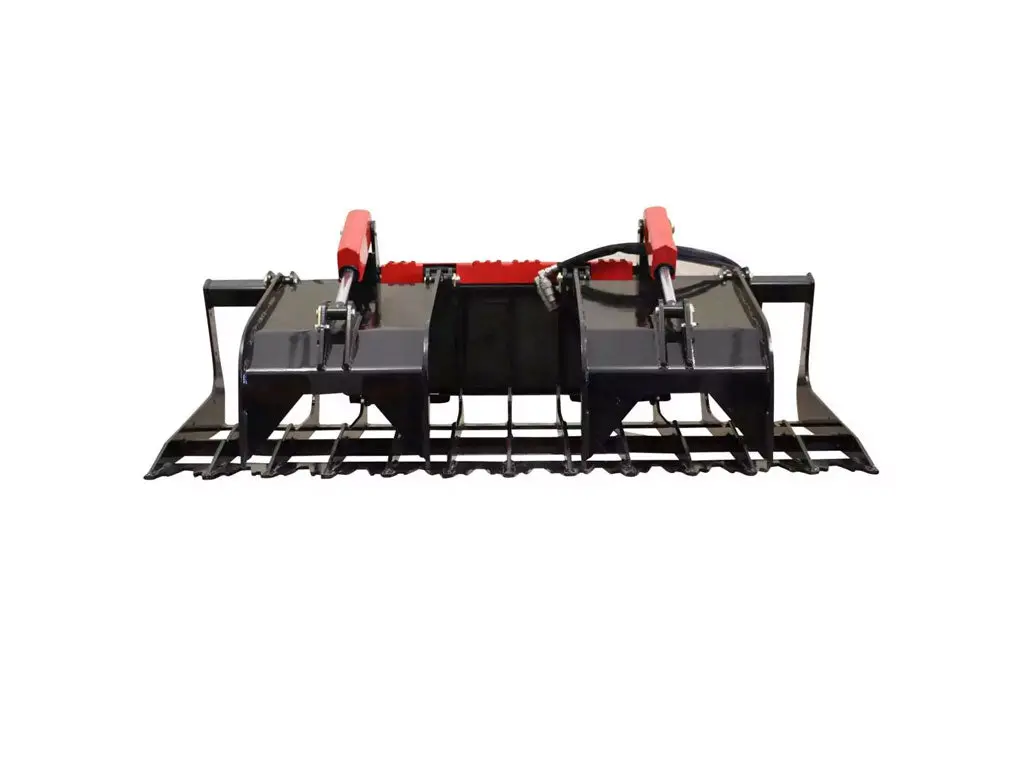

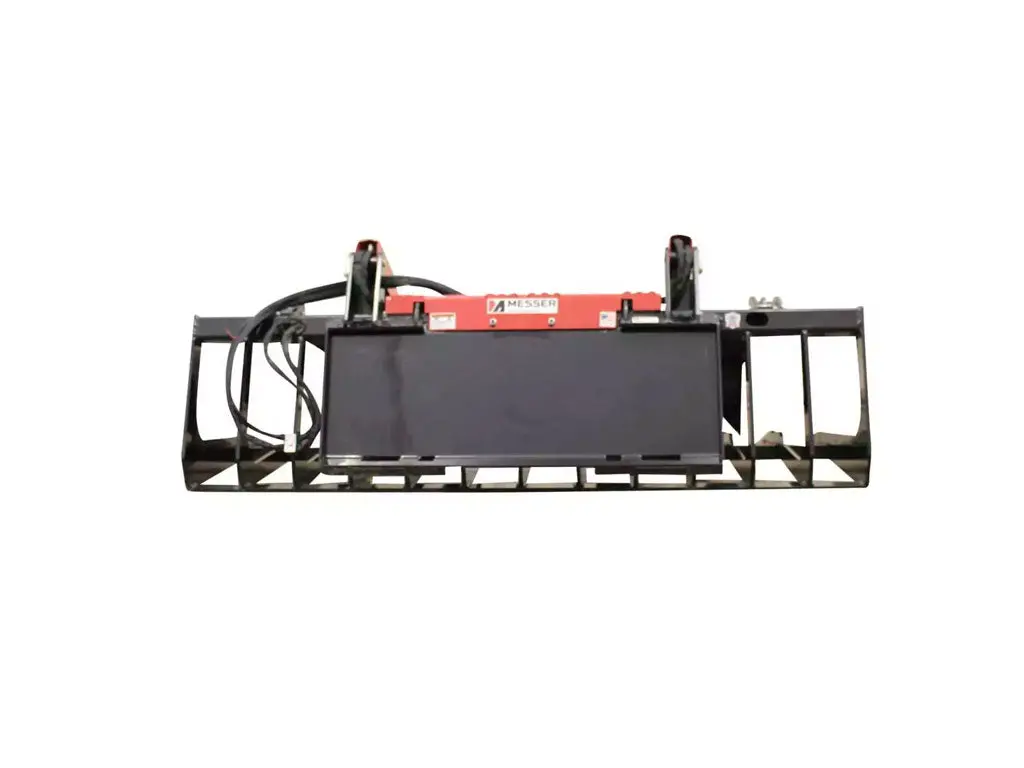

Introducing the Brush Grapple, a powerful tool for conquering tough jobs!
This versatile grapple tackles logs, roots, stumps, and brush with ease. Its strong, interlocking teeth (spaced 6 inches apart) securely grip materials, while the dual independent grapple arms (made from extra-strength ½” Grade 50 steel) ensure a dependable hold.

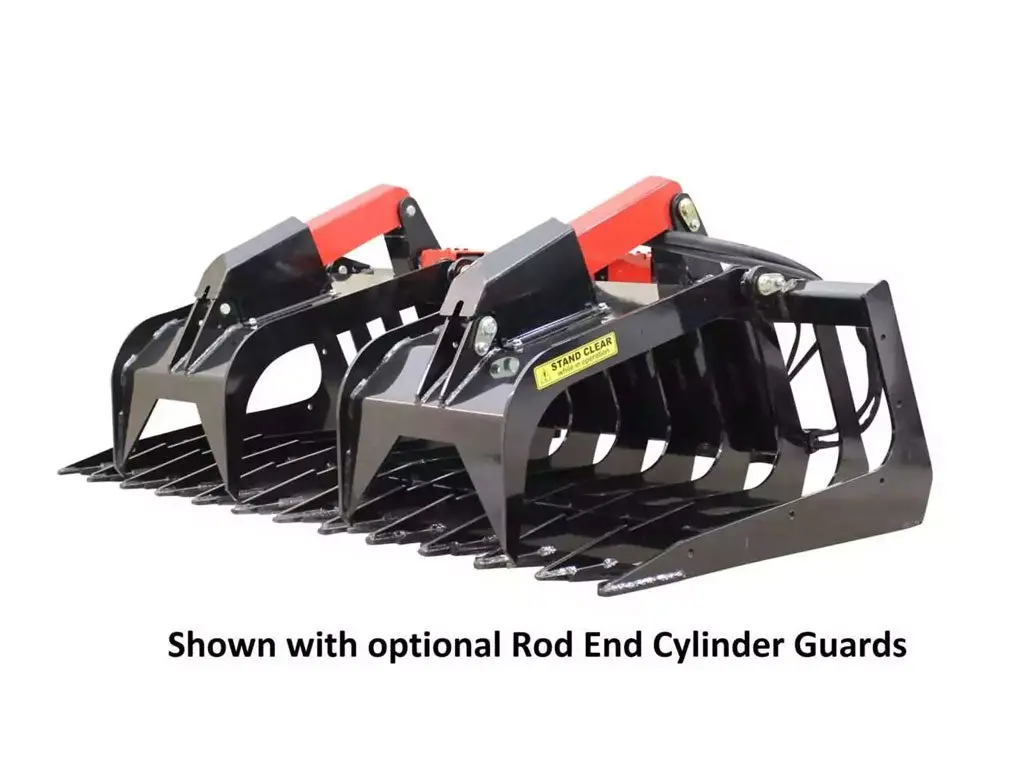

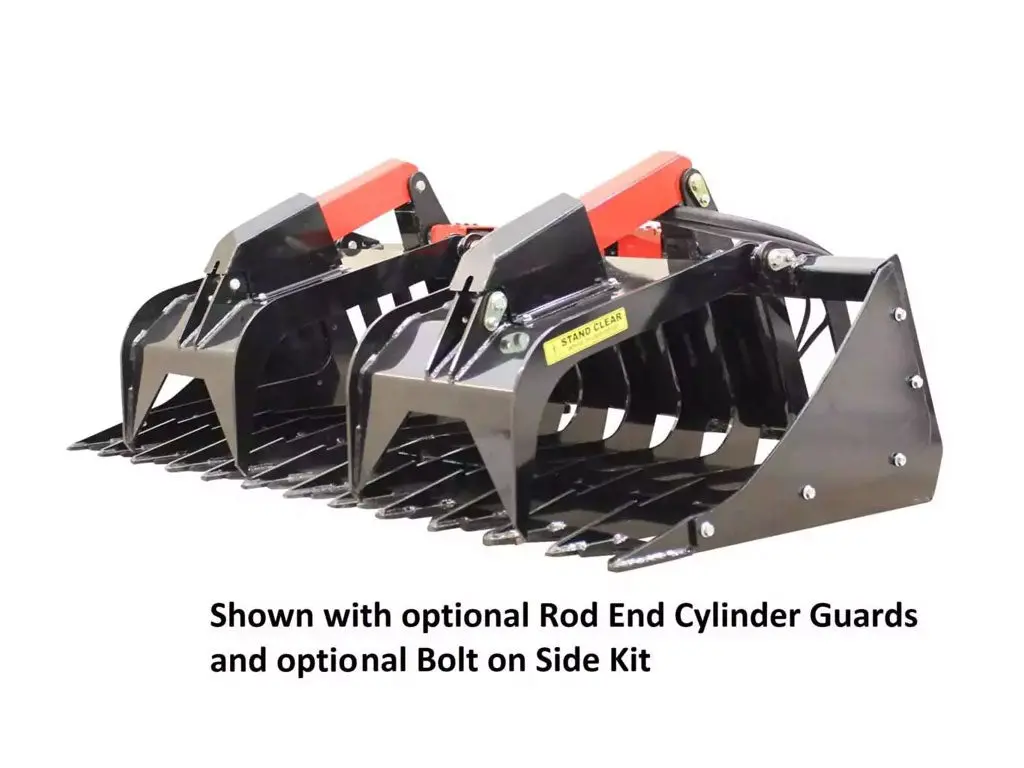

For smooth operation, all pivot points are greaseable, and cylinder guards come standard for added protection. Flat face couplers are also included for easy attachment.
Built for a variety of applications:
- Construction
- Industrial sites
- Logging
- Forestry
- Landscaping
- Roadwork
78″ and 85″Brush Grapple have 6″ tine spacing
Messer’s Brush Grapple keeps your projects running smoothly, backed by a 24-month warranty and free continental shipping.
SPECS
| Brand |
Messer Attachments |
|---|---|
| Model # |
BG72 |
| Dimensions |
72 × 30 in |
| Cylinders/Cylinder Size |
2 at 2″x 8″ 3500 psi welded cross tube |
| Overall Depth |
44″ |
| Thickness of Teeth |
1/2″ Grade 50 (30% stronger) |
| Spacing Between Teeth |
6″ |
| Grapple Jaw Opening |
42″ |
| Weight (lbs) |
755 |
| Rated Operating Capacity |
4,000 lbs |
| Brand |
Messer Attachments |
|---|---|
| Model # |
BG78 |
| Overall Width x Height |
79″ x 30″ |
| Overall Depth |
44″ |
| Thickness of Teeth |
1/2″ Grade 50 (30% stronger) |
| Spacing Between Teeth |
6″ |
| Grapple Jaw Opening |
42″ |
| Cylinders/Cylinder Size |
2 at 2″ x 8″ 3500 psi welded cross tube |
| Weight (lbs) |
790 |
| Rated Operating Capacity |
4,000 lbs |
| Brand |
Messer Attachments |
|---|---|
| Model # |
BG85 |
| Overall Width x Height |
85″ x 30″ |
| Overall Depth |
44″ |
| Thickness of Teeth |
1/2″ Grade 50 (30% stronger) |
| Spacing Between Teeth |
6″ |
| Grapple Jaw Opening |
42″ |
| Cylinders/Cylinder Size |
2 at 2″x 8″ 3500 psi welded cross tube |
| Weight (lbs) |
815 |
| Rated Operating Capacity |
4,000 lbs |
