DESCRIPTION
11/24

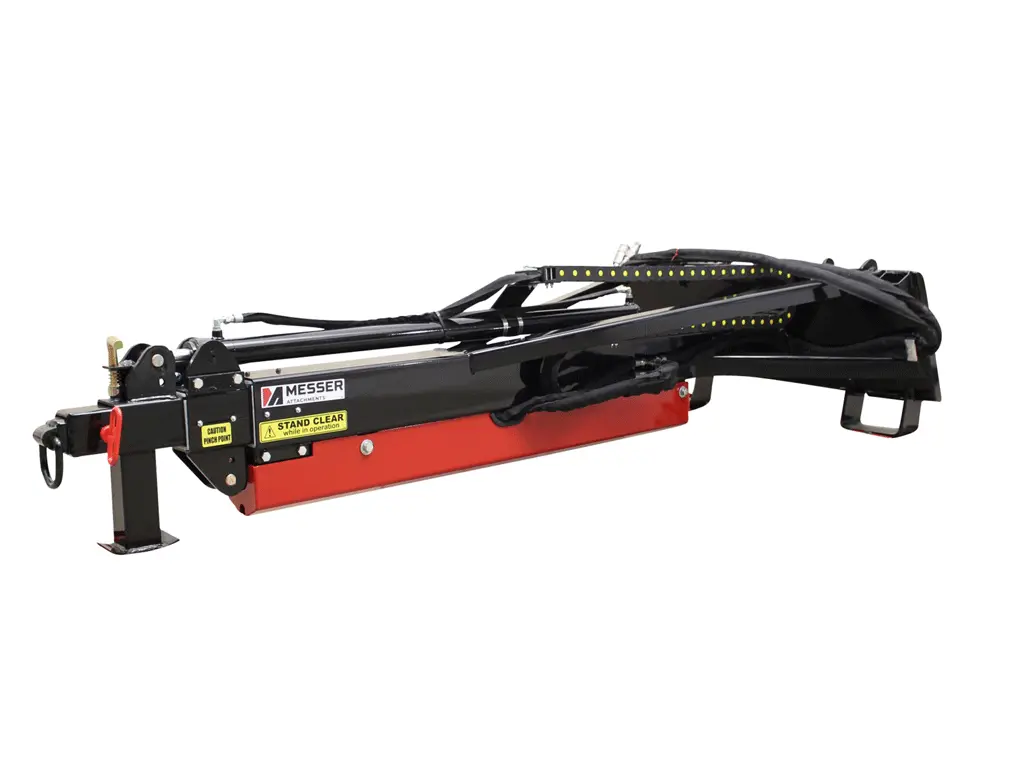

TRUSS BOOM FOR SKID STEER
- Comes with D-Ring Hitch
- 3 Stage Extension: the first 2-48″ stages provide 96″ of hydraulic powered extension and the 3rd stage provides over 60″ of manual extension with a spring loaded lock pin
- Accepts a standard 2 1/2″ Class 5 receiver hitch to allow flexibility for multiple hitch options
- 2 hitch storage holders on main body are included
- Lifting capacity: Depends on extension angle, length and machine operating capacity
- Recommended for use with machines having a Rated Operating Capacity (ROC) of more than 2000# but not to exceed 4000#
- Flat Face Couplers Included
- Use the following chart to determine what the lifting capacity will be with this boom on your machine in various positions
| Machine Rated Operating Capacity (ROC) | 2000 | 2500 | 3000 |
| Max Load Horizontal (Collapsed) | 870 lbs | 1180 lbs | 1490 lbs |
| Max Load Horizontal (Fully Extended) | 280 lbs | 410 lbs | 540 lbs |
| Max Load @ 70 deg Vertical (Collapsed) | 2000 lbs | 2500 lbs | 3000 lbs |
| Max Load @ 70 deg Vertical (Fully Extended) | 975 lbs | 1290 lbs | 1600 lbs |
SPECS
| Brand |
Messer Attachments |
|---|---|
| Model # |
TB8X21 |
| Overall Width x Height |
46″ x 22″ |
| Overall Length (Collapsed/Extended) |
96″/255″ |
| Cylinders/Cylinder Size |
2 at 2″ x 48″ – 3500 psi trunnion mount |
| Approximate Weight (lbs) |
650 |
| Rated Operating Capacity |
4,000 lbs |
