DESCRIPTION

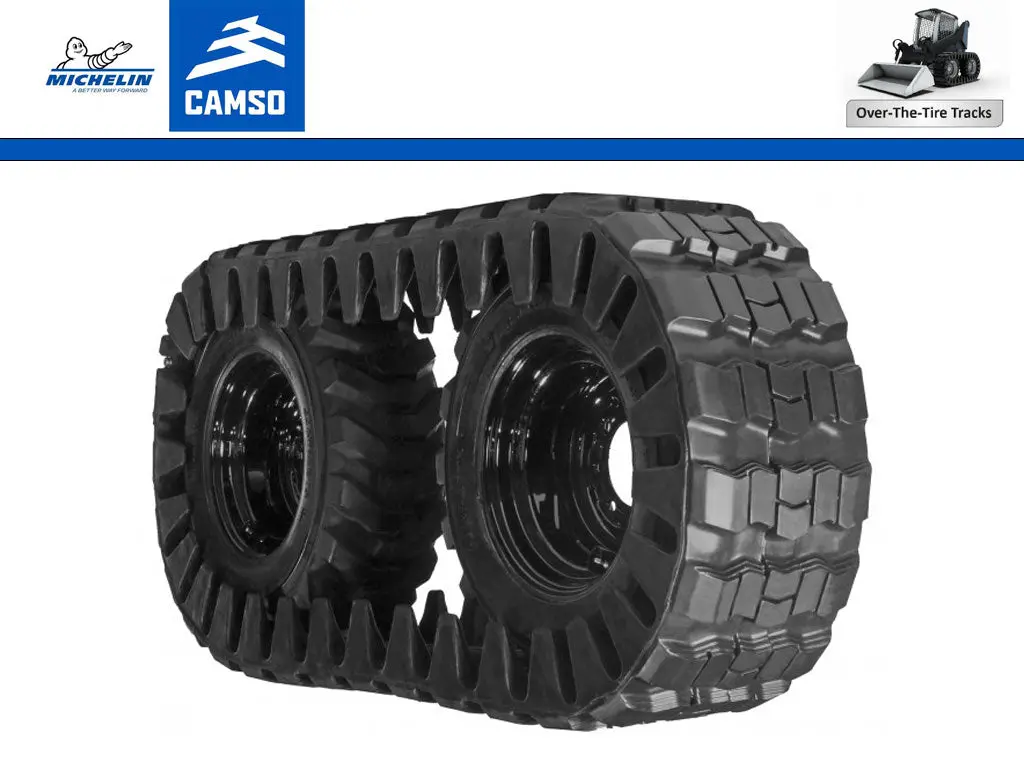

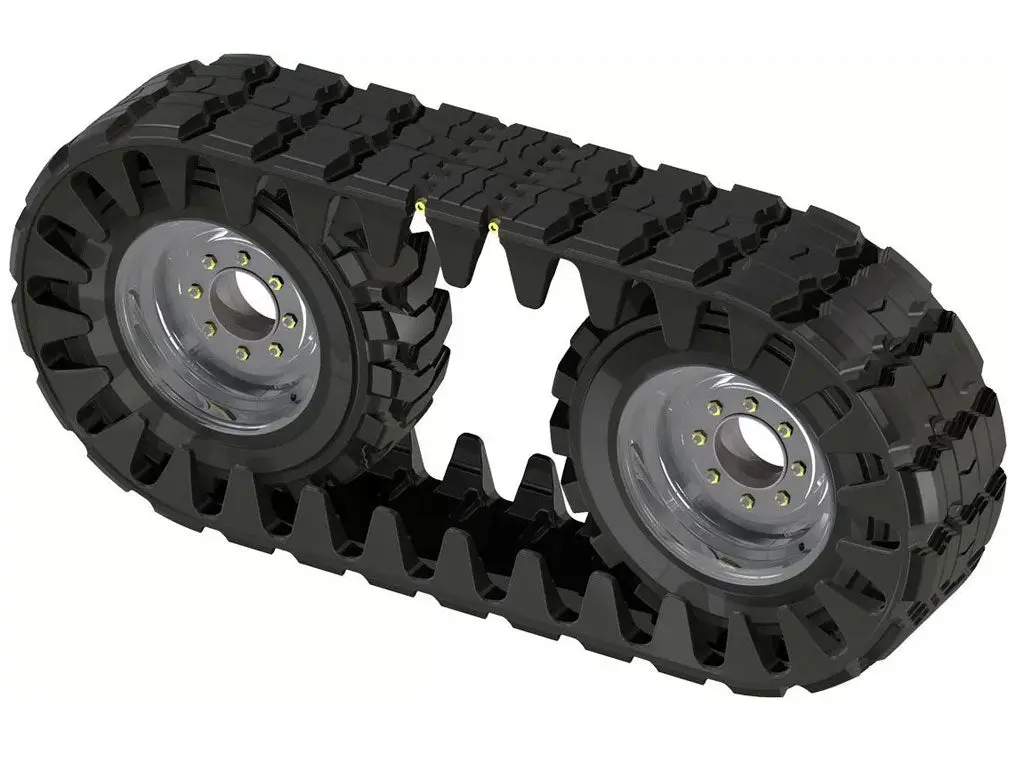

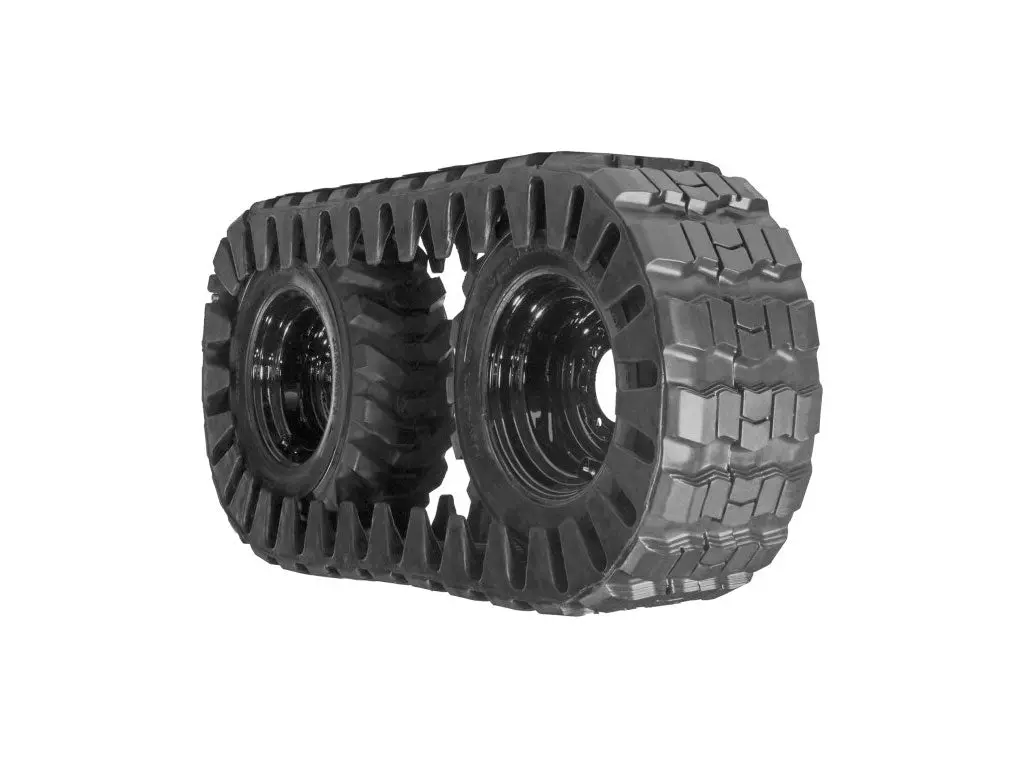

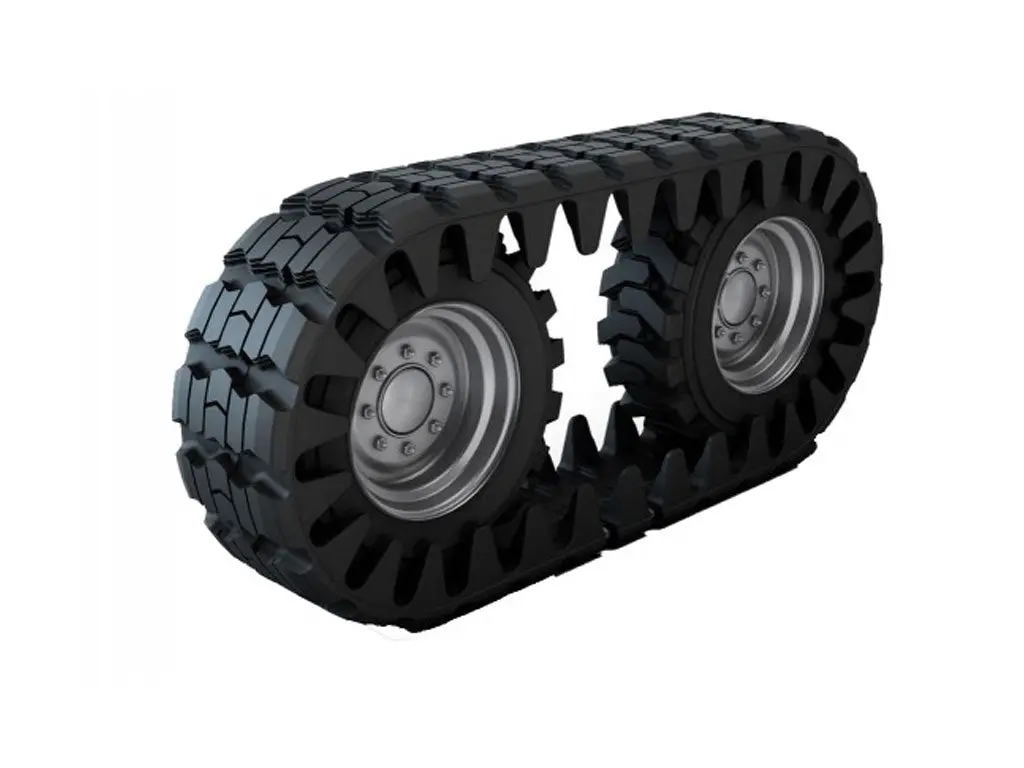

RUBBER OTT

OVER-THE-TIRE TRACKS FOR SKID STEER LOADERS

Quick mount attachment for tracked performance

An over-the-tire add-on that increases skid steer loader traction, flotation and tire life. Installed in only 20 minutes, it’ll enhance the productivity of your skid steer loader on asphalt, concrete and turf surfaces without causing damage or marks.

MICHELIN CAMSO RUBBER OTT OVER THE TIRE TRACK FEATURES:

• SOLID RUBBER TRACK
• EXPANSION LINK INCLUDED
• QUICK MOUNTING
• EMBEDDED IRON CORE WITH ENGINEERED WING DESIGN – Avoids de-tracking like a non-reinforced all rubber OTT
• INTERNAL TRACTION RIB – Provides high traction between tire and track and prevents tire wear
• FULL RUBBER TRACK – Allows operation on asphalt, concrete and turf surfaces without damage or marking
• FULL WIDTH, CONTINUOUS RUBBER TRACK FOOTPRINT – Increases flotation by 5 times higher than tires and by, at least, twice as much over standard steel track

TERRAIN: SAND, DIRT, TURF, SNOW Wide footprint distributes the weight for ultimate flotation.

Key information when using Camso rubber Over-The-Tire tracks

• Tires need to be air

• Tires need to be R4 tread pattern.

• Tires are recommended to be run at max air pressure.

• Some aesthetic wear on the sidewall of the tire can be expected when OTT’s are used as an attachment.

• Some machines need spacers or off set rims. Check your clearances.

SPECS

TIRE WIDTH	RIM DIAMETER	LINKS
10	16.5	26,27,28,29,31
12	16.5	29,30,31,32,33

PART NUMBER	PID	OTT			LINKS			WHEEL SPACER
		SIZE		WEIGHT	1/2	3/4	FULL	6H-2″ 67.13.14	6H-3,5″ 67.9.9	8H-2″ 67.14.15	8H-3.5″ 67.10.10
		WIDTH	LINKS
		IN		LBS
10X26LM	58.272.407	10	26	300.1			True
10X27LM	58.218.325	10	27	311.4			True
10X28LM	58.175.287	10	28	322.7			True
10X29LM	58.217.324	10	29	334			True
12X29LM	58.1833.6977	12	29	414.9		True	True				True
12X30LM	58.271.406	12	30	431.3			True
10X31LM	58.259.383	10	31	356.6	True
12X31LM	58.270.405	12	31	445.5			True
12X32LM	58.176.288	12	32	455.4			True
12X33LM	58.269.394	12	33	469.4			True

Please be sure to check your clearance. We may have to down-size your tires and rims or add spacers.

BIG DAVE

If you are looking for rubber tracks for a skid steer loader this is your best option on the market right now. These are loose fitting tracks so the are easier on the machine than some other products that have existed in the past. The tracks have an expansion link that can be used to tighten the tracks as the tires wear. You need to watch for clearance issues when installing these. They are big tracks so make sure you have clearance around the frame, bucket and boom. If you have a clearance issue you can add a boom stop, off-set rims or a spacer kit to solve the problem. Sometimes is is best to buy a new set of tires to fit the tracks.  I would not try and use these tracks with solid tires or foam filled tires.
