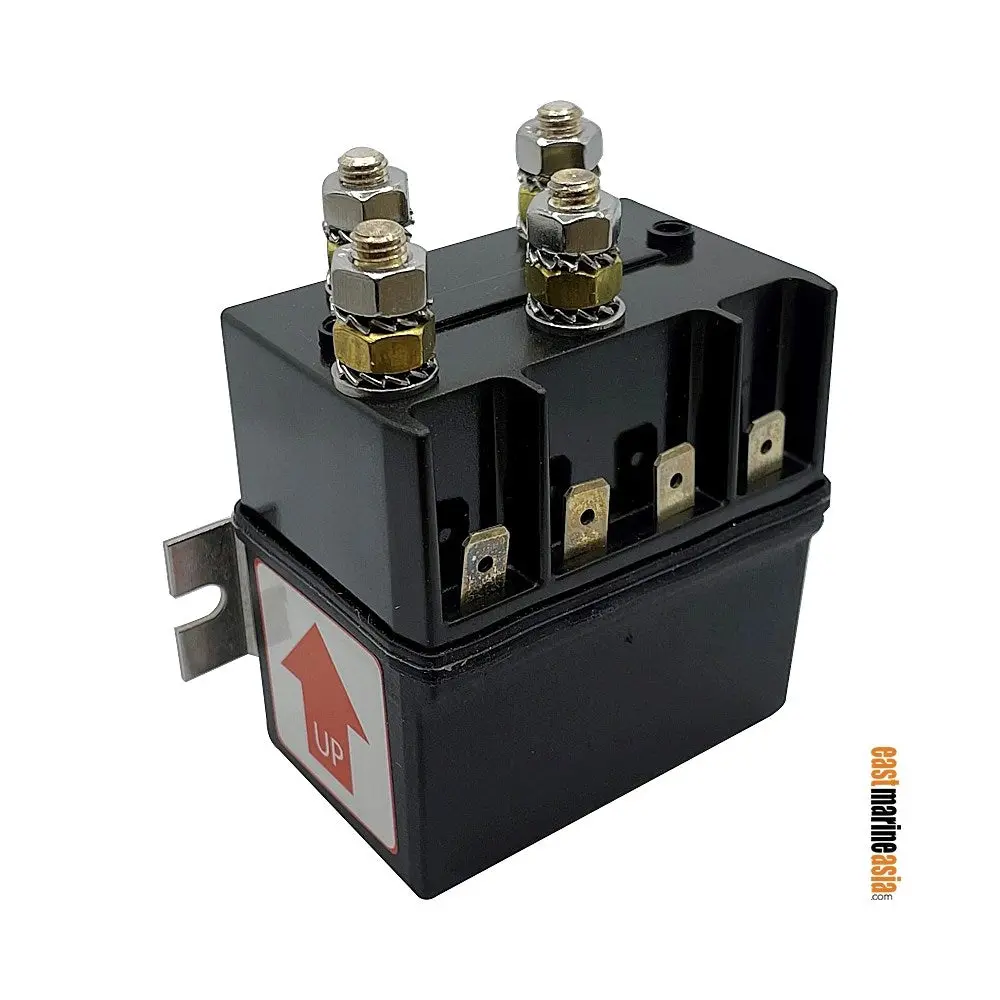

Muir Multi-Pole Windlass Reversing Solenoid (2-Pole or 4-Pole)

Description

Use Option (1) to select Voltage

Muir Windlass Reversing Solenoid provide reversing at the flick of a switch for all Muir model windlasses and capstan for 12 Volt or 24 Volt.  Comprises solenoid for up & down switch and can be used in conjunction with deck switches, remote up & down panels and auto anchor accessories.

• 2 Pole – Suits Muir VR/C 600, HR/HFF 600, CR/C 600-850
• 3 Pole – Suits Muir Cougar, Cheetah, Jaguar, VR/C1250, VR/C2000
• 4 Pole – Suits Muir VR/C 4000, HR4200 Thor

For 2 Pole connecting, refer to this Wiring Diagram

For 3 Pole connecting, refer to this Wiring Diagram

For 4 Pole connecting, refer to this Wiring Diagram
