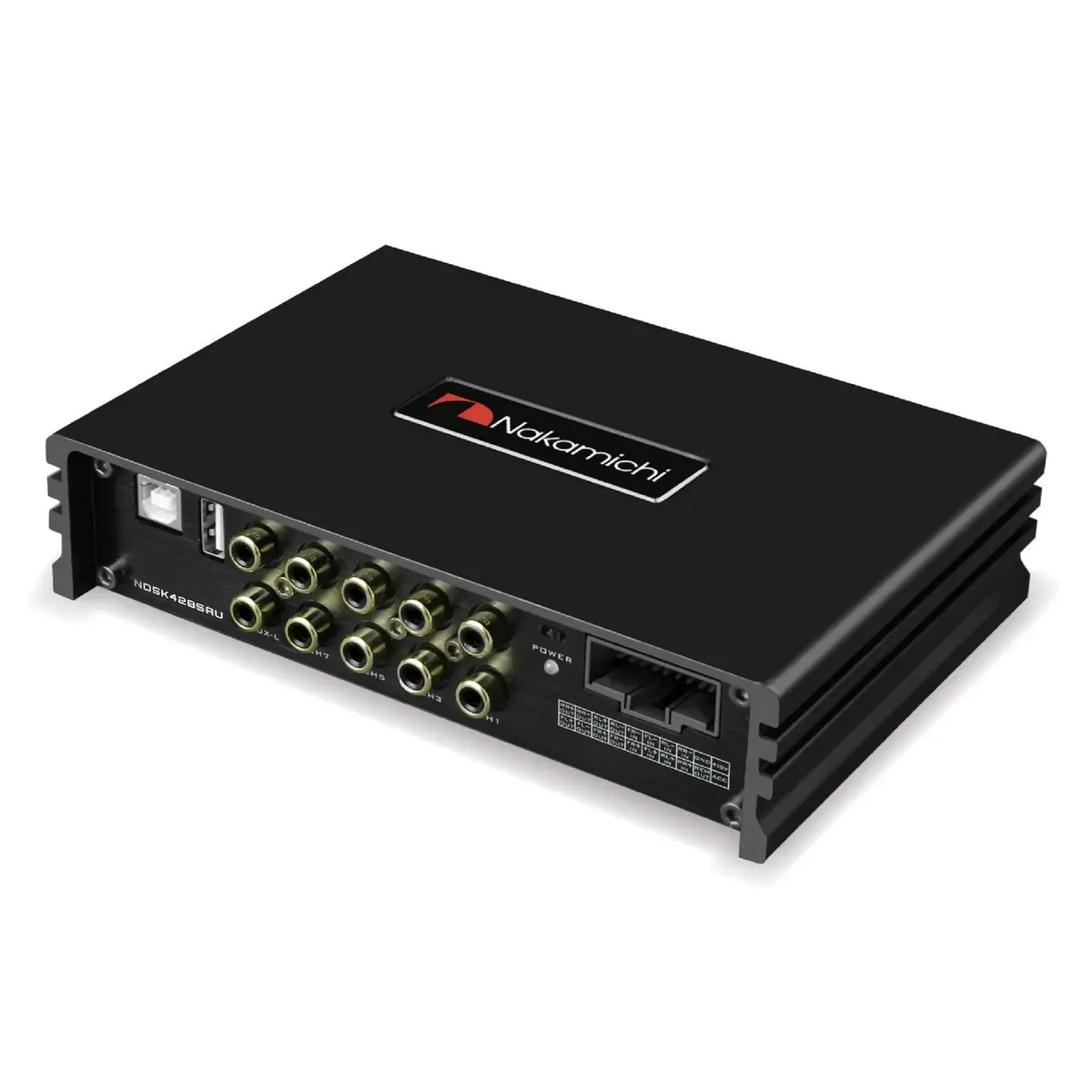

Nakamichi NDSP-4285AU – 8-Channel Digital Signal Processor with Built-in Amplifier

Description

DSP NDSK4285AU

4 IN 8 OUT 31EQ DSP AMPLIFIER
Dynamic Range(RCA Input) ≥100dB
S/N(RCA Input) 0~22dBFrequency Response 20Hz~20KHzInput Impedance High Level Input:240ΩLow level Output Impedeance ≤100ΩSignal Input RCA Input:8Vpp;High Level:26VppOutput Range RCA Output:12Vpp;Amplifier:4×80WPower DC9V-16VREM Input High Level Input Signal:FL+/FL-or ACC control cableREM Output +12V Startup Voltage OutputStandby Power ≤0.1WGross Weight Approx. 0.7kgBox Dimension(L×H×W) 174.5×120×40mm

TECHNICAL SHEET

Input Signal Type 4 Channel high level, supports internal Bluetooth and USB music playbackOutput Type 8 Channels low level,4 Channels 80W power

Output Gain Gain range: Mute,-59dB~6dB

Output Signal EQ31-band EQ for every channel,1.Frequency Range:20Hz~20KHz,1Hz Accuracy2.Q value(Slope):0.404~28.85

3.Gain:-20.0dB~+20.0dB,0.1dB Accuracy

Output Signal Crossover Equipped with high and low pass filters.
1. Professional filter type: Butter-W, Bessel, Link-Rill2. Filtering Crossover Point: 20Hz~20kHz, Resolution 1Hz

3.Filter Slope setup:6dB/Oct ~ 48dB/Oct

Output Phase and Time Alignment Adjust phase and time alignment for every output channel :In Phase or Out Phase(0°-180°);Time Alignment: 0.000 to 20.000 milliseconds, 0 to 692 cm,0 to 273 inch.

Presets Save 6 presets into the device.

*By request/order.
