Description
This is your direct Shimano replacement option. If you have a Shimano crank (Ultegra, GRX) this fits directly in your existing BB.

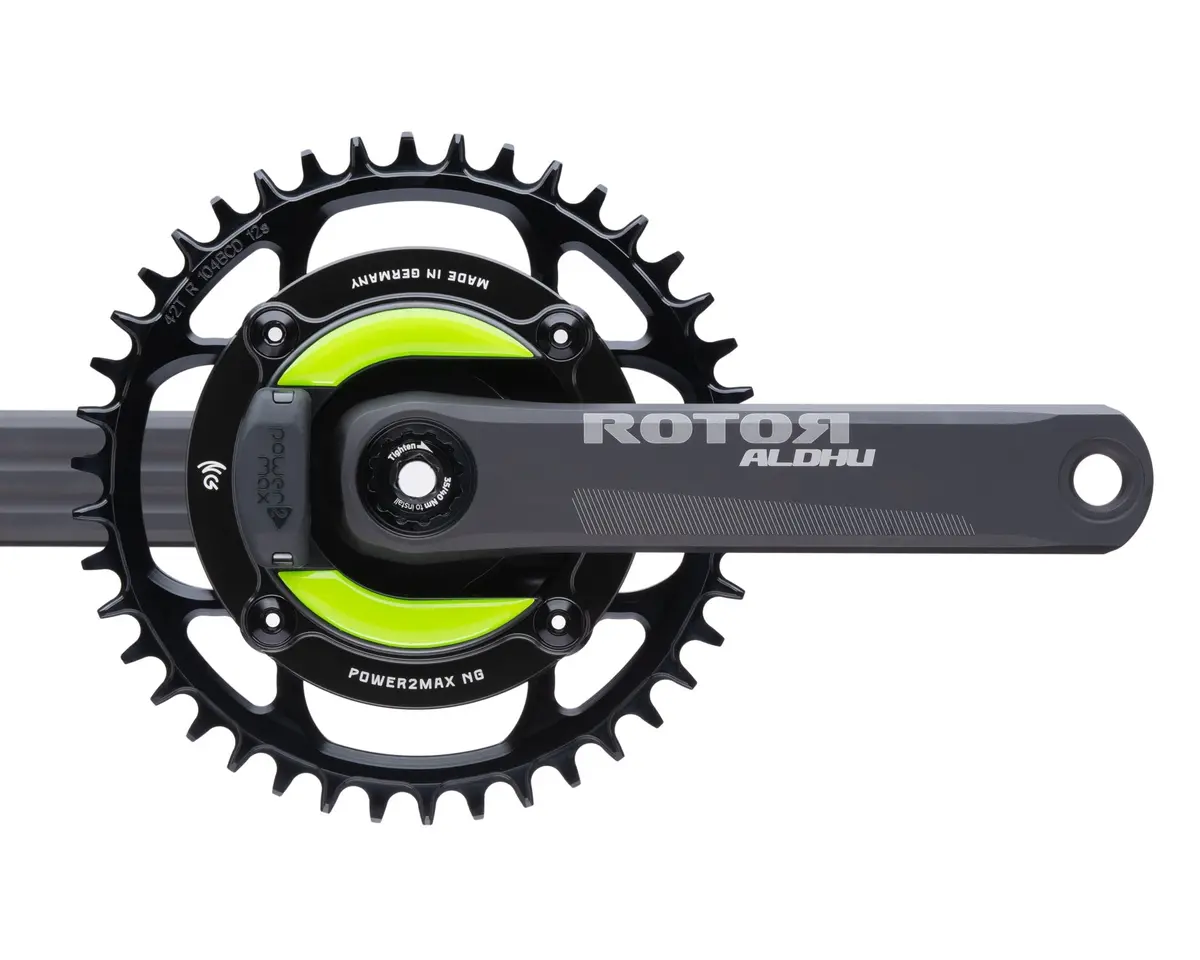

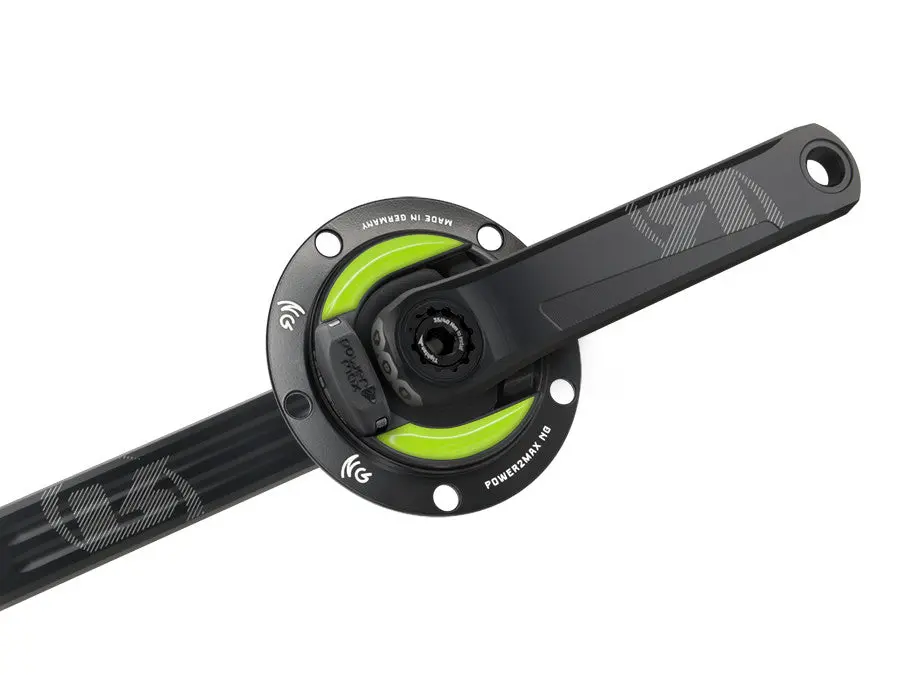

The NGeco Rotor ALDHU R power meter set Road is our recommendation for bikes with a Shimano bottom bracket. The set consist of the NGeco power meter and the Rotor ALDHU R crankset with 24mm steel axle. It is compatible with the Shimano Hollowtech 2 bottom bracket standard.
Advantages over the Rotor Power2max edition crank:
- Aldhu R 24 uses a higher grade aluminum to create a stiffer crank
- Aldhu R 24 uses further machining to reduce the weight by ~40 grams
- Aldhu R 24 has a more premium finish
Introducing our new gravel powermeter:
- GRX Spacing (standard Road spacing an option for Rotor cranks)
- Narrow Road Q Factor (unlike GRX cranks)
- Ability to run either 1x or 2x (subcompact 48/31 or 46/30) chainring setups so you’re not tied to one setup or one bike
- Price includes chainring(s)
| Crank axle diameter | 24 mm |
| Q factor | 147 mm |
| Compatible frame formats | BB30, BB86 Pressfit,BB386EVO, BB90, BSA68, ITA70,PF30, T47 |
| Chain line | 44 / 47 mm |
| Sensor weight 104 BCD | 130 g |
| Crank plus sensor weight 104 BCD * | 637 g |
(* Crank length 175 mm, without bottom bracket, without chain rings)
TORQUE SPECS
