Pre-Owned John Deere Gator XUV 825M UTV

Description

DESCRIPTION

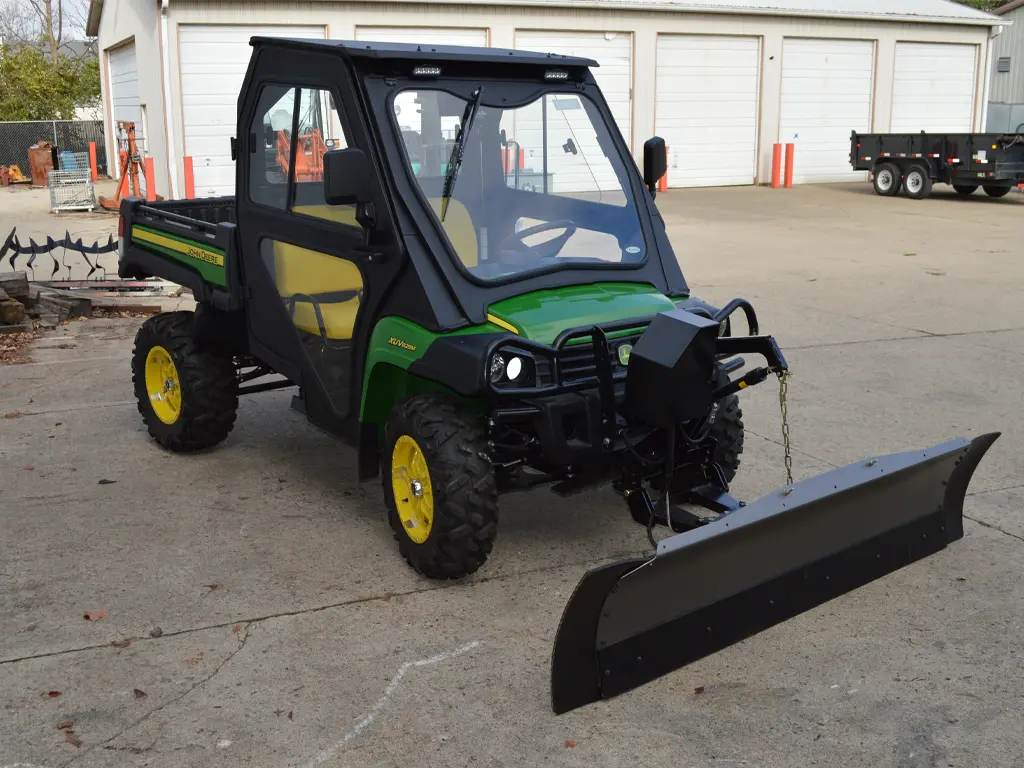

JOHN DEERE GATOR XUV 825M

This like new XUV 825M GATOR is a absolute must have for your property maintenance. This work horse is high performance front to back. We have added a new Curtis cab, heater and snow plow to this unit to increase this UTV’s usefulness. This unit was a display unit for selling UTV options and accessories at our dealership.

• YEAR: 2018
• 71.6 HOURS
• High Performance Engine: 812 cc, 4-cycle gas, electronic fuel injection (EFI), 52 horsepower
• 4X4
• Dump bed with liner
• Front grill guard
• High Performance All terrain trail tires
• Front and rear hitch
• New Curtis metal and glass cab installed with optional features. Side mirrors, rear view mirrors, Switch panel and LED low profile work lights.
• New Curtis heater
• New Curtis 72″ Hydraulic UTV snow blade including snow wings and markers

*Curtis cab, heater and snow plow all will be sold with new warranty.

* This item is to large to ship by box truck. Please call for invoice and shipping.

825M SPECS

ENGINE

Type…………..4-cycle Gas, Electronic Fuel Injection (EFI)

Cylinders…………..3

Oil Filter…………..Spin On Filter

Air Cleaner…………..Dry replaceable single element with remote intake

Cooling System…………..Liquid

DRIVETRAIN

Type…………..Continuously Variable Transmission (CVT) with Clutch Enclosure

Gear Ranges…………..Forward HI and LO – Neutral – Reverse

Travel Speeds:

Forward HI…………..71 km/h (44 mph)

Forward LO…………..43 km/h (27 mph)

Reverse…………..48 km/h (30 mph)

ELECTRICAL

Type…………..12 Volt

Battery Size…………..480 Cold Cranking Amps @ -18°C (0°F)

Alternator…………..75 Amp

Spark Plug Gap…………..0.95 mm (0.04 in.)

STEERING & BRAKES

Steering…………..Rack and Pinion

Brakes…………..Hydraulic Disc

TIRES

Front Tires

CST Terra Hawk…………..25×9-12

Load Capacity…………..530 kg (1168 lb)

Maxxis Bighorn 2.0…………..27×9-R14

Load Capacity…………..472 kg (1041 lb)

Inflation Pressure (All Front Tires)…………..97 kPa (14 psi)

Rear Tires

CST Terra Hawk…………..25×11-12

Load Capacity…………..630 kg (1389 lb)

Inflation Pressure – Cargo Load Condition 0-318 kg (0-700 lbs)…………..97 kPa (14 psi)

Inflation Pressure – Cargo Load Condition 318-454 kg (700-1000 lbs)…………..152 kPa (22 psi)

Maxxis Bighorn 2.0…………..27×11-R14

Load Capacity…………..665 kg (1466 lb)

CAPACITIES

Fuel Tank…………..26.5 L (7.0 gal)

Crankcase (with filter)…………..2.2 L (2.3 qt)

4WD Front Differential…………..0.59 L (19.6 oz)

Transaxle…………..3.8 L (4.0 qt)

Cooling System (Including Recovery Tank)…………..5.0 L (5.2 qt)

Brake…………..237 mL (8 oz)

DIMS

Width (overall)…………..1.6 m (62.0 in.)

Length (with bumper)…………..3.0 m (119.0 in.)

Height (with Protective Structure)…………..1.9 m (75.0 in.)

Ground Clearance…………..27.9 cm (11.0 in.)

WEIGHTS

Weight (XUV825E – Empty vehicle with full fluids)…………..805 kg (1774 lb)

Weight (XUV825M – Empty vehicle with full fluids)…………..815 kg (1797 lb)

Gross Vehicle Weight Rating (GVWR)…………..1406 kg (3100 lb)

Payload Capacity XUV825E…………..601 kg (1326 lb)

Payload Capacity XUV825M…………..591 kg (1303 lb)

Cargo Box Capacity (Not to exceed GVWR)…………..454 kg (1000 lb)

Towing Capacity (Not to exceed GVWR)…………..680 kg (1500 lb)

Maximum Trailer Tongue Weight…………..68 kg (150 lb)

Maximum Front Axle Load…………..650 kg (1433 lb)

LUBE

Engine Oil…………..John Deere PLUS-50™

…………..John Deere Torq-Gard Supreme™

Grease…………..John Deere Multi-Purpose HD Lithium Complex Grease

…………..Grease-Gard™ Premium Plus

Transmission Oil (Transaxle)…………..John Deere HY-GARD™ (JDM J20C)

Transmission Oil (4WD Front Differential)…………..John Deere HY-GARD™ (JDM J20C)

CURTIS CAB

All-Steel Cab for John Deere Gator HPX/XUV (2005+), SKU: 1GTRXUV2

Fits John Deere models 625i, 825i (E & M Models), 855d (E & M Models), HPX 615e & 815e model years 2005 to current

Heavy-duty all-steel cab built for style and durability. Venting windshield, door sliders, and rear panel slider for exceptional airflow throughout the cab year-round.

FEATURES

• Mounts to existing factory standard ROPS
• Commercial-grade, powder-coated 16-gauge steel frame, roof, and doors
• Windshield wiper
• Automotive-style AS1 safety glass venting windshield
• Dual sliding rear window and dual sliding door windows
• Pin-hinged doors remove in seconds without tools
• Quick-release clear gas cap cover
• Wide door openings
• Lockable doors

XUV Switch Panel Kit (1XUVSP)

• The kit includes 3 pre-wired illuminated switches, an adjustable swivel LED dome light, and plug for the windshield wiper
• Pre-wired for front and rear work lights and flashers

Cab heater (9PH20S30)

• Powerful forced hot water heater
• Features high/low-speed fan
• In-line shutoff valve quickly converts the heater into a summertime blower

Side mirrors: (9PM5)

• Stylish black mirrors complement any color vehicle
• Mirrors adjust with incremental detent stops
• Simple 2-bolt mount
• Drilling template included
• Breakaway design
• Easily relocate from door to frame
• Kit includes 2 mirrors and all mounting hardware

Rearview mirror: (9PM3)

• Dash or roof mount, this rearview mirror will ensure visibility and safety while working and driving.

2 x 6-inch low-profile work lights (9LEDW4)

• Stylish 5-LED flat work light complements any vehicle
• Mounts to both metal and plastic roofs
• Lights tilt up & down
• Pre-wired for fast, easy installation
• Kit includes 2 lights, toggle switch, and all mounting hardware
• Light may be purchased individually (9LEDFWL-LO)

Switch panel (1GXV25P)

• The kit includes 3 pre-wired illuminated switches, an adjustable swivel LED dome light, and plug for the windshield wiper
• Pre-wired for front and rear work lights and flashers

CURTIS PLOW

Hydraulic UTV Plow

Full hydraulic plow makes quick work clearing sidewalks, small parking lots and driveways. Illuminated, hand-held in-cab controller for easy operation in low light conditions. Plow comes assembled or unassembled. (Shown with optional blade markers.)

FEATURES

• Full hydraulic lift and angle control
• Single plug electrical connection
• Fully enclosed, sealed hydraulic system located on top for easy access and servicing
• Custom 2-inch receiver mount
• Quick hook up and detach
• 72-inch wide moldboard with 48-inch push frame
• Full trip, durable 12 gauge steel moldboard
• Adjustable trip springs
• Replaceable and reversible cutting edge
• Adjustable skid shoes included
• Mount kit required (sold separately)

SPECS

• Moldboard: Width, 72 inches; Height, 18 inches
• Full trip moldboard
• Commercial-grade steel construction
• Steel A-Frame
• 48-inch trip frame
• Maximum blade angle: 0 degrees thru 28 degrees
• Skid shoes: 1/2 inch diameter stem
• Weight: 254 lbs.
• Cutting edge height; 6 inches, double-sided
• Custom 2-inch receiver hitch

OPTIONS

• Rubber snow deflector (1UTVSD)
• Blade markers (1TBP37)
• Rubber cutting edge, ideal for cobblestone, brick, or other more sensitive surfaces (9PRU1)
• Assembled (1UTVP)
• Unassembled (1UTVP-1)
• Replacement cutting edge (UTV-CE)
• Custom plow mount kit
