Description

DESCRIPTION

Revised 3/25

DUO-TACH STANDARD PALLET FORKS

Premiers Duo Tach Pallet Fork attachments offer great versatility in that you can have one attachment work with your entire fleet of equipment. Our Duo Tach Pallet Forks are designed to be compatible with most all brands of mini skid steers and mini track loaders, such as Boxer, Ditchwitch, Toro, Kubota, Vermeer and more. Today’s modern mini’s can do so much more so why not enjoy the convenience, and cost savings, of having one attachment work on multiple machines.

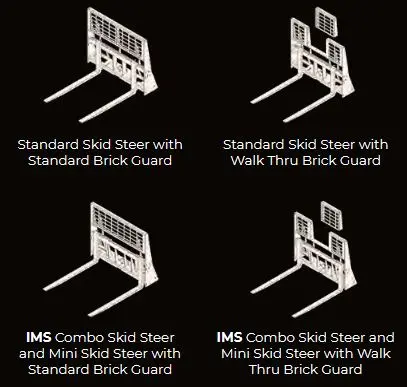

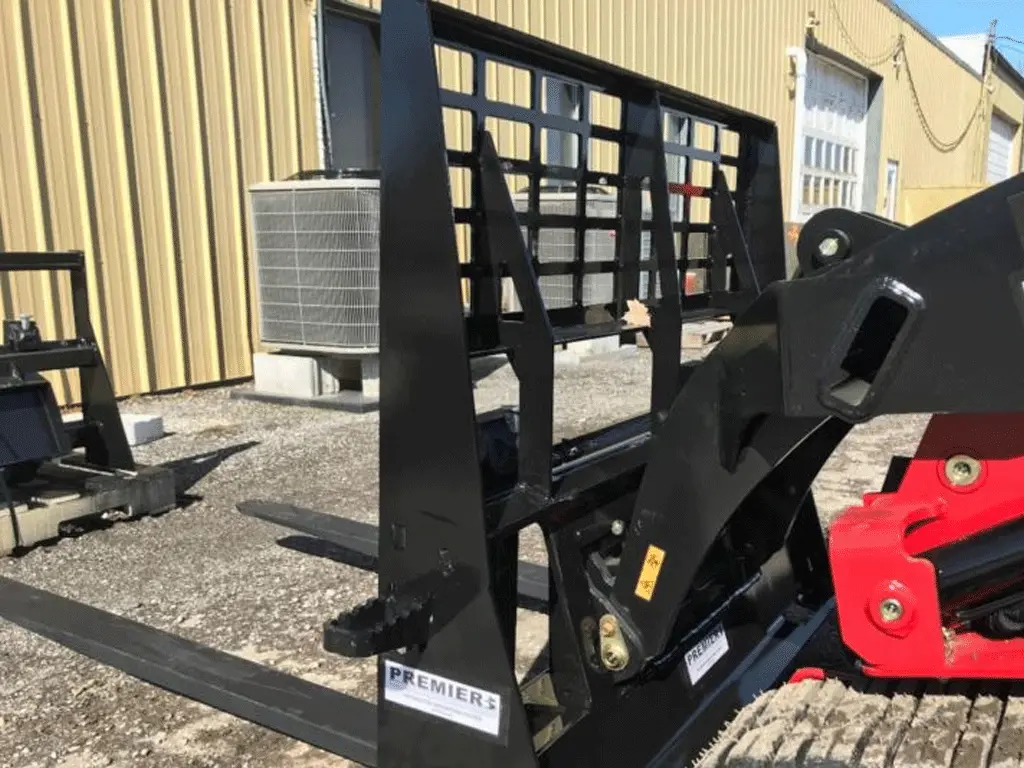

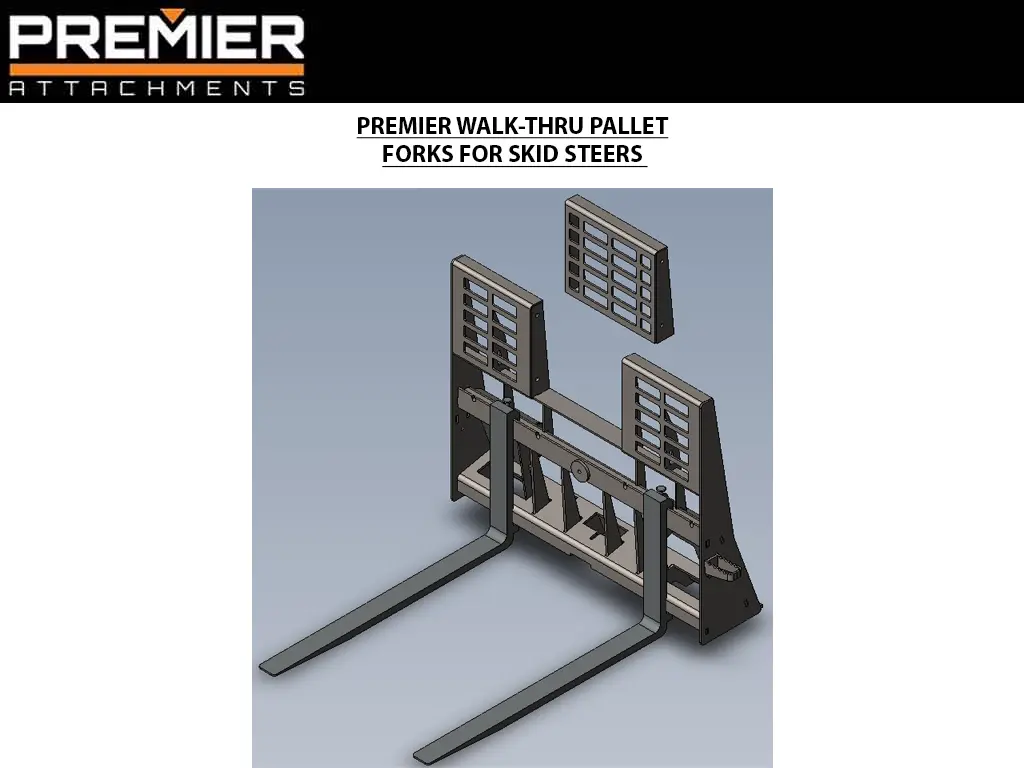

Our high-quality Class II ITA frames are designed to have the best visibility for the operator. We have two brick guard options, solid or our walk thru version that has a convenient removable panel. Below are the Class II specs.

Class II Specifications

Load Capacity	Tine Width	Tine Thickness	Length Options
4000 lbs.	4”	1-1/2”	42” & 48”
5500 lbs.	4”	1-3/4”	42”, 48”, 60″

• Duo-Tach Mounting System
• Load capacity of 4,000 lbs. and 5,500 lbs.
• Fork tines offered in 42”, 48” for 4,000 lbs. rated forks
• Fork tines measure 1-1/2” thick X 4” width for 4,000 lbs. rated forks
• Fork tines offered in 42”, 48” and 60” for 5,500 lbs. rated forks
• Fork tines measure 1-3/4” thick X 4” width for 5,500 lbs. rated forks
• High visibility frame design
• Chain-drop attachment point allows up to a 3/8” thick chain

SPECS

Class II Specifications

Load Capacity	Tine Width	Tine Thickness	Length Options
4000 lbs.	4″	1-1/2″	42″ & 48″
5500 lbs.	4″	1-3/4″	42″, 48″& 60″



Estimated Weights	LBS.
PF42I-4K	430
PF48I-4K	440
PF42I-6K	475
PF48I-6K	500
PF60I-6K	540
PF42WI-4K	430
PF42WI-4K	440
PF42WI-4K	475
PF42WI-4K	500
PF42WI-4K	540

BIG DAVE

Premier makes great attachments and the quality of these forks are second to none. One warning, pay attention to your mini loaders (ROC) rated operating capacity. You don’t want to get forks that weigh to much for your loader.
