Description

DESCRIPTION

3/26

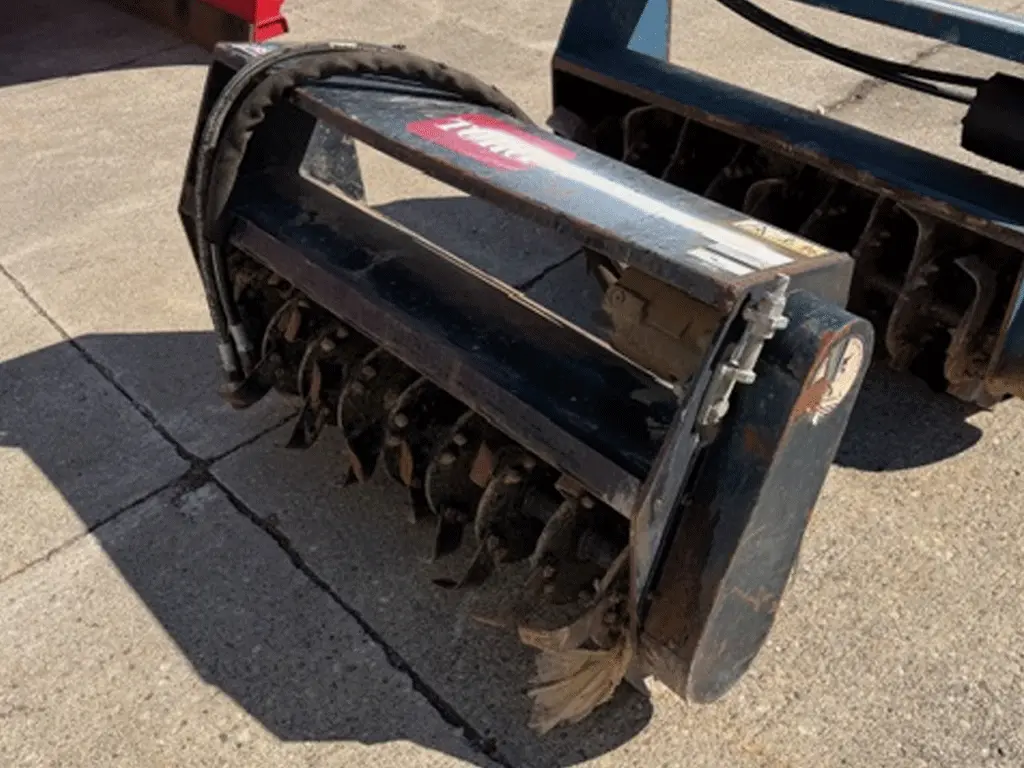

USED TORO TILLER FOR MINI LOADER

• MODEL: 22445
• SERIAL NUMBER: 313000153
• MFG: 2013

Tiller Attachment

The Toro Dingo tiller attachment greatly increases the productivity and performance of your Dingo system. Break through hard soil conditions up to 6″ (15.2 cm) deep. Avoid clogging the tiller by using one easy hand control to reverse the direction of the tiller to clear jams from rocks and debris.

Hydraulic Drive

Maximizes performance by supplying optimal power to the Dingo Tiller at all times. It also allows you to reverse the tiller direction to keep working through the toughest conditions if clogging occurs.

Reverse Tiller Direction

Easy hand control reverses the tiller direction if clogging occurs to continue working through the toughest conditions.

Hardened Tines

Maximize life and help dig in a variety of conditions. The tines are “bolt on” so they are easy to replace when worn.

SPECS

Construction	Fabricated, welded steel frame
Height	26 in. / 66.0 cm
Length	20 in. / 50.8 cm
Models	Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700
Mounting Frame	Dingo® quick-attach mount plate, fabricated, welded base
Number of Tine Heads	36
Quick Couplers	Dripless, flush face quick couplers
Shaft	1.5 in. / 3.8 cm
Tine Speed	Max: 245 rpm @ 3600 engine rpm (flow divider @ 9 o’clock position) Recommended:225 rpm @ 3600 engine rpm (flow divider @ 10 o’clock position)
Weight	363 lbs / 165 kg
Width	44 in. / 111.8 cm
Working Depth	6 in. / 15.2 cm
Working Width	40 in. / 101.6 cm
