Description
DESCRIPTION
Revised 3/24

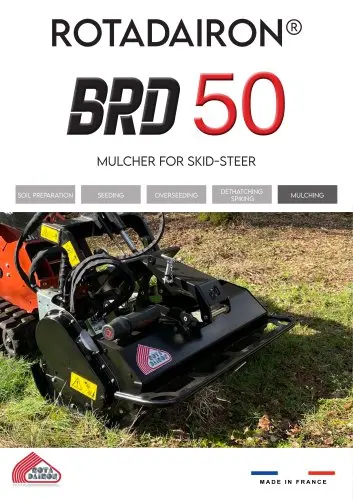

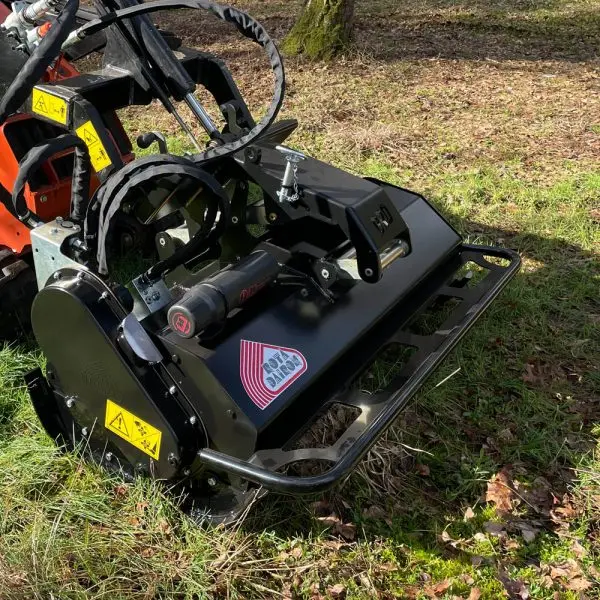

BRD 50 ROTADAIRON
Mulcher for Skid-steer (mini-loader) and hydraulic loader
This mulcher was designed to grind dense herbs and brambles. It achieves a very high performance thanks to the floating system (Rotadairon® Patent) which allows to follow perfectly and automatically the unevenness of the ground.
It is equipped with a device that complies with the regulations in force (EN12733) allowing the machine to be stopped quickly: as soon as the operator releases the controls and the machine ceases to be supplied with oil, our system brakes and stops the rotor in less than 7 seconds.
The Y-mounting of knives on shackles contributes to a better grinding.
- Safety hydraulic block
- Cartridge filtration
- Y-shaped mounting of knives on shackles
- Roller adjustment for working height
- Floating field following system
- Rear splash guard
- Forward push bar
* Some machines have had hydraulic issues where the auxiliary valve has been bypassed for a direct connection. Please call to see if you machine will need to have this done.
SPECS
| WORKING WIDTH |
1270 mm (50″) |
|---|---|
| TOTAL WIDTH |
1440 mm (56″ 3/4) |
| WEIGHT |
276 Kg (608 lb) |
| CARRIER: HYDRAULIC FLOW |
40 to 60 l/min (10.5 to 15.8 us gpm) |
| CARRIER: PRESSURE |
200 bars (2900 PSI) |
| CARRIER: MAXIMUM TRACK WIDTH |
1.27 meters (50’’) |
| WORKING HEIGHT |
30 to 70 mm (1″ 1/4 to 2″ 3/4) |
| ROTOR OUTER DIAMETER |
360 mm (14″ 1/4) |
| WORKING HEIGHT |
Adjustable skids 3 positions |
| NUMBER OF KNIVES |
76 |
| NUMBER OF SHACKLES |
38 |
| HITCH PLATE |
Toro / Ditch Witch / Vermeer conventional quick coupler system or equivalent |
| FORWARD SPEED OF THE CARRIER |
0,8 to 1,5 Km/h (0.5 to 0.9 mph) |
| ROTOR TRANSMISSION |
Hydraulic motor + chain in oil bath |
| SECURITY |
Hydraulic safety block |
| TRANSPORT DIMENSION (MM) |
1440 x 950 x 690 (56″ 3/4 x 37″ 1/2 x 27″ 1/4) |
BIG DAVE
* Some machines have had hydraulic issues where the auxiliary valve has been bypassed for a direct connection. Please call to see if you machine will need to have this done.
This a French company. They have a warehouse in PA but not all models are in stock.
