Description
DESCRIPTION
4/25
RDH60 & RDH70 MANUAL SHIDESHIFT WITH ROLLER ARE TYPICALLY IN STOCK AT USA WAREHOUSE. RDH52 WOULD CURRENTLY HAVE TO SHIP FROM FRANCE.
RDH 52/60 ROTADAIRON
Soil Cultivator for Hydraulic Loaders

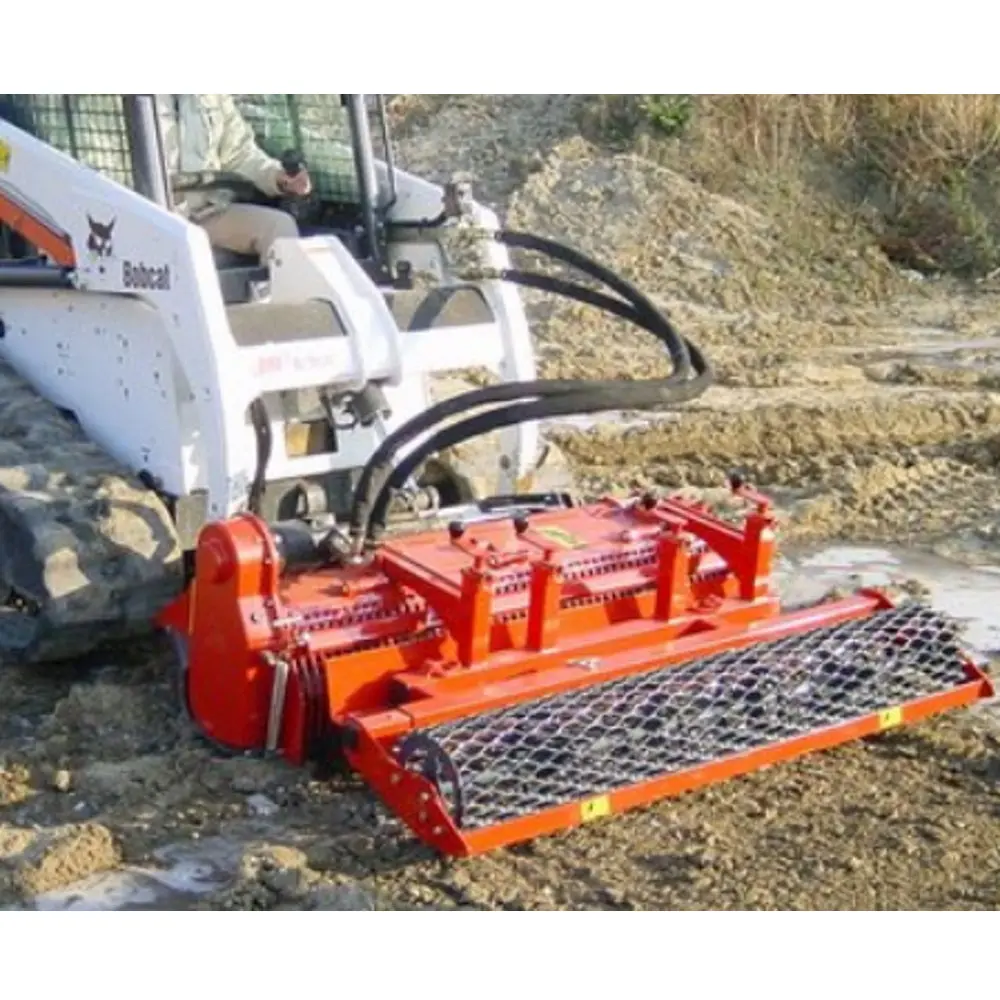

This soil preparer referred to as a soil cultivator or stone burier is intended for hydraulic skid steer loaders. There are two versions of the RDH 52 machine hitch:
- Bobcat type hitch plate: RDH 52
- Adaptable to your carrier by your own : supplied without hitch plate, without hoses, without couplers: RDH 52 ADAPT
This soil preparer and stone burier is intended for hydraulic loaders. There are two versions of the RDH 60 machine hitch:
- Bobcat type hitch plate: RDH 60
- Adaptable to your carrier by your own : supplied without hitch plate, without hoses, without couplers: RDH 60 ADAPT

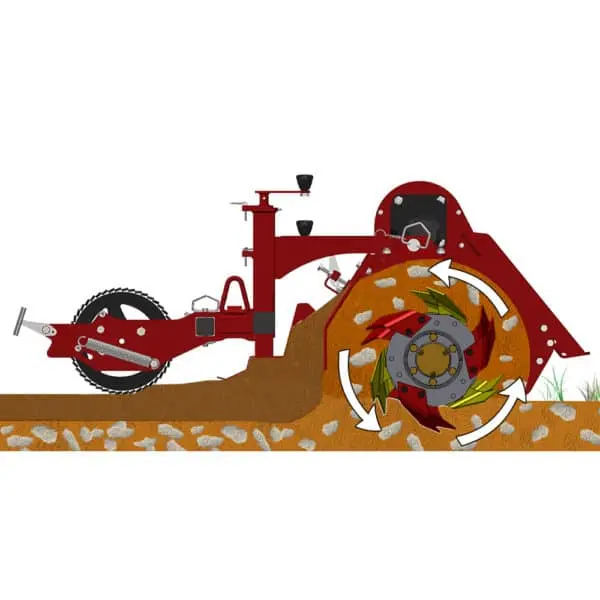

It allows the building or renovation of green spaces by preparing the seed bed before seeding. The machine is multi-purpose, it allows tilling, burying (stones, rubbish, herbs, etc.), levelling, mixing and rolling the surface. The use is made in direct or on a ground previously de-compacted in depth and cleared of large stones.
- Oversized rotor
- Anti-pad blades (ROTADAIRON® patent)
- Selection grid fingers
- Conventional quick coupler system
- Working depth adjustment
- Grader blade
RDH 70 ROTADAIRON
Stone burier for Hydraulic Loaders

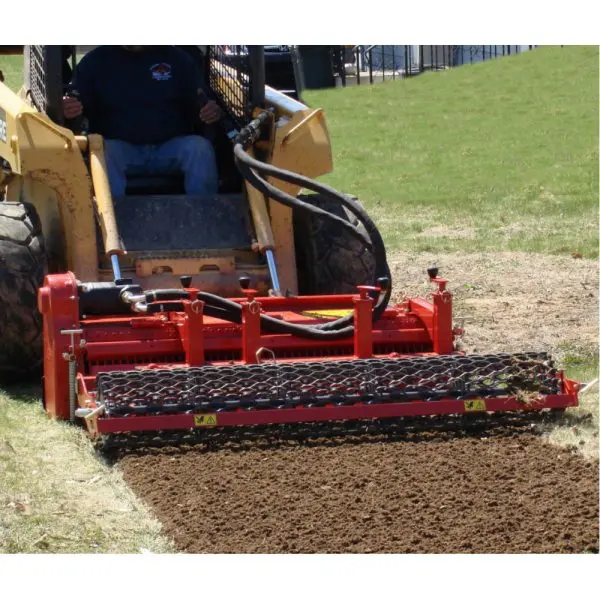

This soil preparer referred to as a soil cultivator or stone burier is intended for hydraulic skid steer loaders with Bobcat hitch plate.
It allows the building or renovation of green spaces by preparing the seed bed before seeding. The machine is multi-purpose, it allows tilling, burying (stones, rubbish, herbs, etc.), levelling, mixing and rolling the surface. The use is made in direct or on a ground previously de-compacted in depth and cleared of large stones.
- Oversized rotor
- Anti-pad blades (Rotadairon® patent)
- Selection grid fingers
- Conventional quick coupler system
- Working depth adjustment
- Grader blade
SPECS
RDH 52
| RDH 52 : HITCH PLATE |
Bobcat |
|---|---|
| RDH 52 ADAPT : HITCH PLATE |
Without hitch plate, without hoses, without couplers |
| WORKING WIDTH |
1340 mm (52″ 3/4) |
| TOTAL WIDTH |
1730 mm (68″) |
| WEIGHT |
RDH 52 : 450 Kg (992 lb) |
| CARRIER: HYDRAULIC FLOW |
70 to 120 l/min (18,5 to 31,7 US gpm) |
| CARRIER: PRESSURE |
210 to 300 bars (3045 to 4350 psi) |
| CARRIER: MAXIMUM TRACK WIDTH |
RDH 52 : 1.48 meters (58” 1/4) |
| WORKING DEPTH (MAX) |
140 mm (5’’ 1/2) |
| ROTOR OUTER DIAMETER |
400 mm (15’’ 3/4) |
| DEPTH ADJUSTMENT |
Support on rear roller adjustable by screw jacks |
| NUMBER OF BLADES |
28 |
| GRID FINGER SPACING |
22 mm (7/8”) |
| FORWARD SPEED OF THE CARRIER |
0,8 to 1,5 Km/h (0.5 to 0.9 mph) |
| ROTOR TRANSMISSION |
Hydraulic motor + chain in oil bath |
| SECURITY |
Made by the carrier |
| TRANSPORT DIMENSION (MM) |
1700 x 1570 x 700 (67″ x 61″ 3/4 x 27″ 1/2) |
RDH 60
| RDH 60 : HITCH PLATE |
Bobcat |
|---|---|
| RDH 60 ADAPT : HITCH PLATE |
Without hitch plate, without hoses, without couplers |
| WORKING WIDTH |
1500 mm (59″) |
| TOTAL WIDTH |
1830 mm (72″) |
| WEIGHT |
RDH 60 : 500 Kg (1102.3 lb) |
| CARRIER: HYDRAULIC FLOW |
70 to 120 l/min (18,5 to 31,7 US gpm) |
| CARRIER: PRESSURE |
210 to 300 bars (3045 to 4350 psi) |
| CARRIER: MAXIMUM TRACK WIDTH |
RDH 60 : 1.8 meters (70” 4/5) |
| WORKING DEPTH (MAX) |
140 mm (5’’ 1/2) |
| ROTOR OUTER DIAMETER |
400 mm (15’’ 3/4) |
| DEPTH ADJUSTMENT |
Support on rear roller adjustable by screw jacks |
| NUMBER OF BLADES |
32 |
| GRID FINGER SPACING |
20 mm (4/5”) |
| HITCH PLATE |
Bobcat conventional quick coupler system or equivalent |
| FORWARD SPEED OF THE CARRIER |
0,8 to 1,5 Km/h (0.5 to 0.9 mph) |
| ROTOR TRANSMISSION |
Hydraulic motor + chain in oil bath |
| SECURITY |
Made by the carrier |
| TRANSPORT DIMENSION (MM) |
1905 x 1570 x 700 (75″ x 61″ 3/4 x 27″ 1/2) |
RDH 70
| RDH 70 : HITCH PLATE |
Bobcat |
|---|---|
| WORKING WIDTH |
1774 mm (69” 3/4) |
| TOTAL WIDTH |
2130 mm (84’’) |
| WEIGHT WITH MESH METAL ROLLER |
780 Kg (1719.6 lb) |
| CARRIER: HYDRAULIC FLOW |
70 to 120 l/min (18,5 to 31,7 US gpm) |
| CARRIER: PRESSURE |
210 to 300 bars (3045 to 4350 psi) |
| CARRIER: MAXIMUM TRACK WIDTH |
2.15 meters (84” 2/3) |
| WORKING DEPTH (MAX) |
160 mm (6” 1/4) |
| ROTOR OUTER DIAMETER |
510 mm (20”) |
| DEPTH ADJUSTMENT |
Support on rear roller adjustable by screw jacks |
| NUMBER OF BLADES |
54 |
| GRID FINGER SPACING |
20 mm (4/5”) |
| FORWARD SPEED OF THE CARRIER |
0,8 to 1,5 Km/h (0.5 to 0.9 mph) |
| ROTOR TRANSMISSION |
Hydraulic motor + chain in oil bath |
| SECURITY |
Made by the carrier |
| TRANSPORT DIMENSION (MM) |
2140 x 1900 x 850 (84’’ 1/4 x 74’’ 3/4 x 33’’ 1/2) |
