DESCRIPTION
4/25

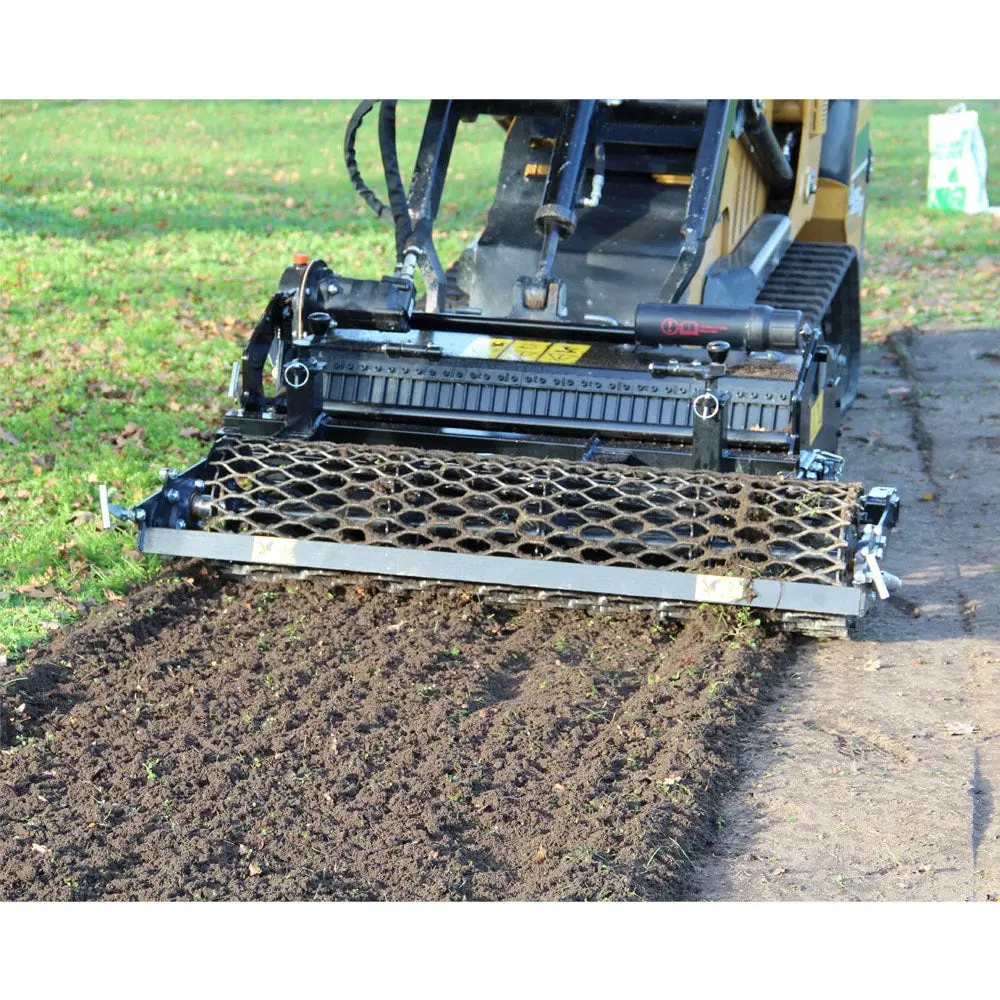

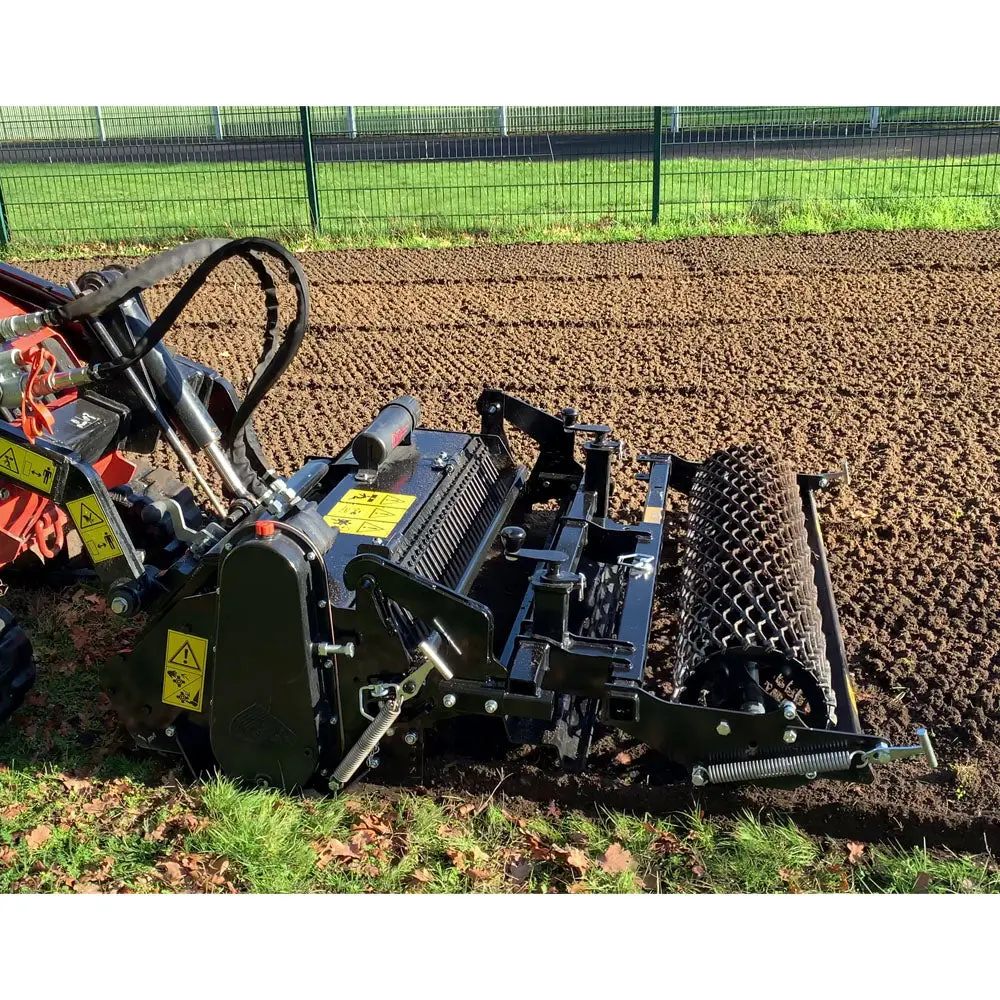

STH 36/42 ROTADAIRON
Stone buriers for mini loader
This soil and stone burier is designed for mini loaders. There are three versions of the STH 36 machine hitch:
- Toro / Ditch Witch / Vermeer type hitch plate: STH 36
- Bobcat type hitch plate: STH 36 B
- Adaptable to your carrier by your own : supplied without hitch plate, without hoses, without couplers: STH 36 ADAPT
This soil and stone burier is designed for mini loaders. There are two versions of the STH 42 machine hitch :
- Toro / Ditch Witch / Vermeer type hitch plate: STH 42
- Adaptable to your carrier by your own : supplied without hitch plate, without hoses, without couplers: STH 42 ADAPT
It allows the building or renovation of green spaces by preparing the seed bed before seeding. The machine is multi-purpose, it allows tilling, burying (stones, rubbish, herbs, etc.), levelling, mixing and rolling the surface. The use is done live or on a ground previously de-compacted in depth and cleared of large stones.
- Oversized rotor
- Anti-pad blades (Rotadairon® patent)
- Selection grid fingers
- Conventional quick hook system
- Grader blade
SPECS
| STH 36 : HITCH PLATE |
Toro / Ditch Witch / Vermeer |
|---|---|
| STH 36 B : HITCH PLATE |
Bobcat |
| STH 36 ADAPT : HITCH PLATE |
Without hitch plate, without hoses, without couplers |
| WORKING WIDTH |
963 mm (38”) |
| TOTAL WIDTH |
1330 mm (52″ 1/4) |
| WEIGHT |
STH 36 : 265 Kg (584.2 lb) |
| CARRIER: HYDRAULIC FLOW |
30 to 45 l/min (7.9 to 11.8 US gpm) |
| CARRIER: PRESSURE |
200 to 250 Bars (2900 to 3625 psi) |
| CARRIER: MAXIMUM TRACK WIDTH |
STH 36 : 1.15 meters (45” 1/4) |
| WORKING DEPTH (MAX) |
140 mm (5’’ 1/2) |
| ROTOR OUTER DIAMETER |
400 mm (15’’ 3/4) |
| DEPTH ADJUSTMENT |
Rear roller height adjustable 4 positions |
| NUMBER OF BLADES |
20 |
| GRID FINGER SPACING |
22 mm (7/8”) |
| FORWARD SPEED OF THE CARRIER |
0,8 to 1,5 Km/h (0.5 to 0.9 mph) |
| ROTOR TRANSMISSION |
Hydraulic motor + chain in oil bath |
| SECURITY |
Made by the carrier |
| TRANSPORT DIMENSION (MM) |
1325 x 1545 x 620 (52″ 1/4 x 60″ 3/4 x 24″ 1/2) |
| STH 42 : HITCH PLATE |
Toro / Ditch Witch / Vermeer |
|---|---|
| STH 42 ADAPT : HITCH PLATE |
Without hitch plate, without hoses, without couplers |
| WORKING WIDTH |
1100 mm (43” 1/4) |
| TOTAL WIDTH |
1440 mm (56″ 3/4) |
| WEIGHT |
STH 42 : 285 Kg (628.3 lb) |
| CARRIER: HYDRAULIC FLOW |
40 to 55 l/min (10.5 to 14.5 us gpm) |
| CARRIER: PRESSURE |
200 to 250 Bars (2900 to 3625 psi) |
| CARRIER: MAXIMUM TRACK WIDTH |
STH 42 : 1.30 meters (51” 1/4) |
| WORKING DEPTH (MAX) |
140 mm (5’’ 1/2) |
| ROTOR OUTER DIAMETER |
400 mm (15’’ 3/4) |
| DEPTH ADJUSTMENT |
Rear roller height adjustable 4 positions |
| NUMBER OF BLADES |
24 |
| GRID FINGER SPACING |
22 mm (7/8”) |
| FORWARD SPEED OF THE CARRIER |
0,8 to 1,5 Km/h (0.5 to 0.9 mph) |
| ROTOR TRANSMISSION |
Hydraulic motor + chain in oil bath |
| SECURITY |
Made by the carrier |
| TRANSPORT DIMENSION (MM) |
1440 x 1545 x 620 (56″ 3/4 x 60″ 3/4 x 24″ 1/2) |
