DESCRIPTION
11/24
PRO PLUS Series

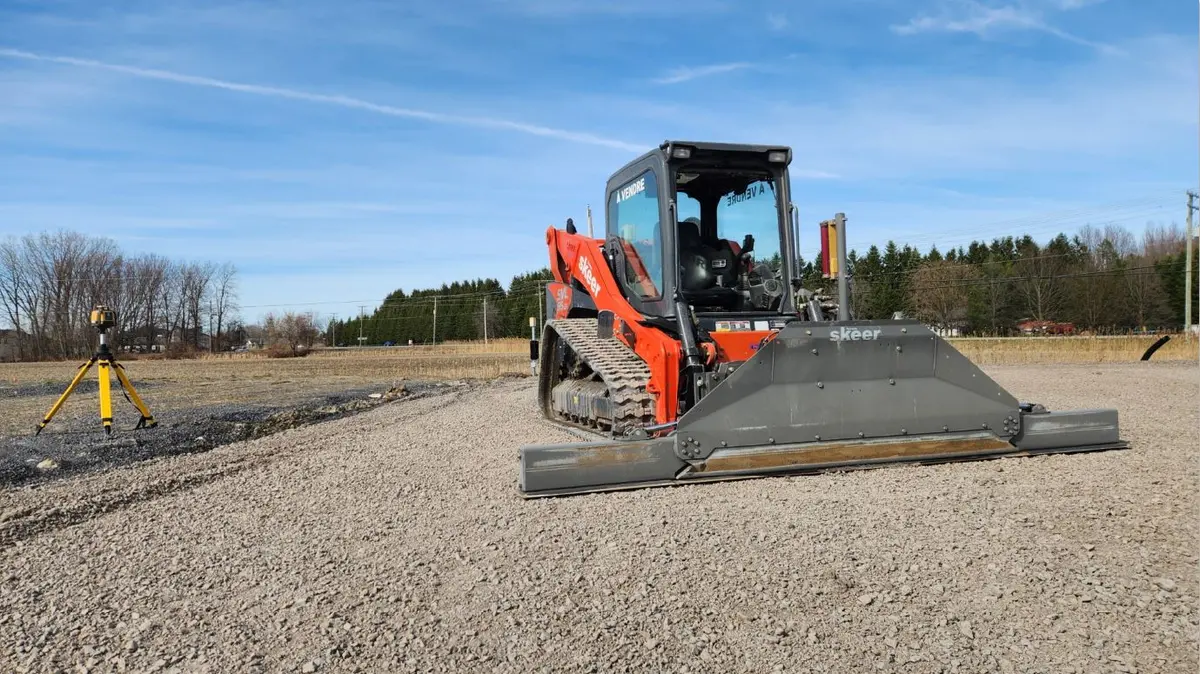

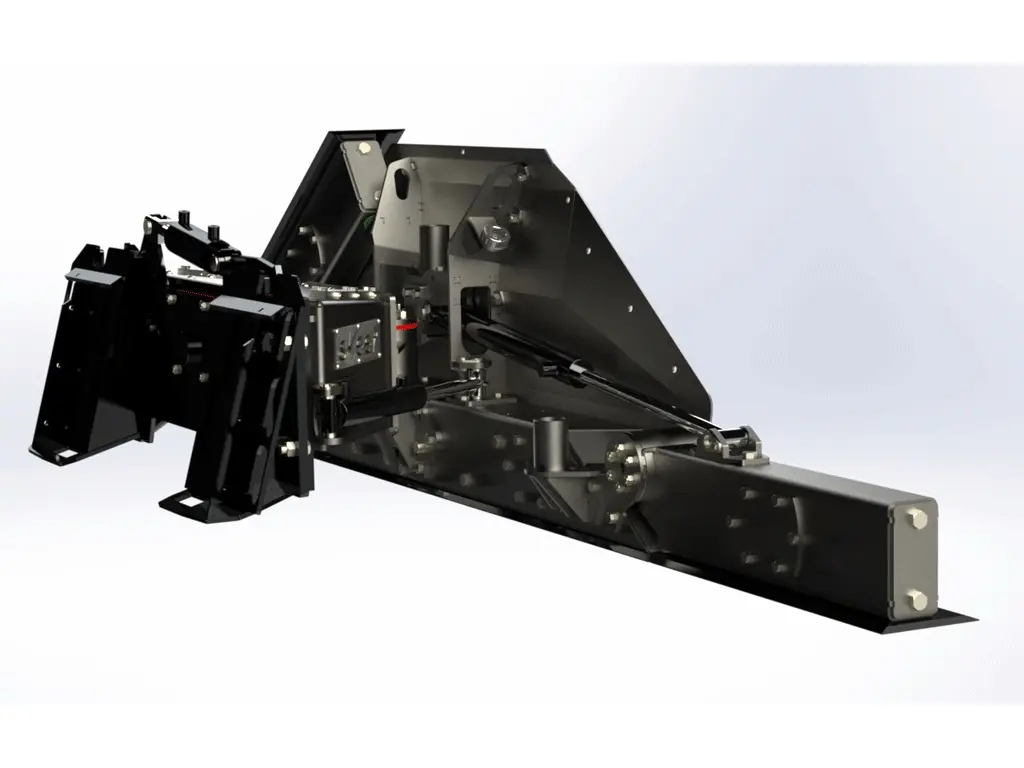

Our Pro Plus model doesn’t just incorporate our fundamental features like traction level adjustment, flat cutting, and pivoting capabilities; it’s also the bearer of a groundbreaking innovation: our remarkable 30-inch retractable hydraulic wings, spanning an astonishing 13.4′ in total maximum width when fully deployed. These hydraulic wings redefine the boundaries of versatility and efficiency, sparking a revolution in your rough preparation and final grading capabilities.
Features:
- Patented technologies: traction level adjustment, flat cutting edge, hydraulic extension pivots

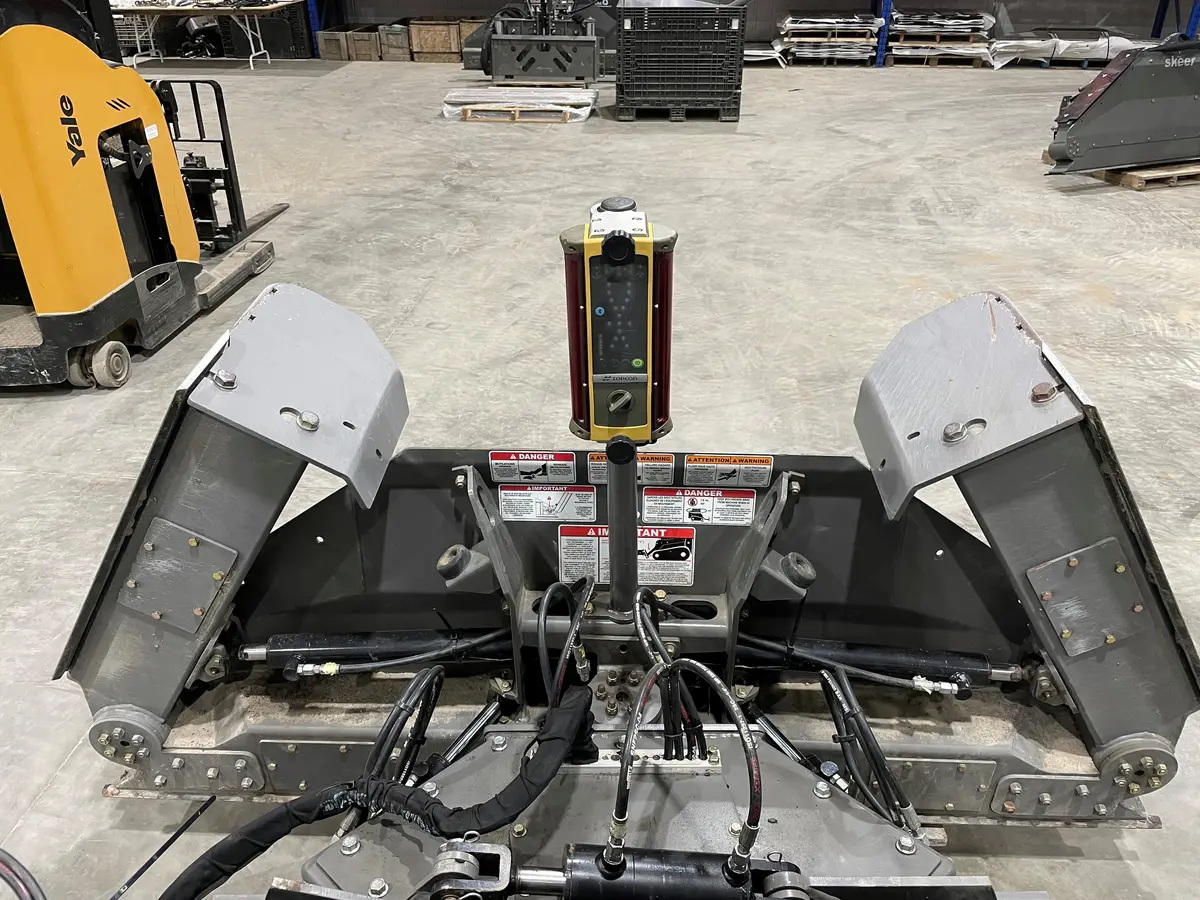

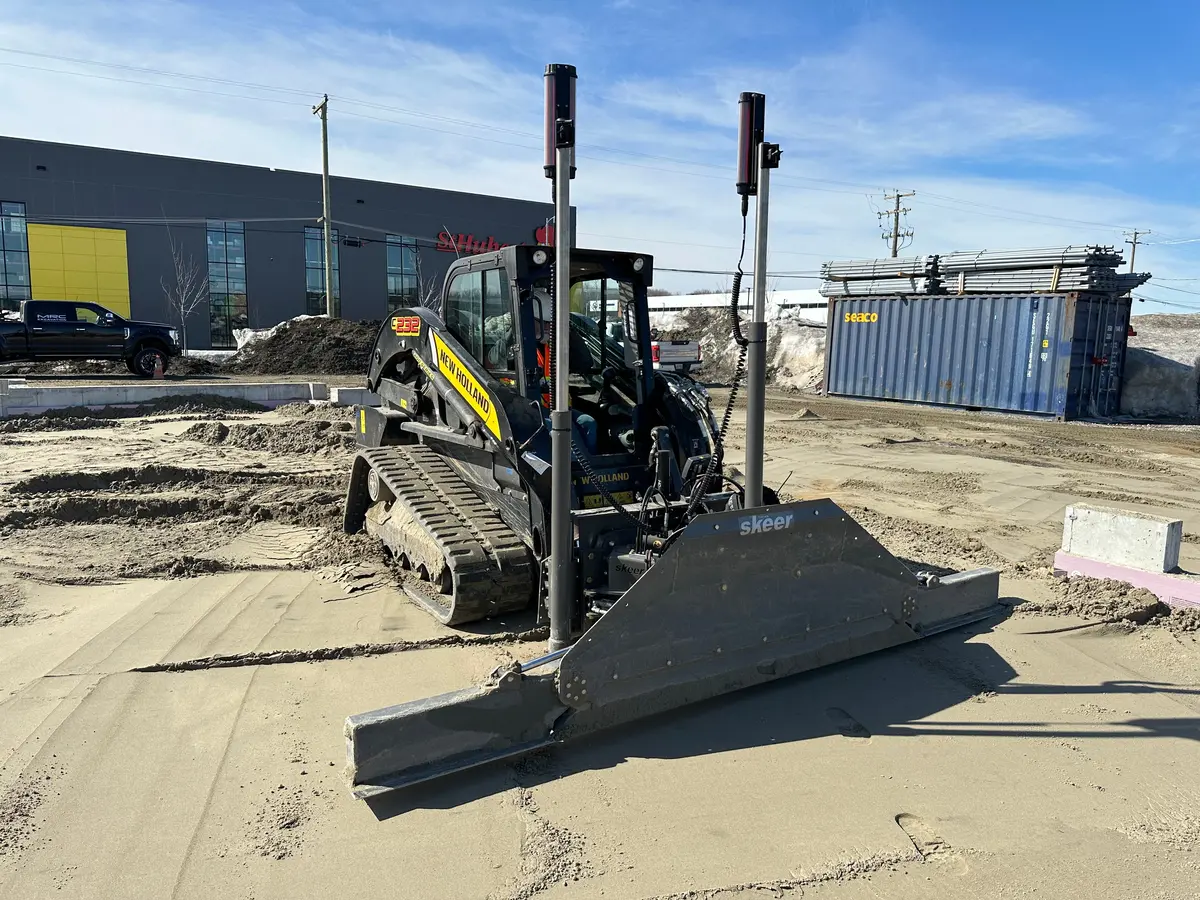

- 2 grading modes available : manually operated and laser assisted
- Hydraulic traction level adjustment
- 8’’ Hardox 450 replaceable cutting edge
- Powder coat painting
Price Includes
- Free Shipping anywhere in the Domestic USA.
SPECS
| MODEL |
PRO PLUS 4-WAY |
PRO PLUS 4 WAY |

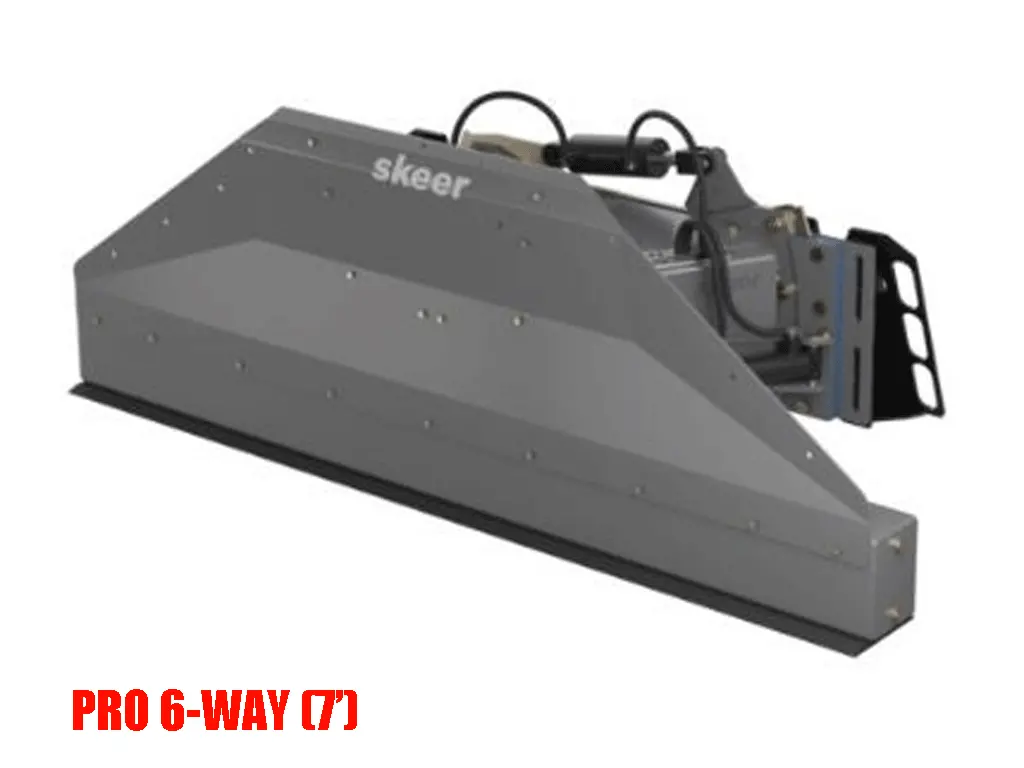

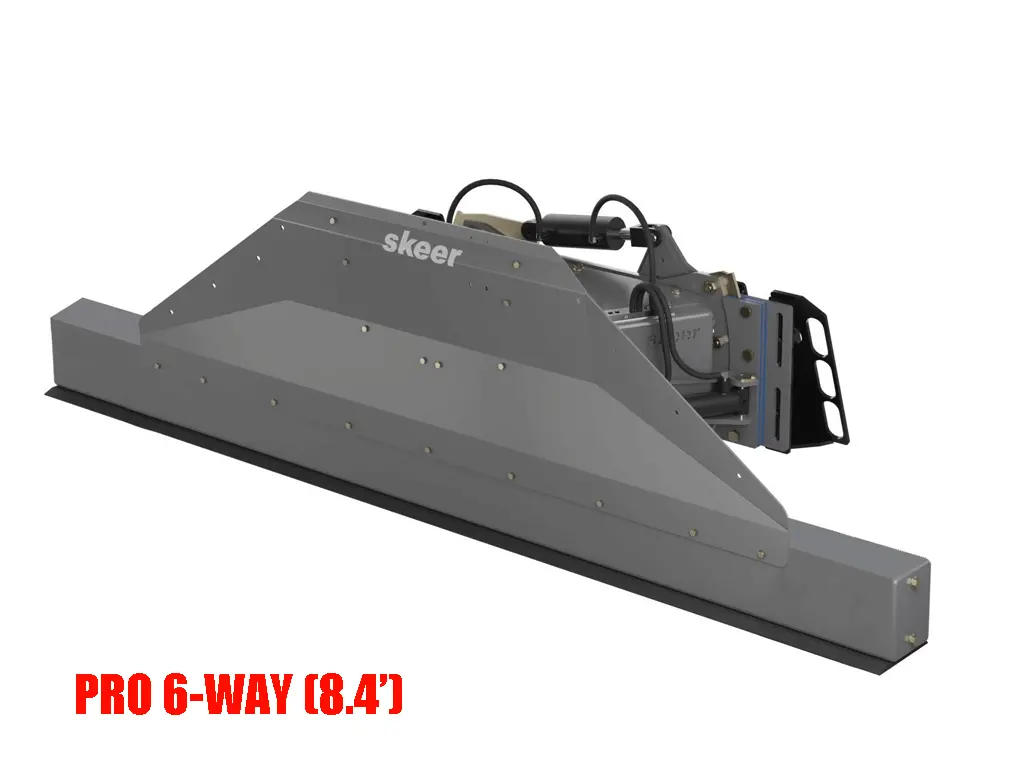

PRO PLUS 6-WAY |
PRO PLUS 6-WAY |
| SIZE | 7′-12′ | 8.4′-13.4′ | 7′-12′ | 8.4′-13.4′ |
| MIN HP REQUIRED | 60 | 85 | 65 | 90 |
| WEIGHT (Lbs.) | 1210 | 1340 | 1410 | 1540 |
| SWIVEL MOTION | 30 DEGREE | 30 DEGREE | ||
| TILTING MOTION | 13 DEGREE | 13 DEGREE | ||
|
DEPLOYABLE WINGS |
30″ | 30″ | VARIBLE | VARIBLE |
| Minimum HP required | 4-way: 55 HP | 6-way: 60 HP |
| Weight | 4-way: +- 1600 lbs | 6-way: +- 1600 lbs |
| Available sizes | 7′-12′ | 8.4′-13.4′ |
| Swivel motion | 30° on both side | |
| Tilting motion (slope) | 13° on both side | |
| Deployable wings | 30’’ on both side |
