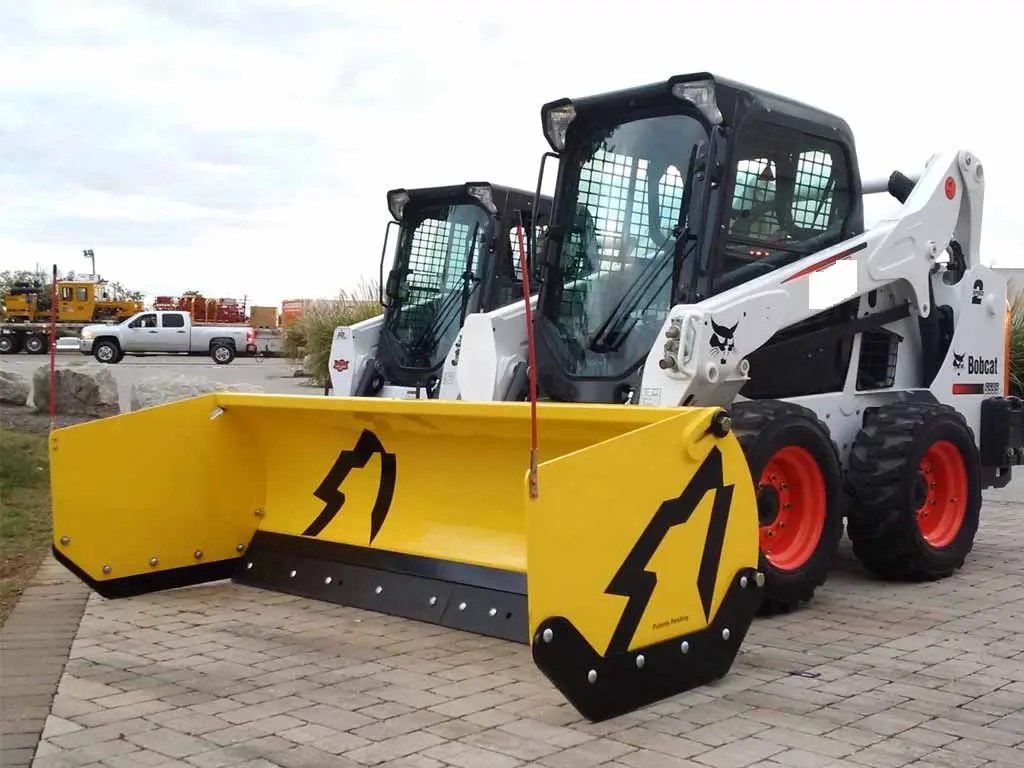

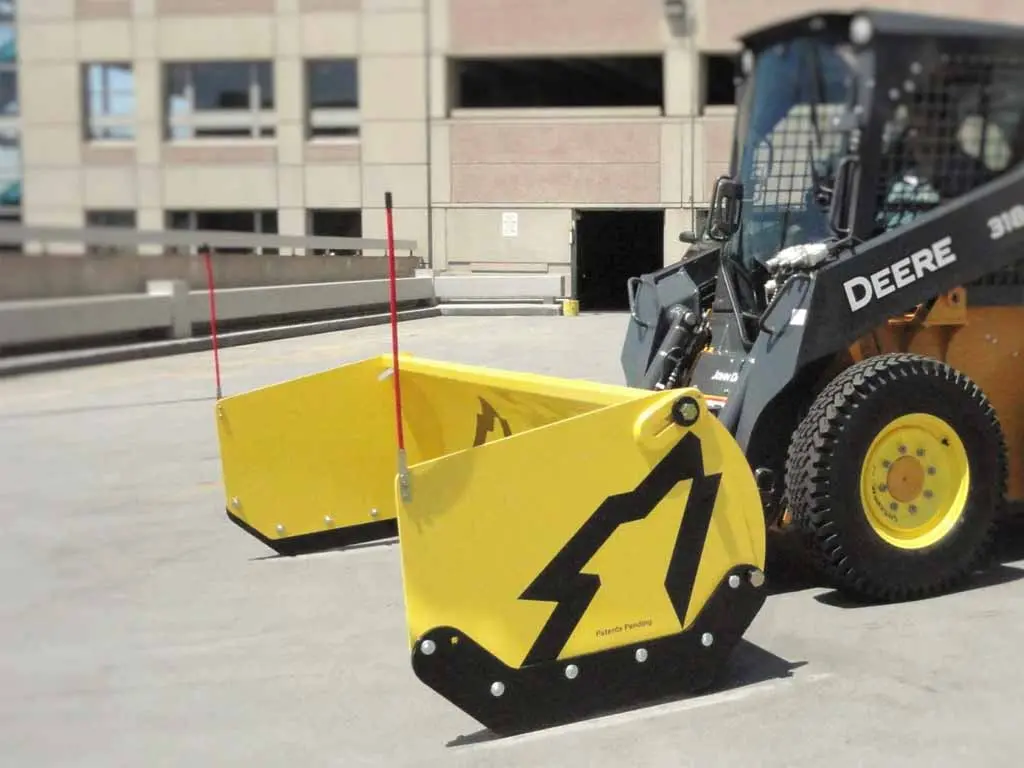

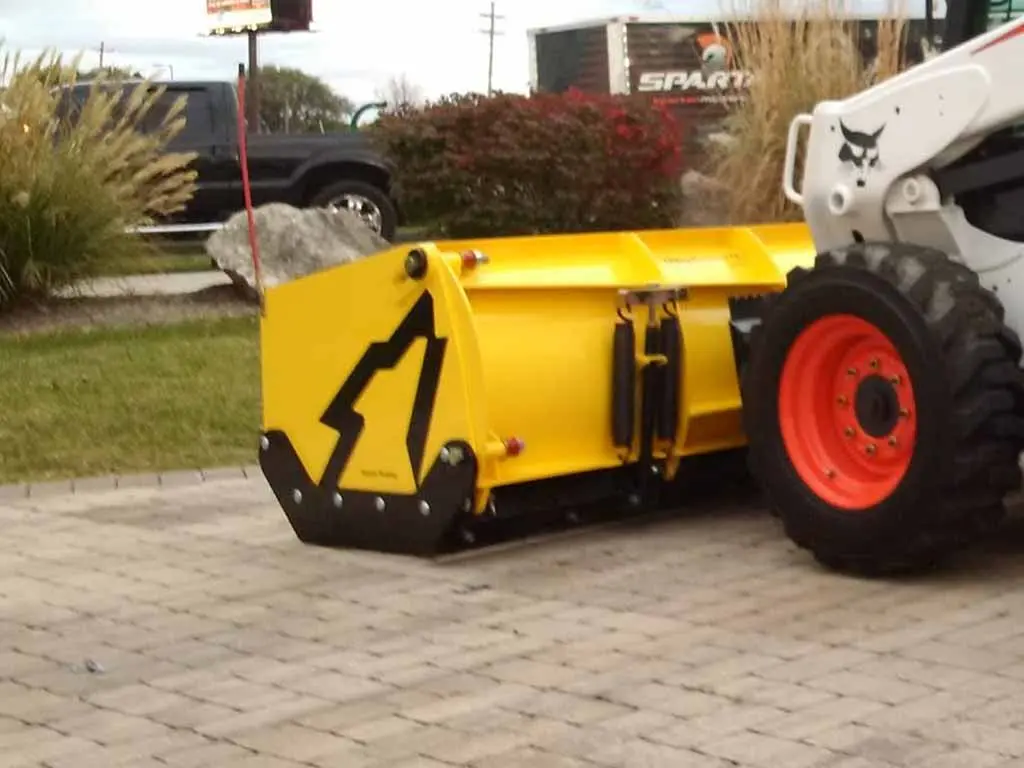

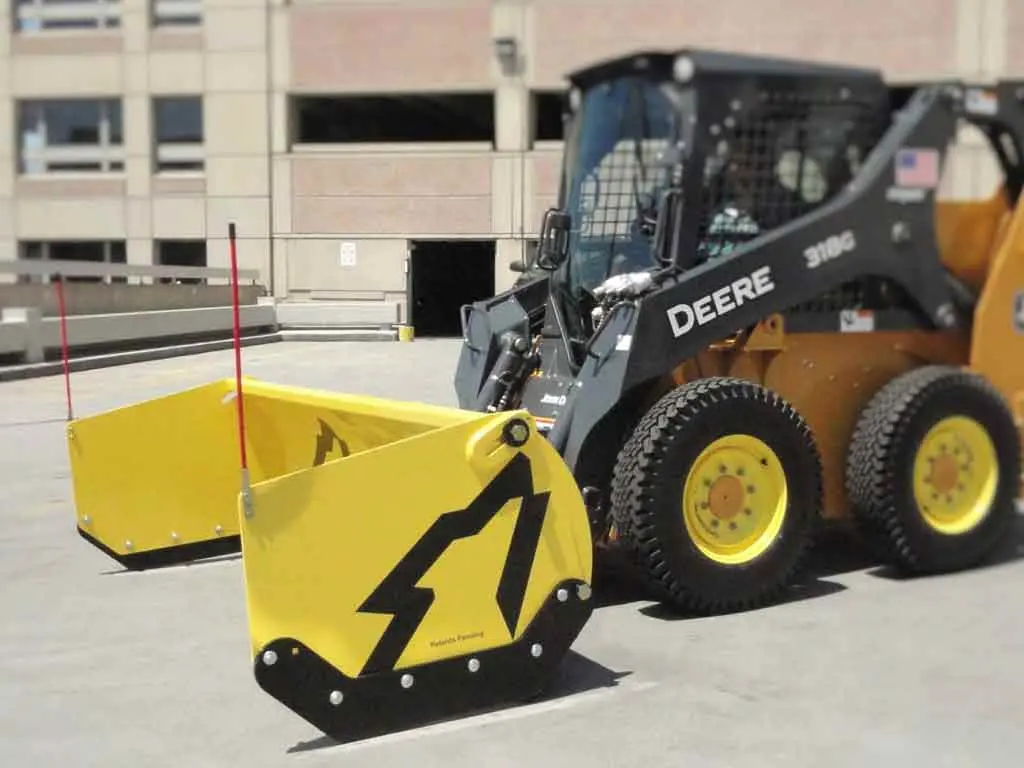

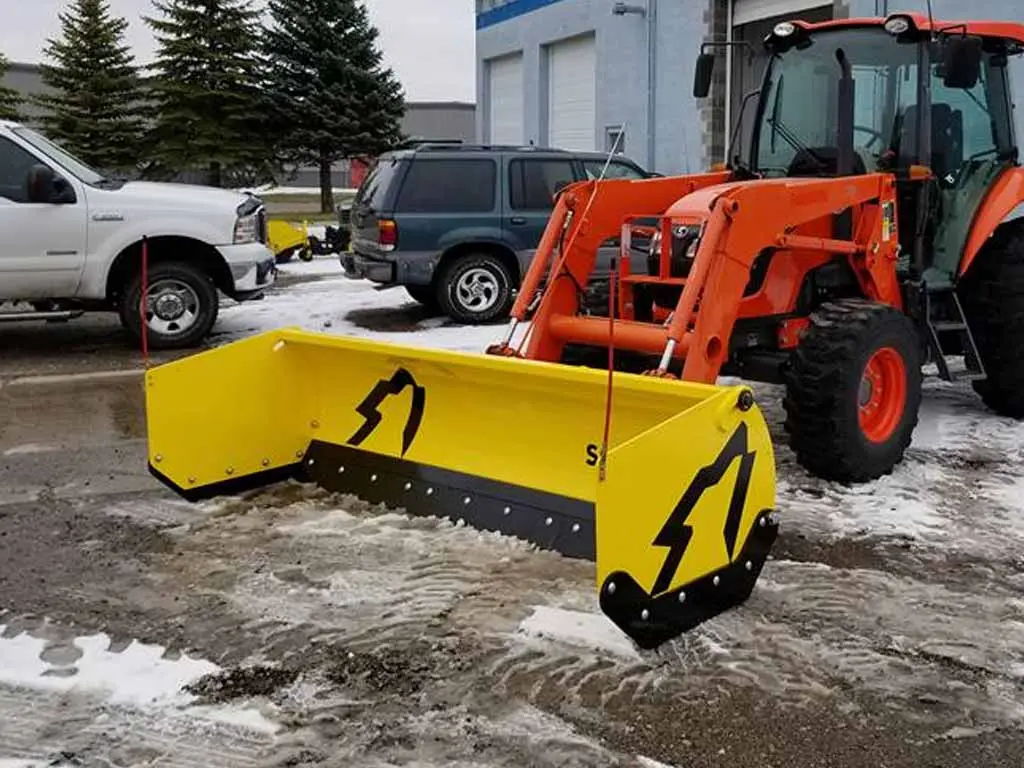

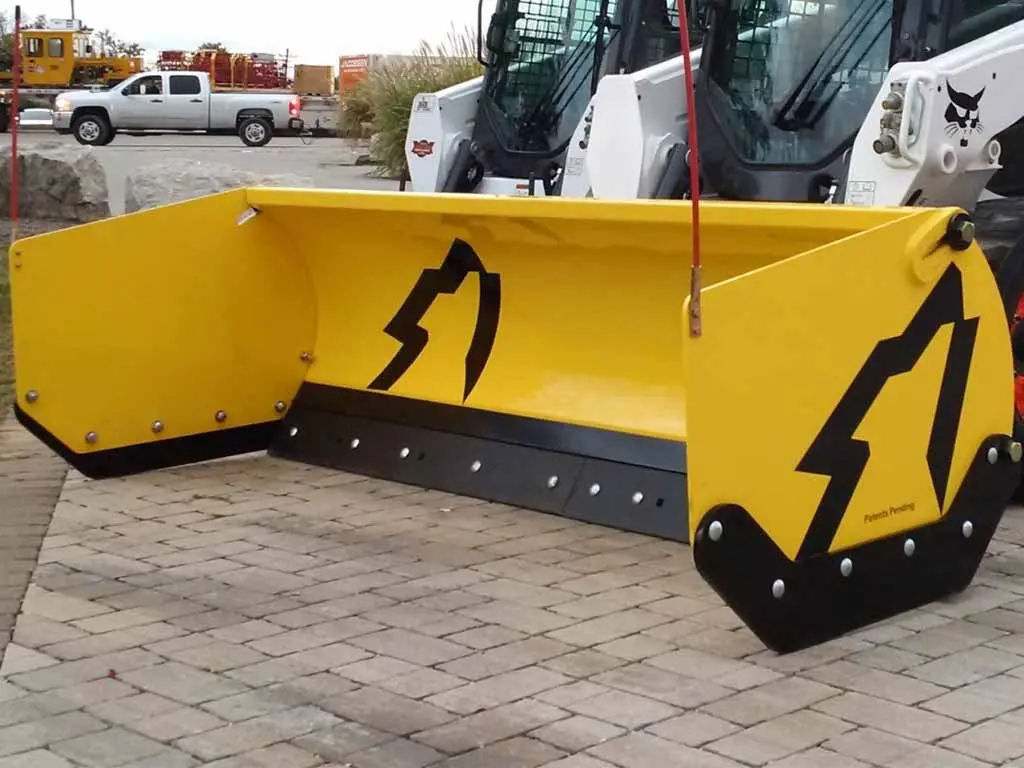

UltraPusherTE
Gain a biting edge with the UltraPusherTE.
This innovative new snowpusher has a steel cutting edge for the cleanest scrape you can get. Industry-first cushioned sideplates provide ultimate protection for the operator, machine and snowpusher. And without sideplate-to-moldboard supports, it completely eradicates snow buildup to maximize rolling and overall efficiency.
CALL FOR PRICING ON OPTIONAL SPILL GUARD
| Features | Benefits |
|---|---|

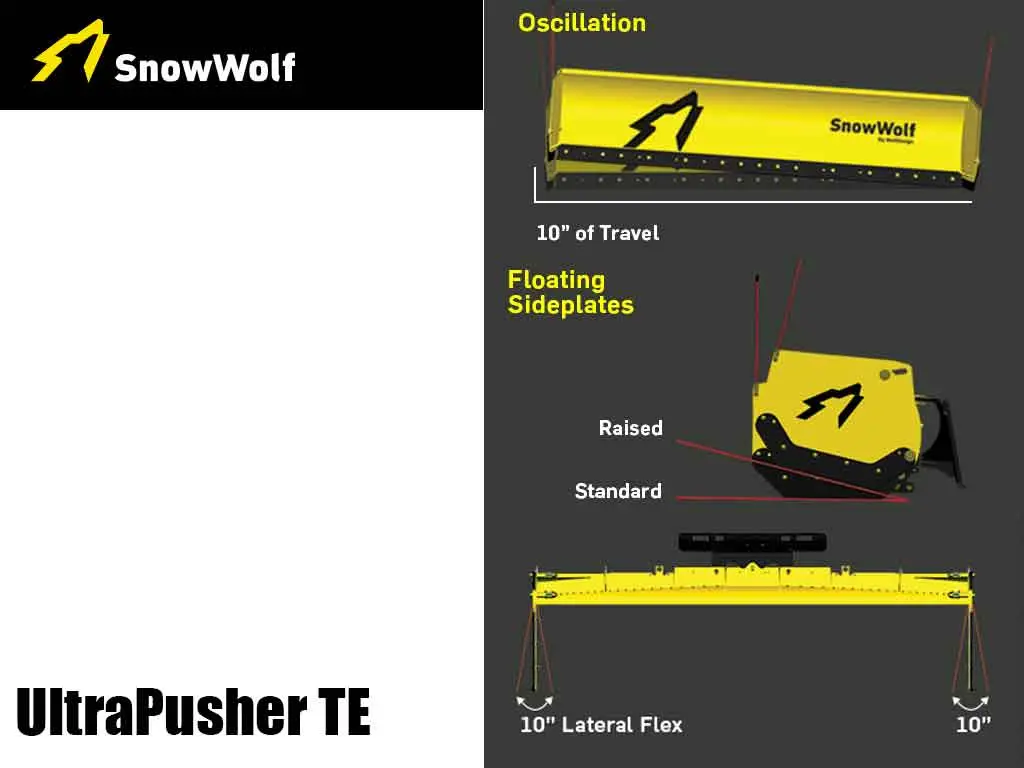

| Class-Exclusive Cushioned Sideplates | Industry-first urethane springs protect sideplates from bending by providing up to 10 inches of lateral flex if the pusher hits something at an angle. |
| Floating Sideplates | Up-down pivoting sideplates follow surface contours, move the blade over head-on obstacles and allow for down pressure on the cutting edge. |
| Strutless Sideplates | Elimination of supports between the sideplates and moldboard means no snow buildup and nearly effortless rolling. Tough AR400 sideplate shoes ensure long wear life. |
| Oscillation | Pusher follows contours with up to 10 inches of oscillation to keep the blade on the surface. |
| Tight Moldboard Curvature | Tight curve keeps snow ‘live” and rolling properly so you can push more snow with less horsepower and traction. |
| Trip Edge | The full 9-inch trip edge easily clears obstacles and protects the operator and machine. |
| Cutting Edge | Put down pressure on the 6-inch, high-carbon steel cutting edge for a clean scrape every time. |
| Image | Part Number | Description |
|---|---|---|
 |
AE-7 AE-8 AE-9 AE-10 |
ActivEdge® AR-400 Sectional Cutting Edge |
 |
AE-7-CBD AE-8-CBD AE-9-CBD AE-10-CBD |
ActivEdge® Carbide Sectional Cutting Edge |
 |
SG-7 SG-8 SG-9 SG-10 |

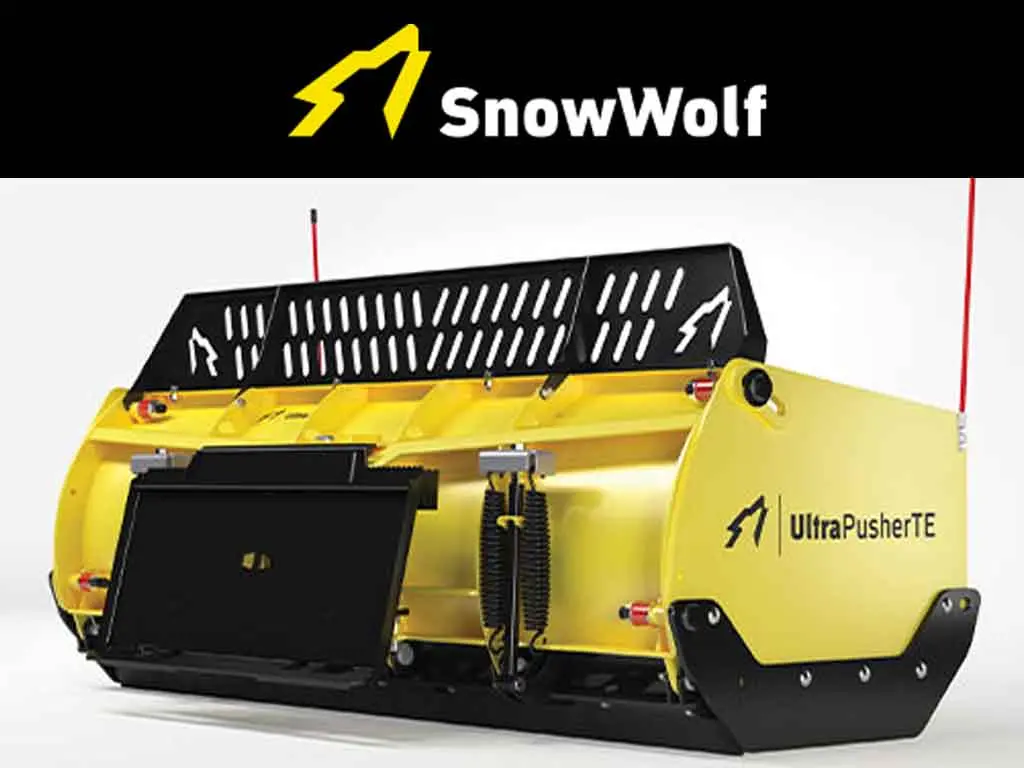

SpillGuard, Perforated Steel 10″ Blade Height Extension |
VIDEOS
SPECIFICATIONS
| UltraPusherTE: 6,000-10,000 lbs. | |||
| Model Number | UPTE-72 | UPTE-84 | UPTE-96 |
| Overall Height | 30.7″ | ||
| Overall Length | 36.1″ | ||
| Overall Width | 74″ | 86″ | 98″ |
| Unit Weight (lbs.) | 852 | 891 | 933 |
| Width Between Sideplates | 72″ | 84″ | 96″ |
| Moldboard Gauge | 10 Ga. | ||
| Cutting Edge | 1/2″ x 6″ Steel | ||
| Vertical Ribs | 6 | ||
| Sideplate Thickness | 3/8″ | ||
| Sideplate Wear Shoes | 5/8″ x 37″ AR400 Steel | ||
| Trip Springs | 4 Ext. | ||
| Full Down Pressure | Yes | ||
| Oscillation | Yes | ||
| Hook Up | Universal Skid Steer | ||
| SpillGuard | Optional | ||
