Description
DESCRIPTION
Sweepers, 220 Series, QCSS Manual Angle Broom
- SINGLE MOTOR – STANDARD APPLICATIONS
- DUAL MOTOR – SEVERE DUTY APPLICATIONS
- (CALL FOR MOTOR SPECIFICATIONS)
- POLY-WIRE MIX BRUSH
- MANUAL ANGLE

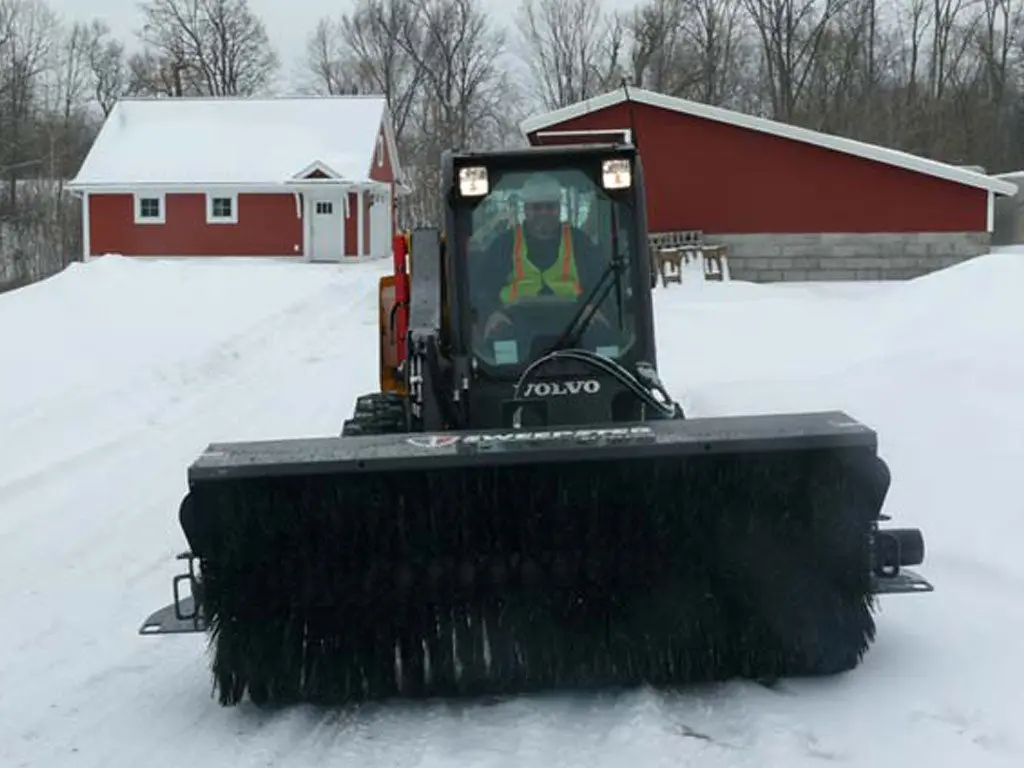

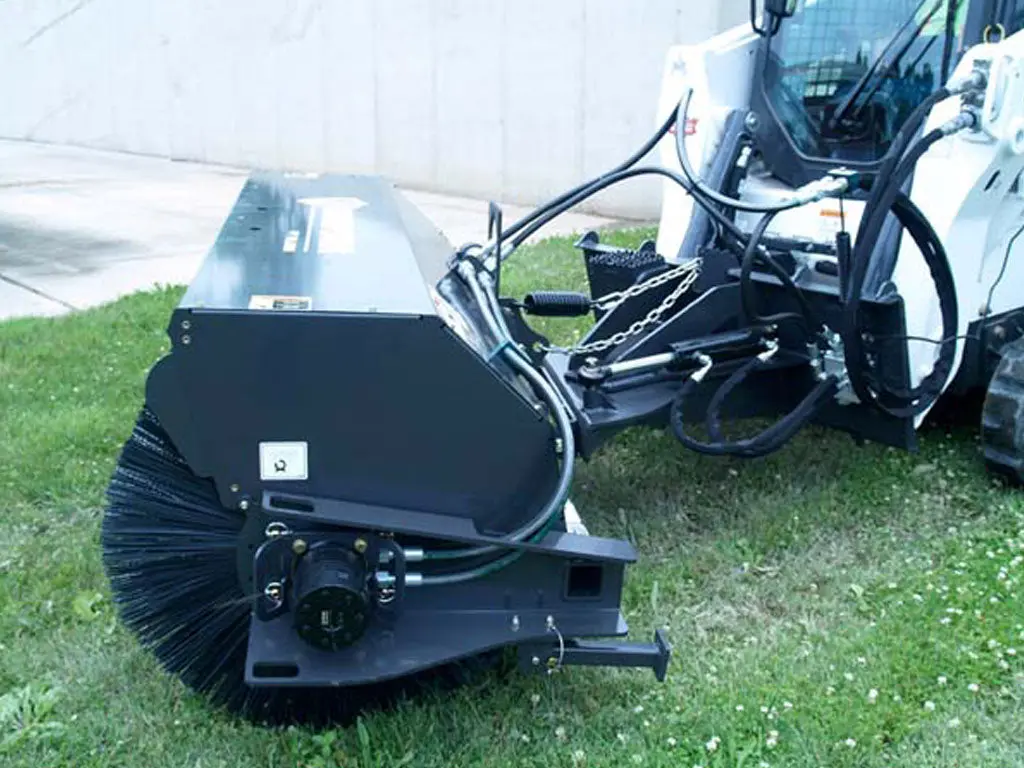

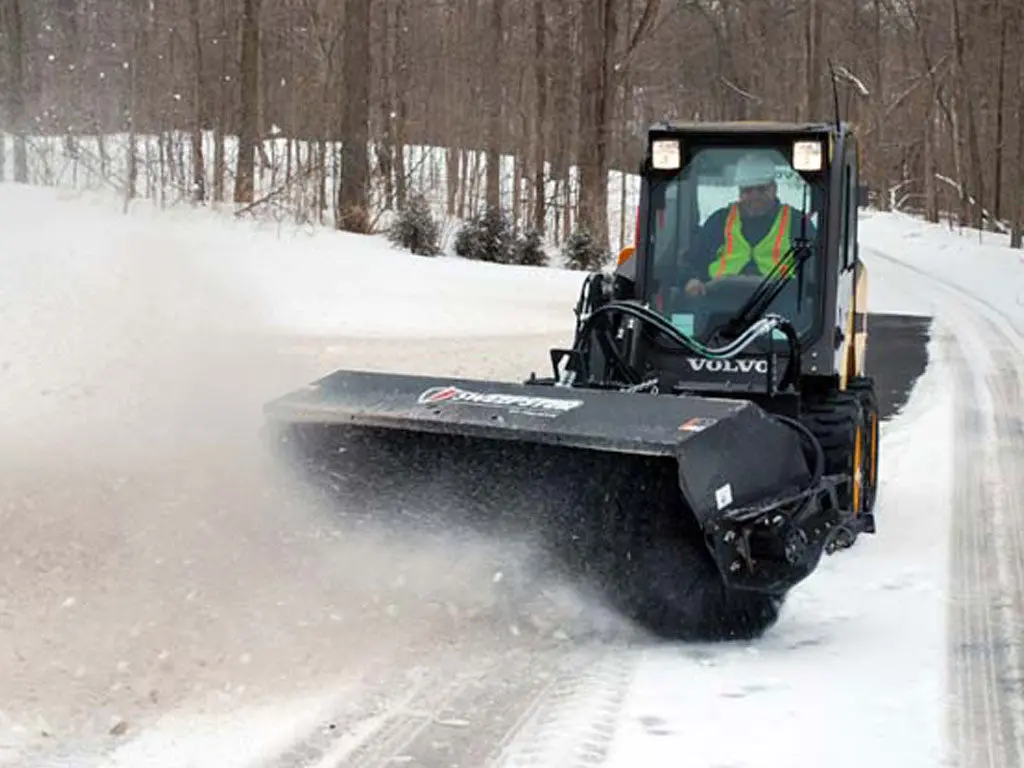

The Sweepster QCSS Angle Broom (SSL Angle Sweeper — Hydraulic Drive) is designed for skid steer mount. Use for wind-rowing material left, right or straight. Available with manual and hydraulic angle and widths from 60 to 84 inches. This product is also available CE certified.
FEATURES
- Drive slips out of core without removing hydraulic lines from wheel motor
- Brush core is reversible for even brush wear
- 32″ diameter brush for longer life
- Angles manually 30 degrees left/right
- Faceted hood design provides maximum strength at ends of the hood
- Poly/wire brush
- Includes skid steer mounting
SPECIFICATIONS
| WIDTH | ANGLED | BRUSH | WEIGHT | MOTOR | GPM |
| 72″ | 62.5″ | 32″ | 870 lb | Single | 12-25 |
| 72″ | 62.5″ | 32″ | 895 lb | Dual | 12 – 25 |
| 84″ | 73″ | 32″ | 920 lb | Single | 12-25 |
| 84″ | 73″ | 32″ | 945 lb | Dual | 12-25 |
