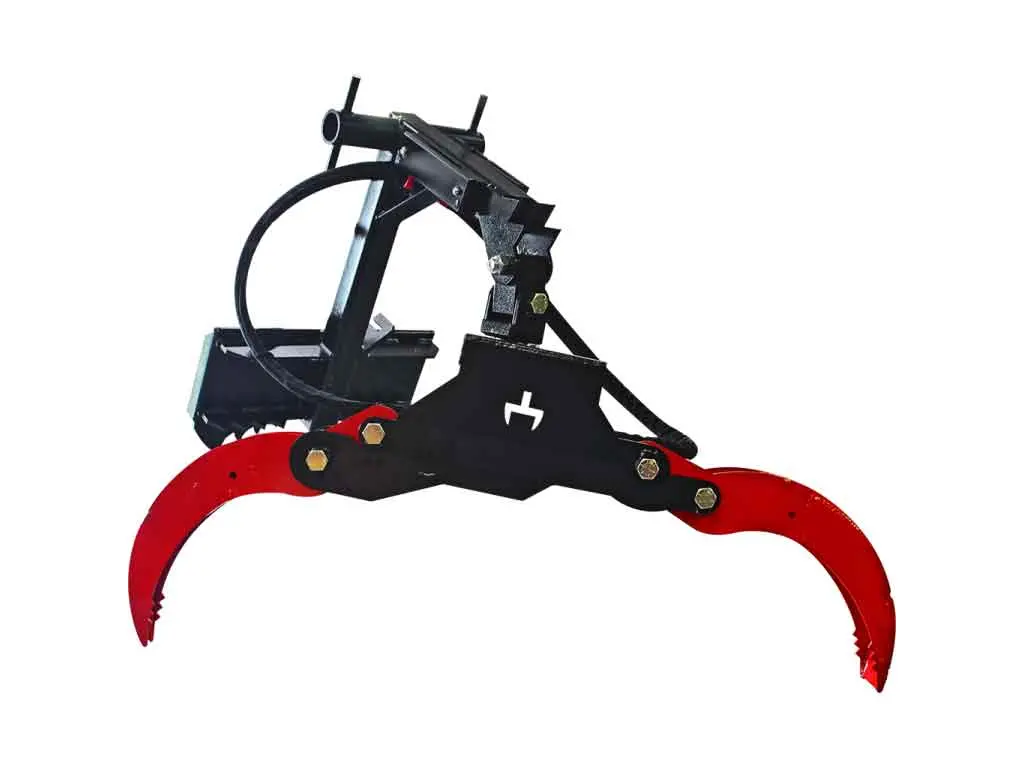

56″ T1031 BMGX2 Mini Skid Steer Log Grapple
The Original BMG Built With Hardox® Wear Plate!
The original mini skid steer log grapple and log lifter by Branch Manager™ with Hardox® wear plate in the body and arms.
Using Hardox® wear plate instead of our standard Grade 50 increases the strength by up to three times while also providing superior abrasion resistance.
56″ T1031 BMGX2 Features & Benefits
- Mounts onto all mini-loaders, coming fully assembled and ready to go to work.
- Swivel mount with “knock around” rotation means less maintenance and less weight, allowing you to lift more.
- Log dogs that heel the log to provide a similar and intuitive function to locking pins
- Large 56″ opening
- Light weight of 265 lbs.
- Free rotation turns the grapple instead of your machine, saving wear and tear on lawns and machines
MOUNTINGS
- Mini-Universal Hitch Plate with Universal Flat Face Hydraulic Couplers, Fits Vermeer, Ditch Witch, Toro, BME, Giant & More!
- Mini-European Hitch Plate with Avant Hydraulic Couplers
- Mini-Bobcat (MT) Hitch Plate with Universal Flat Face Hydraulic Couplers
- Mini-European Hitch Plate with NO Hydraulic Couplers
- Full size universal skid steer mounting
SPECIFICATIONS
| MODEL | T1031 BMGX2 |
| DESCRIPTION | HARDOX BYPASS GRAPPLE |
| OPENING | 56″ |
| ROTATION | FREE |
| LIFT CAPACITY | 3000 lbs |
| RECCOMENDED PSI | 2000 |
| WEIGHT | 265 lbs |
| WRAPPING DIAMETER | 36″ |
