DESCRIPTION

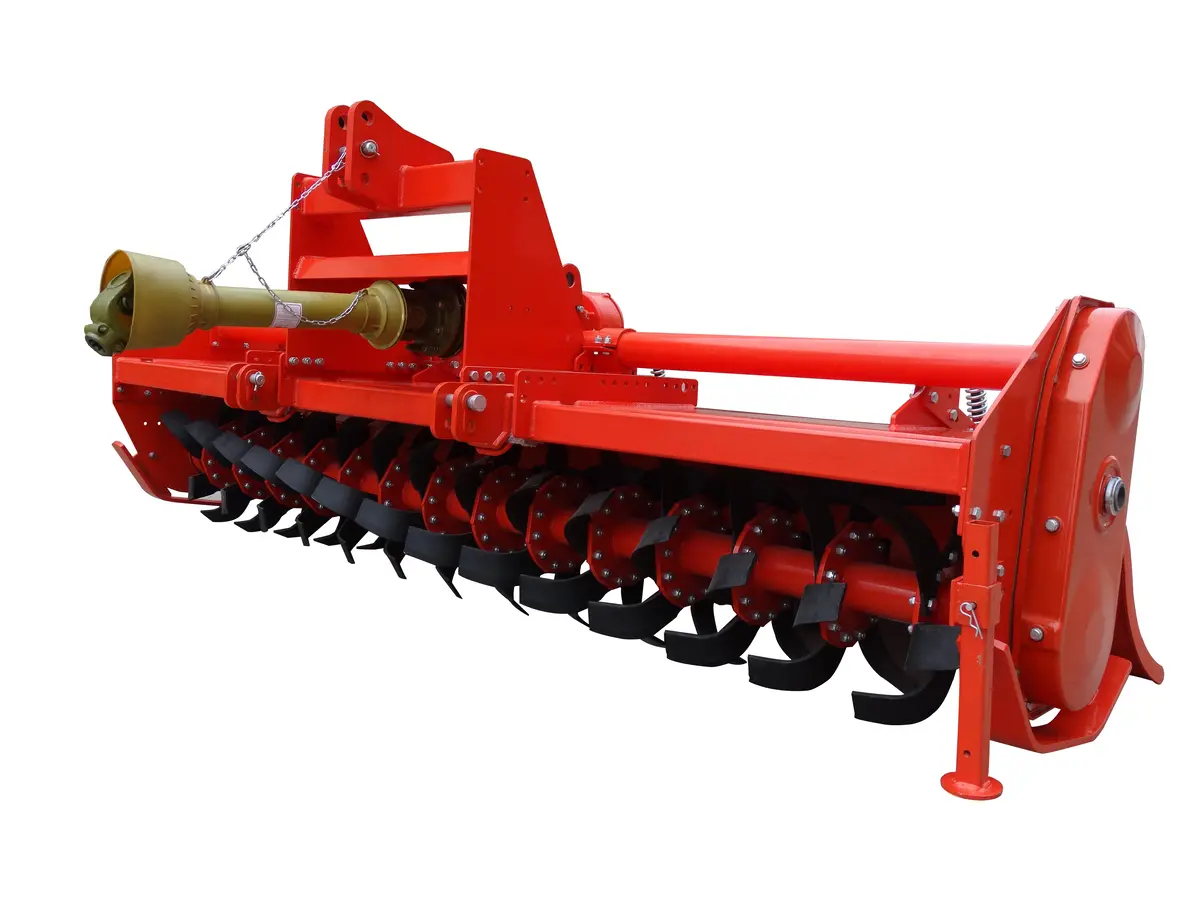

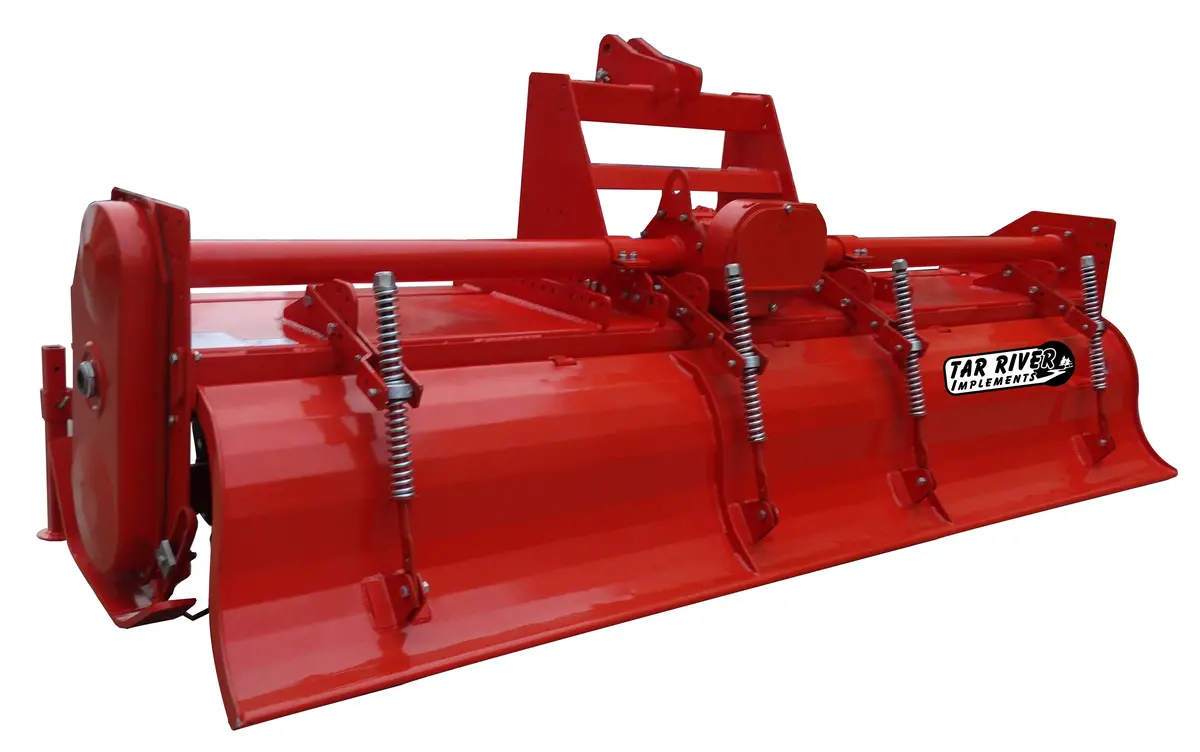

Tar River Heavy Duty Multi-Speed Gearbox Rotary Tiller
Built heavy for agricultural applications, the Tar River CXT Series Rotary Tiller is rated for tractors up to 130 HP and available in working widths of 76″, 86″, 95″, 104″, 112″ and 121″.
ADDITIONAL INFORMATIONThe CXT tillers are designed with multispeed gearboxes to handle your ever changing conditions. The multispeed gearbox is designed for easy gear access to allow the rotor speed to be changed quickly as you move to different field conditions. A large thick walled rotor is sustained by water proof rotor supports for wet conditions. Decks are double layered to keep stone indentations to a minimum.
OTHER CHARACTERISTICSPowder Coat Paint Spiral Gears Large Diameter Rotor Solid A Frame Waterproof Rotor Supports
SPECIFICATIONS
| Model | Working Width | Blades per Flange | Drive | HP | PTO Driveline | Wt. lbs. |
| CXT-076 | 76″ | 6 | Gear | 50-130 | Series 8 S/C | 1,389 |
| CXT-086 | 86″ | 6 | Gear | 60-130 | Series 8 S/C | 1,636 |
| CXT-095 | 95″ | 6 | Gear | 70-130 | Series 8 S/C | 1,762 |
| CXT-104 | 104″ | 6 | Gear | 75-130 | Series 8 S/C | 1,876 |
| CXT-112 | 112″ | 6 | Gear | 80-130 | Series 8 S/C | 2,081 |
| CXT-121 | 121″ | 6 | Gear | 85-130 | Series 8 S/C | 2,115 |
