Description
DESCRIPTION
1/26

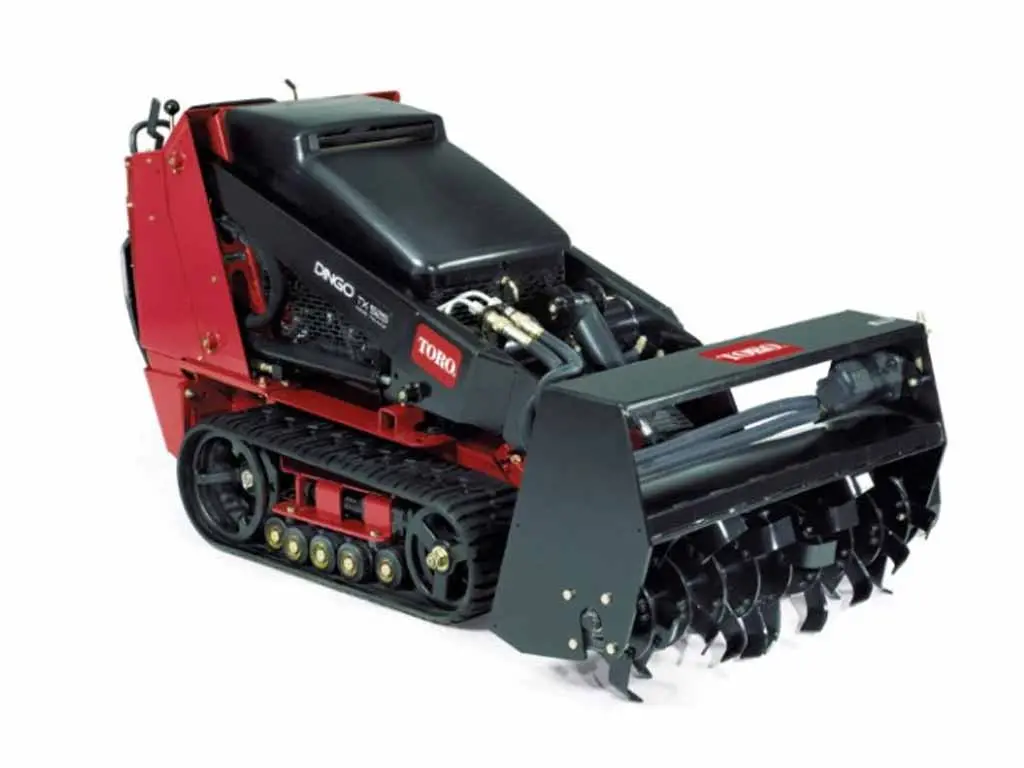

Tiller Attachment
The Toro Dingo tiller attachment greatly increases the productivity and performance of your Dingo system. Break through hard soil conditions up to 6″ (15.2 cm) deep. Avoid clogging the tiller by using one easy hand control to reverse the direction of the tiller to clear jams from rocks and debris.
Hydraulic Drive
Maximizes performance by supplying optimal power to the Dingo Tiller at all times. It also allows you to reverse the tiller direction to keep working through the toughest conditions if clogging occurs.
Reverse Tiller Direction
Easy hand control reverses the tiller direction if clogging occurs to continue working through the toughest conditions.
Hardened Tines
Maximize life and help dig in a variety of conditions. The tines are “bolt on” so they are easy to replace when worn.
SPECIFICATIONS
| Construction | Fabricated, welded steel frame |
|---|---|
| Height | 26 in. / 66.0 cm |
| Length | 20 in. / 50.8 cm |
| Models | Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700 |
| Mounting Frame | Dingo® quick-attach mount plate, fabricated, welded base |
| Number of Tine Heads | 36 |
| Quick Couplers | Dripless, flush face quick couplers |
| Shaft | 1.5 in. / 3.8 cm |
| Tine Speed | Max: 245 rpm @ 3600 engine rpm (flow divider @ 9 o’clock position) Recommended:225 rpm @ 3600 engine rpm (flow divider @ 10 o’clock position) |
| Weight | 363 lbs / 165 kg |
| Width | 44 in. / 111.8 cm |
| Working Depth | 6 in. / 15.2 cm |
| Working Width | 40 in. / 101.6 cm |
