Dingo TXL 2000 Buckets Attachments

Overview

Upgrade your Dingo TXL 2000 excavator with our premium bucket attachments, designed for durability, efficiency, and versatility. Whether you’re moving bulk materials, grading, or performing ditch maintenance, these buckets provide reliable performance on every job site. Made from heavy-duty Grade 50 steel with reinforced wear bars and structural bracing, our buckets are engineered for long life and optimal digging performance.

Bucket Models & Specifications

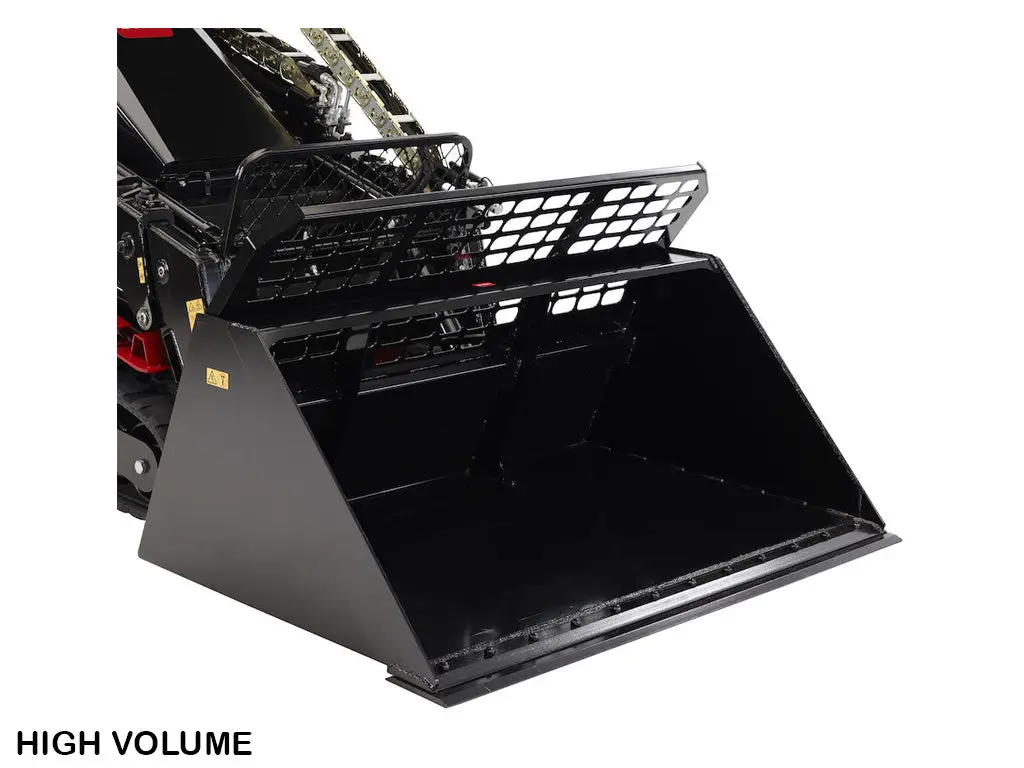

1. High Volume Loader Bucket – 29 Cubic Feet (Model: 22546)

Perfect for transporting large amounts of bulk material, this high-volume bucket is built for maximum durability.

Features:

• Heavy-duty top bracing

• Up to five wear bars underneath

• Interior brace plates for added rigidity

Specifications:

• Capacity (SAE Struck): 29 ft³ (0.8 m³)

• Height: 29 in. / 73.6 cm

• Length: 49 in. / 124.4 cm

• Width: 73 in. / 185 cm

• Weight: 691 lbs / 313.4 kg

• Compatible Models: Dingo TXL 2000

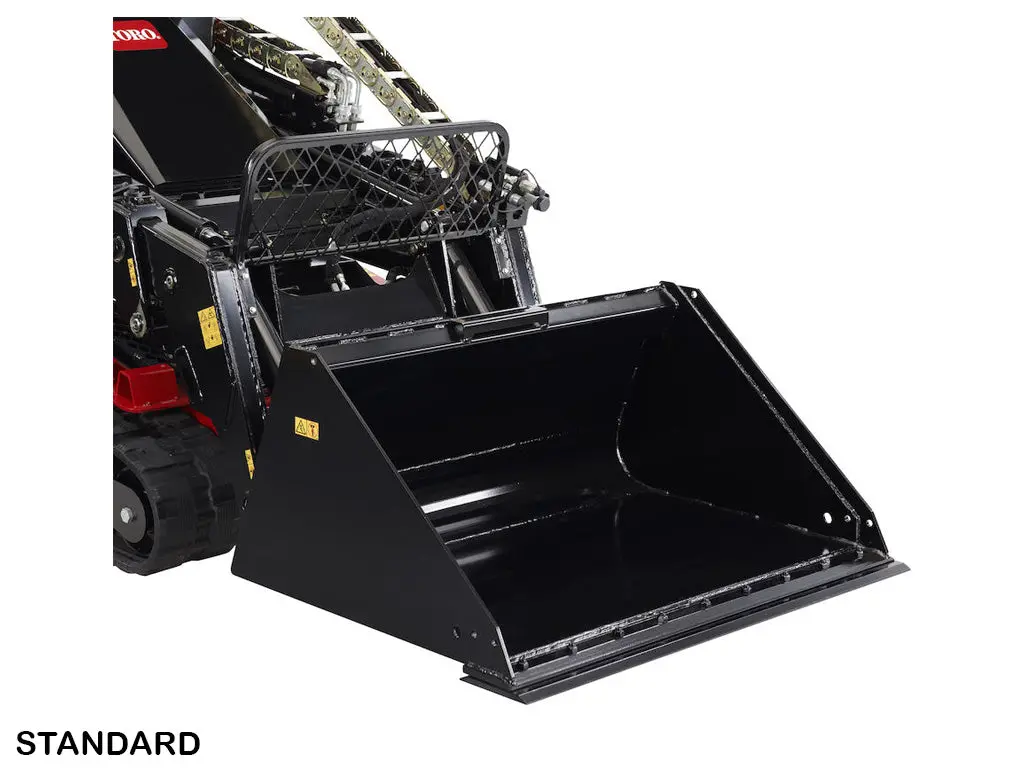

2. Standard Loader Bucket – 12 Cubic Feet (Model: 22547)

A general-purpose heavy-duty bucket for dense or bulk materials, with hardened steel cutting edge for superior wear.

Features:

• 3/16″ shell and side plates (Grade 50 steel)

• 1/2″ x 3″ structural wear bars underneath

Specifications:

• Capacity (SAE Struck): 12.8 ft³ (0.4 m³)

• Height: 25 in. / 63.5 cm

• Length: 42 in. / 106.6 cm

• Width: 55 in. / 139.7 cm

• Weight: 609 lbs / 276.2 kg

• Compatible Models: Dingo TXL 2000

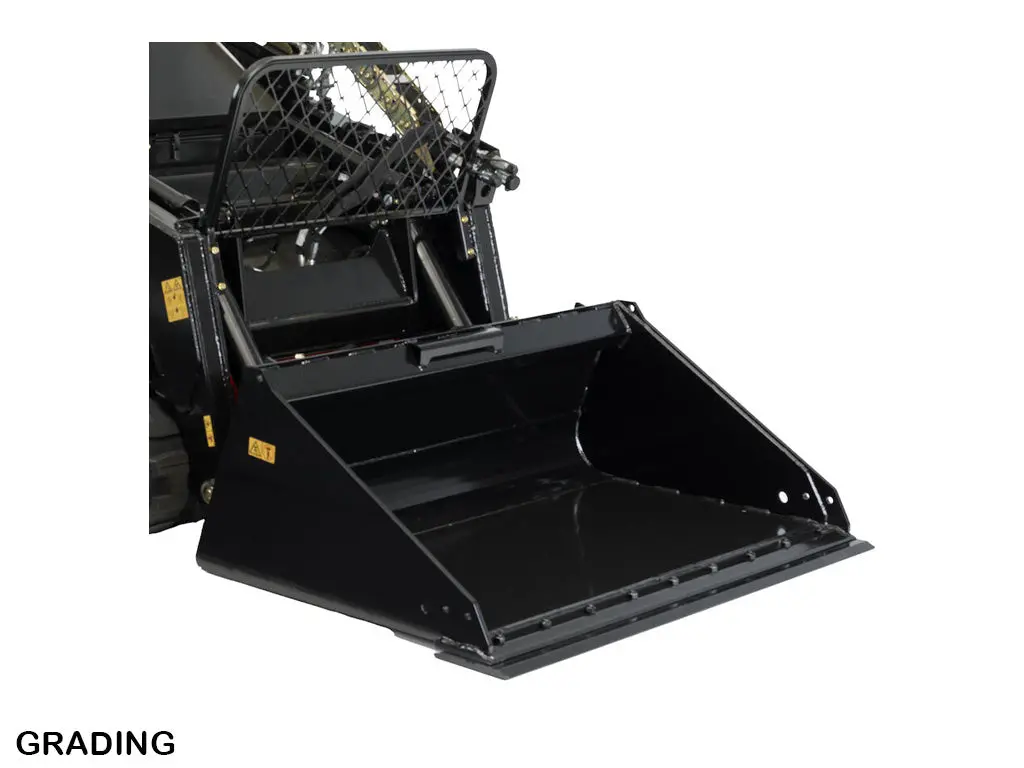

3. TXL 2000 Grading Bucket (Model: 22548)

Designed for grading, ditch maintenance, slope work, and construction applications. Low-profile design with extended bottom improves cutting-edge visibility.

Features:

• 3/16″ shell and side plates (Grade 50 steel)

Specifications:

• Capacity (SAE Struck): 9.3 ft³ (0.3 m³)

• Height: 51 in. / 129.5 cm

• Length: 39 in. / 99 cm

• Width: 55 in. / 139.7 cm

• Weight: 527 lbs / 239 kg

• Compatible Models: Dingo TXL 2000

4. TXL 2000 Standard Bucket – No Edge

Heavy-duty general-purpose bucket for moving rock, dirt, sand, and bulk materials.

Specifications:

• Weight: 535 lbs / 242.7 kg

• Compatible Models: Dingo TXL 2000

SPECS

1. High Volume Loader Bucket – 29 Cubic Feet (Model: 22546)

Capacity SAE Struck	29 ft³ (0.8 m³)
Height	29 in. / 73.6 cm
Length	49 in. / 124.4 cm
Models	Dingo TXL 2000
Weight	691 lbs / 313.4 kg
Width	73 in. / 185 cm

2. Standard Loader Bucket – 12 Cubic Feet (Model: 22547)

Capacity SAE Struck	12.8 ft³ (0.4 m³)
Height	25 in. / 63.5 cm
Length	42 in. / 106.6 cm
Models	Dingo TXL 2000
Weight	609 lbs / 276.2 kg
Width	55 in. / 139.7 cm

3. TXL 2000 Grading Bucket (Model: 22548)

Capacity SAE Struck	9.3 ft3 (0.3 m³)
Height	51 in. / 129.5 cm
Length	39 in. / 99.0 cm
Models	Dingo TXL 2000
Weight	527 lbs / 239 kg
Width	55 in. / 139.7 cm

TXL 2000 Standard Bucket – No Edge

Models	Dingo TXL 2000
Weight	535 lbs / 242.67 kg
