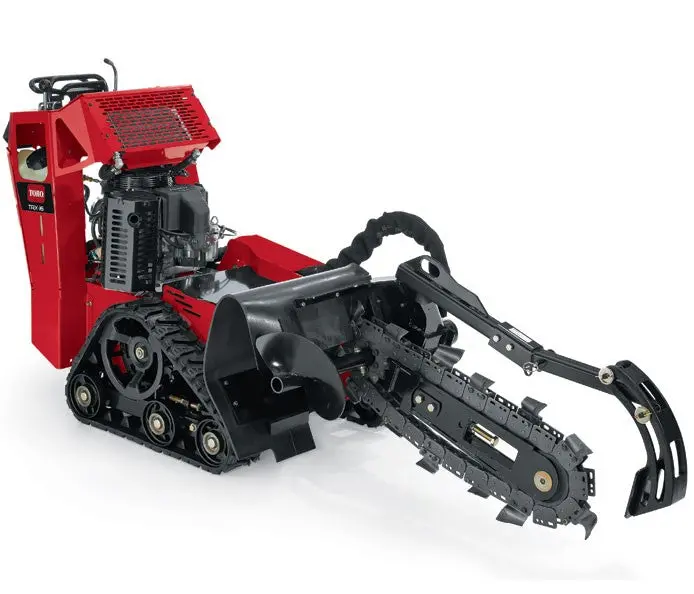

TRX-16 Walk-Behind Trencher

Tracks instead of wheels. Simplicity instead of complexity. The TRX trenchers are the first tracked, dedicated walk-behind trenchers that have it all. Tracks – combined with Toro’s exclusive easy-to-use control system – provide unparalleled maneuverability, all while offering the ultimate in operational performance.

*CRUMMER IS INCLUDED ON 24″ AND 36′ BOOMS, 48″ BOOMS DO NOT HAVE CRUMMER IN PRICE

FEATURES

Track Design

• Allows for zero turn capability
• Provides a low center of gravity and large footprint
• Increased stability on side hills
• Eliminates tire ruts and flat tires
• Operates in wet & soft ground conditions.

Exclusive Toro TRX Control System

Easy-to-use control system doesn’t require jerk-style steering like handle bar trenchers. Three simple controls operate all traction and trenching functions. Simple controls are easy for beginners to learn quickly. Similar to Dingo TX and STX stump grinder.

Kawasaki Twin-Cylinder Engine

Powerful Kawasaki engines deliver the performance you have come to expect from Toro. The Kawasaki twin-cylinder engine means your trencher will be reliable and easy-to-start. The large oil reservoir maintains a cooler running engine while prolonging engine life.

Heavy-Duty Remote Air Cleaner

Reduces engine wear and improves performance. Heavy-duty remote air filter standard on TRX-26.

TRX Pivoting Trencher Head

Pivoting head provides high ground clearance during transport.

SPECS

Boom Depths	24 in., 36 in., & 48 in. / 60.9 cm, 91.4 cm & 121.9 cm
Boom Widths	4 in. & 6 in. / 10.1 cm & 15.2 cm
Cooling System	Air Cooled
Engine Horsepower	14.5 hp (10.8 kW) @ 3,600 rpm
Engine Make	Kawasaki
Engine Model	FS481V, V-Twin
Fuel Tank	1.9 gal. / 7.4 L
Fuel Type	Gasoline
Ground Pressure w/ 24″ (60.9 cm) Boom	4.1 PSI
Ground Pressure w/ 36″ (91.4 cm) Boom	4.3 PSI
Ground Pressure w/ 48″ (121.9 cm) Boom	4.4 PSI
Headshaft Speed	226 rpm with 315 ft/lbs of torque
Hour Meter	Standard
Hydraulic Flow Traction (each pump)	9.5 GPM (36 LPM)
Hydraulic Flow Trencher	10.0 GPM (38 LPM)
Hydraulic Oil Cooler	Standard
Hydraulic Pressure	2,900 PSI (19,994.7 kPA)
Oil Capacity	1.8 qt / 1.7 L
Overall Height w/ 24″ Boom Up & Chain	46 in. / 116.8 cm
Overall Length w/ 24″ Boom Up & Chain	82.5 in. / 209.5 cm
Overall Width w/ 24″ Boom Up & Chain	33.8 in. / 85.8 cm
Reservoir Capacity	6.3 gal. / 23.8 L
Start Method	Recoil
Tracks Drive	Sprocket-drive, 3 Road Wheels Per Side
Tracks Material	Endless Nylon Reinforced Rubber
Tracks Traction	Dual Hydrostatic Pump
Tracks Width	5.9 in. / 14.9 cm
Transport Speed – Forward	Up tp 2.4 mph / 3.9 km/h
Transport Speed – Reverse	Up to 1.2 mph / 2.4 km/h
Weight	1,114 lbs / 505 kg
Wheelbase	23 in. / 58.4 cm
