Toyo Highway Tread 19.5-inch commercial-grade tire engineered for Chevrolet and GMC 3500 Dual Rear Wheel trucks with 8×6.5-inch bolt pattern—compatible with models from 1977 through 2010.

Description

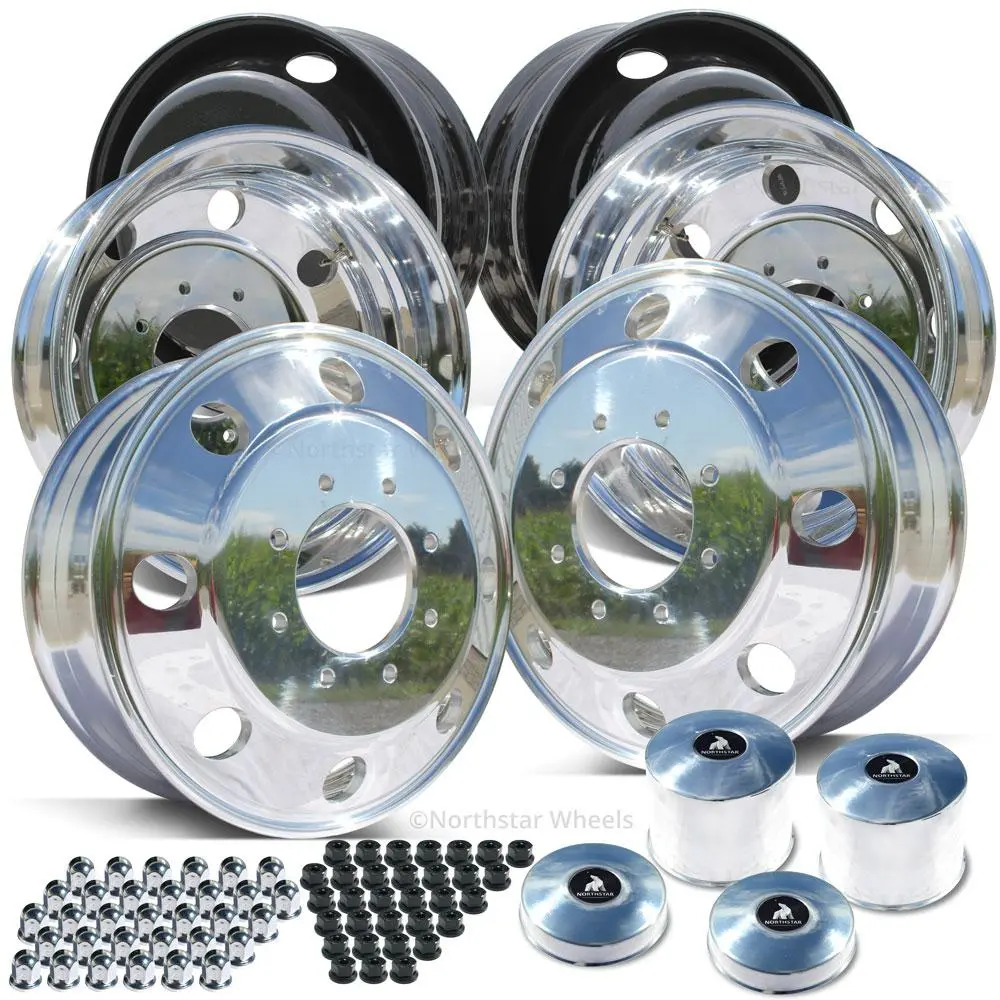

Kit Includes:

6 – Toyo M143 (Various Sizes Available)
4 – 19.5″ Polished Aluminum Wheels
2 – Rear Inner 19.5″ Steel Wheels
2 – Front Hub Covers
2 – Rear Hub Covers
32 – M14 Lug Nuts
32 – Stainless Steel Lug Nut Covers
All Assemblies Come Pre-Balanced
(Learn More)
*For Recommended Kit, Items could change based on kit chosen

These all position tires were made to outlast any other on our list of Chevrolet or GMC 3500 DRW kits and have a 66-month warranty to prove it. Toyo made sure it’d have a long and even tread wear by building it with a wide-belt construction and stable outer ribs. They also produced a special heat-resistant compound and combined it with stone-ejector grooves to extend the tire and casing life.

We’ll mount them on your choice of American Force or Northstar Wheels made of fully forged aluminum, hub centered, and finished with a mirror polish. All sets are compatible with your OE center caps.

Wheel Options:

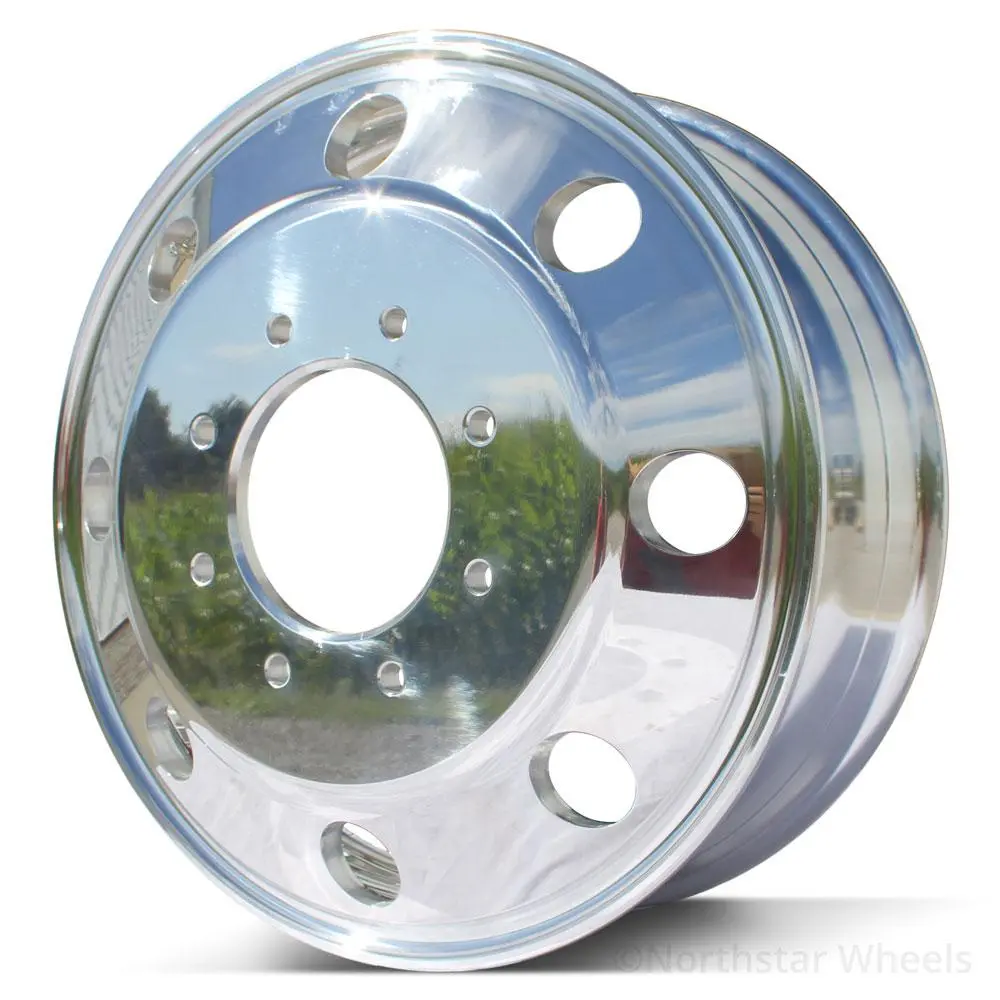

Northstar 19.5 x 6

Brand: Northstar Wheels
Wheel Size: 19.5″ x 6.00″
Bolt Pattern: 8-Hole 6.5”
Hub Bore: 116.7mm
Finish: Mirror Polish Both Sides
Weight: 40 lbs
Max Load & Inflation: 4000 lbs @ 110 psi
Backspacing: 8.32″
Black Steel 19.5″ Inner Wheels (Part # 600218)
Comes with Steel Lug Nuts and Stainless Lug Nut Covers

Northstar 19.5 x 6.75

Brand: Northstar Wheels
Wheel Size: 19.5″ x 6.75″
Bolt Pattern: 8-Hole 6.5”
Hub Bore: 116.7mm
Finish: Mirror Polish Both Sides
Weight: 42 lbs
Max Load & Inflation: 4500 lbs @ 110 psi
Backspacing: 8.86″
Black Steel 19.5″ Inner Wheels (Part # 675525)
Comes with Steel Lug Nuts and Stainless Lug Nut Covers

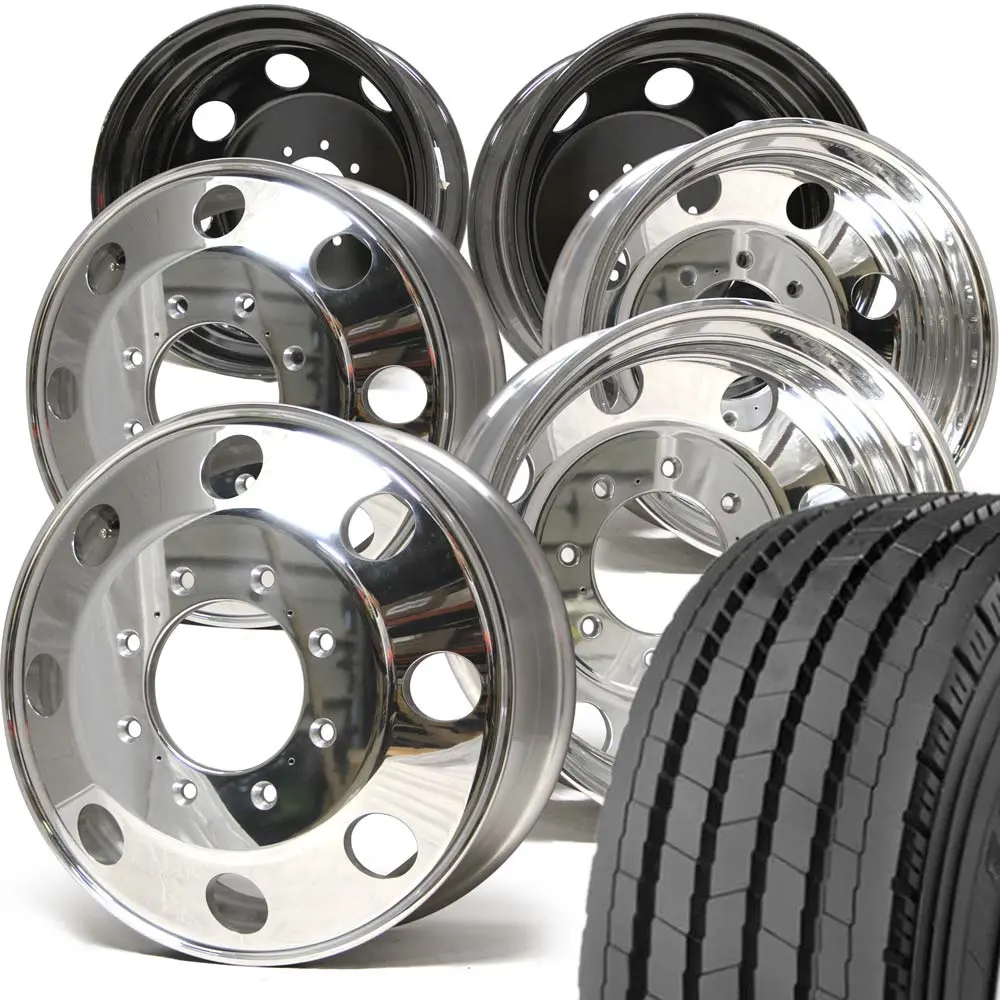

American Force 19.5 x 6.75

Brand: American Force Wheels
Wheel Size: 19.5″ x 6.75″
Bolt Pattern: 8-Hole 6.5”
Hub Bore: 116.7mm
Finish: Mirror Polish on Front or Rear
Weight: 42 lbs
Max Load & Inflation: 4500 lbs @ 110 psi
Backspacing: 8.86″
Comes with Chrome Lug Nuts

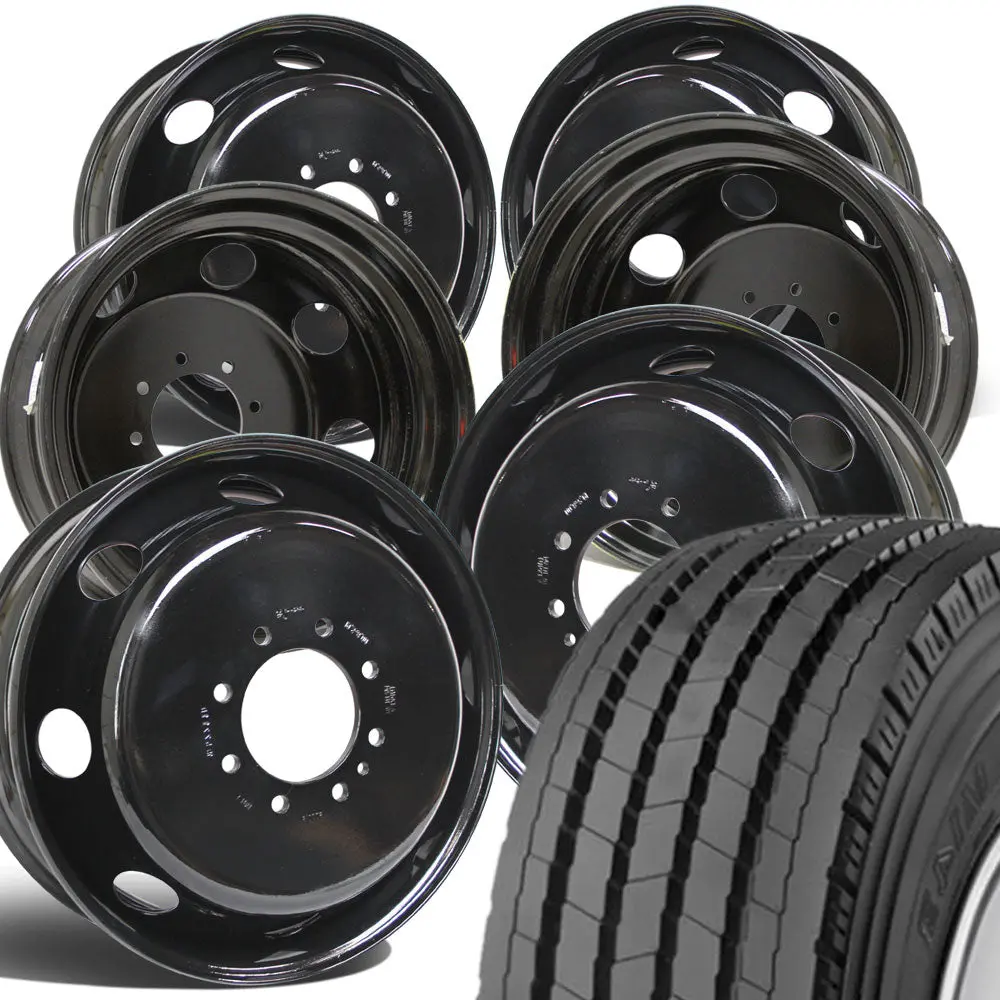

Steel Wheels

Brand: Jansta
Wheel Diameter: 19.5″
Wheel Width: 6.00″ or 6.75″
Bolt Pattern: 8-Hole 6.5”
Hub Bore: 116.7mm
Finish: Painted Black
Weight: 65 lbs
Max Load & Inflation: 5000 lbs @ 110 psi
Backspacing: 8.32″ / 8.86″
Does not include Hub or Lug Covers & Lug Nuts

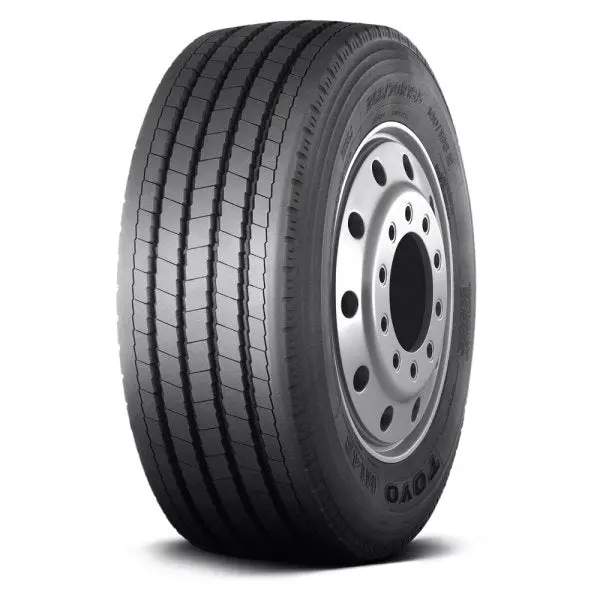

Tire Options:

Toyo 225/70R19.5

Quantity: 6 Toyo M-143
Size: 225/70R19.5
Ply: 12
Max Load Single/Dual: 3640@95/3415@95
Overall Diameter: 32.1″
Tread Depth: 16.4/32″
14-Ply Avaiable upon Request

Toyo 245/70R19.5

Quantity: 6 Toyo M-143
Size: 245/70R19.5
Ply: 16
Max Load Single/Dual: 4805@120/4540@120
Overall Diameter: 33.2″
Tread Depth: 15.7/32″

Are 19.5″ Wheels Right for Your Truck? Click Here

Fits These Trucks:

1977 Chevy Silverado 3500
1978 Chevy Silverado 3500
1979 Chevy Silverado 3500
1980 Chevy Silverado 3500
1981 Chevy Silverado 3500
1982 Chevy Silverado 3500
1983 Chevy Silverado 3500
1984 Chevy Silverado 3500
1985 Chevy Silverado 3500
1986 Chevy Silverado 3500
1987 Chevy Silverado 3500
1988 Chevy Silverado 3500
1989 Chevy Silverado 3500
1990 Chevy Silverado 3500
1991 Chevy Silverado 35001992 Chevy Silverado 3500
1993 Chevy Silverado 3500
1994 Chevy Silverado 3500
1995 Chevy Silverado 3500
1996 Chevy Silverado 3500
1997 Chevy Silverado 3500
1998 Chevy Silverado 3500
1999 Chevy Silverado 3500
2000 Chevy Silverado 3500
2001 Chevy Silverado 3500
2002 Chevy Silverado 3500
2003 Chevy Silverado 3500
2004 Chevy Silverado 3500
2005 Chevy Silverado 3500
2006 Chevy Silverado 3500
2007 Chevy Silverado 3500
2008 Chevy Silverado 3500
2009 Chevy Silverado 3500
2010 Chevy Silverado 35001977 GMC Sierra 3500
1978 GMC Sierra 3500
1979 GMC Sierra 3500
1980 GMC Sierra 3500
1981 GMC Sierra 3500
1982 GMC Sierra 3500
1983 GMC Sierra 3500
1984 GMC Sierra 3500
1985 GMC Sierra 3500
1986 GMC Sierra 3500
1987 GMC Sierra 3500
1988 GMC Sierra 3500
1989 GMC Sierra 3500
1990 GMC Sierra 3500
1991 GMC Sierra 35001992 GMC Sierra 3500
1993 GMC Sierra 3500
1994 GMC Sierra 3500
1995 GMC Sierra 3500
1996 GMC Sierra 3500
1997 GMC Sierra 3500
1998 GMC Sierra 3500
1999 GMC Sierra 3500
2000 GMC Sierra 3500
2001 GMC Sierra 3500
2002 GMC Sierra 3500
2003 GMC Sierra 3500
2004 GMC Sierra 3500
2005 GMC Sierra 3500
2006 GMC Sierra 3500
2007 GMC Sierra 3500
2008 GMC Sierra 3500
2009 GMC Sierra 3500
2010 GMC Sierra 3500
