Thinking of stepping up to 22.5″ wheels? Upgrade your Chevy/GMC 4500/5500 stock 19.5″ x 6.75″ wheels up to the 22.5″ x 7.5″ for an extra 12,000 lbs of towing capacity. Going with these bigger wheels get your truck up to dock height. The 8×275 bolt pattern also fits most class A motorhomes.
With Toyo M647 tires you’ll have no limits. They have enough tread to get you out of the mud while still giving you a narrow straight tread to help you on the highway. The 16 ply tires can have a stiffer ride than most on the road, but with this closed shoulder design you’ll have low rolling resistance. They come witha a full 66-month limited warranty (on eligible claims).
Northstar manufactures quality heavy duty wheels for the commercial trucking industry. Their fully forged rugged style strikes the balance between grit and grandeur. They have a selective focus on aluminum wheels that allows them to deliver a safe, tested and durable product at an honest price. Northstar is leading the way in pursuit of reliability and resilience, polished to perfection.
Kit Includes:
Tire Specs:
Aluminum Specs:
Steel Specs:
Additional Information:
Want a different tread pattern?

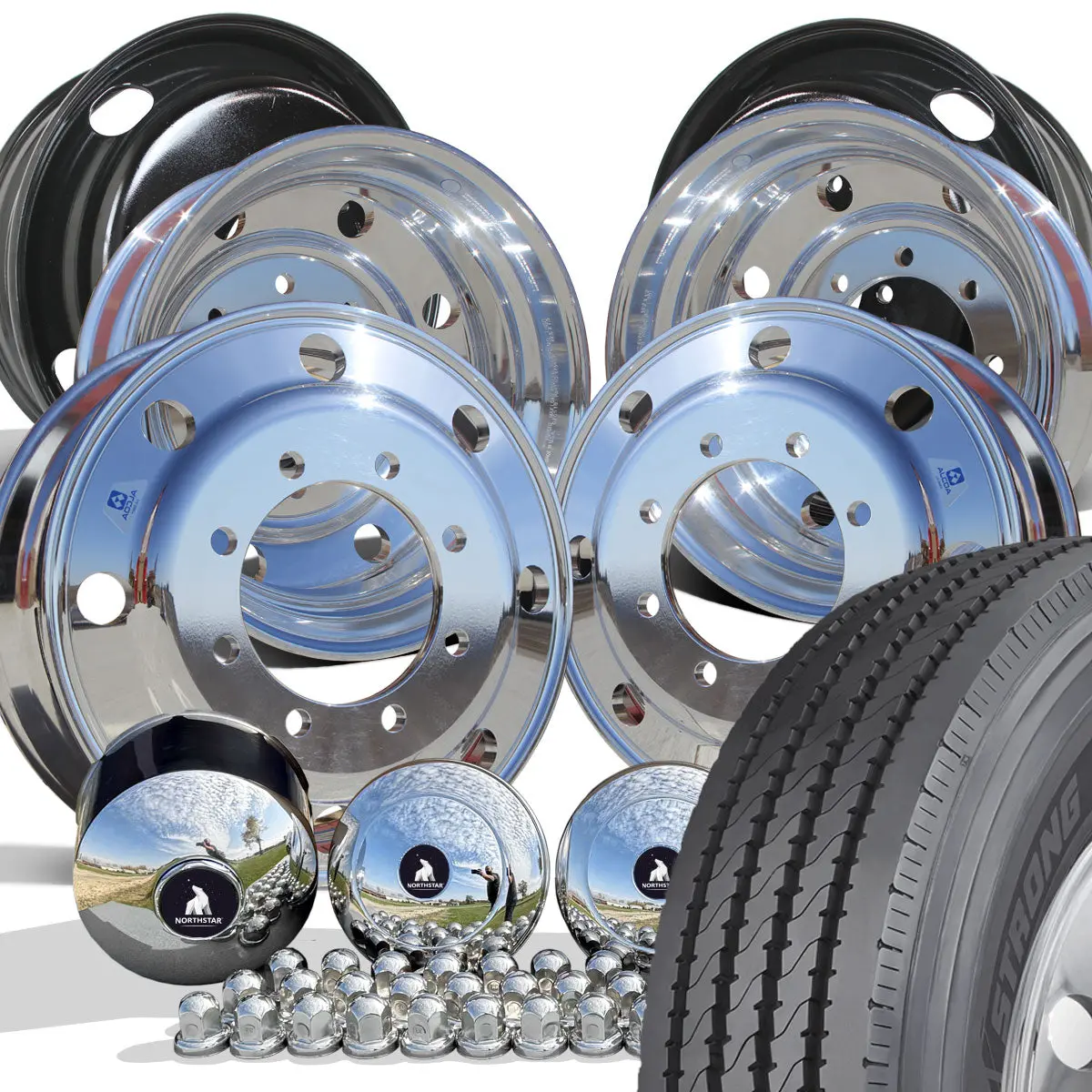

6 – Toyo Mixed Use Tires (M647 255/70R22.5) 4 – Northstar Aluminum Wheels Mirror Polished Both Sides (225750) 2 – Jantsa Black Steel Inner Dual Wheels (750279) 2 – Front Alcoa Chrome Plastic Hub & Lug Cover Kit 2 – Rear Alcoa Chrome Plastic Hub & Lug Cover Kit Tire Size: 255/70R22.5 (37.10″) Ply & Load Range: 16 / H Max Load Single: 5510 lbs @ 120 psi Max Load Dual: 5070 lbs @ 120 psi Tread Depth: 25/32″ Weight: 99 lbs Material: 6061 Fully Forged Aluminum Finish: High Polished Both Sides Mounting Set Up: Hub Pilot Dual-Mounting Wheel Size: 22.5″ x 7.50″ Bolt Pattern: 8×275 Hub Bore Diameter: 221.1mm Hand/Vent Holes: 8 x 2.00″ Wheel Offset: 6.28″ Backspacing: N/A Disc Thickness: .84″ Weight: 53 lbs Max Load & Inflation: 7300 lbs @ 130 psi Installed Valve Stem: TR555D Material: Steel Finish: Painted Black Mounting Set Up: Hub Pilot Dual-Mounting Wheel Size: 22.5″ x 7.50″ Bolt Pattern: 8×275 Hub Bore Diameter: 221.1mm Hand/Vent Holes: 4 Wheel Offset: 6.02″ Backspacing: N/A Disc Thickness: .43″ Weight: 76 lbs Max Load & Inflation: 7100 lbs @ 120 psi Installed Valve Stem: TR-573-E17 Fits These Applications: Motorhome & RV Workhorse Chassis Chevrolet Silverado 4500HD/5500HD (2019 – current) Freightliner M2 (some models) International 4300 (some models) Ford F650 (some models) Replaces Parts: 873401 873402 225750 29028 90614 Aggressive Tread – DynaTrac DT320 Mixed Use Tread – DynaTrac MA400 Warranty Info: Click Here to Read the Warranty for Alcoa Wheels To File a Claim: Call 800-242-9898 Option #1 or Click Here
