Description
DESCRIPTION

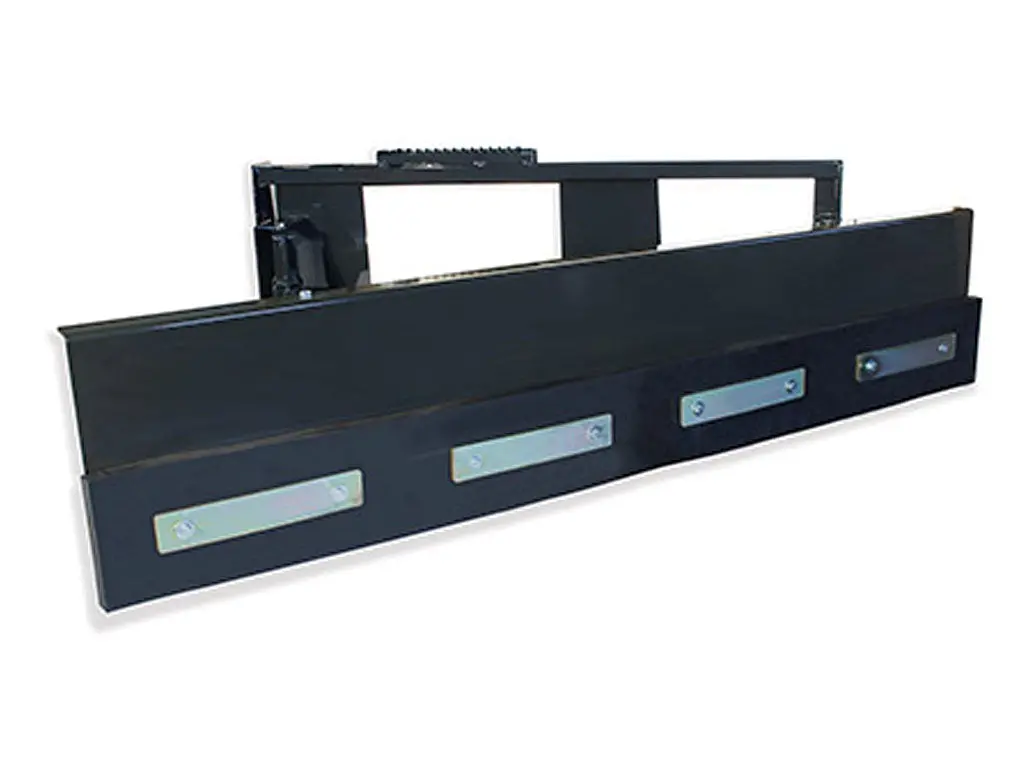

SINGLE BLADE FEED PUSHER
Virnig Feed Pusher has multiple width and angle adjustments with a replaceable rubber edge.
- Manufactured with a universal mount to fit most skid steer loaders.
- Five width adjustments keeps feed away from tires.
- Eight angle adjustments keeps feed moving efficiently.
- 1 ½” x 10” reversible, replaceable rubber edge allows 6” of total wear.
- Rubber edge is effective at scraping clean paths on uneven ground so feed doesn’t get run over.
- Rubber edge dampens vibrations, is gentle on concrete, and will not rust.
SPECS
| MODEL | FPV | ||||
| Overall Width, Straight (Inches) | 96.0 | ||||
| Overall Height (Inches) | 20.0 | ||||
| Width Adjustment Position | 1 | 2 | 3 | 4 | 5 |
| Angle: Min / Max (Degrees) | 38.4 / 58.2 | 40.9 / 61.6 | 43.0 / 65.0 | 44.6 / 68.3 | 45.6 / 71.7 |
| Push Width: Min / Max (Inches) | 50.5 / 75.2 | 45.6 / 72.5 | 40.5 / 70.2 | 35.4 / 68.3 | 30.1 / 67.2 |
| Discharge Distance: Min / Max (Inches) (Measured from Center Line of Loader) | 48.7 / 49.5 | 51.3 / 53.9 | 53.3 / 58.1 | 54.6 / 62.1 | 55.3 / 66.0 |
| Approximate Weight (Pounds) | 520 | ||||
