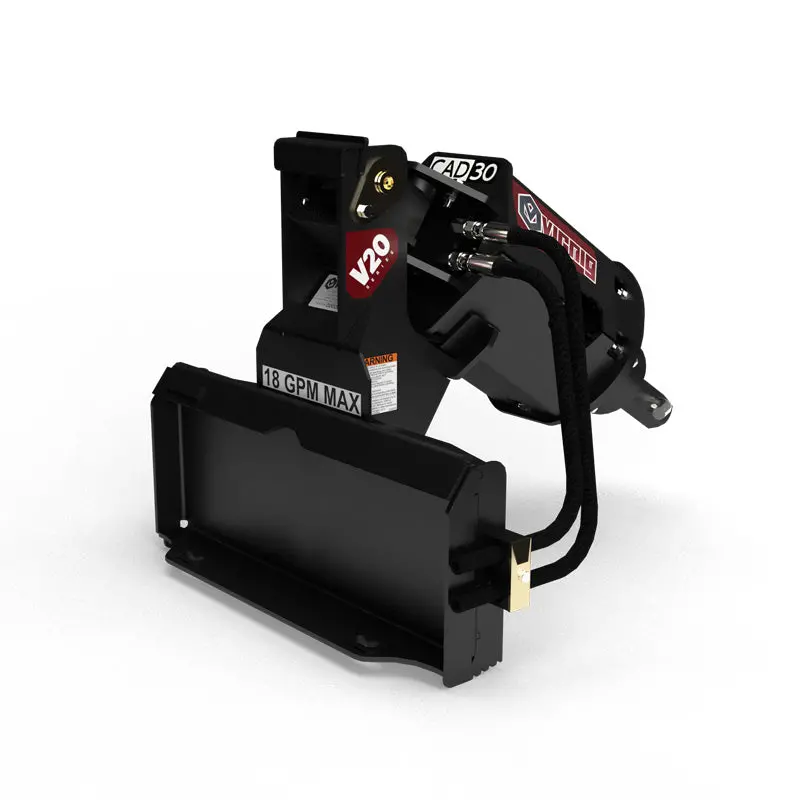

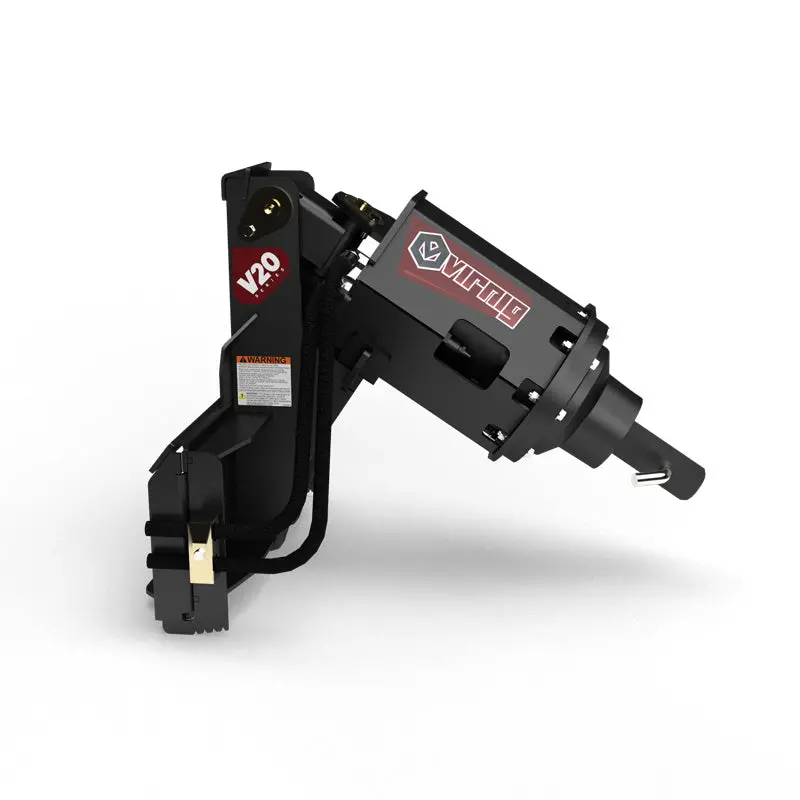

Virnig V20 Compact Skid-Steer Auger Drive

V20 Mini Skid Steer Auger Drive is a powerful, compact auger solution designed for maximum performance, durability, and versatility on mini skid steers. Built for demanding drilling applications, the V20 delivers consistent torque and smooth operation for fencing, footings, landscaping, and construction work.

Featuring a direct-drive hydraulic motor with built-in pressure relief protection, the V20 auger drive safeguards your equipment while delivering reliable power. A planetary reduction system ensures long service life and consistent torque output, even in tough soil conditions. Bi-directional rotation allows for easy drilling and quick clearing of obstructions.

Hoses are routed from the top of the housing, enabling deeper drilling with up to 12″ diameter bits and reducing hose interference during operation. The reinforced frame design accommodates 4′ long auger bits on machines with 80+ inch loader hinge pin heights, providing excellent reach and flexibility.

Available in multiple output shaft configurations and mount options, the V20 auger drive is compatible with a wide range of mini skid steer models and auger bits.

Key Features & Benefits

• Designed for mini skid steers

• Top-routed hydraulic hoses for deeper, cleaner drilling

• Direct-drive motor with hydraulic pressure relief protection

• Planetary reduction for durability and consistent torque

• Bi-directional auger rotation

• Frame design supports 4′ long bits on 80+ inch hinge pin heights

• Multiple output shaft options: 2″ Hex and 2-9/16″ Round

• Available with multiple mounting configurations

Performance Highlights

• Up to 3,345 ft-lbs of torque @ 3,000 PSI

• Supports auger bits up to 36″ diameter

• Optimized for 10–27 GPM hydraulic flow ranges

• Lightweight design starting at 250 lbs
