DESCRIPTION

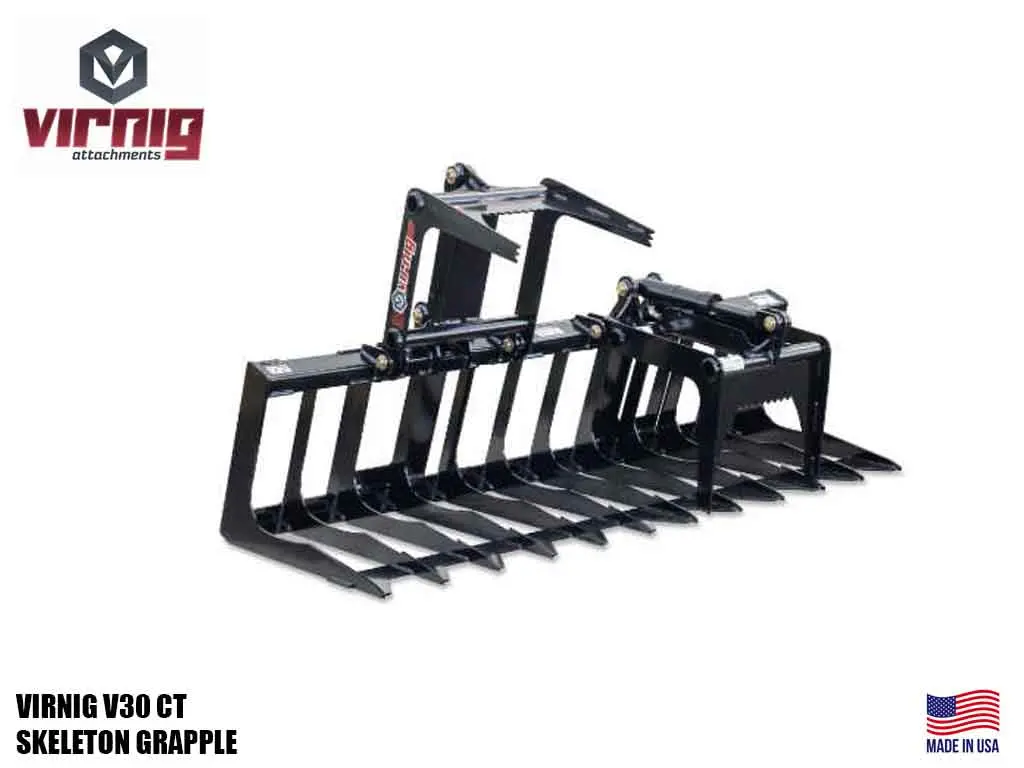

V30 COMPACT TRACTOR SKELETON GRAPPLE
Two-cylinder independent grapple with open-sided design for hauling brush and logs. Open bottom allows dirt to fall through.
- Every tine is constructed of one piece of 1/4” Grade 50 steel, from tip to top brace, to add rigidity.
- NitroSteel® cylinder rod and Teflon® coated bushings on hinge.
OPTIONS:
- Optional Cylinder Guards available.
- Optional 90″ hoses and 1/2″ male and female couplers
SPECIFICATIONS
| MODEL | SGV48-CT | SGV54-CT | SGV60-CT | SGV66-CT | SGV72-CT |
| Overall Width (Inches) | 47.9 | 54.3 | 60.9 | 67.5 | 74.1 |
| Height: Overall / Bucket (Inches) | 22.9 / 19.0 | ||||
| Depth: Overall / Inside (Inches) | 29.0 / 23.5 | ||||
| Number of Tines (With Sides) | 8 | 9 | 10 | 11 | 12 |
| Space Between Tines (Inches) | 6.4 | ||||
| Tine Thickness (Inches) | 0.25* | ||||
| Side Plate Thickness (Inches) | 0.375* | ||||
| Grapple Jaw Opening (Inches) | 28.7 | ||||
| Cylinder Bore / Stroke (Inches) | 2.0 / 6.0 | ||||
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.0 | ||||
| Approximate Weight (Pounds) | 290 | 305 | 320 | 335 | 350 |
| Recommended Loader Capacity | Less than 1,500 pounds | ||||
*Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).
