Virnig V30 Skeleton Rock Bucket for Compact Tractors with Skid Steer Loader Coupler

Description

DESCRIPTION

1/26

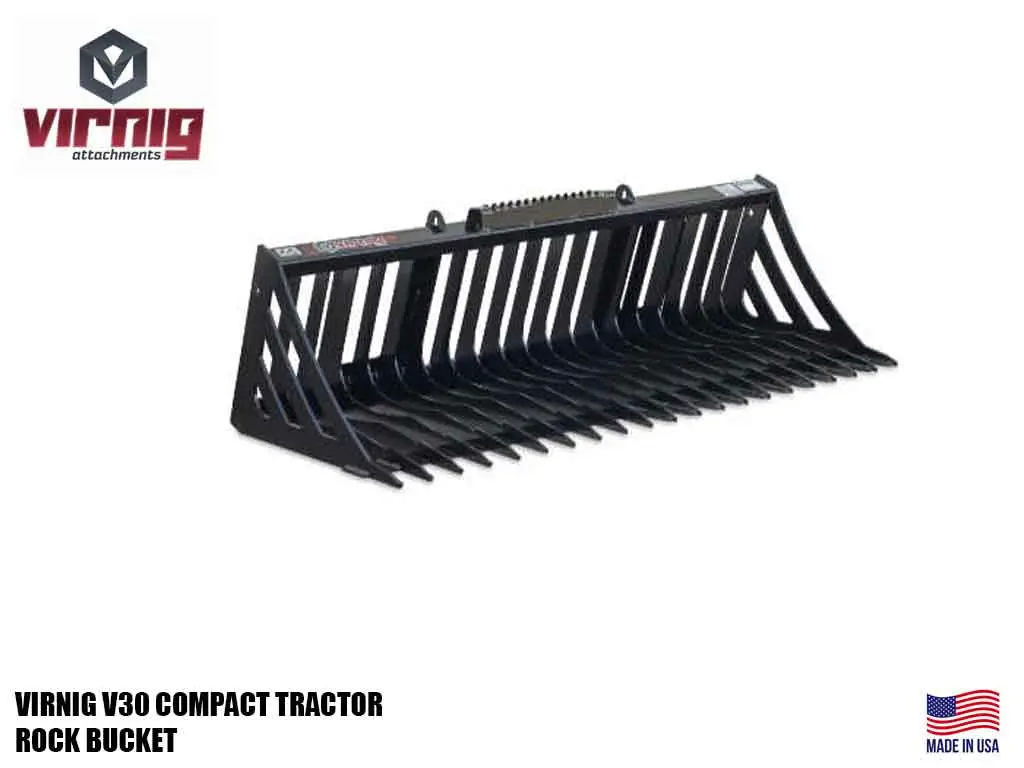

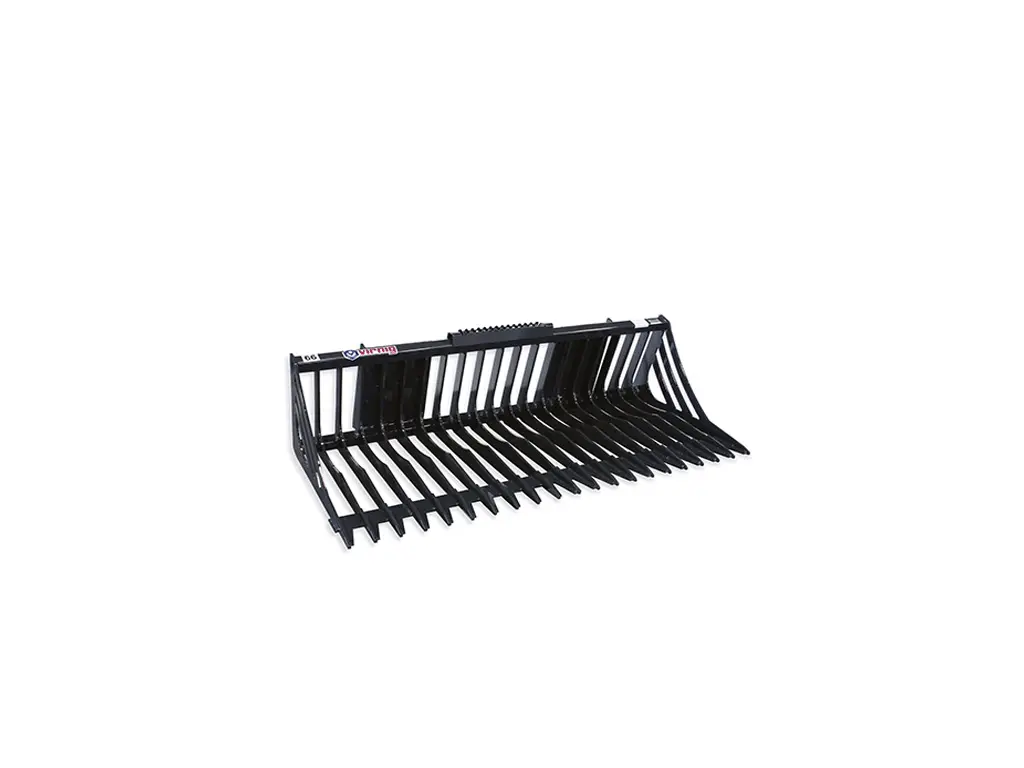

Virnig V30 CT Skeleton Rock Bucket is engineered to efficiently pick and separate rocks while allowing dirt and debris to fall through. Designed specifically for compact tractors and small skid steer loaders, this lightweight yet durable rock bucket delivers excellent visibility, precise control, and dependable performance in landscaping, site prep, and property maintenance applications.

The open-bottom and open-back design provides clear sight lines and lets soil pass through the 2.9″ tine spacing, leaving rocks and larger material behind. A raised center ridge (rock dam) and notched tine tips help secure rocks during digging and transport. Each tine is formed from a single piece of steel from tip to top brace, increasing rigidity and strength, while fully gusseted tine tips resist bending under load.

Key Features & Benefits

• Designed to pick rocks while leaving dirt and debris behind

• Open bottom and back for excellent visibility and efficient soil separation

• 2.9″ tine spacing allows dirt to fall through while retaining rocks

• Raised center ridge (rock dam) and notched tine tips secure material

• One-piece steel tines from tip to top brace for added rigidity

• Fully gusseted tine tips to strengthen tines and reduce bending

• Lightweight, durable construction ideal for compact equipment

• Versatile for root removal, clearing fence lines, and back-dragging

Recommended Applications

• Rock picking and soil separation

• Landscaping and site preparation

• Root and brush removal

• Fence line clearing

• Back-dragging and light grading

Specifications

• Recommended Loader Capacity: Less than 1,500 lbs ROC

• Tine Thickness: 3/8″ Grade 50 steel

Available Models & Sizes

• SRV48-CT to SRV72-CT

• Overall widths from 50.9″ to 74.1″

• Weights from 210 to 300 lbs

The Virnig V30 CT Skeleton Rock Bucket is the ideal attachment for operators who need efficient rock separation, strong tine construction, and reliable performance on compact machines.

SPECS

• Recommended loader capacity – Less than 1500 lbs ROC
• Tine thickness (in):  3/8″ Grade 50

Model	SRV48-CT	SRV54-CT	SRV60-CT	SRV66-CT	SRV72-CT
Overall Width (in)	50.9	54.3	60.9	67.5	74.1
Inside Width (in)	46.3	52.6	59.3	65.9	72.5
Overall Depth (in)	29.0	29.0	29.0	29.0	29.0
Inside Depth (in)	23.5	23.5	23.5	23.5	23.5
Height (in)	19.9	19.9	19.9	19.9	19.9
Number of Tines	15	17	19	21	23
Space Between Tines (in)	3.1	3.1	3.1	3.1	3.1
Tine Thickness (in)	0.25*	0.25*	0.25*	0.25*	0.25*
Side Plate Thickness (in)	0.375*	0.375*	0.375*	0.375*	0.375*
Weight (lbs)	210	230	250	270	300
