Virnig V40 angle snow blade designed for seamless integration with any skid steer loader featuring a universal quick-attach mounting system.

Description

DESCRIPTION

10/25

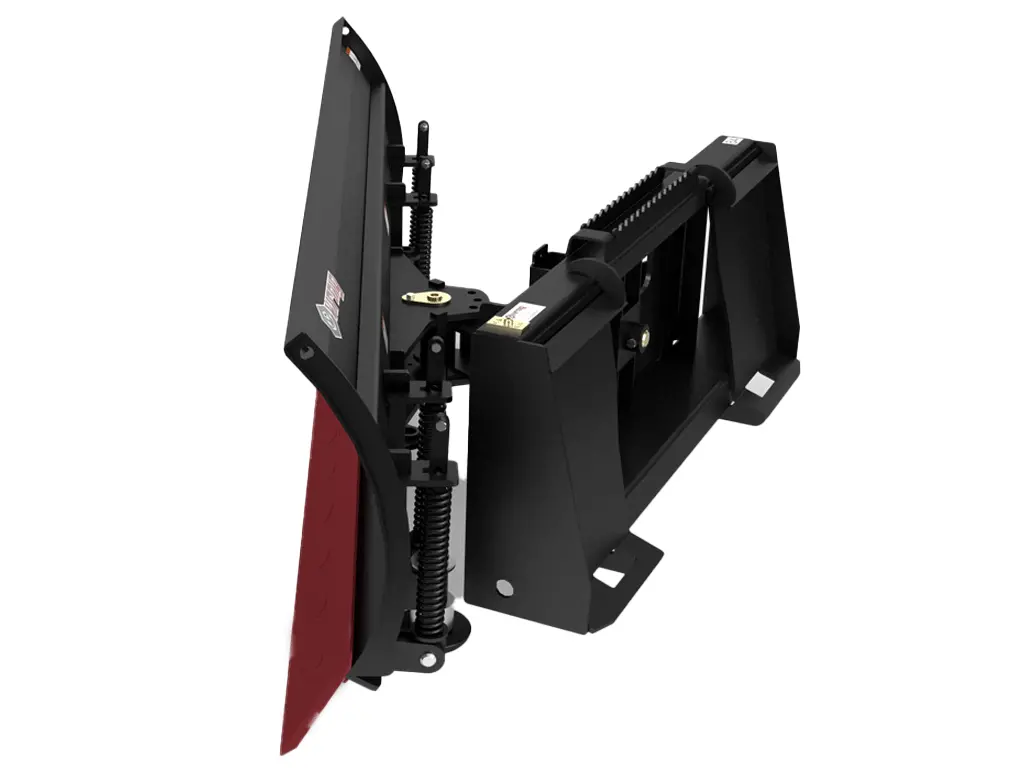

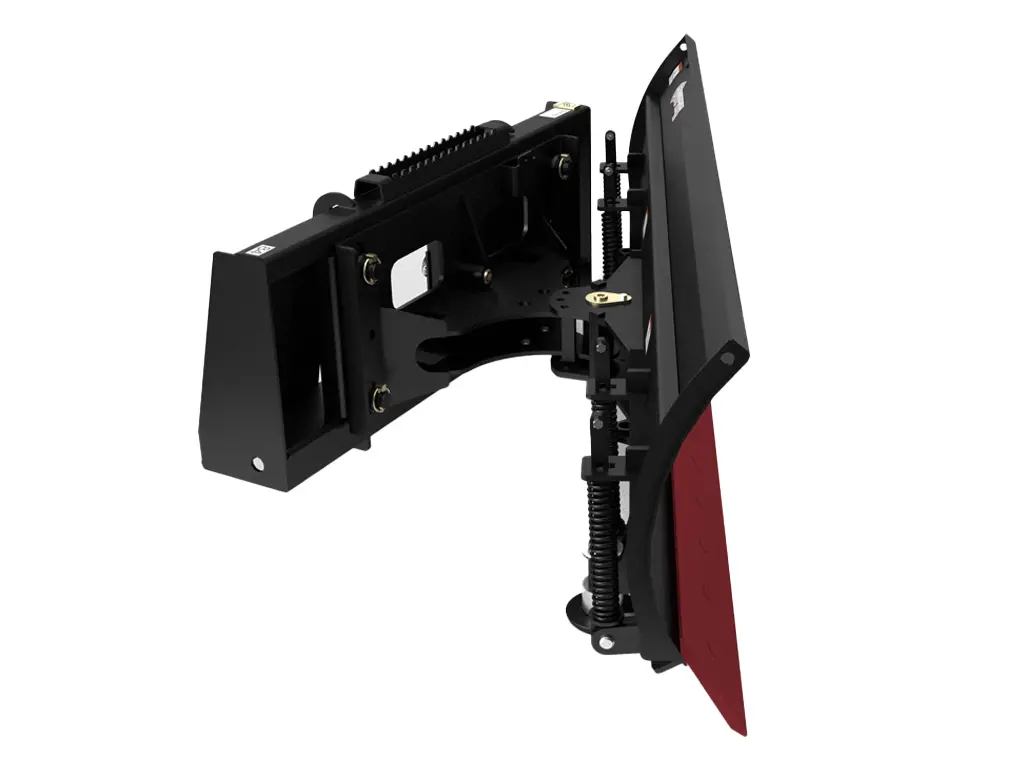

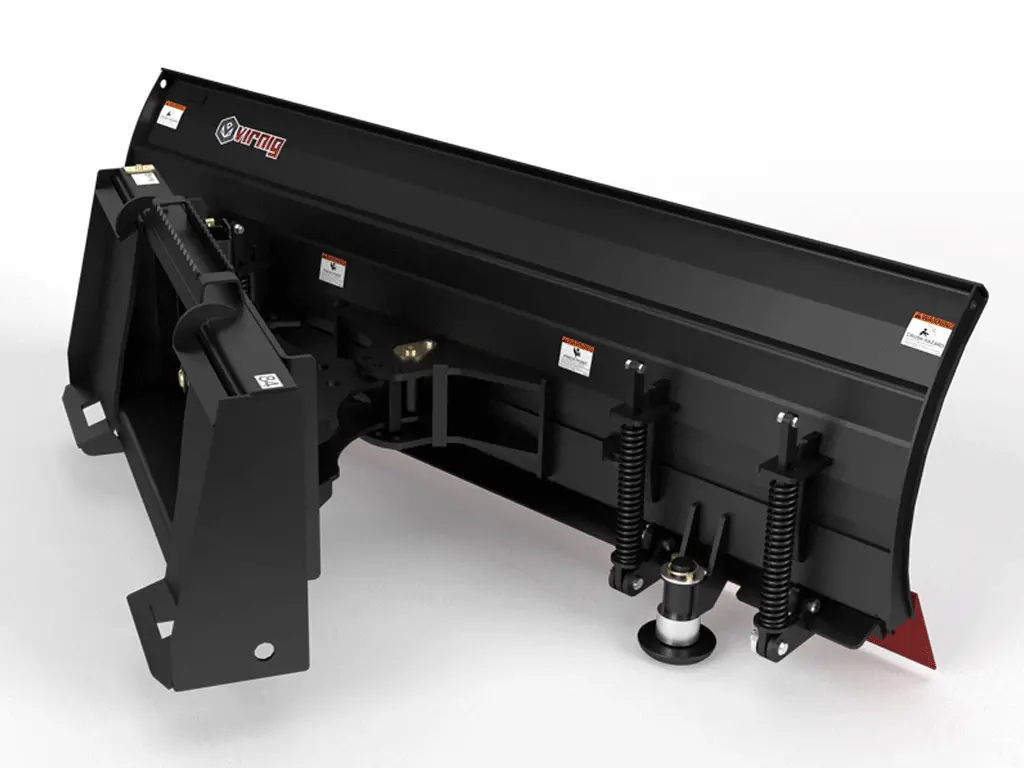

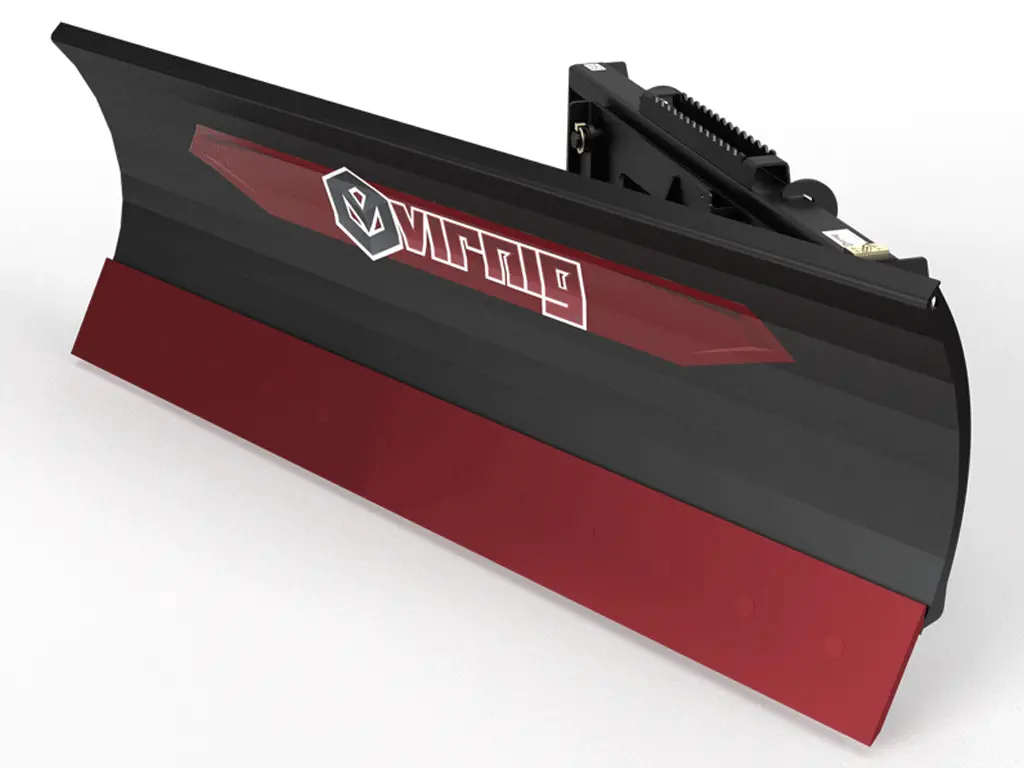

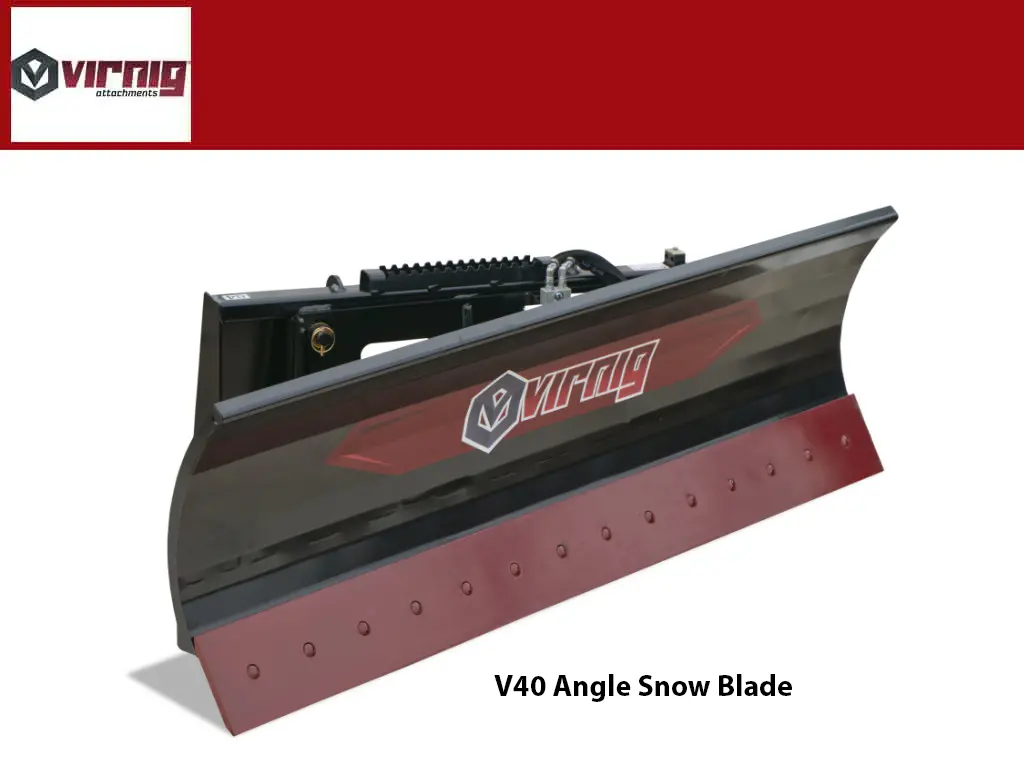

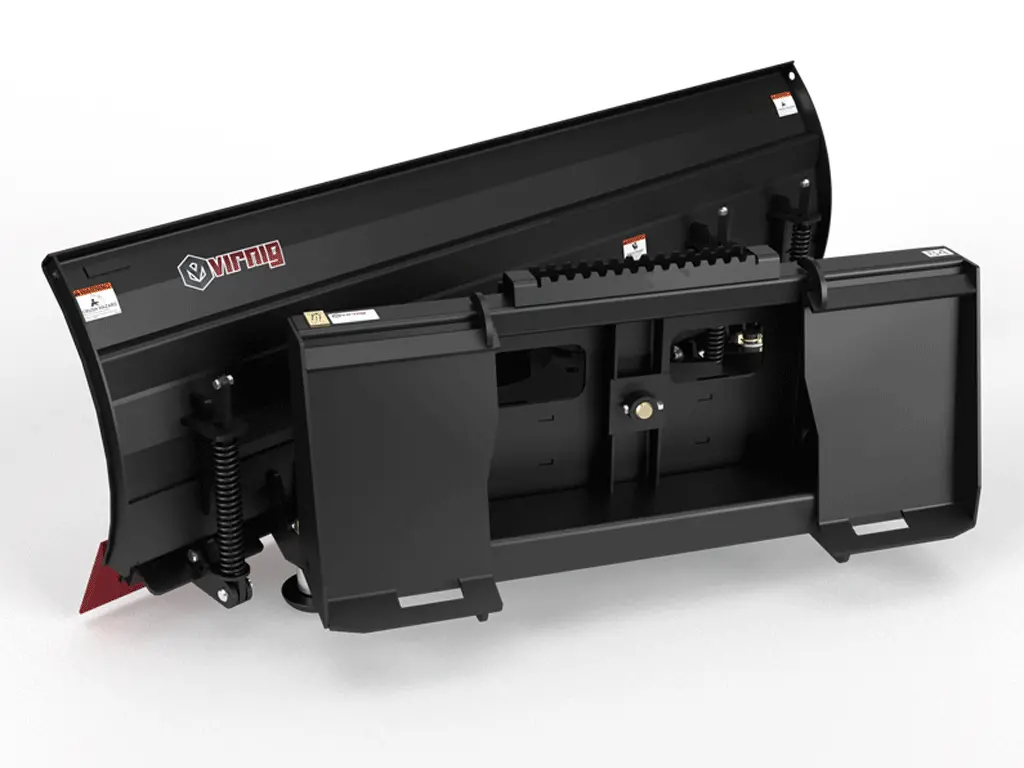

VIRNIG V40 Angle Snow Blade Skid Steer Attachment

Virnig Angle Snow Blades are a top choice for efficient snow removal with skid steers and compact tractors. The V40 blade features straight and angled positions for quick clearing and snow windrowing, with optional pin-on wings for added capacity and stacking ability.

STYLE	BLADE HEIGHT	LOADER ROC CAPACITY
MANUAL OR HYDRAULIC	25.8″	LESS THAN 1500 LBS



Key Benefits:

• Fast Snow Removal: Blade travels as fast as the machine, clearing snow quickly.

• Better Stacking: Extends further than pushers or buckets for higher, more controlled snow piles.

• Smooth Operation: Rigid moldboard with trip edge reduces interruptions.

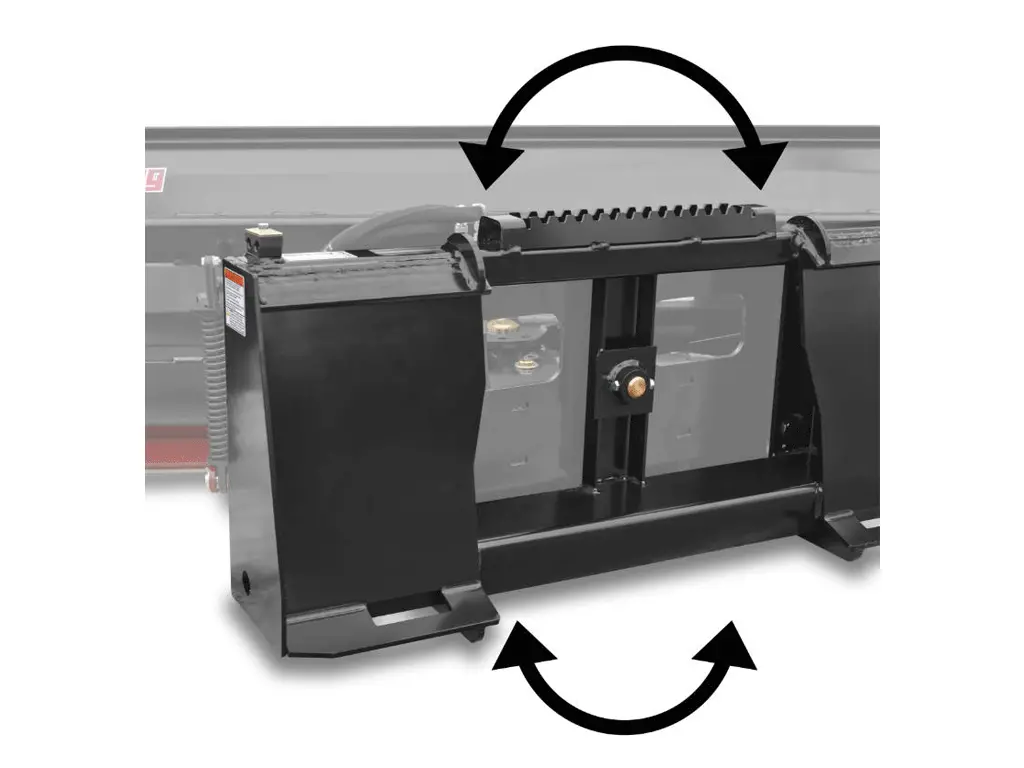

• Side-to-Side Oscillation: +/- 4° allows cutting edge to follow uneven surfaces for a cleaner plow.

• Hydraulic Control Options: Manual, one-cylinder, or two-cylinder hydraulic angle models available with crossover relief valves to protect the attachment from shocks.

Construction & Features:

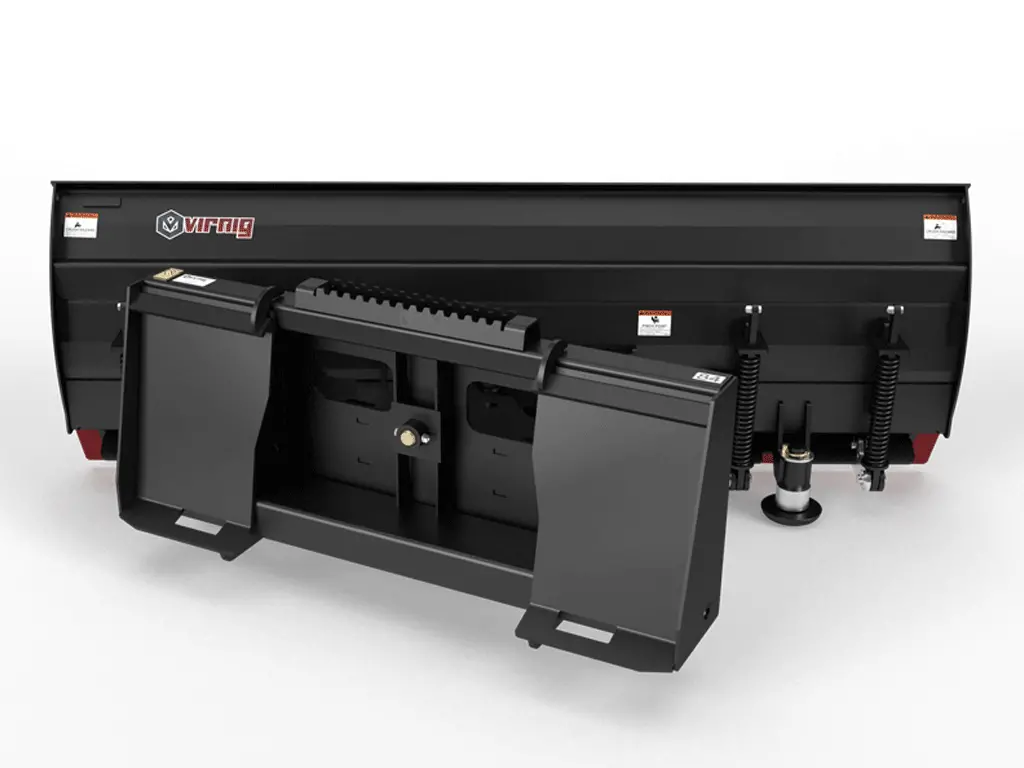

• Universal skid steer mount compatible with most small loaders.

• Comes with hoses, fittings, and quick-tach shoes for easy setup.

• 5/8” x 8” reversible, bolt-on steel cutting edge for long-lasting performance.

• Poly edge option available for sensitive surfaces like asphalt or brick.

Options:

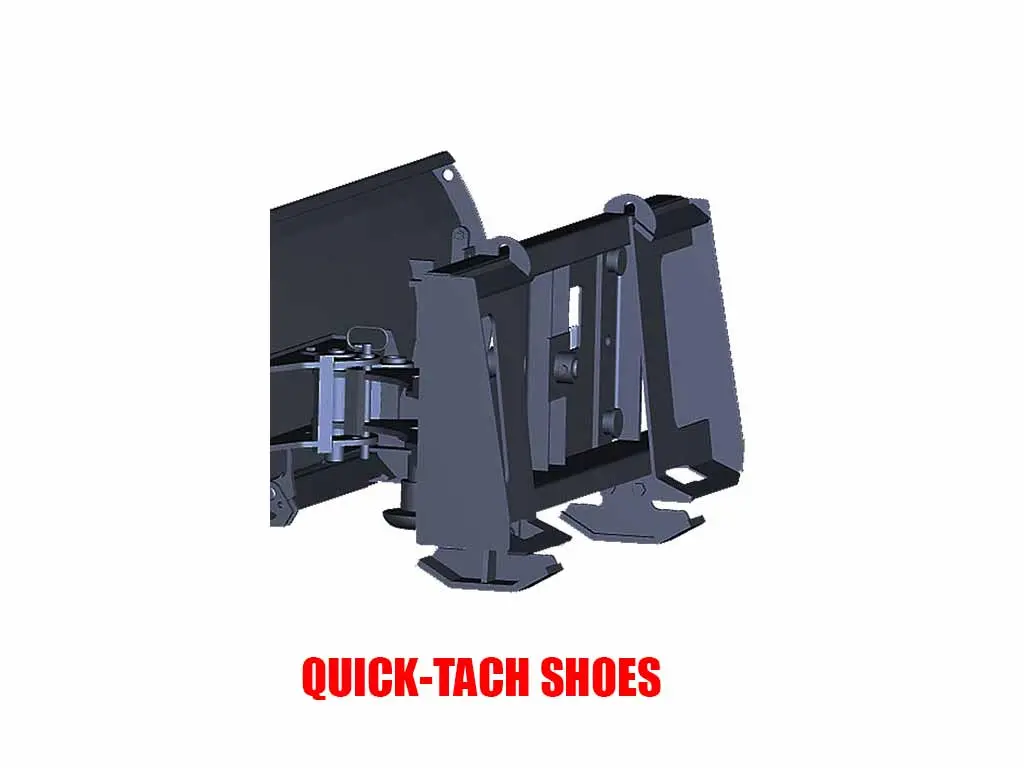

• Quick-Tach Shoes: Keep the blade level and consistent while plowing.

• Poly Edge: Reversible UHMW polyethylene edge reduces surface damage.

• Hydraulic Angle: One-cylinder or two-cylinder options allow in-cab blade angle adjustments; two-cylinder models feature crossover relief valves for protection.

Ideal for pavement, concrete, and hard-packed surfaces, Virnig Angle Snow Blades combine durability, precision, and versatility for professional snow removal applications.

 SPECS

MODEL	SBS60-UT	SBS72-UT	SBS84-UT	SBS96-UT
Overall Blade Width (Inches)	62.0	74.0	86.0	98.0
Blade Height (Inches)	25.8
Blade Angle (Degrees)	+/- 28
Width at Full Angle (Inches)	54.7	65.3	75.9	86.5
Moldboard Thickness (Inches)	0.19
Cutting Edge (Inches)	5/8 x 8 Bolt-on
Blade Oscillation (Degrees)	+/- 4
Approximate Weight* (Pounds)	570	635	680	725
Recommended Loader Capacity	Less than 1500 pounds
