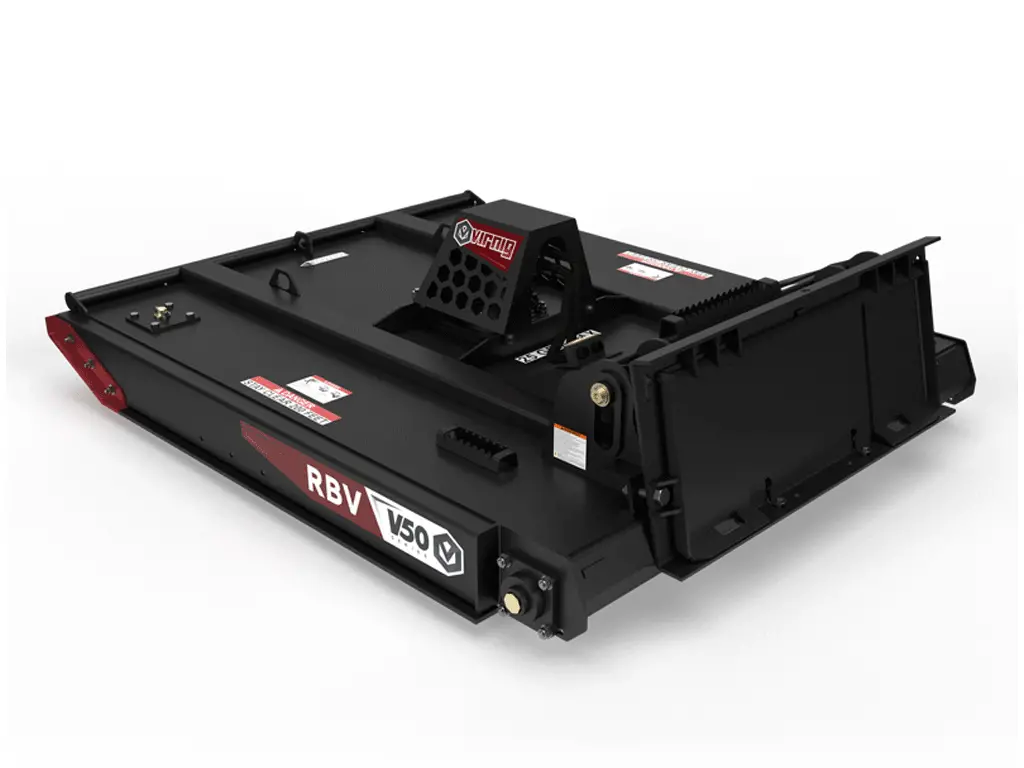

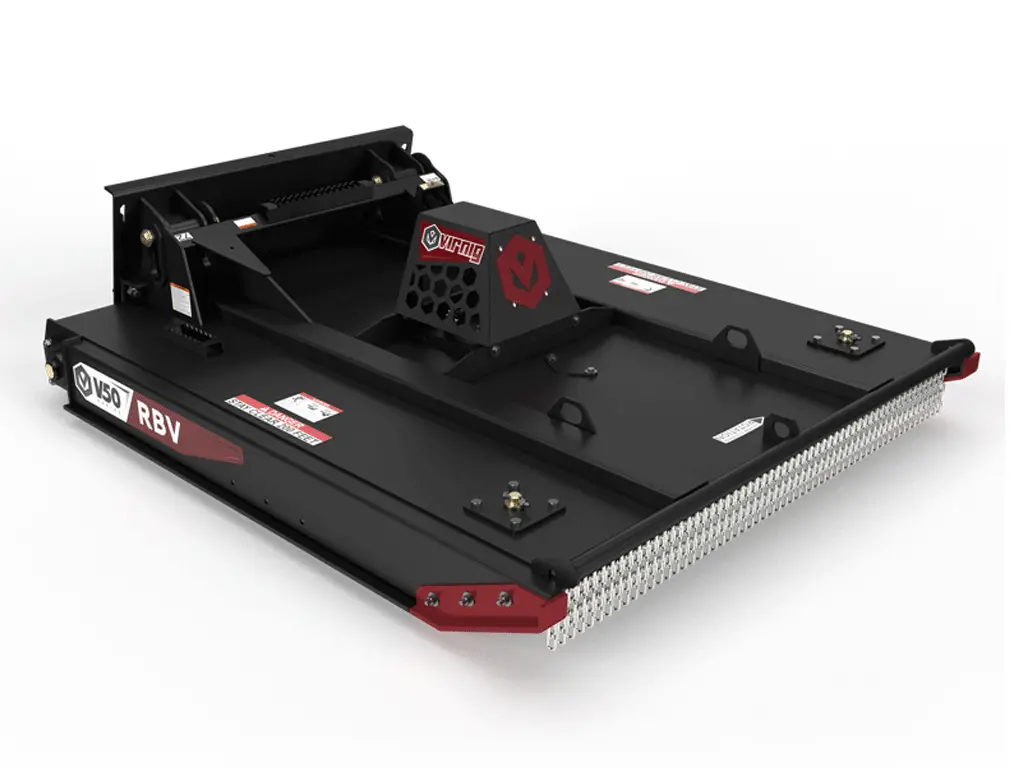

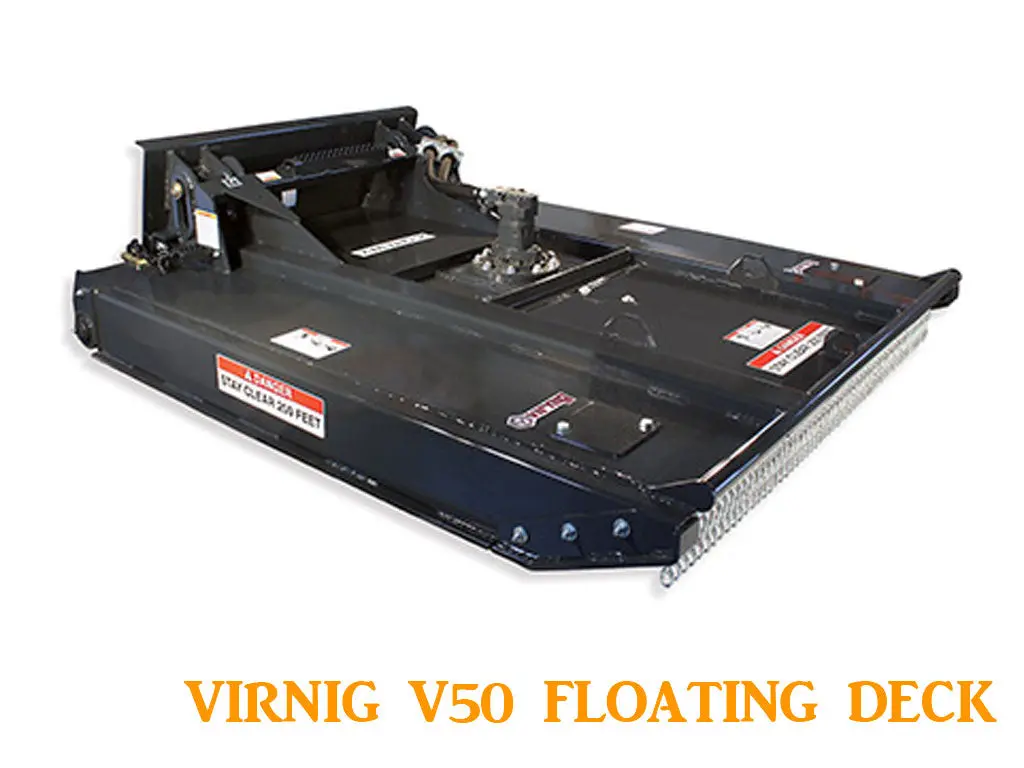

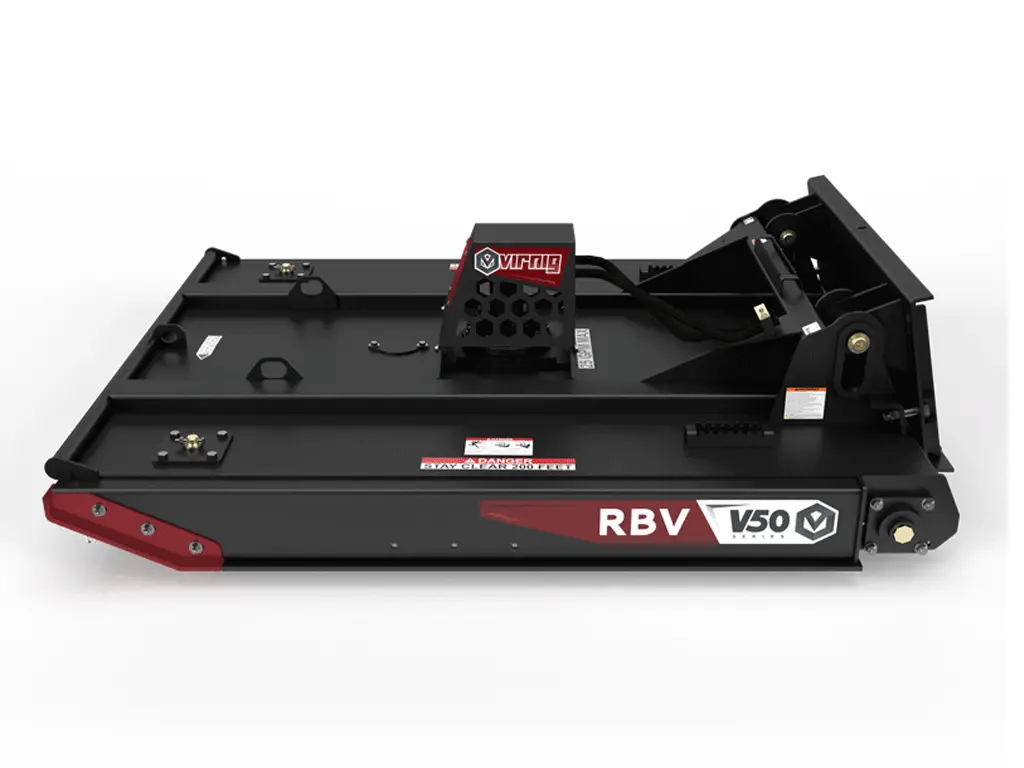

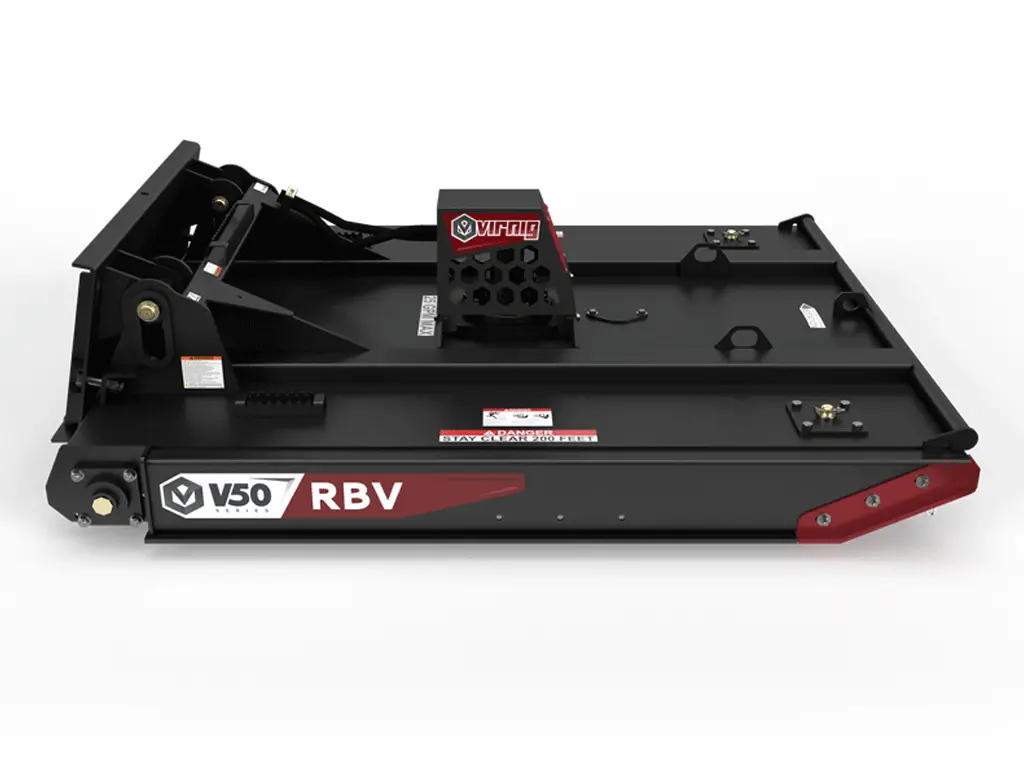

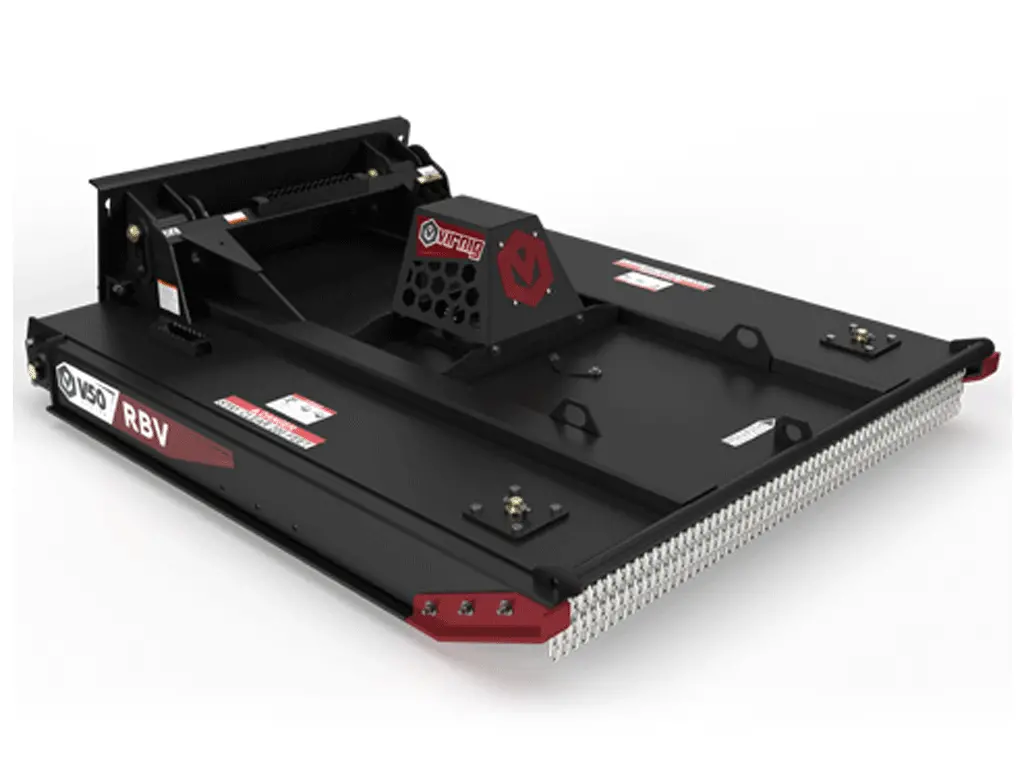

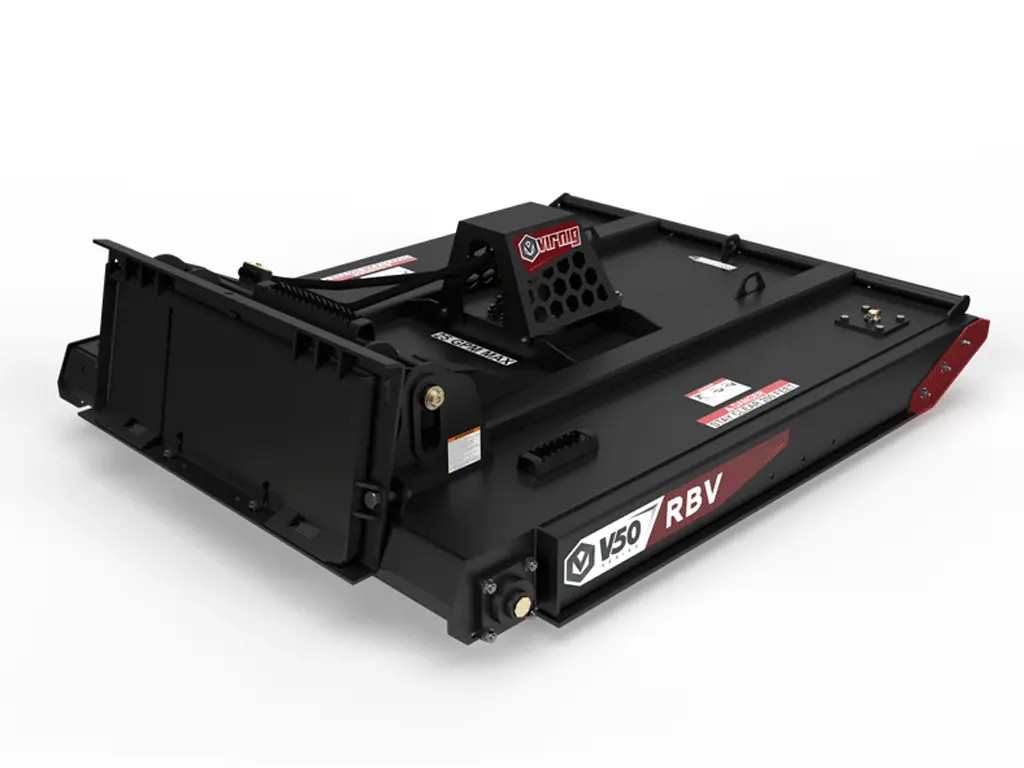

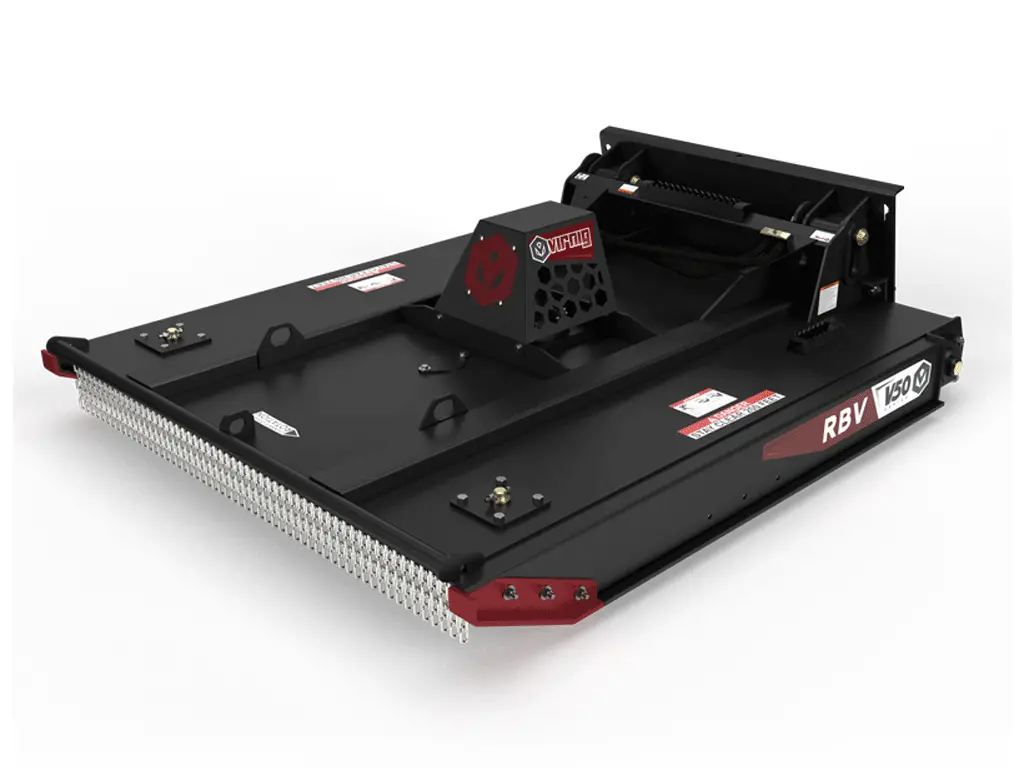

V50 Floating Deck Rotary Brush Cutter

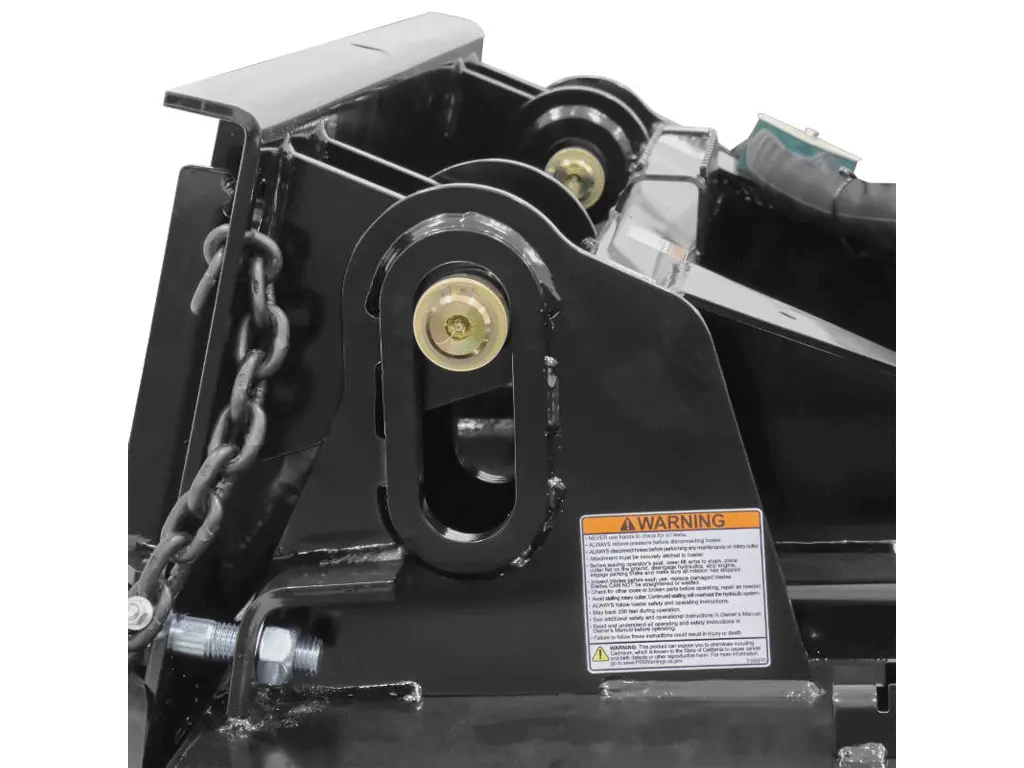

Engineered for power and durability, the V50 Rotary Brush Cutter easily cuts through brush up to 4″ in diameter. Its innovative floating deck allows 4 5/8″ of travel, delivering a consistent finish on uneven terrain and can also be locked in a fixed position when needed.

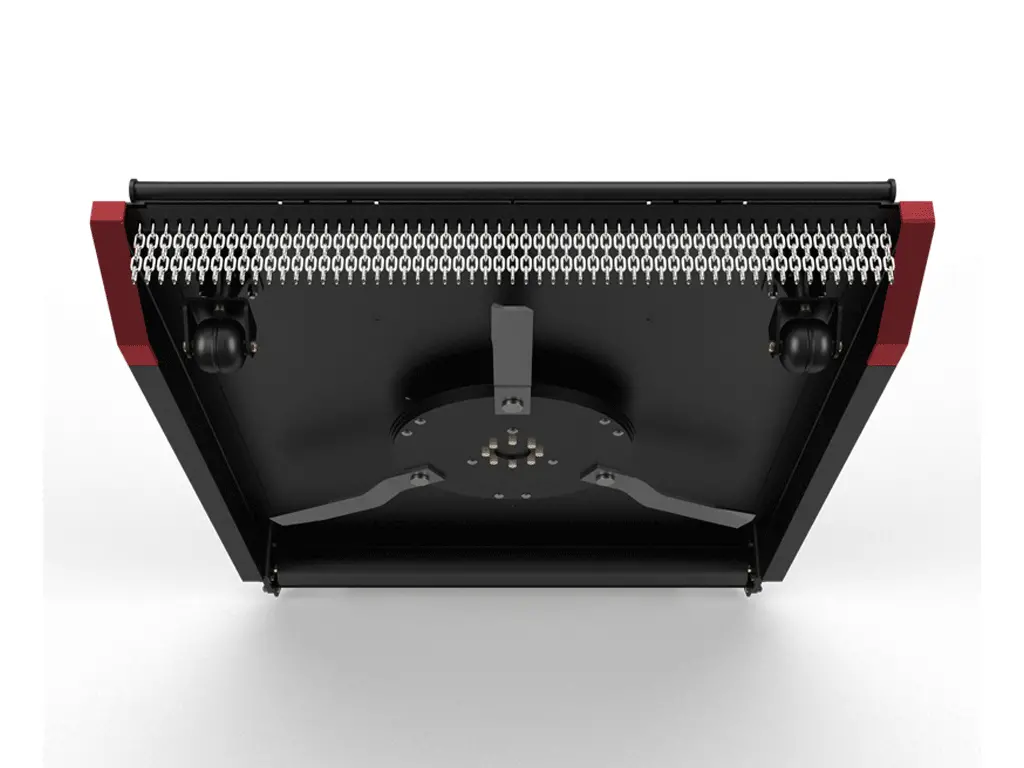

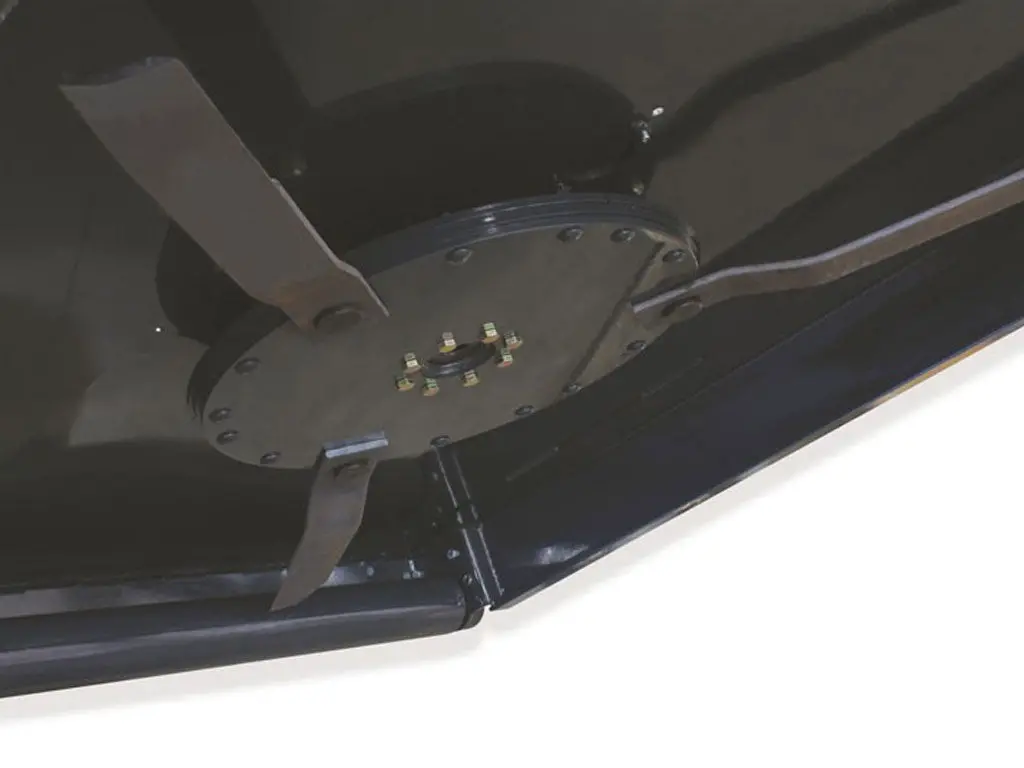

A robust three-blade cutting system, mounted to a heavy-duty circular flywheel, is designed to bounce off stumps instead of catching, protecting vital components. The flywheel, weighing 170–225 lbs, stops in under 10 seconds thanks to dual hydraulic pressure relief valves with dynamic braking.
For added performance, two Eaton® motor configurations are available to match your flow requirements, ensuring efficiency and long-term reliability. Structural bracing along the top and a reinforced push bar provide rigidity for tackling dense brush and small trees.
Additional features include:
-
½” x 4” single-side updraft blades for effective cutting and mulching
-

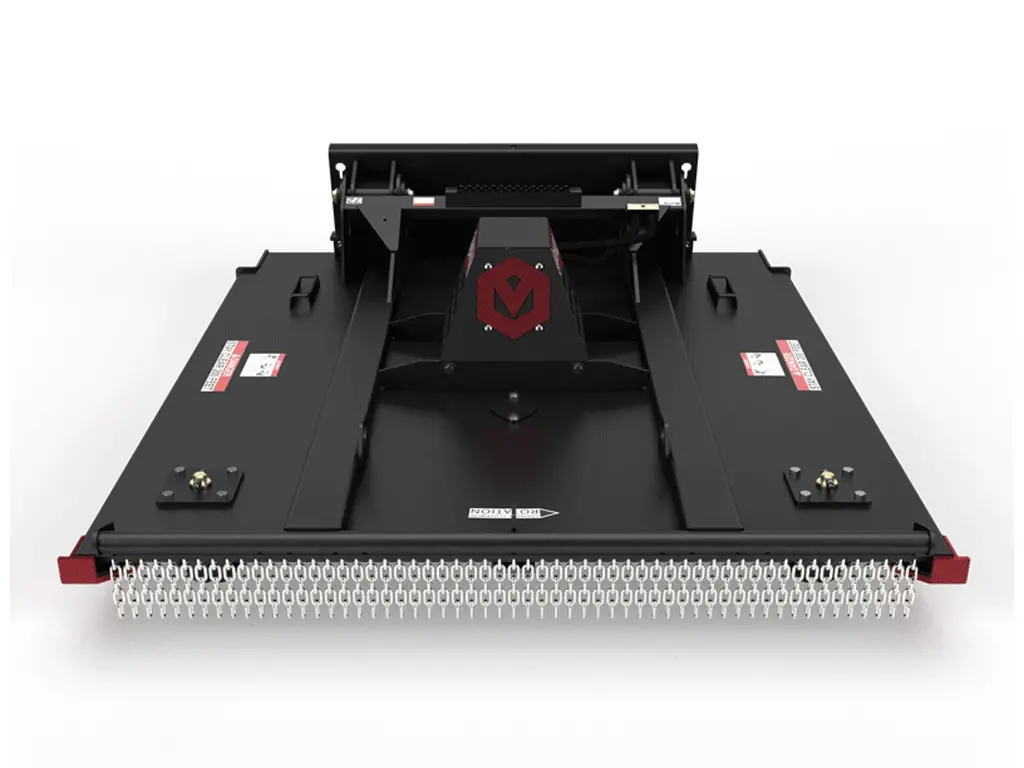

Standard front chain curtain to reduce debris throw and improve mulching
-
Replaceable front skid shoes for extended deck life
-

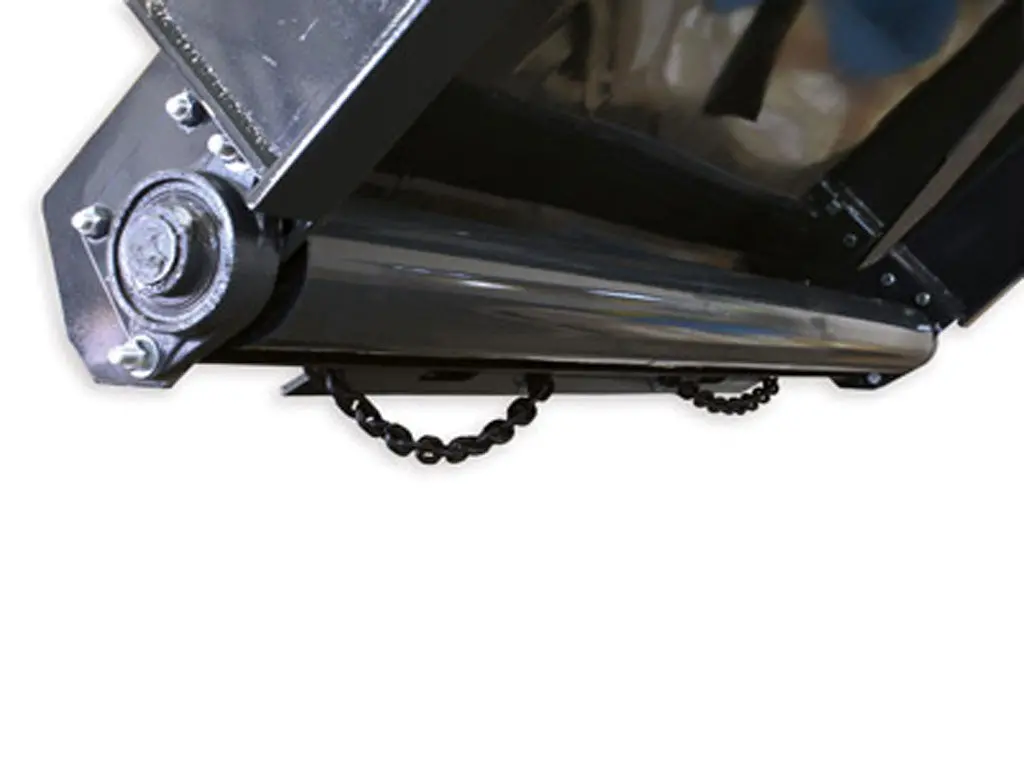

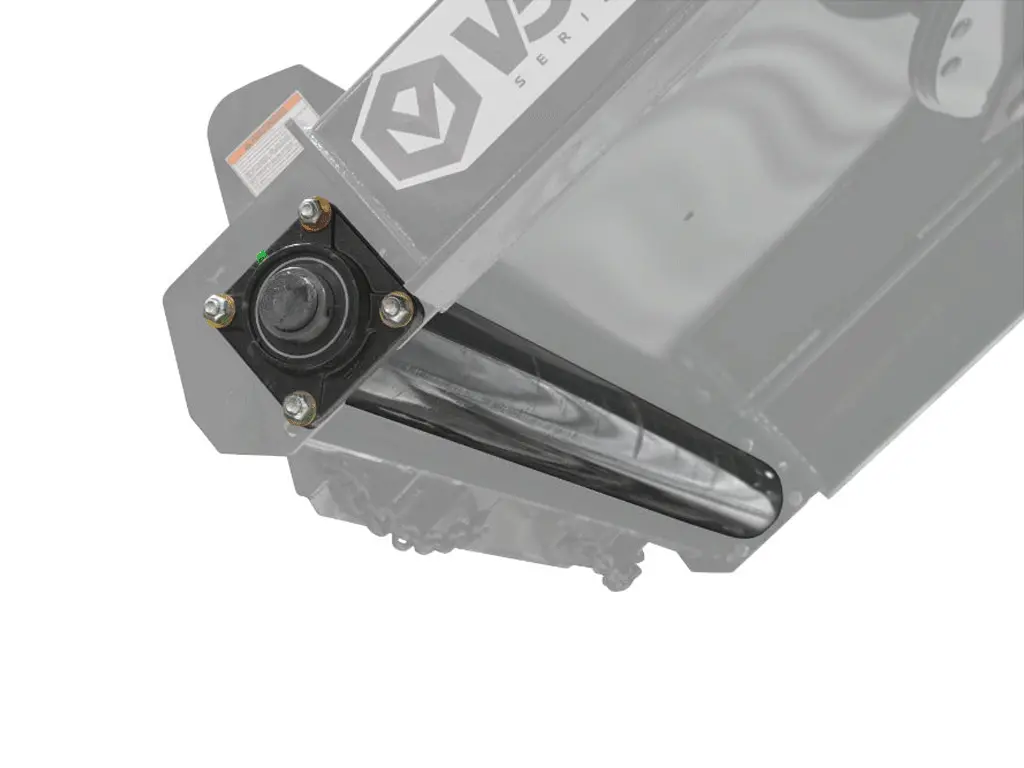

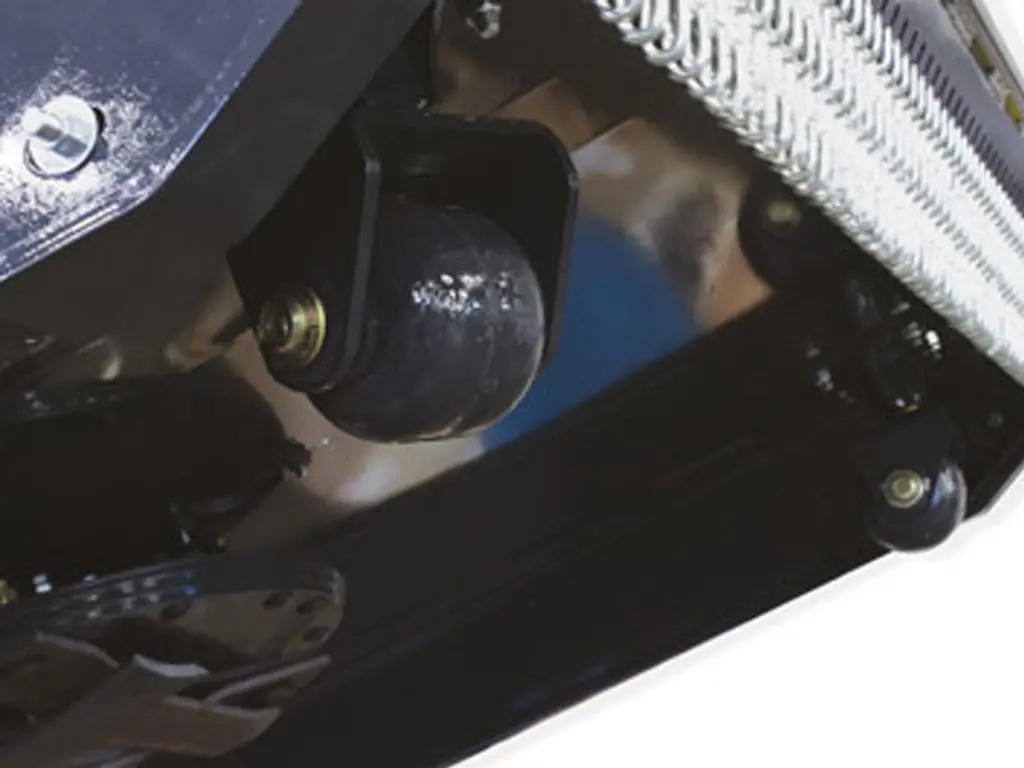

Optional rear roller and swivel casters for enhanced versatility
⚠️ Warning: The V50 Rotary Brush Cutter is capable of throwing debris over 200 feet and must be used only with a shatterproof cab for operator safety.
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES & COUPLERS
SPECS
- Recommended Loader Capacity: Greater than 1500 lbs ROC
- Vertical Deck Travel (in): 4.625
- Cutter Height (in): 20.9
- Deck Height (in): 8.8
- Minimum Cut Height (in): 1.8
- Cutting Capacity, Diameter (in): 4.0
| Cut Width (in) | 60″ | 60″ | 66″ | 66″ | 72″ | 72″ | 78″ | 78″ |
| Flow Rate (GPM) | 14-18 | 18-25 | 14-18 | 18-25 | 14-18 | 18-25 | 14-18 | 18-25 |
| Overall Width | 66.0 | 66.0 | 72.0 | 72.0 | 78.0 | 78.0 | 84.0 | 84.0 |
| Cutter Depth (in) | 81.8 | 81.8 | 87.8 | 87.8 | 93.8 | 93.8 | 99.8 | 99.8 |
| Weight (lbs) | 1430 | 1430 | 1560 | 1560 | 1680 | 1680 | 1760 | 1760 |
|
Blade Tip Speed (FPM) |
Blade Tip Speed (FPM) |
Blade Tip Speed (FPM) |
Blade Tip Speed (FPM) |
|
| Model |
14 GPM Min |
18 GPM Max |
18 GPM Min |
25 GPM Max |
|
60″ 14-18 GPM |
10,365 | 13,325 | ||
|
60″ 18-25 GPM |
10,530 | 14,630 | ||
|
66″ 14-18 GPM |
11,404 | 14,662 | ||
|
66″ 18-25 GPM |
11,585 | 16,090 | ||
|
72″ 14-18 GPM |
12,440 | 15,995 | ||
|
72″ 18-25 GPM |
12,640 | 17,555 | ||
|
78″ 14-18 GPM |
13,475 | 17,325 | ||
|
78″ 18-25 GPM |
13,695 | 19,700 |
