Virnig V50 Skid Steer Root Rake with Grapple Attachment

Description

DESCRIPTION

9/25

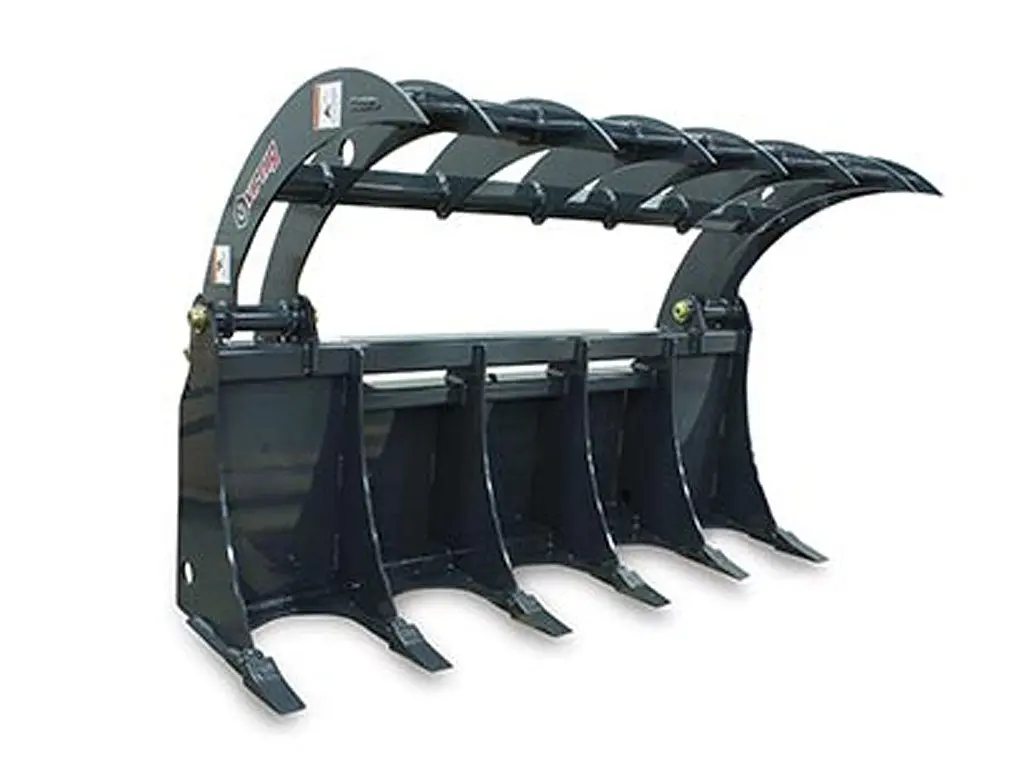

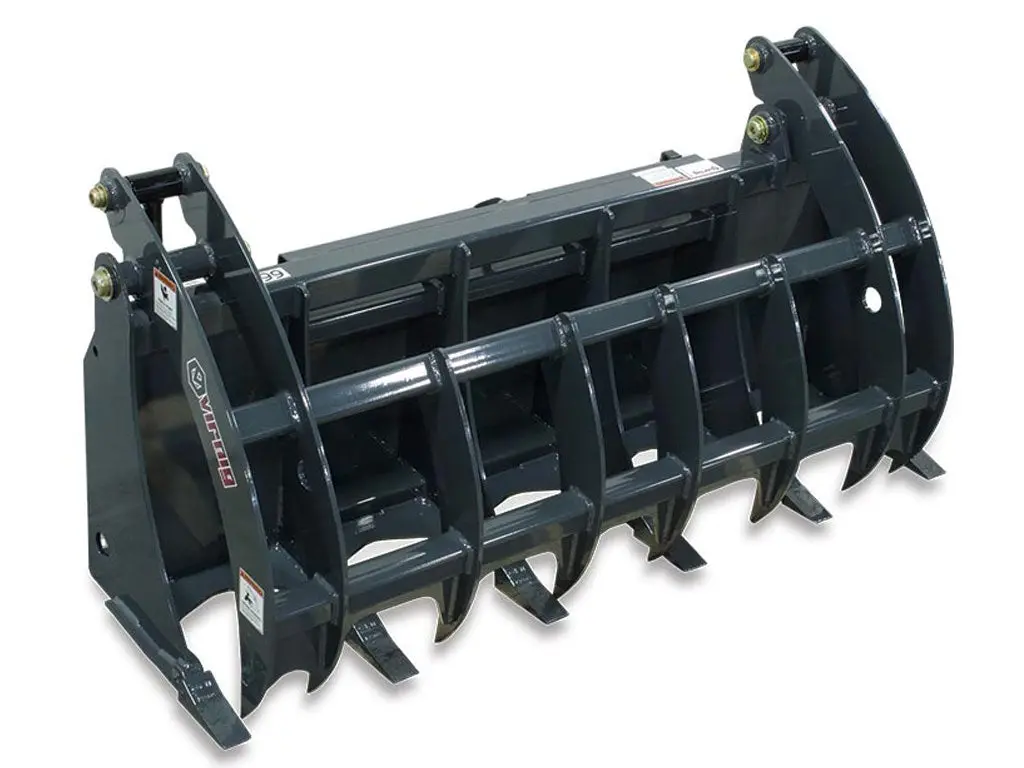

Virnig V50 Root Rake Grapple

Skid Steer Attachment

The Virnig V50 Root Rake Grapple is a heavy-duty skid steer attachment engineered for digging, raking, piling, and loading debris. Featuring a two-cylinder, single jaw design, it allows operators to efficiently drag loose material into piles with both forward and reverse operation.

The V50’s cast, pin-on teeth cut deep into roots and brush piles for optimal removal, providing long wear life and easy replacement. Its 40” grapple jaw opening handles large volumes of brush per load, while heavy-duty jaw and rake tines made from 3/8″ Grade 80 steel ensure strength and durability. Series 23 replaceable cast teeth, NitroSteel® cylinder rods, and Teflon® coated bushings on all pivots enhance reliability and longevity.

⚠️ Note: Clearance issues may occur with URG66 and URG72 on Takeuchi® track loaders and John Deere® G-Series loaders (330G, 331G, 332G, 333G).

Included with Attachment:

• Universal skid steer mounting

• Hoses, couplers, & fittings

• Standard cylinder guards

SPECS

• Recommended loader capacity – Less than 2400 lbs ROC
• Cylinder Bore / Stroke (in)  2.0 / 8.375
• Cylinder Pins / Hinge Pins Diameter (in) 1.25 /1.563

Model	66″	72″	78″
Overall Width (in)	67.9	73.9	79.9
Depth (in)	22.1	22.1	22.1
Height: Overall / Bucket (in)	34.0 / 25.0	34.0 / 25.0	34.0 / 25.0
Grapple Jaw Opening (in)	44.0	44.0	44.0
Number of Teeth	6	7	8
Space Between Teeth	10.9	9.8	8.9
Weight (lbs)	790	845	905

 BIG DAVE REVIEW

The V50 series was designed for medium and large frame skid steers. Though this is Virnig’s standard-duty line, the V50 Series often outperforms other brands’ heaviest skid steer attachments.
