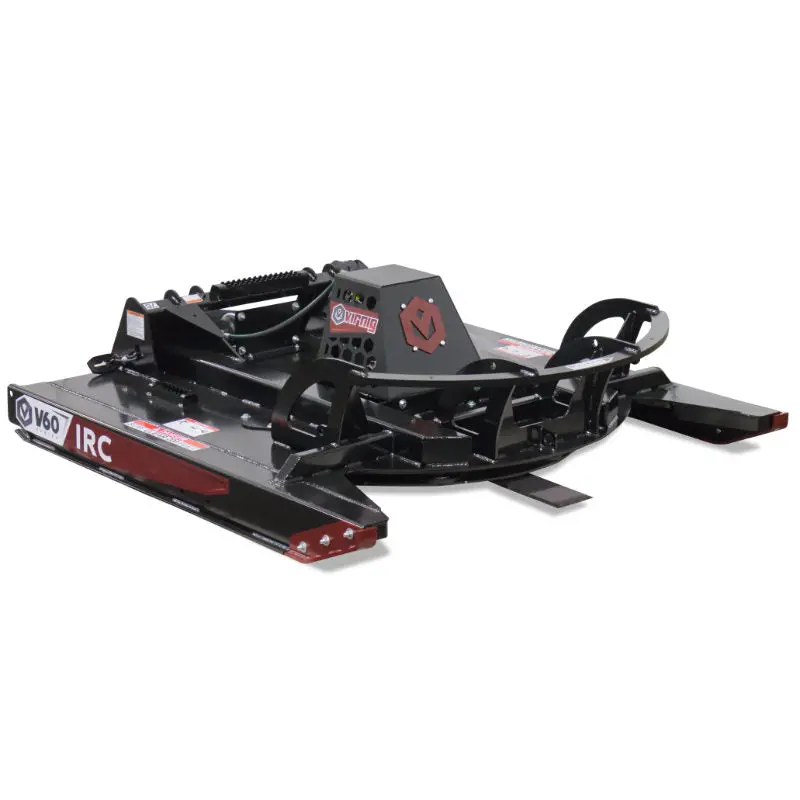

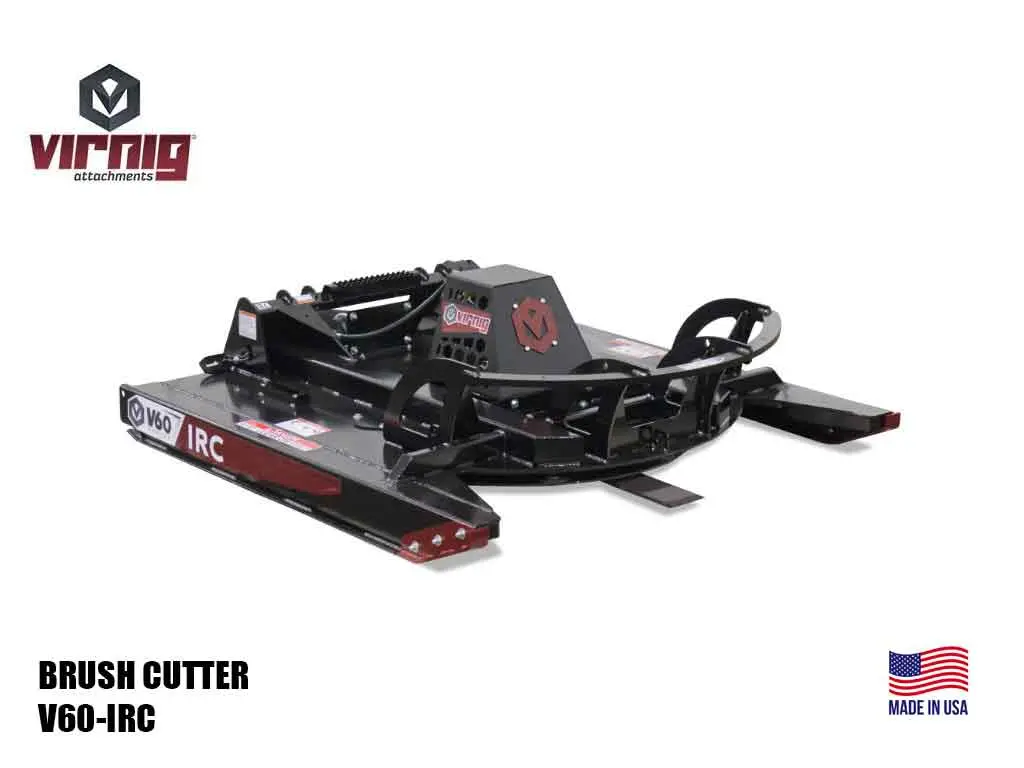

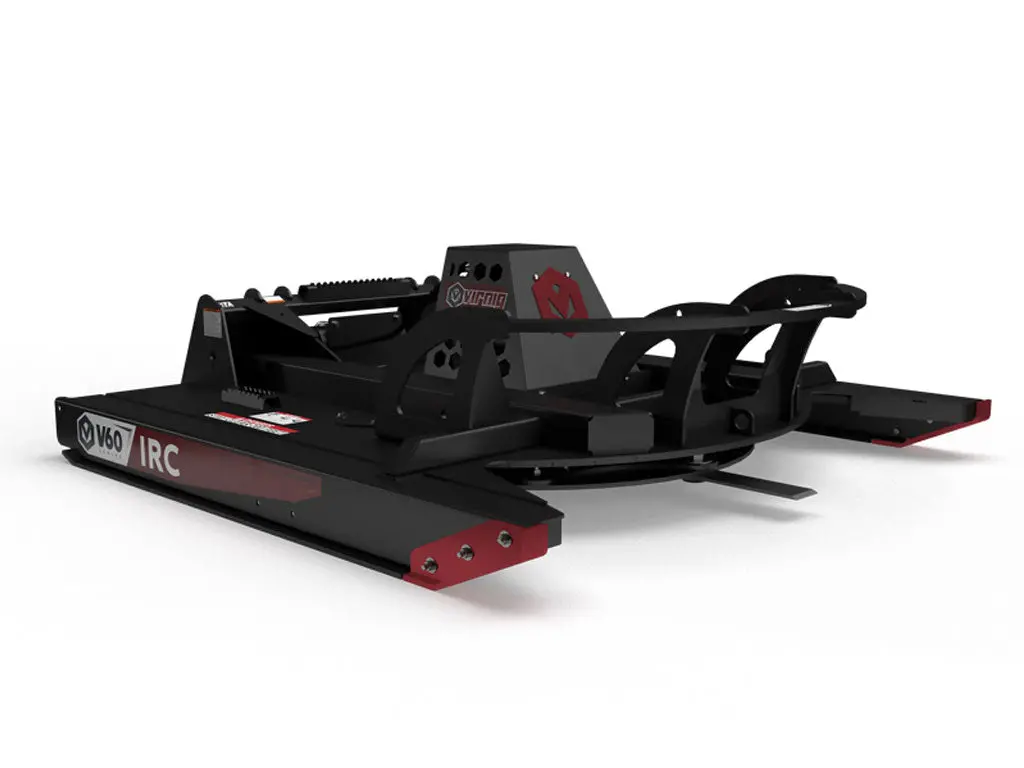

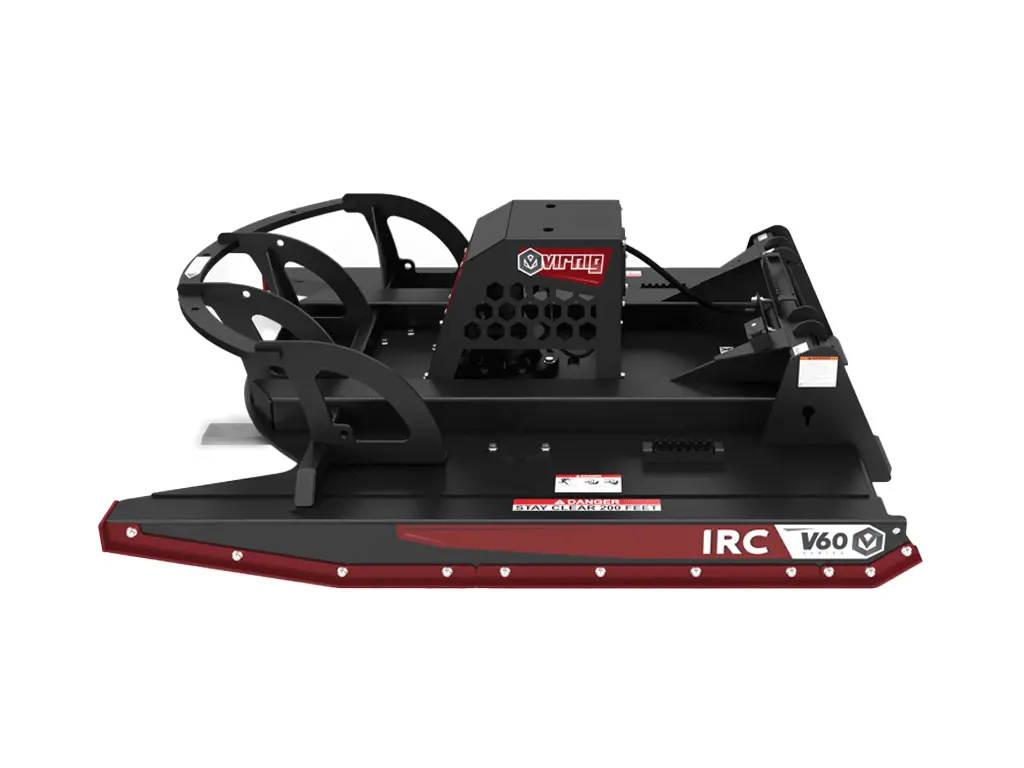

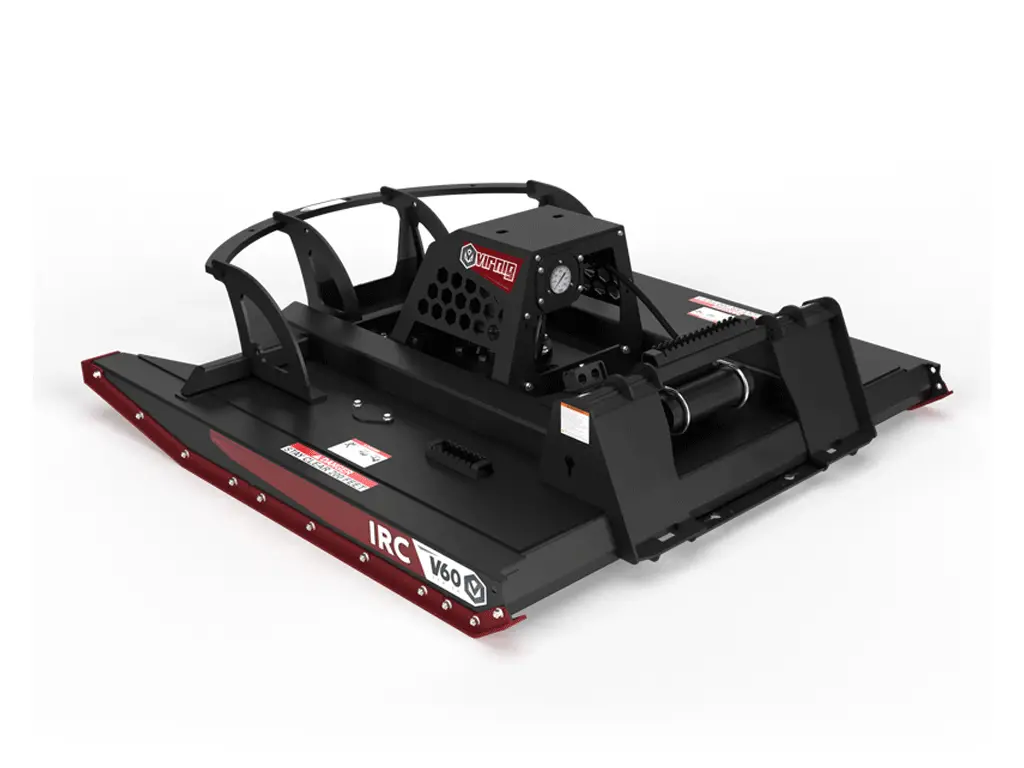

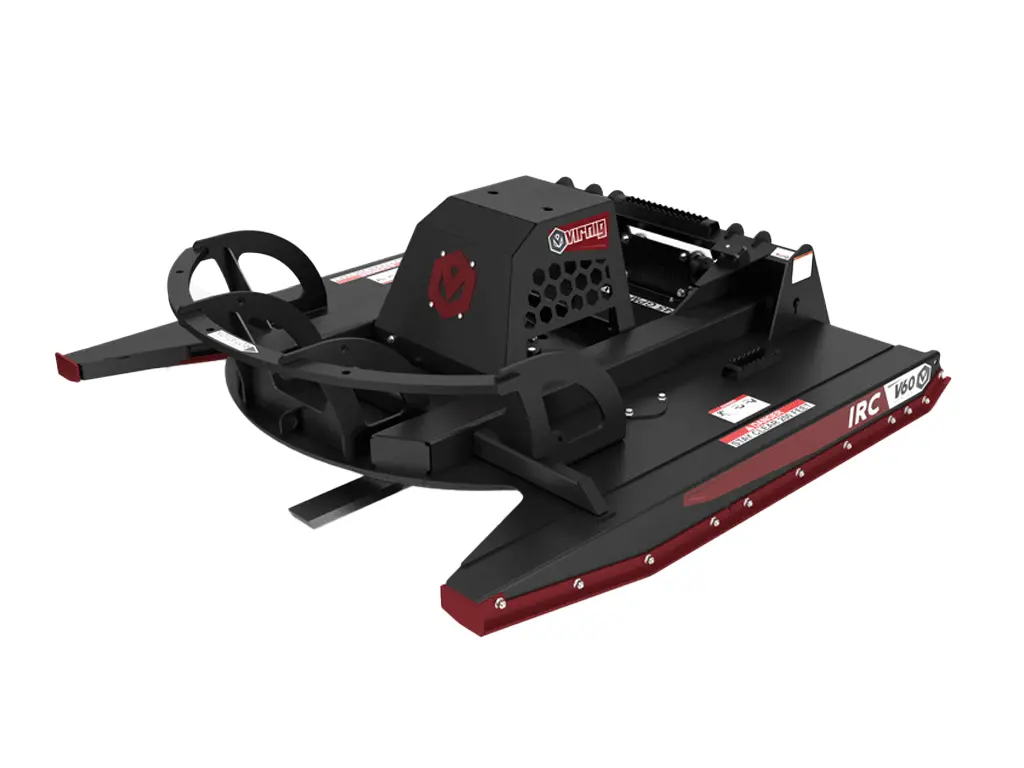

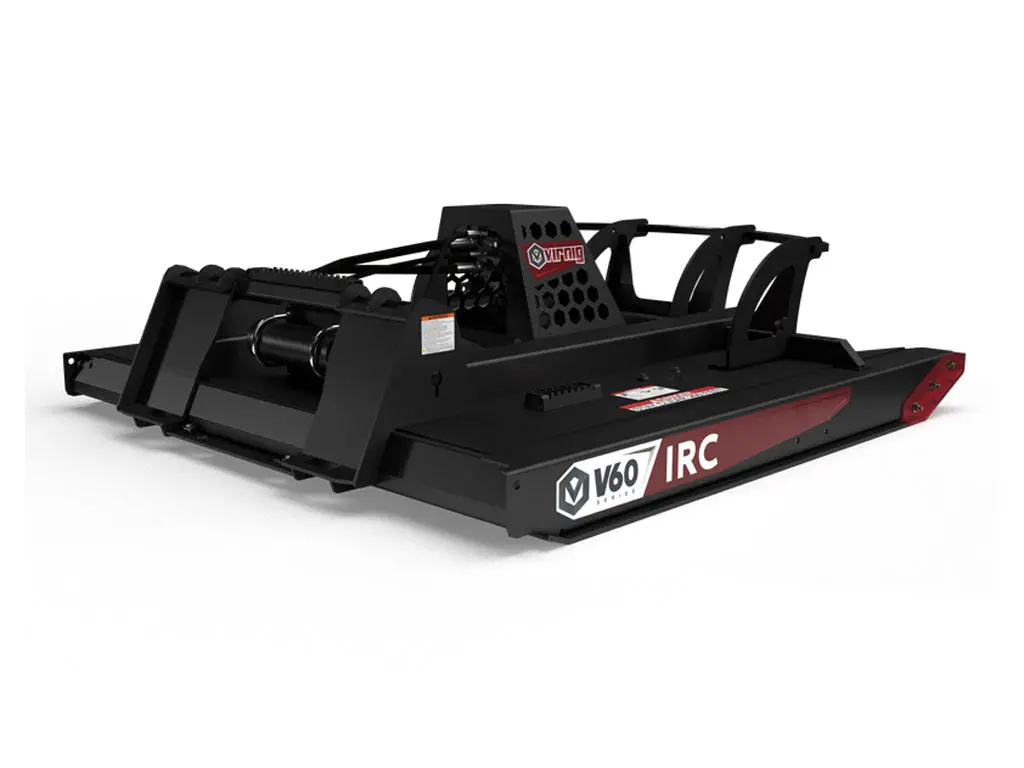

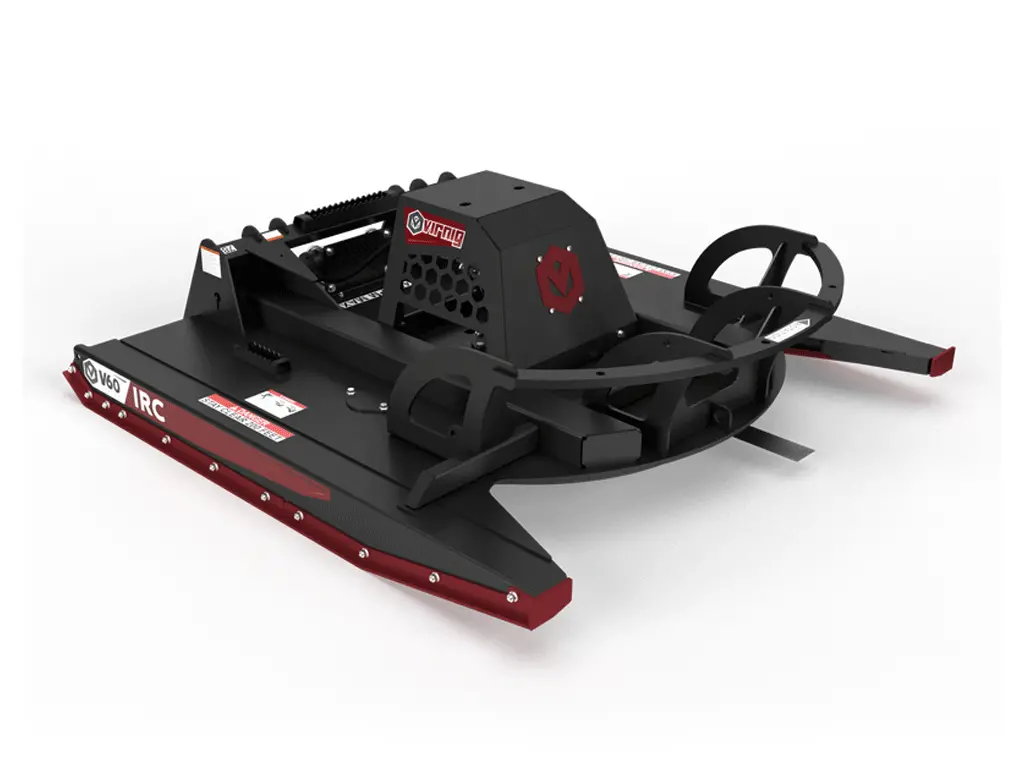

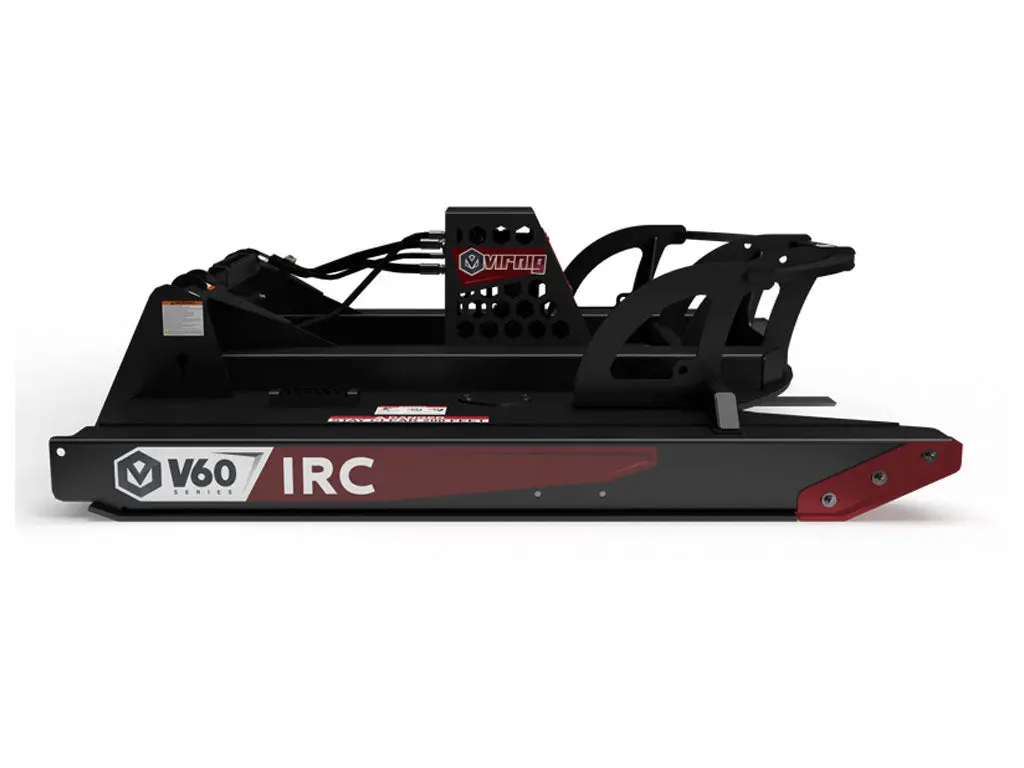

Virnig V60 Open Front Rotary Brush Cutter
Skid Steer Attachment

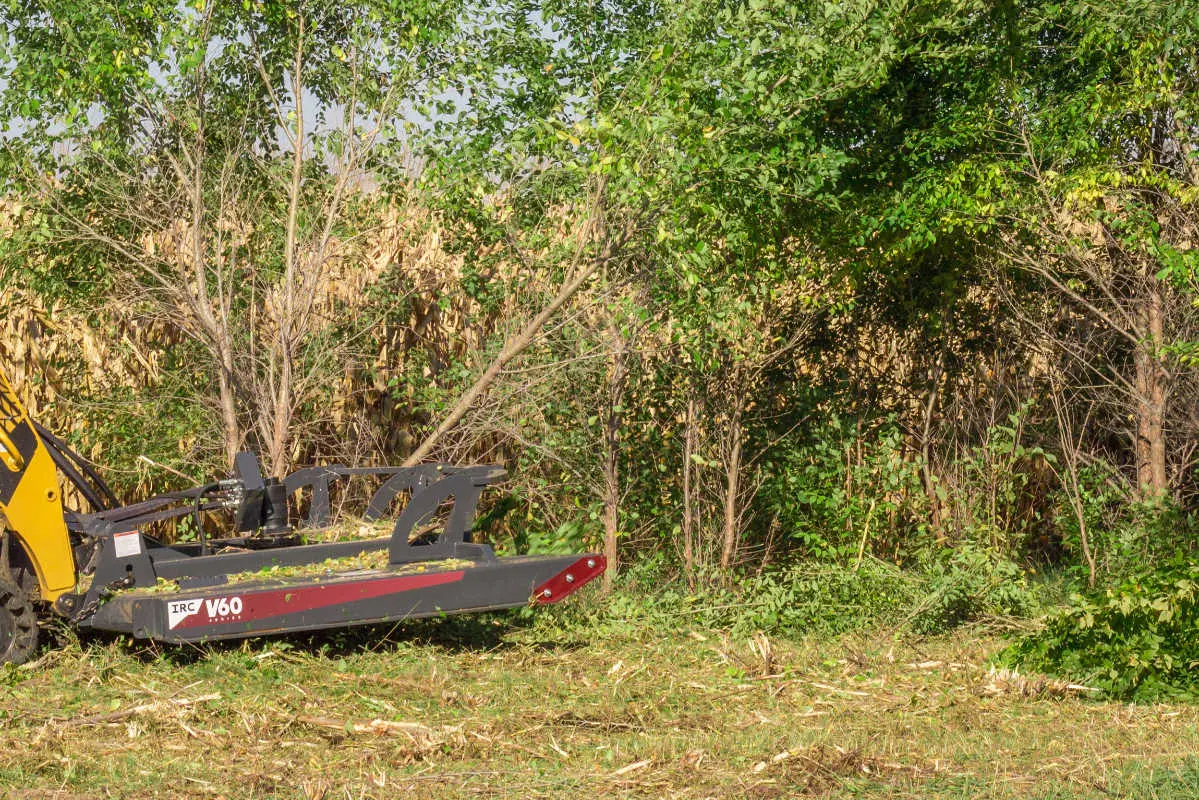

The V60 Open Front Rotary Brush Cutter is built for extreme land clearing, capable of cutting trees up to 8″ in diameter. Designed with industrial-grade components, heavier flywheel, and four double-sided blades, it delivers unmatched cutting power for the toughest jobs.
-
Five Direct Drive Motor Options with Relief Valves – Eaton® high-flow motors rated up to 4100 PSI & SAI® piston motor up to 4500 PSI.
-
Hydraulic Braking System – Safely stops the flywheel within 25 seconds.
-
Heavy-Duty Protection – Includes standard motor guard & spindle guard.
-

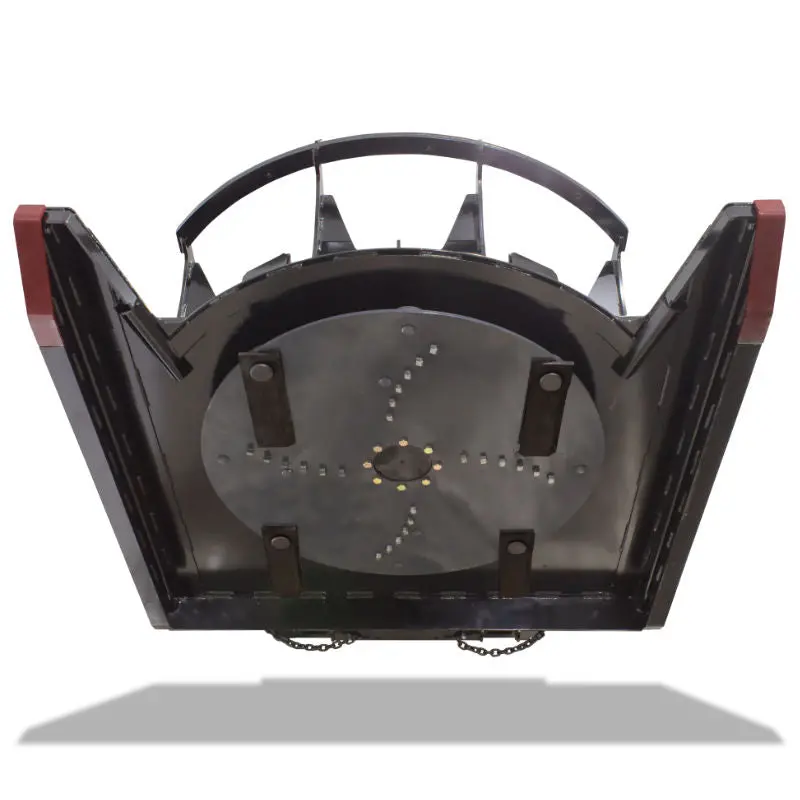

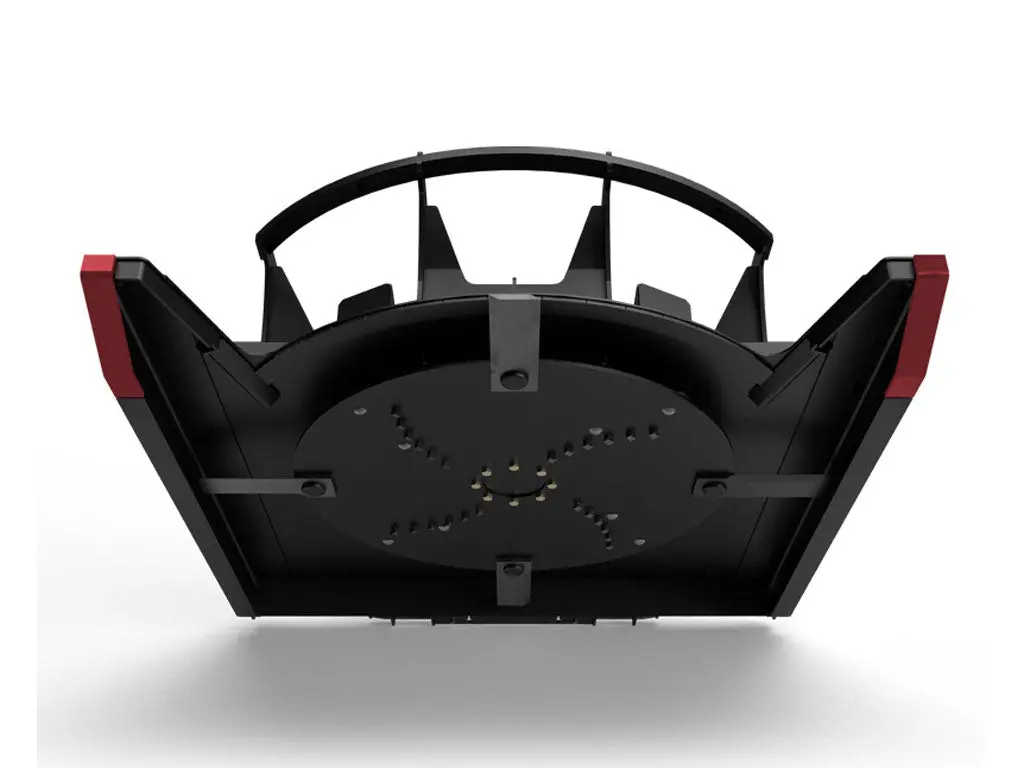

Durable Flywheel Design – Circular flywheel with 4 double-sided blades that bounce off stumps for longevity.
-
Replaceable Wear Parts – AR400 front skid shoes & bolt-on AR400 bottom deck runners extend service life.
-
Safety Notice – Do not operate without a shatterproof cab on loader.
SPECS
¹Deck Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).
²High Flow motor options add approximately 70 pounds to model weight.
| MODEL | IRC72 | IRC78 | IRC84 | |
| Cut Width (Inches) | 72.0 | 78.0 | 84.0 | |
| Overall Width (Inches) | 78.0 | 84.0 | 90.0 | |
| Overall Height (Inches) | 20.1 | |||
| Overall Depth (Inches) | 80.3 | 86.3 | 92.3 | |
| Deck Height (Inches) | 8.3 | |||
| Push Bar Height (Inches) | 23.4 | |||
| Cut Height (Inches) | 2.3 | |||
| Cutting Capacity, Diameter (Inches) | 8.0 | |||
| Deck Thickness: Top / Side (Inches) | 0.25¹ | |||
| Recommended Flow Rate (GPM) | 20-25 Standard Flow, 25-45 High Flow | |||
| Approximate Weight (Pounds) | 2120² | 2280² | 2420² | |
| Recommended Loader Capacity | Greater than 2200 pounds | |||
- Recommended Loader Capacity: Greater than 2200 lbs ROC
- Push Bar Height (in): 23.4
- Overall Height (in): 20.1
- Deck Height (in): 8.3
- Minimum Cut Height (in): 2.3
- Cutting Capacity, Diameter (in): 8.0
| MODEL | CUT WIDTH | OVERALL WIDTH | HEIGHT |
| ICR72-25 | 72″ | 78″ | 20.1″ |
| ICR78-25 | 78″ | 84″ | 20.1″ |
| ICR84-25 | 84″ | 90″ | 20.1″ |
| ICR72-HF32 | 72″ | 78″ | 20.1″ |
| ICR78-HF32 | 78″ | 84″ | 20.1″ |
| ICR84-HF32 | 84″ | 90″ | 20.1″ |
| ICR72-HF39 | 72″ | 78″ | 20.1″ |
| ICR78-HF39 | 78″ | 84″ | 20.1″ |
| ICR84-HF39 | 84″ | 90″ | 20.1″ |
| ICR72-HF45 | 72″ | 78″ | 20.1″ |
| ICR78-HF45 | 78″ | 84″ | 20.1″ |
| ICR84-HF84 | 84″ | 90″ | 20.1″ |
| MODEL | DEPTH | DECK HEIGHT | PUSH BAR HEIGHT |
| ICR72-25 | 80.3″ | 8.3″ | 23.4″ |
| ICR78-25 | 86.3″ | 8.3″ | 23.4″ |
| ICR84-25 | 92.3″ | 8.3″ | 23.4″ |
| ICR72-HF32 | 80.3″ | 8.3″ | 23.4″ |
| ICR78-HF32 | 86.3″ | 8.3″ | 23.4″ |
| ICR84-HF32 | 92.3″ | 8.3″ | 23.4″ |
| ICR72-HF39 | 80.3″ | 8.3″ | 23.4″ |
| ICR78-HF39 | 86.3″ | 8.3″ | 23.4″ |
| ICR84-HF39 | 92.3″ | 8.3″ | 23.4″ |
| ICR72-HF45 | 80.3″ | 8.3″ | 23.4″ |
| ICR78-HF45 | 86.3″ | 8.3″ | 23.4″ |
| ICR84-HF84 | 92.3″ | 8.3″ | 23.4″ |
| MODEL | CUT HEIGHT | CUT DIAMETER | RECOMMENDED FLOW |
| ICR72-25 | 2.3″ | 8″ | 20-25 GPM |
| ICR78-25 | 2.3″ | 8″ | 25-32 GPM |
| ICR84-25 | 2.3″ | 8″ | 25-32 GPM |
| ICR72-HF32 | 2.3″ | 8″ | 25-32 GPM |
| ICR78-HF32 | 2.3″ | 8″ | 25-32 GPM |
| ICR84-HF32 | 2.3″ | 8″ | 25-32 GPM |
| ICR72-HF39 | 2.3″ | 8″ | 32-39 GPM |
| ICR78-HF39 | 2.3″ | 8″ | 32-39 GPM |
| ICR84-HF39 | 2.3″ | 8″ | 32-39 GPM |
| ICR72-HF45 | 2.3″ | 8″ | 39-45 GPM |
| ICR78-HF45 | 2.3″ | 8″ | 39-45 GPM |
| ICR84-HF84 | 2.3″ | 8″ | 39-45 GPM |
| MODEL | EST WEIGHT | CARRIER CAPACITY | NUMBER OF TEETH |
| ICR72-25 | 2120 LB | > 2200 LB | 20 |
| ICR78-25 | 2280 LB | > 2200 LB | 24 |
| ICR84-25 | 2420 LB | > 2200 LB | 28 |
| ICR72-HF32 | 2190 LB | > 2200 LB | 20 |
| ICR78-HF32 | 2350 LB | > 2200 LB | 24 |
| ICR84-HF32 | 2490 LB | > 2200 LB | 28 |
| ICR72-HF39 | 2190 LB | > 2200 LB | 20 |
| ICR78-HF39 | 2350 LB | > 2200 LB | 24 |
| ICR84-HF39 | 2490 LB | > 2200 LB | 28 |
| ICR72-HF45 | 2190 LB | > 2200 LB | 20 |
| ICR78-HF45 | 2350 LB | > 2200 LB | 24 |
| ICR84-HF84 | 2490 LB | > 2200 LB | 28 |
BLADE TIP SPEEDS (FPM)
Standard Flow Models
| MODEL | 20 GPM | 25 GPM |
| ICR72-25 | 11020 | 13775 |
| ICR78-25 | 11940 | 14925 |
| ICR84-25 | 12861 | 16075 |
High Flow Models
| MODEL | 25 GPM | 32 GPM |
| ICR72-HF32 | 10996 | 14074 |
| ICR78-HF32 | 11912 | 15247 |
| ICR84-HF32 | 12828 | 16420 |
| MODEL | 25 GPM | 32 GPM |
| ICR72-HF39 | 10996 | 14074 |
| ICR78-HF39 | 11912 | 15247 |
| ICR84-HF39 | 12828 | 16420 |
| MODEL | 25 GPM | 32 GPM |
| ICR72-HF45 | 11321 | 13063 |
| ICR78-HF45 | 12264 | 14151 |
| ICR84-HF | 13207 | 15240 |
