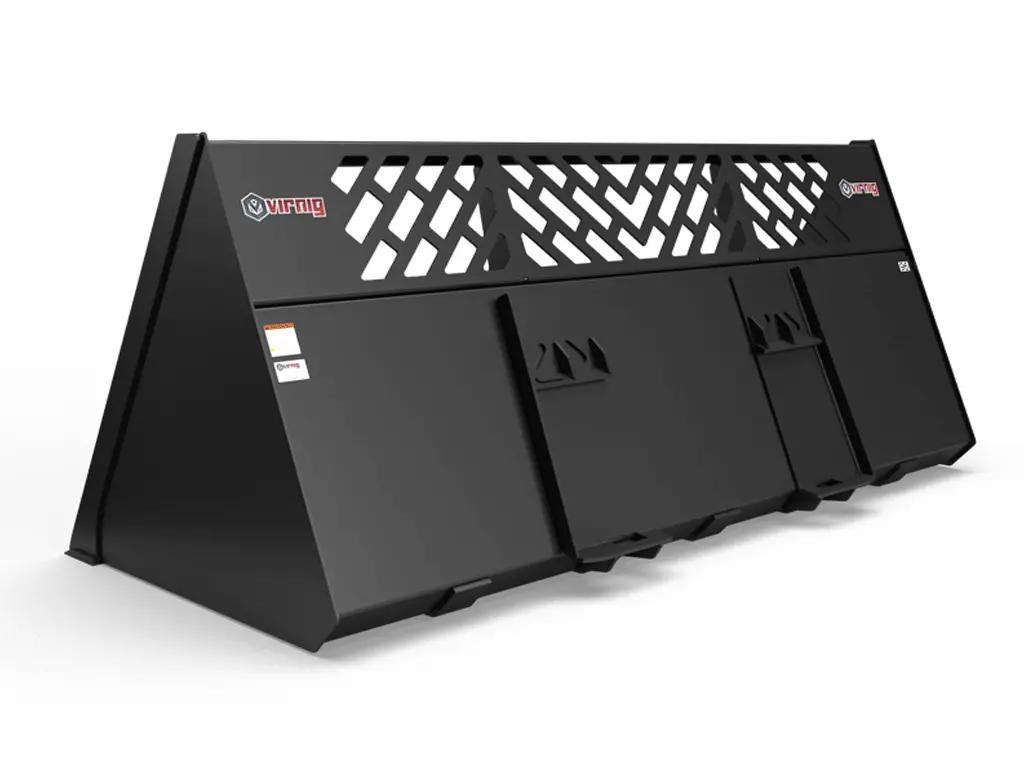

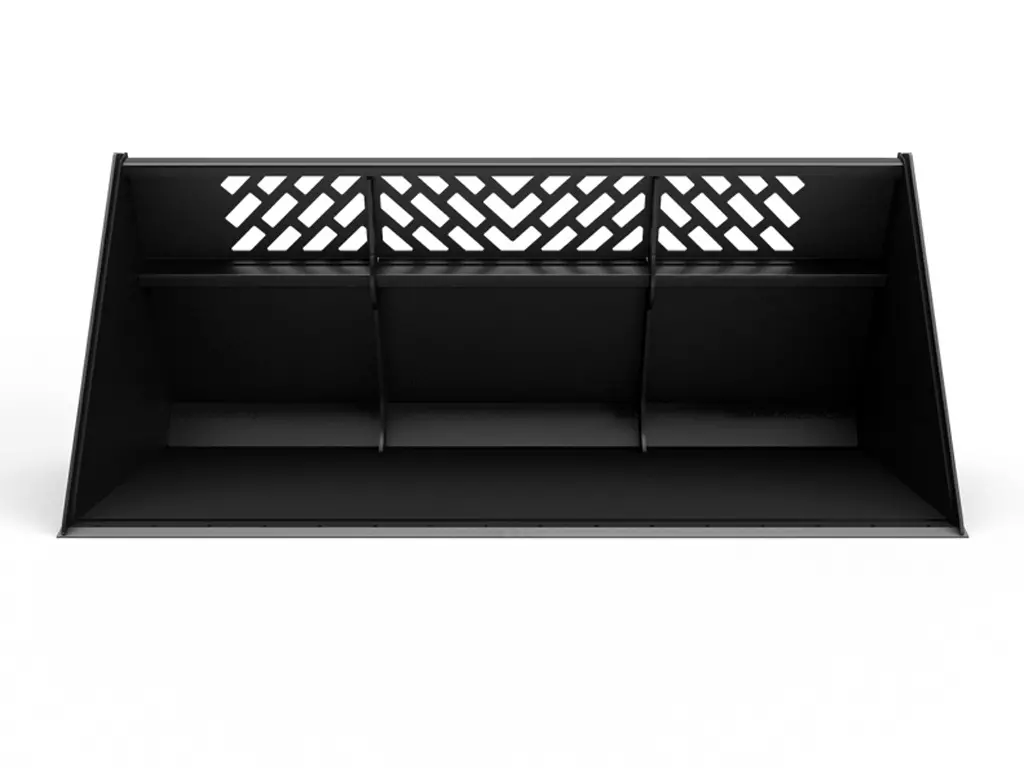

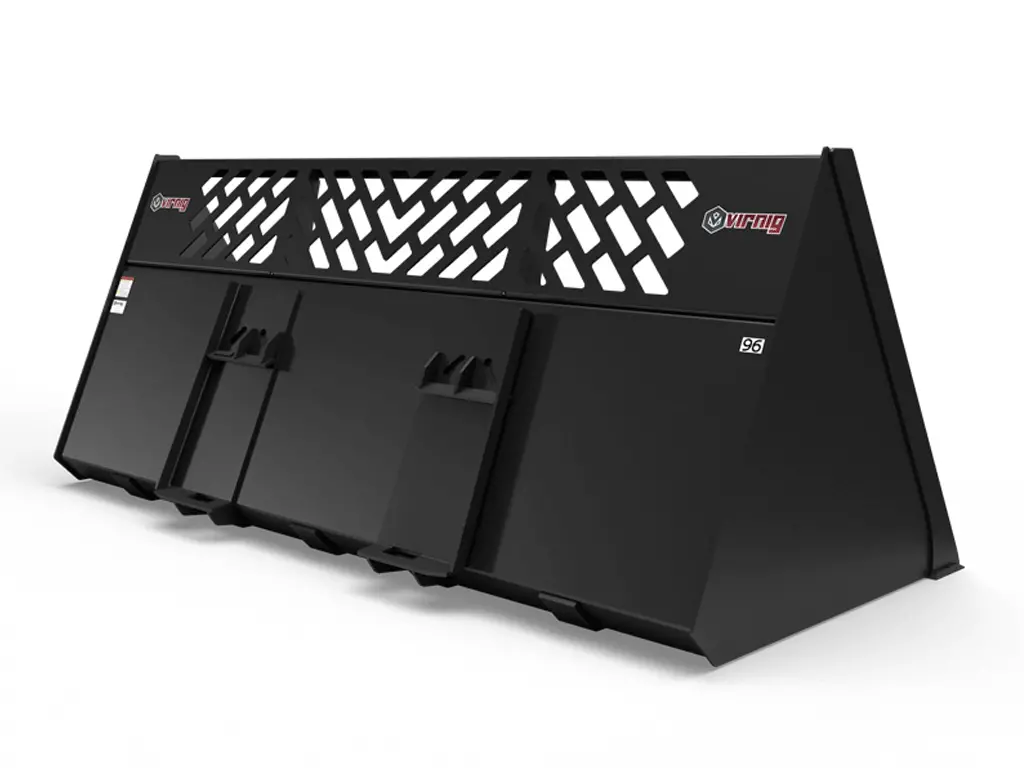

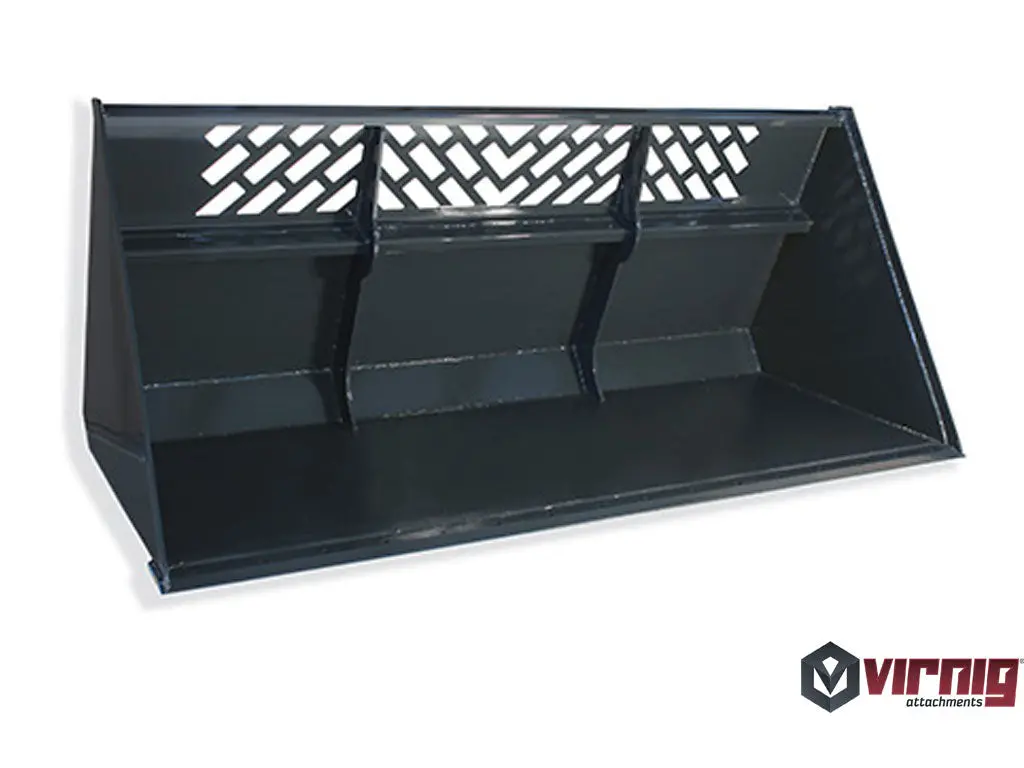

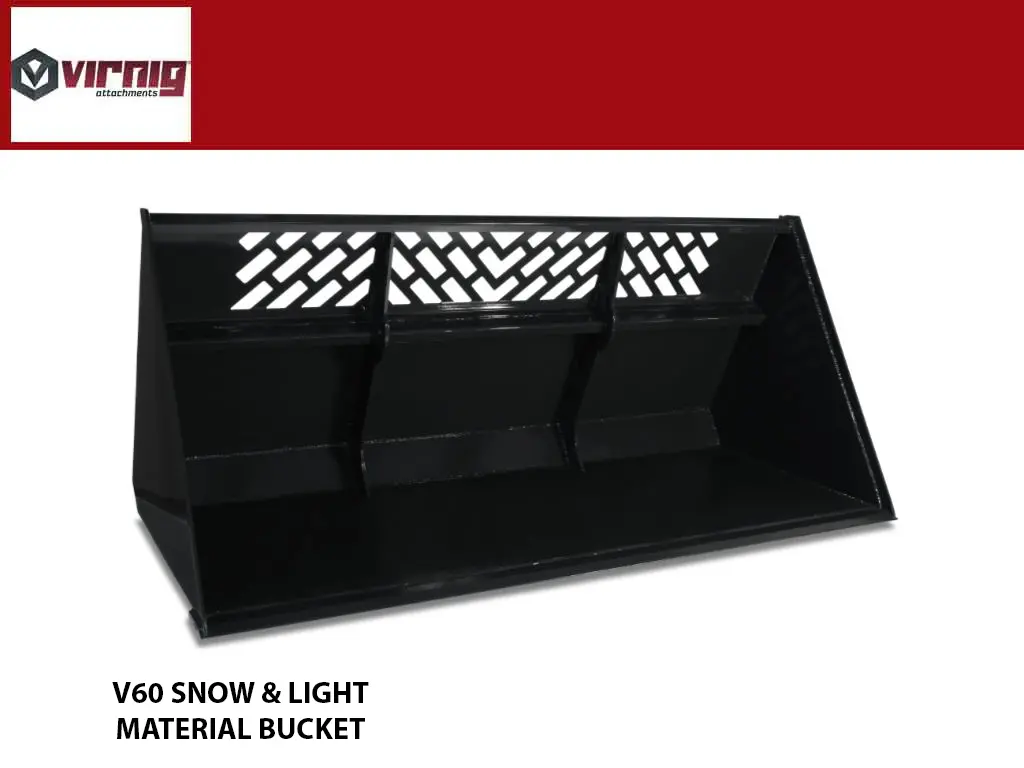

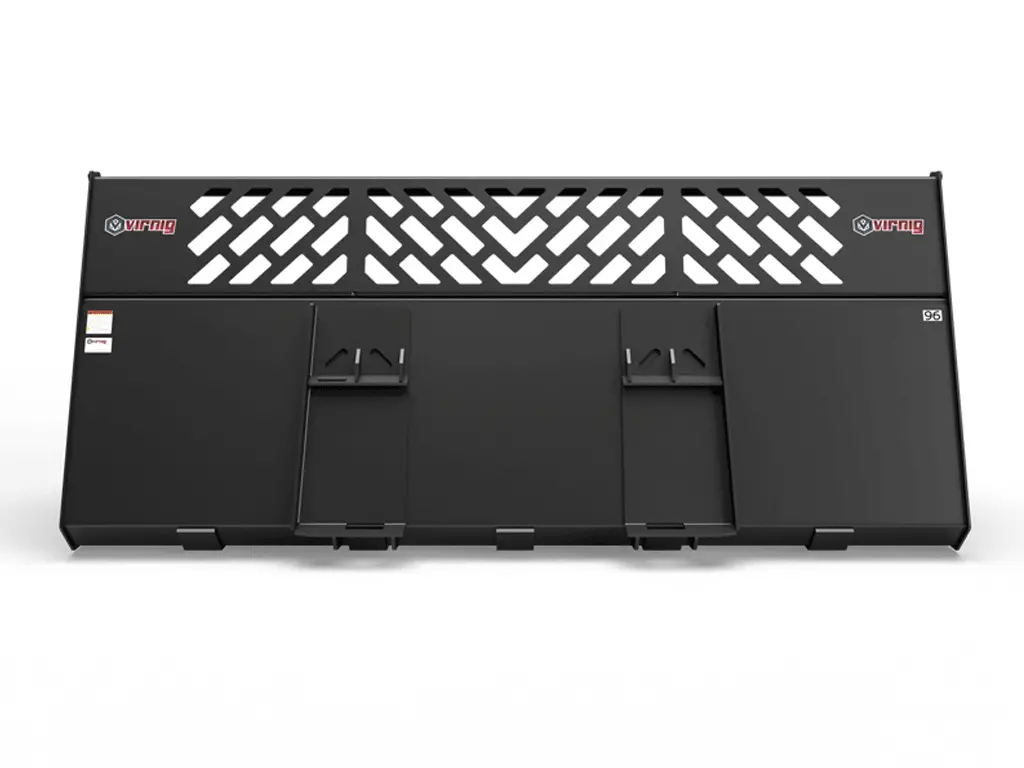

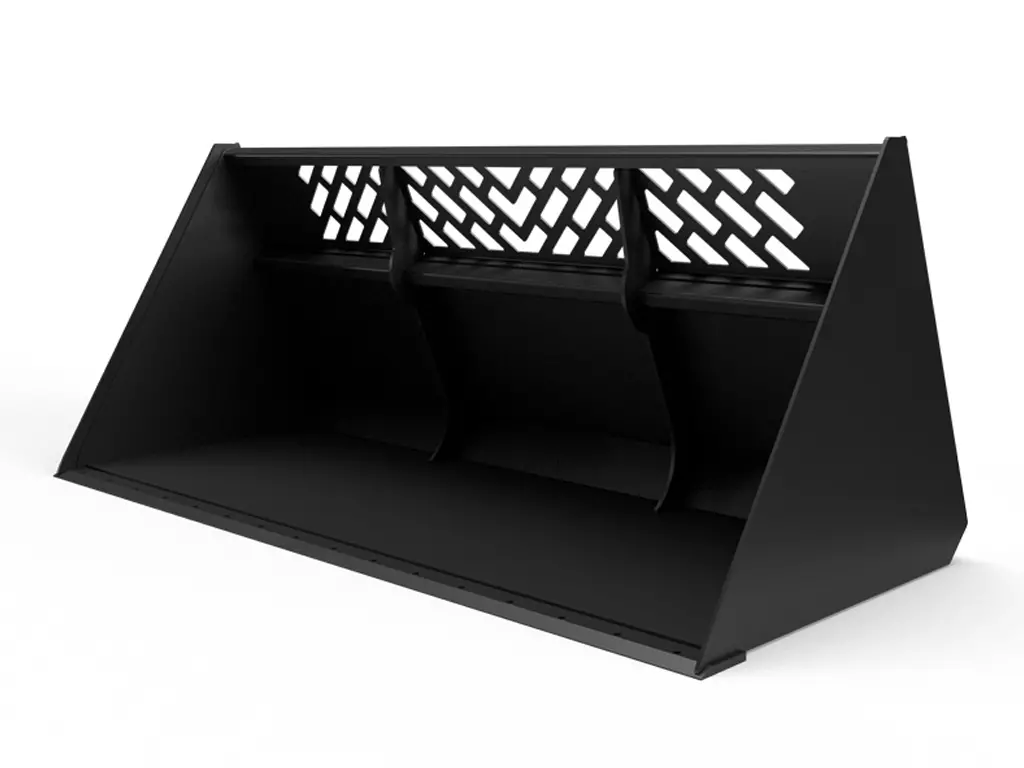

Virnig V60 Snow and Light-Material Bucket
The Virnig V60 Snow/Light Material Bucket is engineered for skid steer loaders to move large volumes of light, loose materials such as snow, mulch, wood chips, sawdust, and bark. Its high back (40.5”) and extended bottom maximize struck capacity, allowing more material to be hauled per load for efficient operation.
Built for durability, the V60 features a 1/4″ thick steel shell and side plates, reinforced with two 1/2” vertical braces and a heavy-duty upper cross member. Windows in the bucket improve visibility of the cutting edge, while the high-strength 3/4” x 6” weld-on edge comes pre-drilled for optional bolt-on or serrated edges. Designed with a universal skid steer mount, this bucket fits most machines with ease.
Options:
-

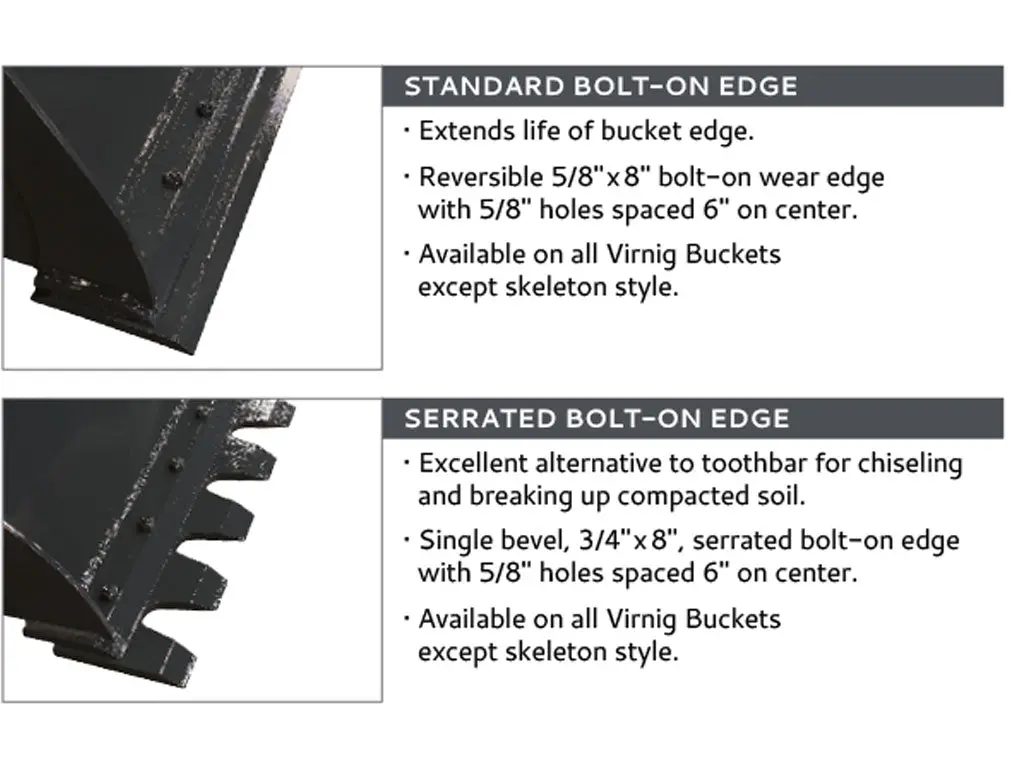

Bolt-On Cutting Edge (BOCE): Reversible 5/8″ x 8″ bolt-on wear edge for extended life, holes spaced 6” on center.
-
Serrated Edge (SE): Single bevel 3/4″ x 8″ serrated bolt-on edge, ideal for chiseling and breaking up material.
Ideal for snow removal, landscaping, and material handling, the Virnig V60 combines capacity, visibility, and durability in a versatile light-material bucket.
SPECS
| Models | SBHV 78 | SBHV 84 | SBHV 96 | SBHV 101 | ||
| Overall Bucket Width (Inches) | 79.5 | 85.5 | 97.5 | 101.5 | ||
| Bucket Depth (Inches) | 45.5 | |||||
| Bucket Height (Inches) | 40.5 | |||||
| Window Height (Inches) | 12.0 | |||||
| Struck Capacity (Cubic Feet) | 40.1 | 43.2 | 49.4 | 52.2 | ||
| Heaped Capacity (Cubic Feet) | 48.1 | 51.8 | 59.3 | 62.6 | ||
| Bucket Back Angle (Degrees) | 66 | |||||
| Shell Thickness (Inches) | 0.25 | |||||
| Side Plate Thickness (Inches) | 0.25 | |||||
| Structural Wear Bars Under Bucket (1/2″ x 4″) | 5 | 5 | 5 | 5 | ||
| Approximate Weight (Pounds) | 950 | 1030 | 1180 | 1250 | ||
| Recommended Loader Capacity | Greater than 2400 pounds | |||||
