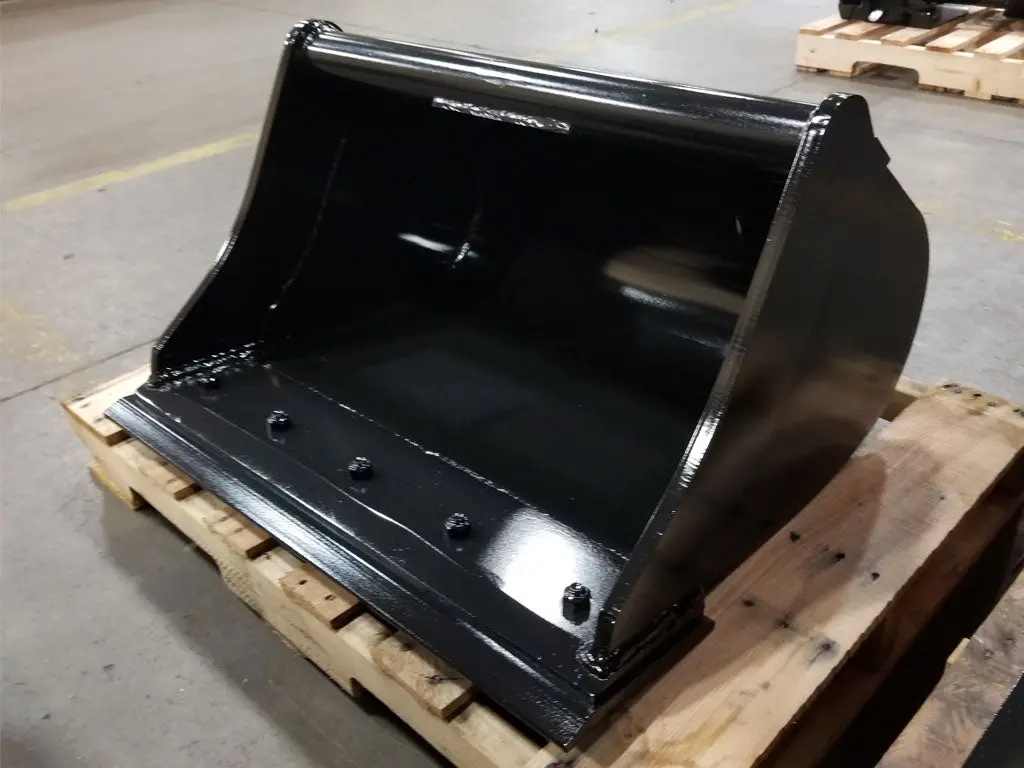

WAIN ROY DITCHING AND GRADING BUCKETS
Ditching & Grading Buckets are used for ditch cleaning, grading, backfilling and loose material loading applications. They feature a wide and shallow tub design that offers a shorter tip radius allowing for the increased width without losing material penetration. Ditching & Grading buckets are ideal for use in sand, topsoil, and other loose or soft materials.
| AVAILABLE MOUNTS | DESCRIPTION | |
| OEM PIN ON | TWO HORIZONTAL PINS |  |
| WAIN ROY XLS | HOOK WITH VERTICAL PIN |  |
|
GANNON ELIMINATOR / TAG / CP / WR ORIGINAL |
HOOK WITH VERTICAL PIN |  |
SPECIFICATIONS
|

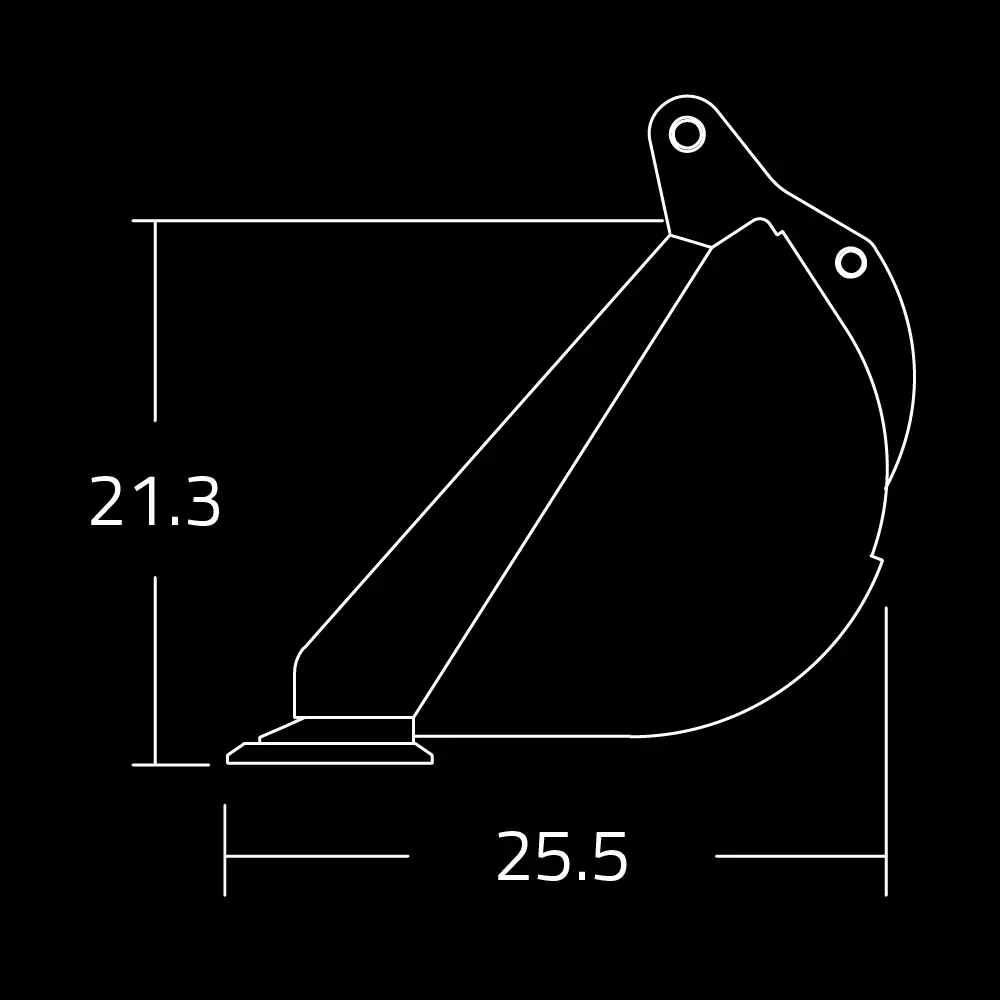

DITCHING & GRADING OEM PIN ON |
CAPACITY | LBS. | BUCKET HEIGHT | BUCKET LENGTH |
| 72N-48 | 10.3 | 476 | 21.3″ | 25.5″ |
| 72N-54 | 11.7 | 530 | 21.3″ | 25.5″ |
| 72N-60 | 13.2 | 565 | 21.3″ | 25.5″ |
| 72N-72 | 16.1 | 648 | 21.3″ | 25.5″ |
|

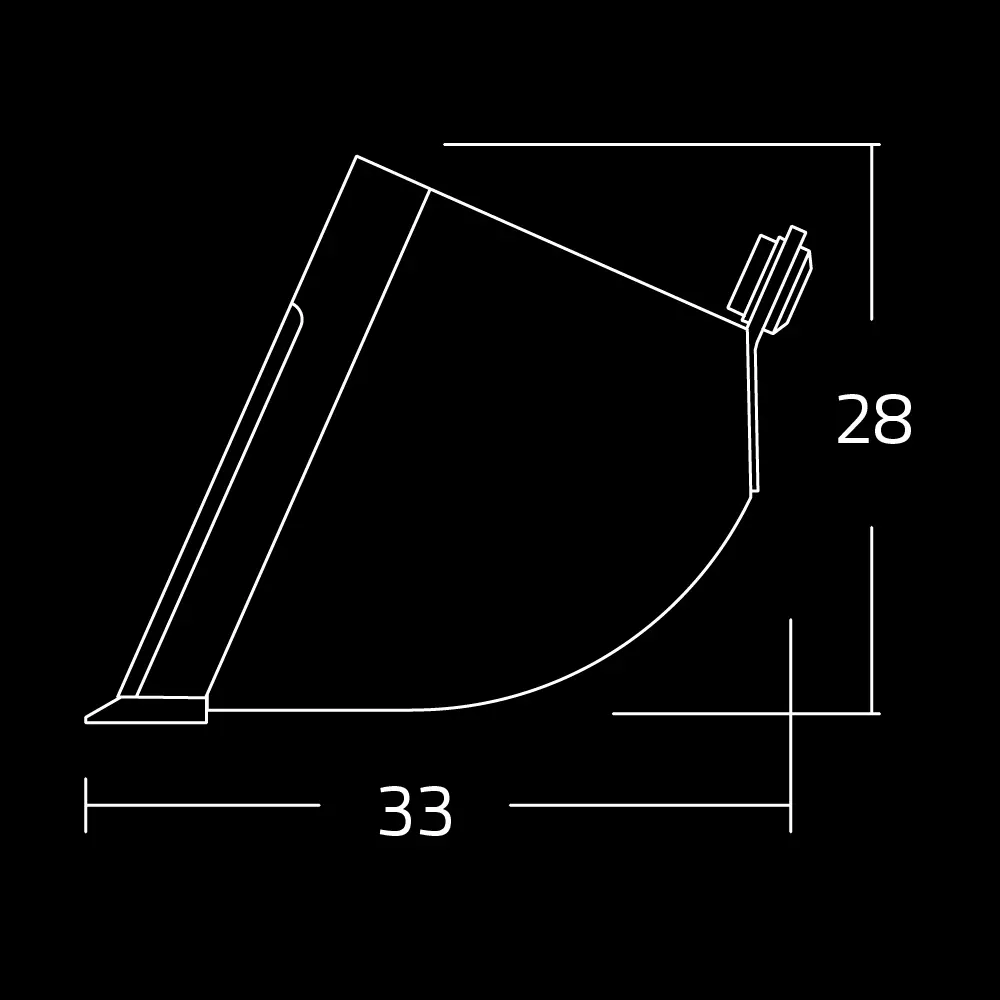

DITCHING & GRADING WAIN ROY XLS, ORIGINAL GANNON, TAG, CP |
CAPACITY | LBS | MOUTH OPENING | LENGTH |
| DG2-36 | 13.2 | 710 | 28″ | 33″ |
| DG2-48 | 18.1 | 740 | 28″ | 33″ |
| DG2-60 | 21.9 | 820 | 28″ | 33″ |
FITS
| MAKE | OVER 16,000 LBS |
| CAT |
|
| JCB |
|
| JOHN DEERE |
|
| MECALAC |
|
