Description

DESCRIPTION

4/24

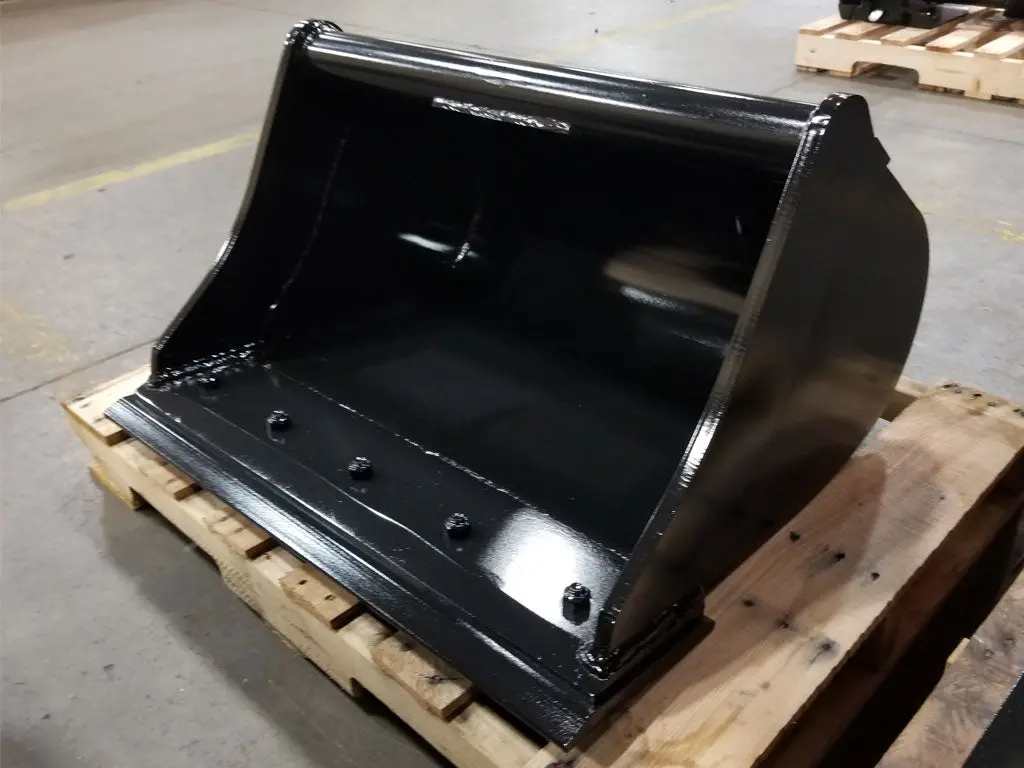

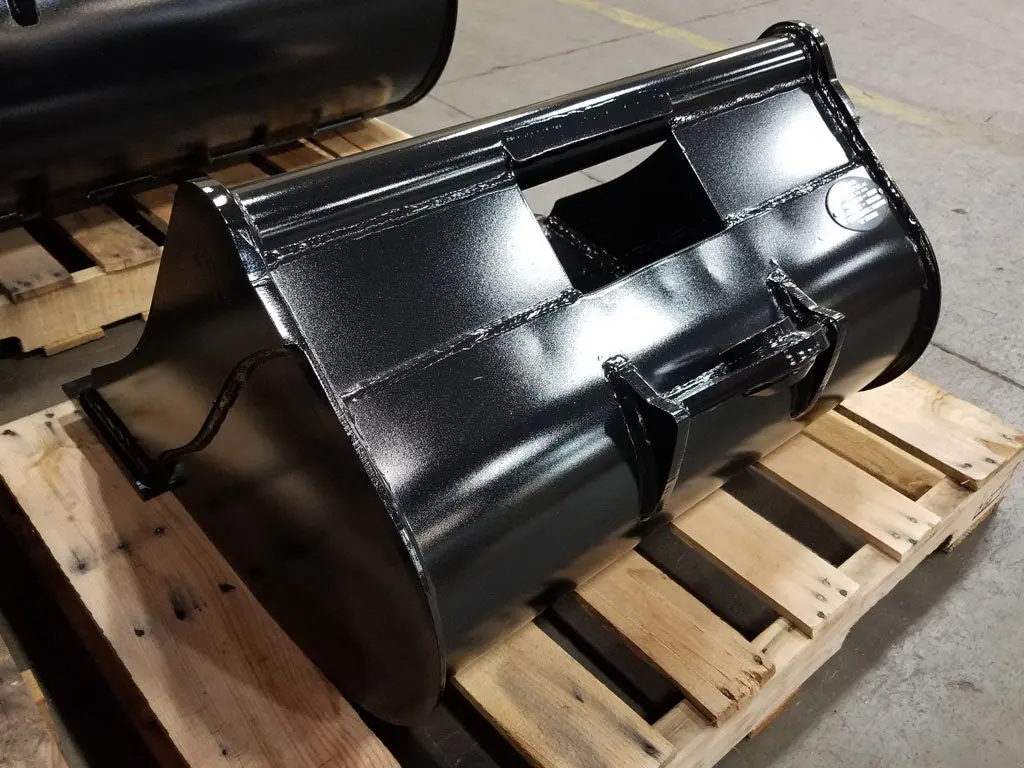

CFX250DB / CFX255DB

STANDARD/HIGH CAPACITY DITCH CLEANING PIN-ON EXCAVATOR BUCKET

Ditching & Grading Buckets are used for ditch cleaning, grading, backfilling and loose material loading applications. They feature a wide and shallow tub design that offers a shorter tip radius allowing for the increased width without losing material penetration. Ditching & Grading buckets are ideal for use in sand, topsoil, and other loose or soft materials.

DG6

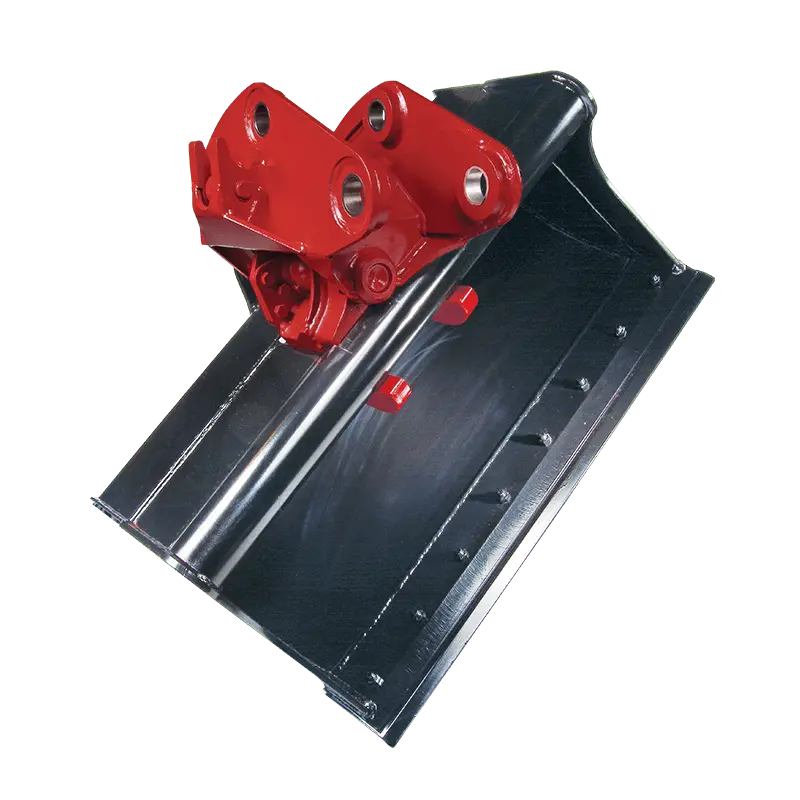

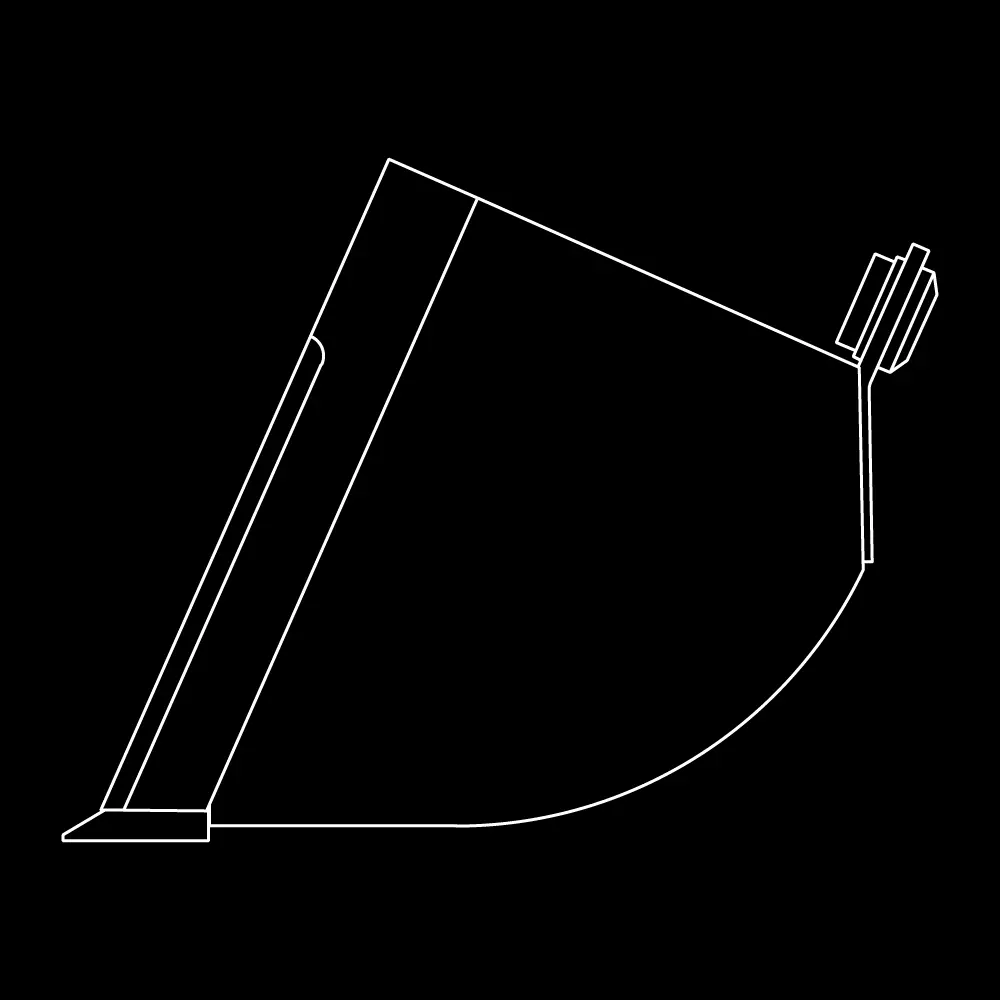

WAIN-ROY^® QUICK CHANGE XLS AND ORIGINAL DITCHING AND GRADING EXCAVATOR BUCKET

Ditching & Grading Buckets are used for ditch cleaning, grading, backfilling and loose material loading applications. They feature a wide and shallow tub design that offers a shorter tip radius allowing for the increased width without losing material penetration. Ditching & Grading buckets are ideal for use in sand, topsoil, and other loose or soft materials.

*** CALL FOR PRICING ON DG6 MODEL

AVAILABLE MOUNTS	DESCRIPTION
OEM PIN ON	TWO HORIZONTAL PINS
WAIN ROY XLS	HOOK WITH VERTICAL PIN

 SPECIFICATIONS

DITCH CLEANING STD. CAPACITY	CFX250DB
OEM PIN ON	CAPACITY (CU. YARD)	LBS
42″	.98	1431
48″	1.14	1566
54″	1.31	1701
60″	1.47	1835
66″	1.63	1971
72″	1.80	2102
78″	1.96	2240
84″	2.01	2474
DITCH CLEANING HIGH CAPACITY	CFX255DB
OEM PIN ON	CAPACITY	LBS
48″	1.28	1725
54″	1.47	1875
60″	1.65	2024
66″	1.84	2175
72″	2.02	2324
78″	2.21	2474
84″	2.39	2741
96″	2.57	3050
DITCHING & GRADING	DG6
WAIN ROY QC	CAPACITY	LBS
48″	0.75	1080
60″	1.00	1110
66″	1.15	1165
72″	1.23	1220
84″	1.45	1340

FITS

MAKE	MODELS: 25 TON 52,000 – 65,000 LBS
CASE	9040B, CX235C SR, CX240B, CX245D SR, CX250D, CX290B, CX300D
CAT	321C LCR, 322C L, 322C L ME, 322C L SLR, 324D L, 325C, 325C L ME, 325D L, 325F L (2017), 328, 329D L, CB-link
DOOSAN	DX225LC, DX255LC-5
HITACHI	ZX230LC, ZX240LC-3, ZX250LC-3, ZX250LC-6, ZX270LC-3, ZX300LC-6, ZX345USLC-6
HYUNDIA	HX260L, R250LC-7, R260LC-9A, R290LC-7A, R290LC-7LR, R290LC-9, RC250LC-7A, RC250LC-9
JCB	JS240, JS260, JS260LC, JS260XD, JS290
JOHN DEERE	230C LC, 240D LC, 250G LC, 270C LC, 270C SLF, 270D LC, 290G, 300G LC, 345GC, 790D, 790E
KOBELCO	215SR, 235SR, 235SRLC, SK230RLC-5, SK240, SK250LC-DA, SK250LC-LR, SK260LC, SK260LC-10, SK270SRLC-5
KOMATSU	PC210LC-10 SLF, PC210LC-11, PC220LC-7, PC220LC-8, PC240LC-10 SLF, PC240LC-11, PC270LC-7, PC270LC-8, PC308USLC-3
LIEBHERR	A924 Heavy Lift Litronic, A924 Litronic, A924 Plus, A924C, R906 A/C, R914C, R916 A/C, R924 Compact, R926, R926 A/C, R926 Compact Litronic, R926 Litronic
LIUGONG	CLG922E, CLG925D, CLG925E, CLG925LL
SANY	SY235C
TEREX	TC260LC, TXC255LC, TXC255LC-2
VOLVO	EC220E, EC240B-LC, EC240B-LR, EC240C, EC250E, EC290B-LC, EC290B-LR, EC290C, ECR235E, EW220E, EW230C, EW240E
