DESCRIPTION

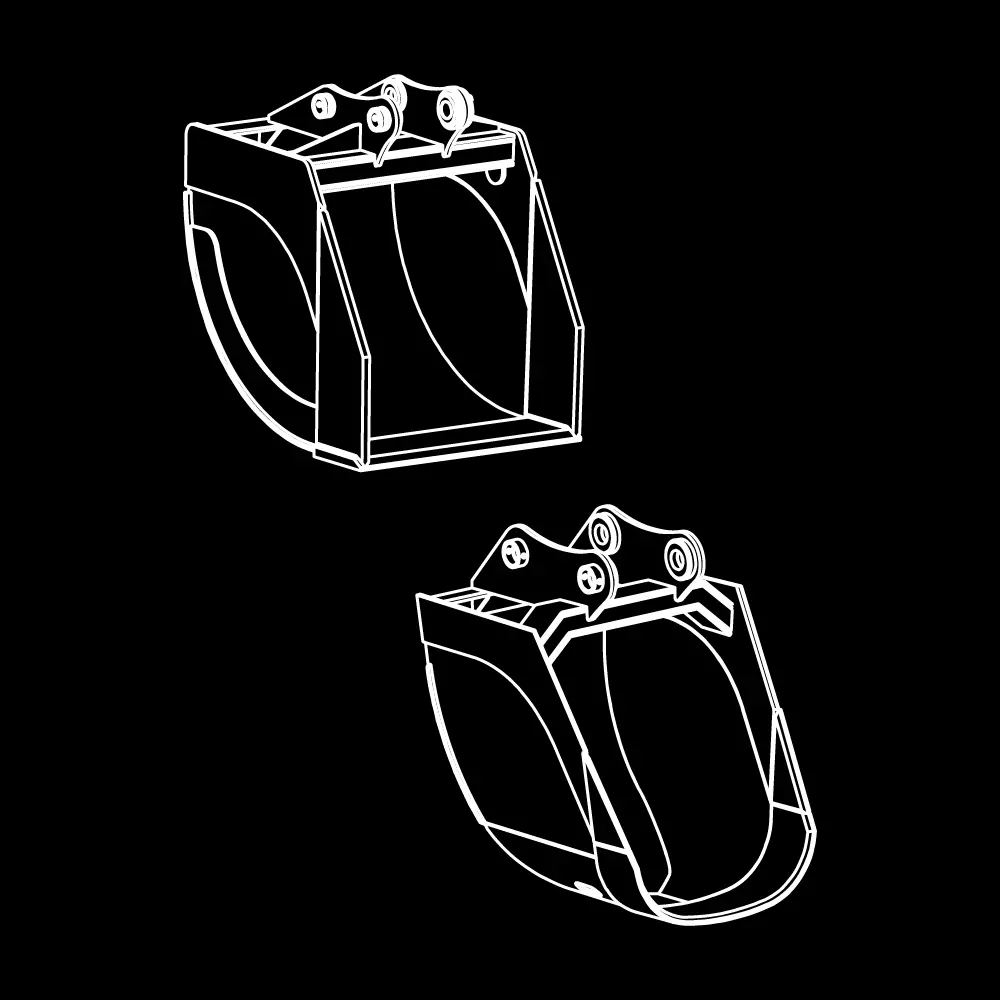

EXCAVATOR PIN-ON SAND BUCKETS
Sand Buckets are designed for handling sand and loose material applications. The bucket draft is typically 6” to 12” inches for efficient loading and unloading of materials. The heavy-duty reinforced top beam design comes in an open or closed design. All models come in round or flat bottom styles and feature T-1 cutting edges and an extra-heavy wear shoe for maximum durability.
SPECIFICATIONS
|
SAND BUCKETS OEM PIN ON ROUND BOTTOM |
WEIGHT CLASS | CAPACITY (CU. YD.) | CUTTING EDGE WIDTH | TOP WIDTH |
| SBR25 | 12MT (20,000 – 30,000LBS.) | UP TO 1.5 | UP TO 24″ | UP TO 24″ |
| SBR35 | 15MT (30,000 – 41,000 LBS.) | 1.0 – 3.0 | 24″ – 48″ | 24″ – 48″ |
| SBR45 | 20MT (41,000 – 52,000 LBS.) | 1.0 – 4.0 | 24″ – 56″ | 24″ – 56″ |
| SBR52 | 25MT (52,000 – 65,000 LBS.) | 1.0 – 6.0 | 24″ – 64″ | 24″ – 64″ |
| SBR70 | 30MT (65,000 – 95,000 LBS.) | 1.0 – 8.0 | 24″ – 72″ | 24″ – 72″ |
| SBR100 | 45MT (95,000 – 110,000 LBS.) | 1.0 – 10.0 | 24″ – 72″ | 24″ – 72″ |
|
SAND BUCKETS OEM PIN ON SMOOTH BOTTOM |
WEIGHT CLASS | CAPACITY (CU. YD) | CUTTING EDGE WIDTH | TOP WIDTH |
| SBF25 | 12MT (20,000 – 30,000 LBS.) | UP TO 1.5 | UP TO 24″ | UP TO 24″ |
| SBF35 | 15MT (30,000 – 41,000 LBS.) | 1.0 – 3.0 | 24″ – 48″ | 24″ – 48″ |
| SBF45 | 20MT (41,000 – 52,000 LBS.) | 1.0 – 4.0 | 24″ – 56″ | 24″ – 56″ |
| SBF52 | 25MT (52,000 – 65,000 LBS.) | 1.0 – 6.0 | 24″ – 64″ | 24″ – 64″ |
| SBF70 | 30MT (65,000 – 95,000 LBS.) | 1.0 – 8.0 | 24″ – 72″ | 24″ – 72″ |
| SBF100 | 45MT (95,000 – 110,000 LBS) | 1.0 – 10.0 | 24″ – 72″ | 24″ – 72″ |
