Wain Roy High Capacity Dirt Buckets For Tractor Loader Backhoes Up To 16000 Lbs. 1
Wain Roy High Capacity Dirt Buckets For Tractor Loader Backhoes Up To 16000 Lbs. 2
Wain Roy High Capacity Dirt Buckets For Tractor Loader Backhoes Up To 16000 Lbs. 3
Wain Roy High Capacity Dirt Buckets For Tractor Loader Backhoes Up To 16000 Lbs. 4

Wain Roy Heavy-Duty Dirt Buckets Designed for Tractor Loaders and Backhoes — 16,000 LB Capacity

Price range: $92.02 through $93.00

Quantity
SKU: N/A Category: Brand:

Description

DESCRIPTION

WAIN ROY HIGH CAPACITY DIRT BUCKETS

Wain-Roy CEX Series Heavy-Duty Buckets “We Are The Original” when it comes to heavy-duty buckets for excavators and backhoes. The CEX Series buckets have a rugged, full-length double bottom design and side wear bars for uniform strength and durability. They are tapered to ensure maximum fill and quick, easy dumping and are available in pin-on and quick-change versions. A lifting lug is included on all pin-on buckets and straight or saw-tooth replaceable bolt-on side cutters are a great option.

AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN

GANNON ELIMINATOR /

TAG / CP / WR ORIGINAL

 HOOK WITH VERTICAL PIN
 SPECIFICATIONS

HIGH CAPACITY EXTRA HD

OEM PIN ON

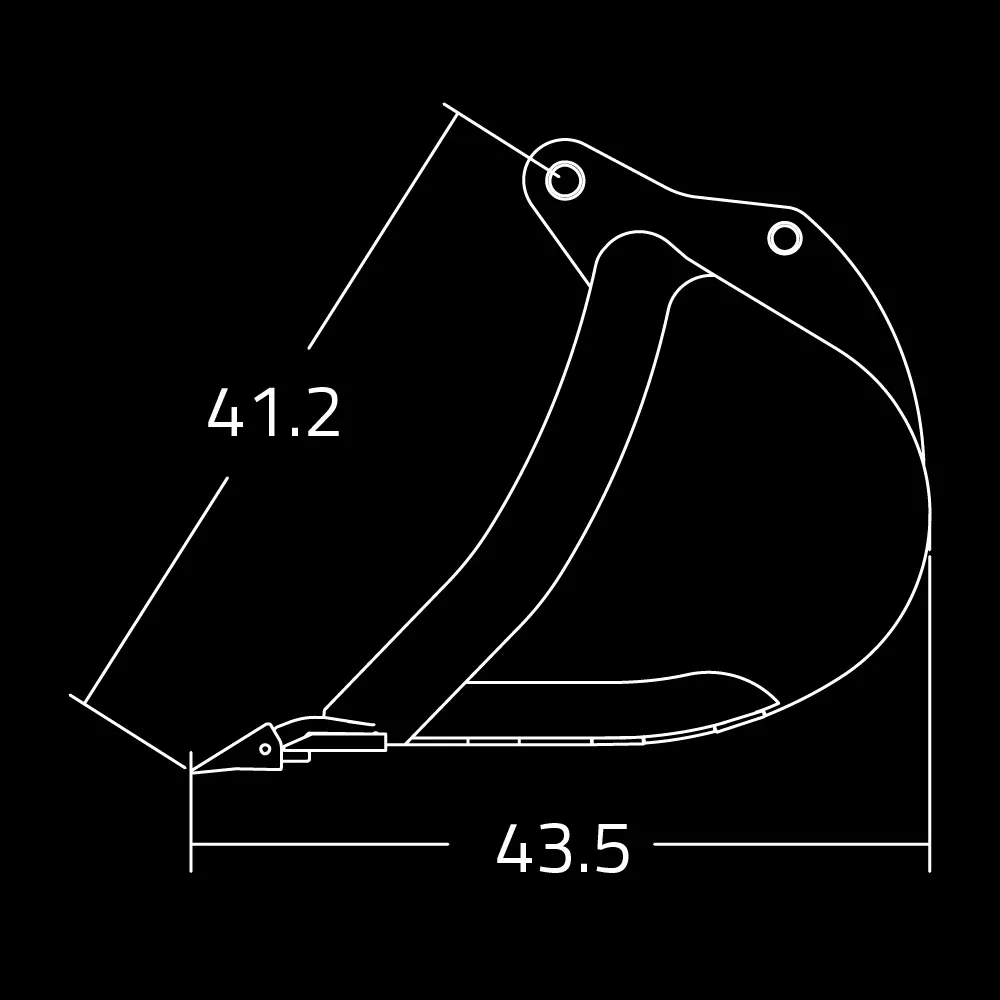

 CAPACITY LBS NO. TEETH MOUTH OPENING  LENGTH
HC1PO-12 4.2 300 3 41.2″ 43.5″
HC1PO-16 5.6 319 3 41.2″ 43.5″
HC1PO-18 6.5 360 4 41.2″ 43.5″
HC1PO-24 9.5 418 5 41.2″ 43.5″
HC1PO-30 12.5 445 5 41.2″ 43.5″
HC1PO-36 15.6 527 6 41.2″ 43.5″

HIGH CAPAITY EXTRA HD

WAIN ROY XLS, ORIGINAL

GANNON , TAG, CP

 CAPACITY LBS NO. TEETH MOUTH OPENING  LENGTH
HC1QC-12 4.2 262 3 44.1″ 42.2″
HC1QC-16 5.6 289 3 44.1″ 42.2″
HC1QC-18 6.5 313 4 44.1″ 42.2″
HC1QC-24 9.5 371 5 44.1″ 42.2″
HC1QC-30 12.5 397 5 44.1″ 42.2″
HC1QC-36 15.6 479 6 44.1″ 42.2″
HC1QC-42 44.1″ 42.2″
HC1QC-48 44.1″ 42.2″
FITS
MAKE 8 TON, <16000 LB BACKHOE
CASE
  • 580 Series 3, 580 Super M Series 2, 580 Super M Series 3, 580 Super M+ Series 2, 580 Super M+ Series 3, 580 Super N, 580 Super N WT, 580 Turbo Series 2, 580L, 580M, 580M Series 2, 580N, 580N EP, 580SL, 580SM, 590 SL, 590 Super M Series 3, 590 Super M+ Series 3, 590 Super N, 590M Super M+ Series 3, 590SM
CAT
  • 415F2, 415F2 IL, 416B, 416C, 416D, 416E, 416F2, 420D, 420D-IT, 420E, 420E-IT, 420FX/420FX IT, 426B, 426C, 428, 430D, 430E, 430E-IT, 430FX/430FX IT, 436B, 436C, 4630D-IT
JCB
  • 3C 14, 3C LL, 3CX, 3CX-14, 3CX-14 SUPER
JOHN DEERE
  • 310J, 310L Backhoe, 310L EP Backhoe, 310SJ, 310SJ TMC, 310SJ TMC Tool Carrier, 310SL Backhoe, 310SL HL Backhoe, 315SJ, 315SL Backhoe, 410J, 410J TMC Tool Carrier, 410L Backhoe, 410SJ TMC
KOMATSU
  • W70A, WB140, WB142-5, WB146-5, WB146PS-5, WB150, WB156PS-5, WB91, WB93, WB93R-5, WB93R-8, WB93S-5, WB97, WB97R-5, WB97S-5, WB98
NEW HOLLAND
  • 555B, 555C, 555E, 575E, 655A, 655C, 655E, 675E, B110, B110B, B110C, B115B, B90B, B95, B95B, B95B LR, B95B TC, B95C, B95C LR, B95C TC, B95LR, B95TC, BL110B, LB110, LB1156, LB115B, LB75, LB75B, LB90, LB90B
VOLVO
  • BL60, BL60B, BL61, BL61 Plus, BL61B, BL70B, BL71, BL71 Plus, BL71B, PL70

Explore more from our collection.

Additional information

Style

High Capacity Extra Heavy Duty
MOUNTING

OEM PIN ON, WAIN ROY XLS, WR ORIGINAL / GANNON / CP / TAG
Size

12", 16", 18", 24", 30", 36", 42", 48"
