Description
DESCRIPTION
HDLP/HDLPM-SERIES

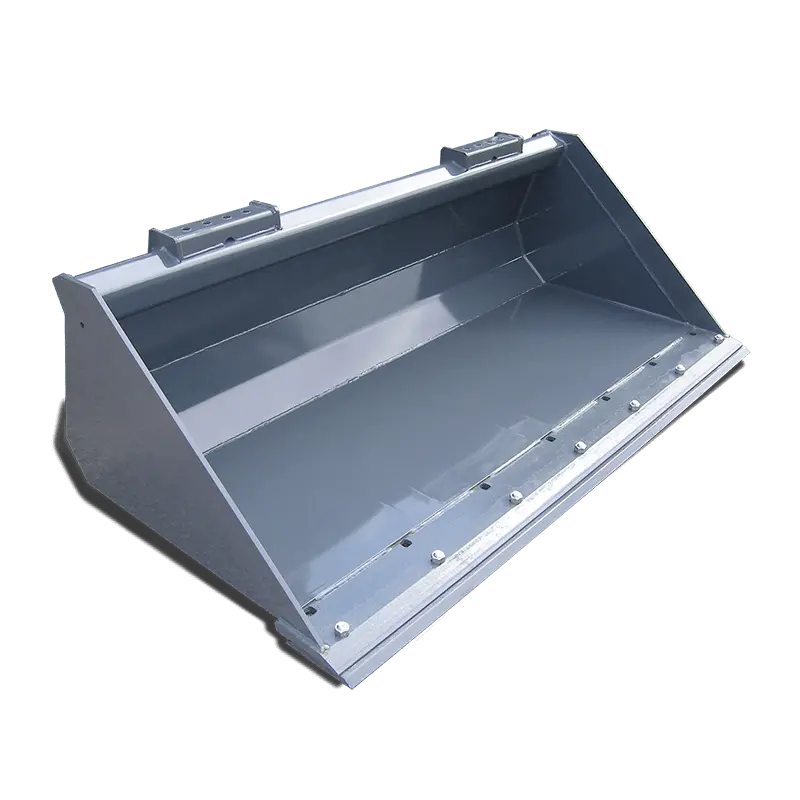

HEAVY-DUTY, LOW PROFILE CONSTRUCTION BUCKET
FEATURES
- Skid Steer (SAE J2513) Quick Attach System
- Heavy-duty, high strength construction
- No internal gussets or obstructions
- Square back for reverse grading
- Pre-drilled front cutting edge to accept bolt-on reversible cutting edge or bolt-on teeth (sold separately)
- Added wear plates for extended bucket life
- SAE rated operating capacity: up to 4,800 lbs.
- Optional standard-duty toothbars available
- Alitec™ Gray color

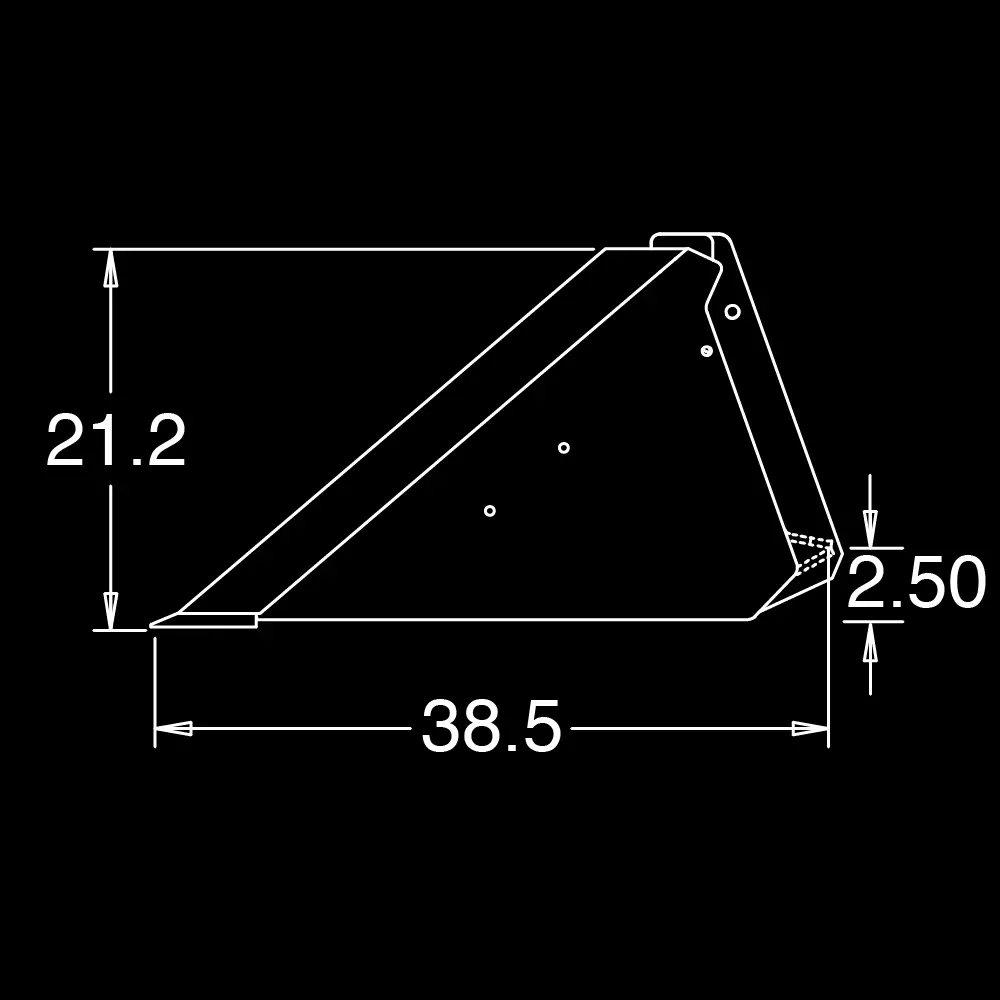

SPECIFICATIONS
| CONSTRUCTION BUCKETS | WIDTH | LBS. |
| HDLP66 | 66″ | 500 |
| HDLP73 | 73″ | 534 |
| HDLP78 | 78″ | 591 |
| HDLP84 | 84″ | 606 |
| HDLP73M | 73″ | |
| HDLP78M | 78″ | 664 |
| HDLP84M | 84″ | 711 |
| BOLT ON CUTTING EDGE | lbs |
| 66″ | 66 |
| 73″ | 73 |
| 78″ | 78 |
| 84″ | 84 |
| SHANK & TOOTH KIT | LBS |
| 156 SERIES 66″ & 73″ | 57 |
| 156 SERIES 78″ & 84″ | 65 |
| 23 SERIES 66″ & 73″ | 69 |
| 23 SERIES 78″ & 84″ | 66 |
