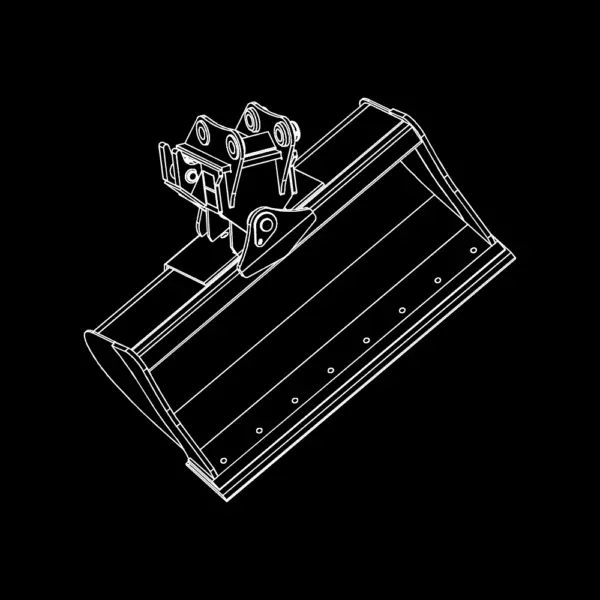

Wain Roy Tilt Bucket For 25Mt Excavators 52,000 - 65,000 Lbs. 1

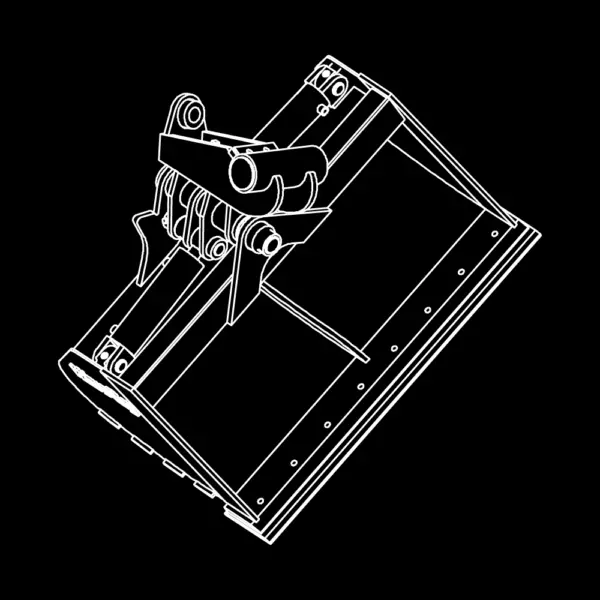

Wain Roy Tilt Bucket For 25Mt Excavators 52,000 - 65,000 Lbs. 2
Wain Roy Tilt Bucket For 25Mt Excavators 52,000 - 65,000 Lbs. 3

Wain Roy Hydraulic Tilt Bucket Compatible with 25-Metric-Ton Excavators (52,000–65,000 lbs Capacity)

Price range: $92.00 through $92.64

Quantity
SKU: N/A Category: Brand:

Description

DESCRIPTION

WAIN ROY TILT BUCKETS

Tilt Buckets rotate up to a total of 90 degrees, 45 degrees each side of center, for greater control and flexibility during ditch cleaning, grading, backfilling and loose material loading and unloading applications. The tilting mechanism allows the bucket to rotate at various angles in order to form the surface to the desired shape without repositioning the machine. This is especially beneficial when working along roadways or in tight operating conditions.

45° rotation. Bolt‑on edge standard. Machine must be equipped with valve and lines down to end of dipperstick. Valve must have port reliefs. For Hydraulic Kit availability & pricing, contact Dealer Services.

SPECIFICATIONS

TILT BUCKET

OEM PIN ON

 WIDTH CAPACITY (CU. YD.) LBS
TLT3PO-60 60″ 1.00 1875
TLT3PO-72 72″ 1.13 2400

TILT BUCKET

WAIN ROY XLS / ORIGINAL

GANNON / CP / TAG

 WIDTH CAPACITY (CU. YD.) LBS

TLT3QC-60

 60″ 0.90 1322
TLT2QC-72 72″ 1.10 1468
FITS
MAKE MODELS: 25 TON 52,000 – 65,000 LBS
CASE
  • 9040B, CX235C SR, CX240B, CX245D SR, CX250D, CX290B, CX300D
CAT
  • 321C LCR, 322C L, 322C L ME, 322C L SLR, 324D L, 325C, 325C L ME, 325D L, 325F L (2017), 328, 329D L, CB-link
DOOSAN
  • DX225LC, DX255LC-5
HITACHI
  • ZX230LC, ZX240LC-3, ZX250LC-3, ZX250LC-6, ZX270LC-3, ZX300LC-6, ZX345USLC-6
HYUNDIA
  • HX260L, R250LC-7, R260LC-9A, R290LC-7A, R290LC-7LR, R290LC-9, RC250LC-7A, RC250LC-9
JCB
  • JS240, JS260, JS260LC, JS260XD, JS290
JOHN DEERE
  • 230C LC, 240D LC, 250G LC, 270C LC, 270C SLF, 270D LC, 290G, 300G LC, 345GC, 790D, 790E
KOBELCO
  • 215SR, 235SR, 235SRLC, SK230RLC-5, SK240, SK250LC-DA, SK250LC-LR, SK260LC, SK260LC-10, SK270SRLC-5
KOMATSU
  • PC210LC-10 SLF, PC210LC-11, PC220LC-7, PC220LC-8, PC240LC-10 SLF, PC240LC-11, PC270LC-7, PC270LC-8, PC308USLC-3
LIEBHERR
  • A924 Heavy Lift Litronic, A924 Litronic, A924 Plus, A924C, R906 A/C, R914C, R916 A/C, R924 Compact, R926, R926 A/C, R926 Compact Litronic, R926 Litronic
LIUGONG
  • CLG922E, CLG925D, CLG925E, CLG925LL
SANY
  • SY235C
TEREX
  • TC260LC, TXC255LC, TXC255LC-2
VOLVO
  • EC220E, EC240B-LC, EC240B-LR, EC240C, EC250E, EC290B-LC, EC290B-LR, EC290C, ECR235E, EW220E, EW230C, EW240E

Explore more from our collection.

Additional information

MOUNTING

OEM PIN ON, WAIN ROY XLS, WAIN ROY ORIGINAL
SIZE

60", 72"
