DESCRIPTION

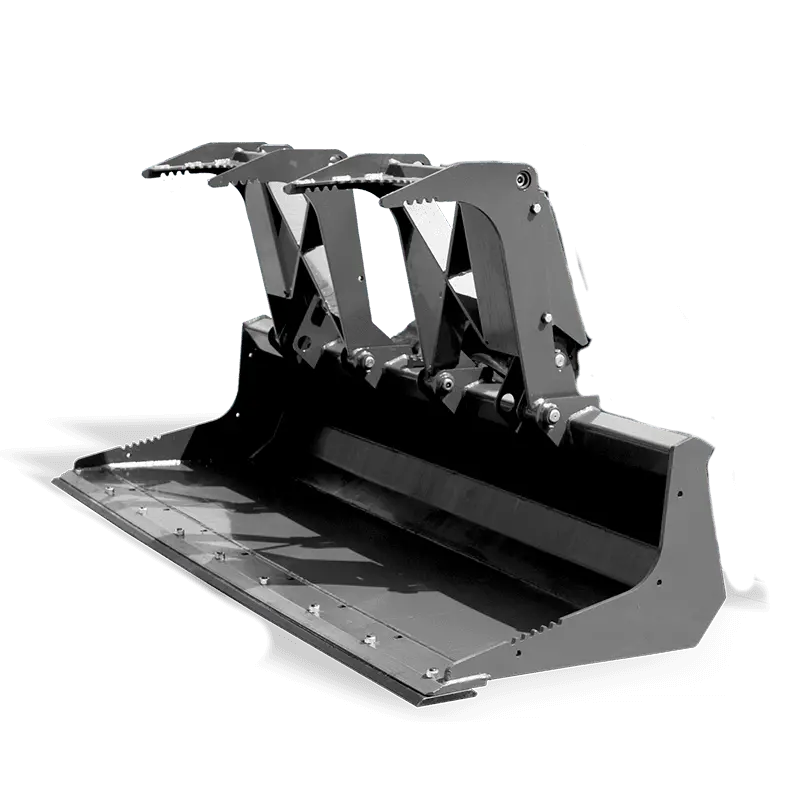

HLRG-SERIES

HEAVY-DUTY, LOW-PROFILE QUICK ATTACH ROOT GRAPPLES

FEATURES

• Skid Steer (SAE J2513) Quick Attach System
• Made with grade 80 steel – 2x stronger than mild steel – reducing the weight but maintaining the strength required for any skid steer or tractor application
• Woods® proprietary serrated cutting edge holds fast to trees and debris
• Unique design allows smooth grading of surfaces after removing debris
• Twin hydraulic cylinders allow for independent clamping on uneven material while cylinder placement improves visibility
• Cylinder stroke control standard for long cylinder life
• Cylinder guards standard, protecting rods and hoses for longer life
• Optional slat kit adds versatility by reducing tine spacing when application requires
• Greasable Pivots
• Hydraulic hoses and QD couplers (per ISO 16028) included
• SAE Rated Operating Capacity: up to 4800 lbs.
• Length: 34”; Height: 27”
• Grapple Opening: 37”; Grapple Width: 19”
• Cylinder Bore: 2.76”; Cylinder Rod: 1.38”
• Pivot Pins: 1.25”
• Clamping Force per Grapple: 3,000 lbs. @ 3,000 psi
