DESCRIPTION

7/25

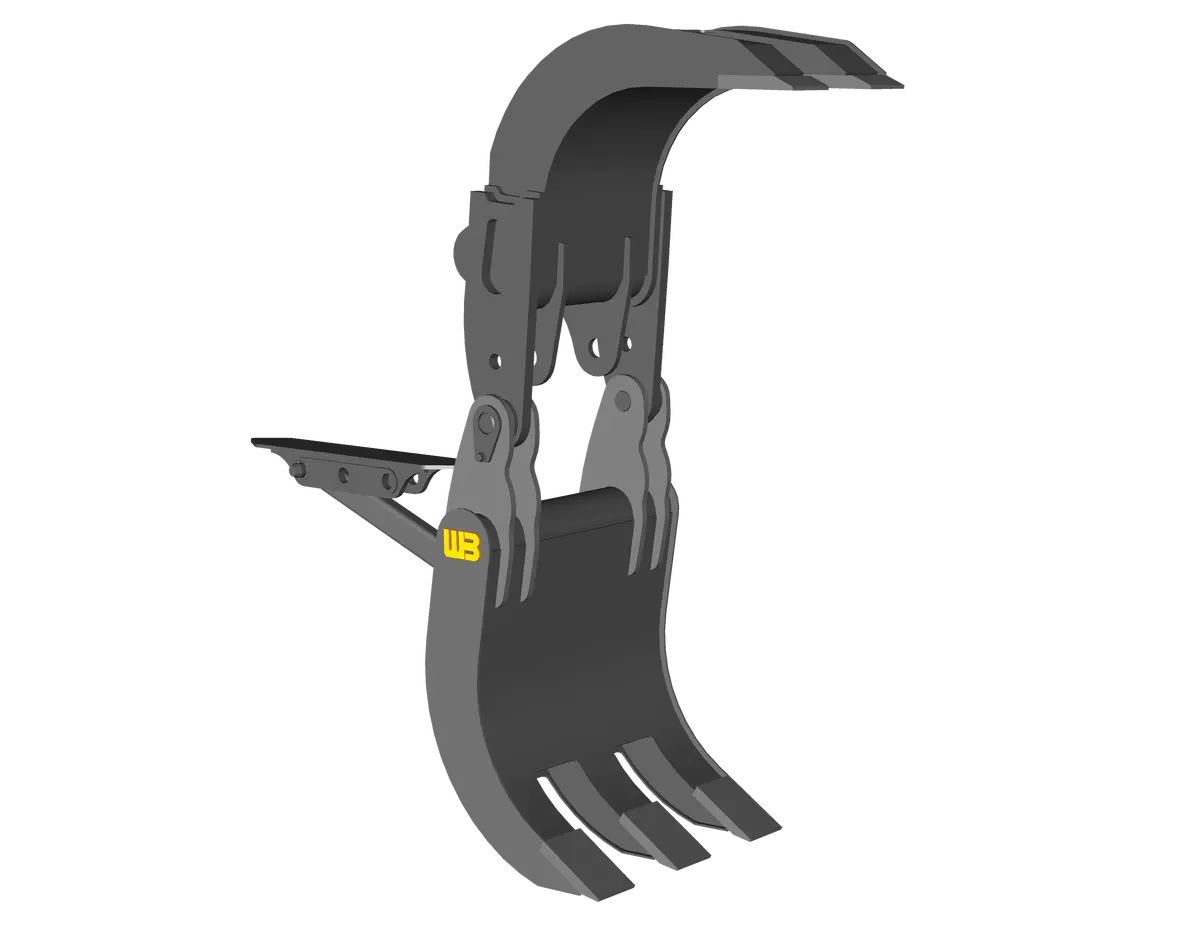

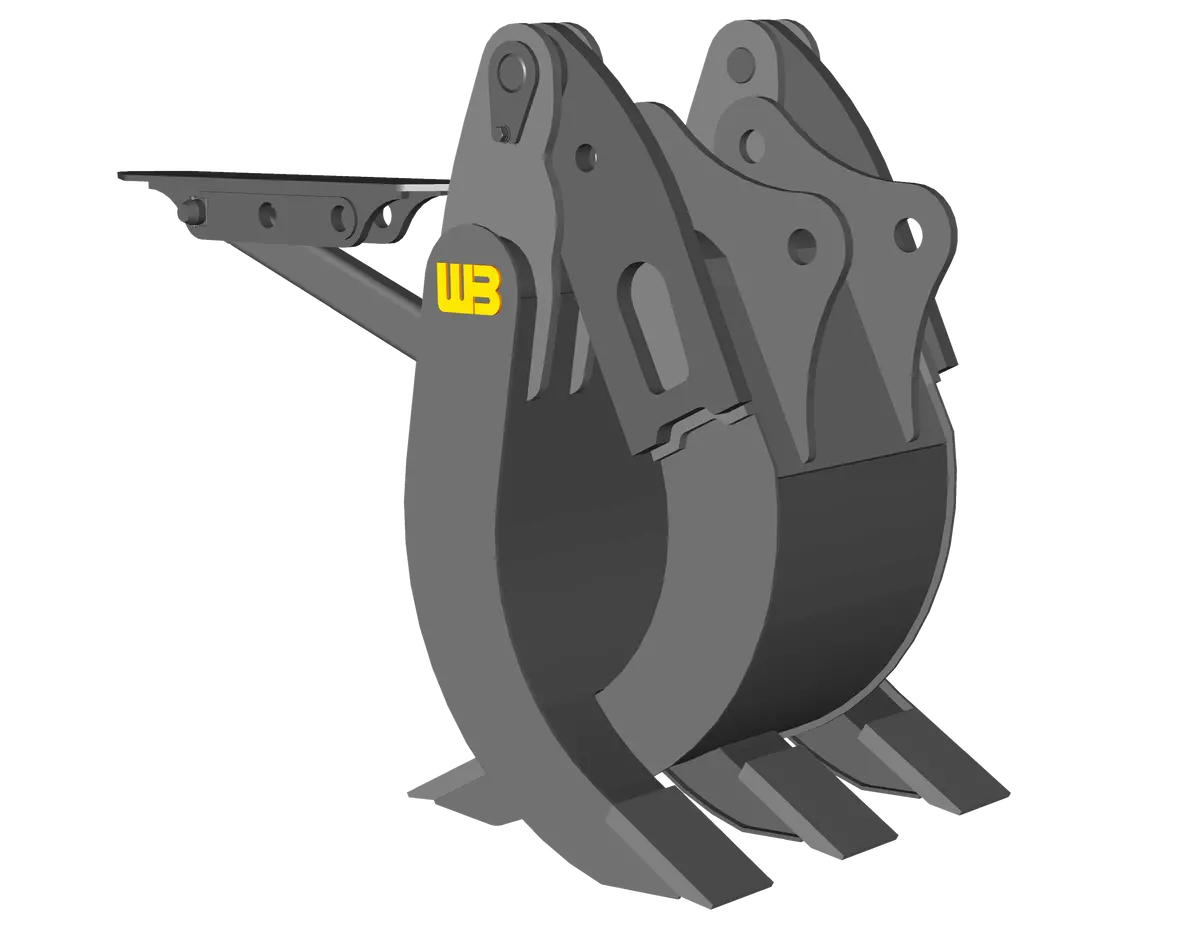

Box Style Grapple

Recommended Applications

Werk-Brau’s wide mouth box style grapple is specifically designed to handle various objects of different sizes such as brush, rocks, and demolition debris. Single grapples may be used with a bucket. Dual grapple styles are also available. Not designed for digging or prying.

Construction

T-1 steel is utilized in all critical or high wear components to ensure that this grapple has a long operating life. High strength steel is used throughout the weldment. Pivot points are made from hardened greaseable bushings, and are easy to access for regular greasing. The style of this grapple allows for additional reinforcement. At the end of each tine are edge pads.

Cutting Equipment Options

Not applicable.

Standard Sizes

Various widths and models are available to choose from.

Additional Features

Additional tines and width designs are available

SPECIFICATIONS

PART NUMBER	WIDTH	JAW OPENING	NO. OF TINES	WEIGHT
WBBG48.4	48″	120″	2/3	5,900
WBBG54.4	54″	120″	3/4	6,700
WBBG60.4	60″	120″	4/5	6,900

FITS

40MT

MAKE / WEIGHT CLASS	40MT (82,500 – 105,000 LBS.)
CASE	CX470, CX490
CAT	349F
DOOSAN	DX480, DX490LC-5
HITACHI	ZX450, ZX470, ZX490
HYUNDAI	HX480
JOHN DEERE	470G, 470P
KOBELCO	SK480, SK485, SK500
KOMATSU	PC400, PC450, PC490
LIEBHERR	R 944
LINK BELT	460, 470, 490X4
SANY	SY500
TAKEUCHI
VOLVO	EC460, EC480
