DESCRIPTION

9/25

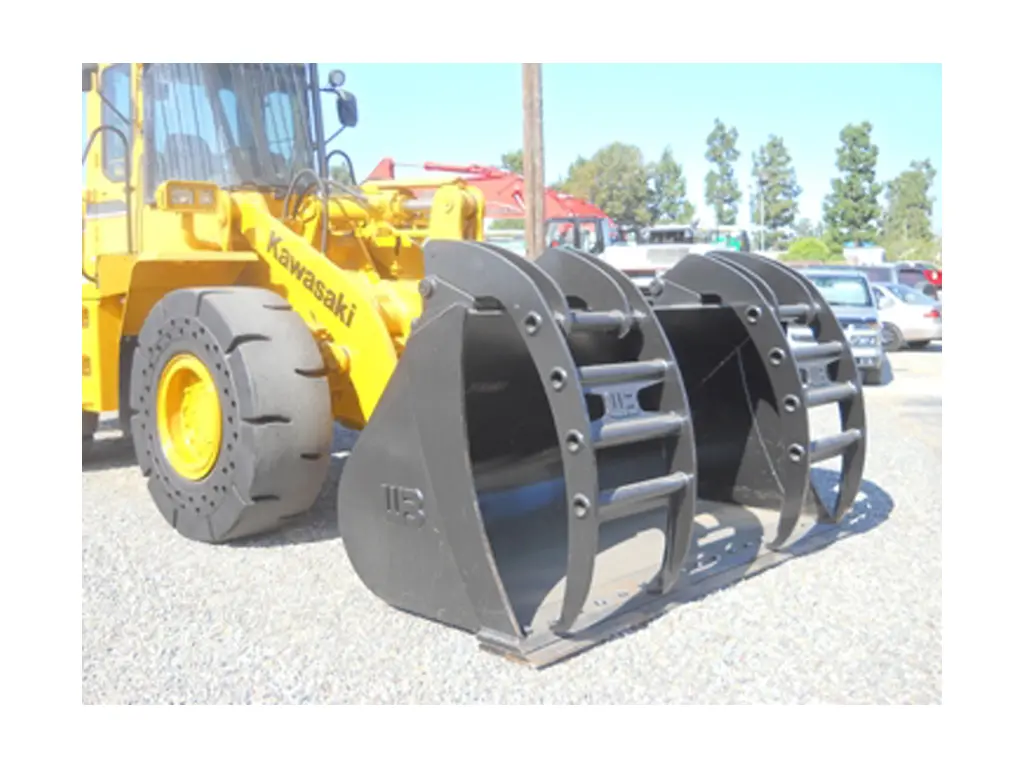

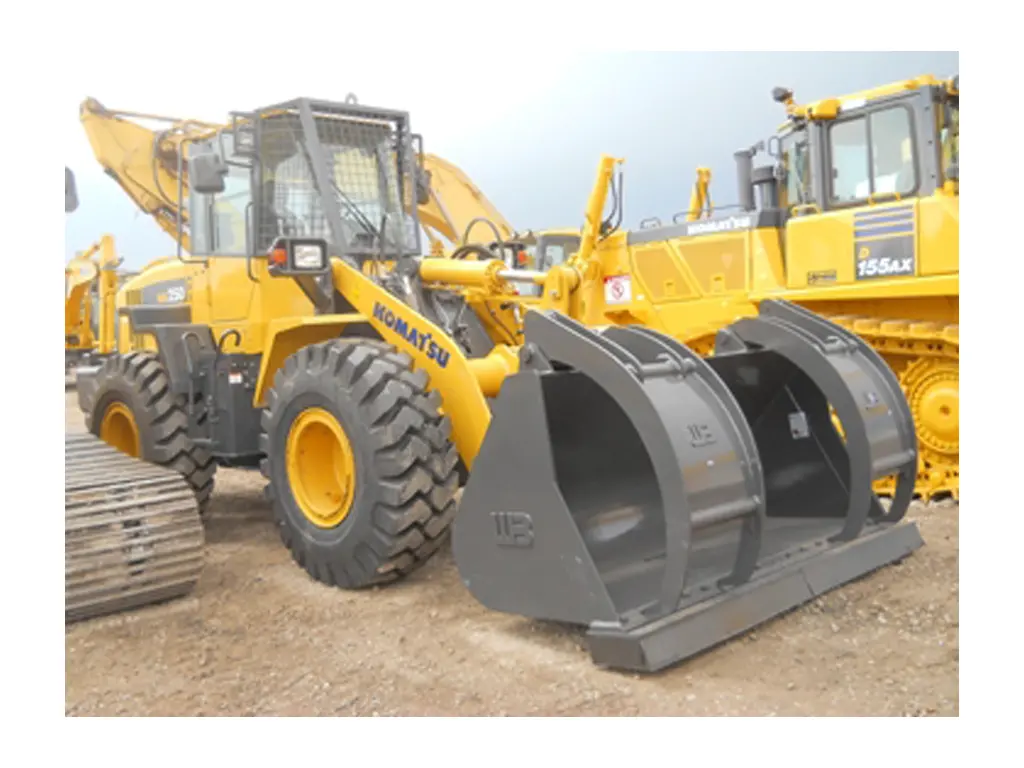

GRAPPLE BUCKET

Recommended Applications

Excellent attachment for use of metal scrap removal, brush, refuse and other light cumbersome material requiring the action of clamping for purposes of removal.

Quality Construction

Grapple arms are hydraulically operated and constructed of high tensile strength steel. High-strength, abrasion resistant steel is utilized in all critical components. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Standard Sizes

2.0 cu. yd. to 5.0 cu. yd. All makes and models.

Additional Features

Available with Werk-Brau front coupler or pin-up connection. Bolt on cutting edge optional. Optional tines.

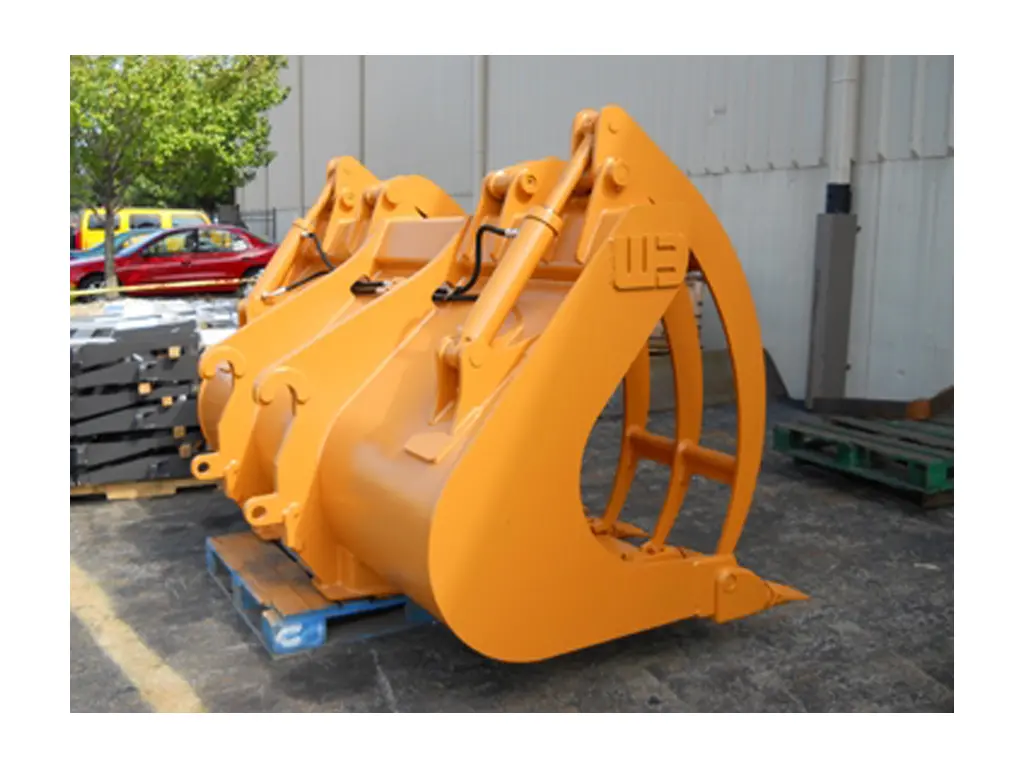

• Dual tine grapple standard (shown), other options available at an upcharge
• High quality cylinders used
• includes bolt on cutting edge
• does not include hose kit

SPECIFICATIONS

PART #	WIDTH	CAPACITY	WEIGHT
WL2GB100-2.50	100″	2.50	2,875
WL2GB100-3.00	100″	3.00	3,375
WL2GB100-4.00	100″	4.00	3,575

FITS

CLASS 2 (20,000 – 26,000 LBS)	MODEL
CASE	521G
CAT	924, 928, 930, IT24-28
DEVELON	DL200-5, DL200TC-5, DL200-7
HITACHI	ZW140
HYUNDAI	HL730, HL740, HL940
JCB	416
JOHN DEERE	444
KOMATSU	WA150, WA200
KUBOTA
LIEBHERR	L526
LINK-BELT
NEW HOLLAND	LW110
SANY
TAKEUCHI
VOLVO	L60
WACKER NEUSON
YANMAR
