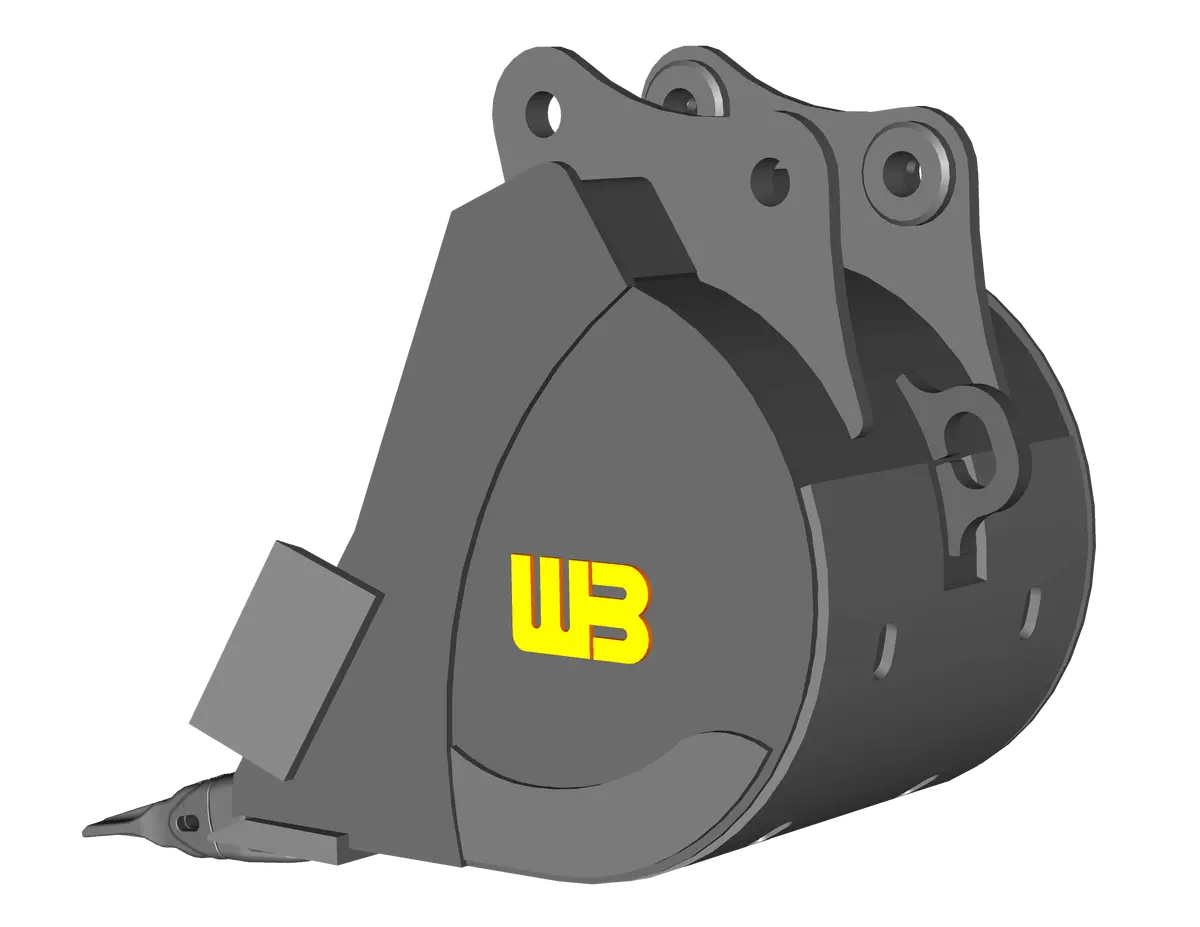

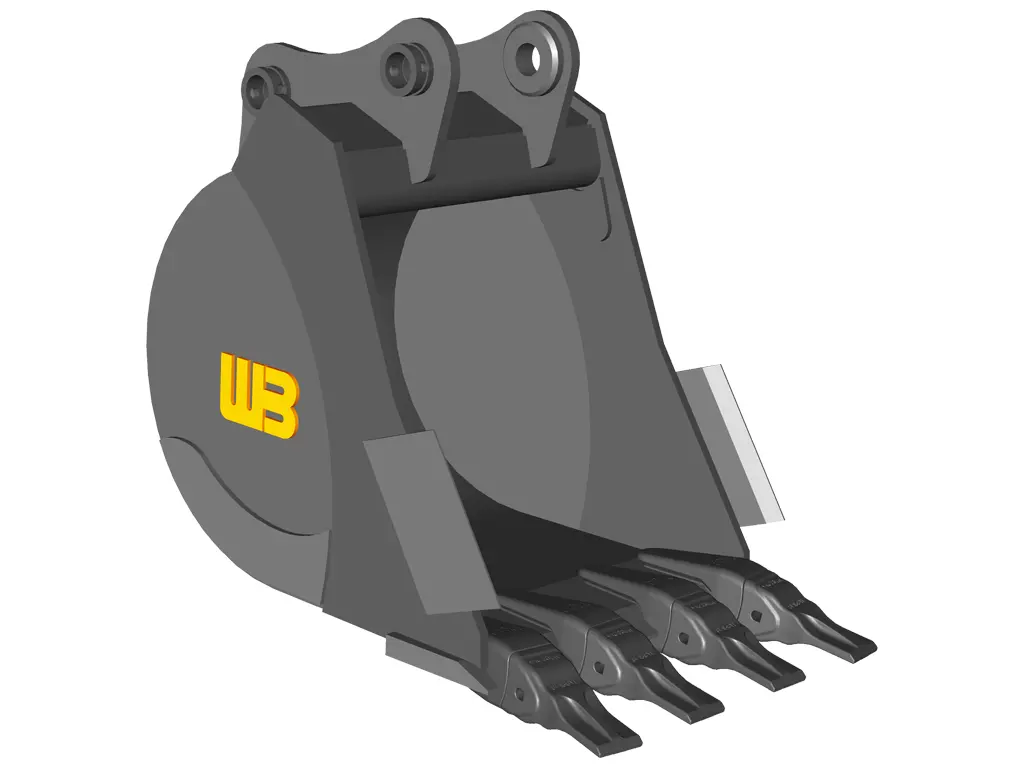

Werk-Brau Coral Rock Bucket – Heavy-Duty Attachment for Mini Excavators (7,500–11,000 lbs)

Description

DESCRIPTION

8/25

WERK-BRAU CORAL ROCK BUCKETS

Recommended Applications

Specifically designed for the “peeling” required to dig coral rock. These buckets can also be used in other applications such as demolition work, highly abrasive applications, shot rock, and moderate prying.

Quality Construction

High strength, wear resistant steel is utilized in all critical and high wear components. The cutting edge is backed by a wear plate that covers the entire bucket bottom. Side wear plates protect the bucket sides. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping. The cutting edge on this bucket is designed with additional thickness. The cutting edge is protected by an increased number of smaller teeth.

Cutting Equipment Options

A variety of high quality brand teeth are available to choose from.

Standard Sizes

.78 cu. ft. to 17.1 cu. ft. of various widths are available.

Additional Features

Side cutters are optional for additional side clearance. Box rippers are available for this bucket and can be installed upon request.

 SPECIFICATIONS

PART #	WIDTH	CAPACITY	NO. TEETH	WEIGHT
15MCR12	12″	2.40	4	300
15MCR16	16″	3.20	5	320
15MCR18	18″	3.60	6	340
15MCR20	20″	4.00	6	350
15MCR24	24″	5.00	8	370

FITS

MAKE / WEIGHT CLASS	MINI 15 (7,500 – 11,000 LBS.)
BOBCAT	335, 337, 341, 435, E45, E50, E55, E60
CASE	CX50B, CX55B, CX57C, CX60C
CAT	303.5E2CR, 304E2CR, 304.5E2XTC, 305E2CR, 305.5E2CR
DOOSAN	DX60, DX63-3
DITCH WITCH
GEHL	GE503Z, GE603
HITACHI	ZX50, AX60
HYUNDAI	R55, R60
IHI	40JX, 45JX
JCB	8040, 8045, 8052
JOHN DEERE	50G
KOBELCO	50SR, 55SRX
KOMATSU	PC45MR-3, PC55MR-3, PC58UU-3
KUBOTA	U55, KX057
LINK BELT
MUSTANG	5003ZT, 6003
NEW HOLLAND	E50, E55BX
SANY	SY50, SY60
TAKEUCHI	TB145, TB153FR, TB250, TB260
VOLVO	EC55B, ECR58
YANMAR	Vio55-5
WACKER NEUSON	ET65, EW65, EZ53, 6003
