Description
DESCRIPTION
7/25

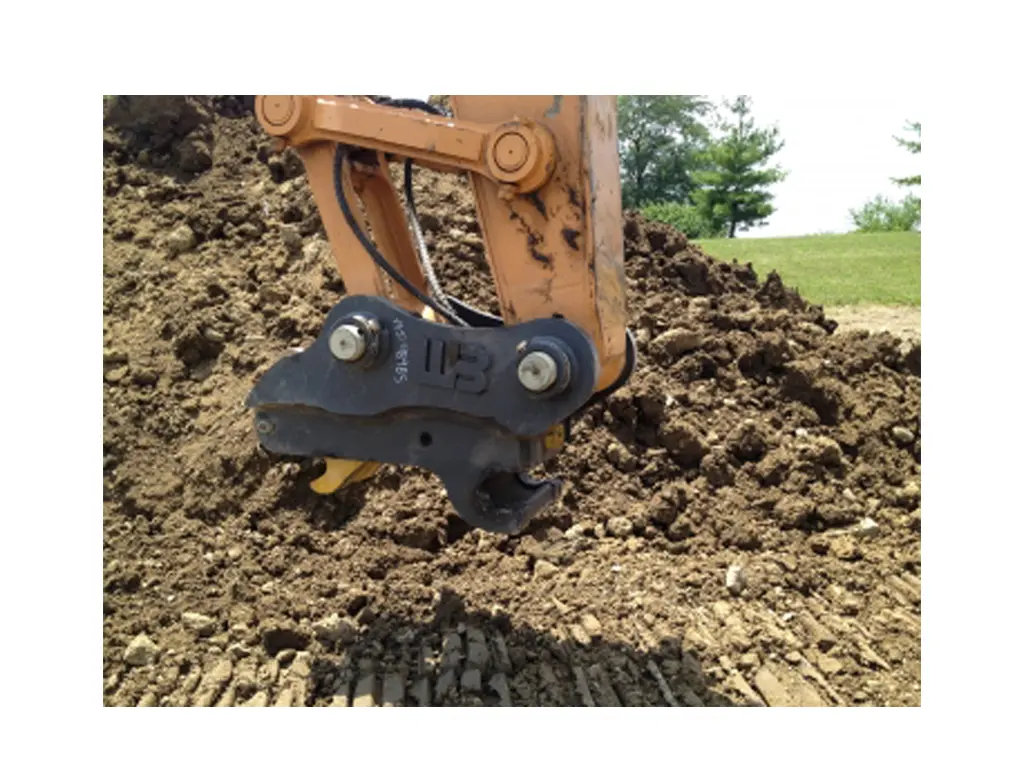

D-Lock Variable Center Hydraulic Coupler
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Automatic front lock – Locks the front pin in the event the rear pin is not secured
- Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
- Highly visible front lock indicator
- Safety system does not rely on gravity
- Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
- Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
- Simple yet safe unlock procedure eliminates accidental releases
- Only requires two hydraulic lines
- Compact design – Improving machine performance
- No greasing or lubrication required
SPECIFICATIONS
| PART # | PIN DIAMETER | BASE WIDTH | PIN RANGE | WEIGHT |
| HD355-100-90 | 90 & 100mm | 345 |
475-567 488-585 |
1,315 lbs. |
| HD355-110-100 | 100 & 110mm | 360 |
483-565 498-595 |
1,490 lbs. |
FITS
35MT
| MAKE / WEIGHT CLASS | 35MT (68,500 – 82,000 LBS.) |
| CASE | CX350 |
| CAT | 330, 335, 336F DB-LINKAGE |
| DOOSAN | DX350LC-5, DX420LC-5 |
| HITACHI | ZX350, ZX380 |
| HYUNDAI | HX330, HX350, HX380 |
| JOHN DEERE | 350G, 380G, 350P |
| KOBELCO | SK350 |
| KOMATSU | PC300, PC350, PC360, PC390 |
| LIEBHERR | R 934 CL, R 924 C, R936 |
| LINK BELT | 350X4 |
| SANY | SY365 |
| TAKEUCHI | |
| VOLVO | EC330, EC340, EC350, EC360, EC380 |
